MikroTik SXTsq 5 ac | 16dBi, 5GHz Integrated CPE/Backbone RBSXTSQG-5acD

MikroTik SXTsq 5 ac 16dBi 5GHz Integrated CPE/Backbone RBSXTSQG-5acD Key Features

• 5GHz 802.11ac wireless connectivity
• 16dBi integrated directional antenna
• Dual-chain wireless design
• Up to 867Mbps wireless data rate
• 1 × Gigabit Ethernet port
• Quad-core IPQ-4018 processor
• 256MB RAM
• 16MB Flash storage
• RouterOS operating system
• RouterOS Level 3 license
• Passive PoE input
• IP55 outdoor protection
• Compact and lightweight design
• Suitable for point-to-point links and CPE deployments
• Passive cooling for quiet operation

MikroTik SXTsq 5 ac 16dBi 5GHz Integrated CPE/Backbone RBSXTSQG-5acD Introduction

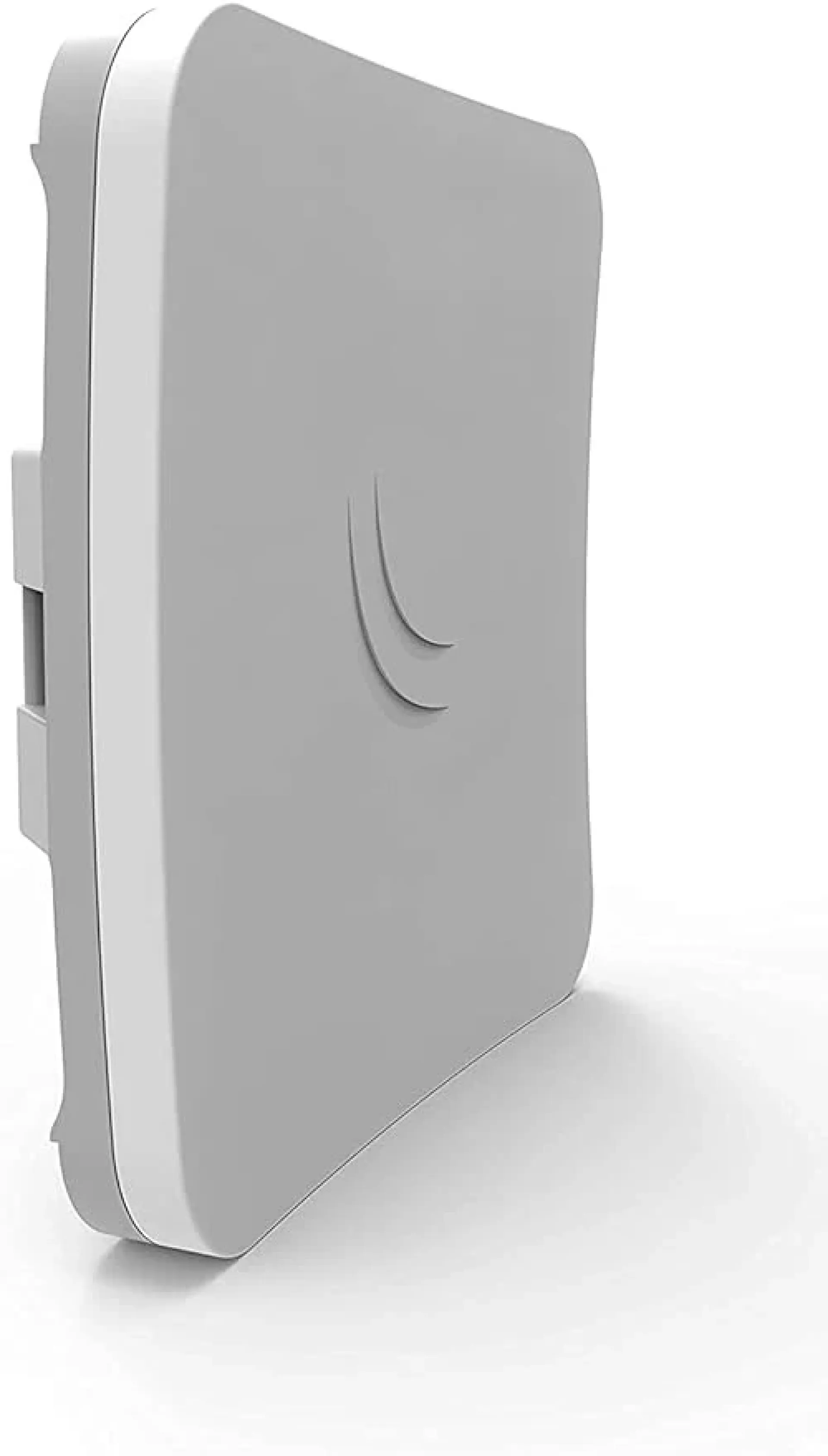

The MikroTik SXTsq 5 ac is a compact outdoor 5GHz wireless device designed for point-to-point wireless links, backbone connections, and customer-premises equipment deployments. It features an integrated 16dBi directional antenna and dual-chain 802.11a/n/ac wireless technology, making it suitable for establishing reliable wireless connections over distance.

The device combines a high-gain directional antenna with Gigabit Ethernet connectivity and MikroTik RouterOS. Its compact enclosure is designed for outdoor installation and provides IP55 protection against dust and water, making it suitable for a variety of outdoor networking environments.

MikroTik SXTsq 5 ac 16dBi 5GHz Integrated CPE/Backbone RBSXTSQG-5acD Price in Kenya

MikroTik SXTsq 5 ac 16dBi 5GHz Integrated CPE/Backbone RBSXTSQG-5acD Key Specifications

MikroTik SXTsq 5 ac 16dBi 5GHz Integrated CPE/Backbone RBSXTSQG-5acD Performance

The SXTsq 5 ac is designed to provide stable and efficient wireless connectivity for outdoor network deployments.

• 5GHz wireless operation helps reduce congestion commonly found on 2.4GHz networks
• 16dBi directional antenna provides focused wireless coverage
• 802.11ac support enables high wireless throughput
• Dual-chain radio improves wireless performance
• Gigabit Ethernet allows the wired interface to take advantage of 802.11ac speeds
• RouterOS provides advanced routing, bridging, firewall, and wireless configuration options
• MikroTik testing shows close to Gigabit Ethernet throughput under suitable configurations

MikroTik SXTsq 5 ac 16dBi 5GHz Integrated CPE/Backbone RBSXTSQG-5acD Build Quality & Design

The SXTsq 5 ac features a compact outdoor enclosure designed for easy installation on poles and other suitable mounting locations.

• Compact 129 × 129 × 34 mm enclosure
• Lightweight construction
• IP55 protection for outdoor use
• Passive cooling with no cooling fan
• Integrated 16dBi directional antenna
• Grounding connection for outdoor installation
• Designed for operation from -40°C to 70°C
• Includes mounting hardware and Gigabit PoE injector

MikroTik SXTsq 5 ac 16dBi 5GHz Integrated CPE/Backbone RBSXTSQG-5acD Connectivity & Compatibility

The device provides wireless and wired connectivity for outdoor network installations.

• 5GHz 802.11a/n/ac wireless
• 1 × Gigabit Ethernet port
• Passive PoE input
• 10–28V DC input through PoE
• Integrated 16dBi directional antenna
• RouterOS-based configuration
• Suitable for compatible MikroTik wireless networks
• Can operate as a CPE or point-to-point wireless link

MikroTik SXTsq 5 ac 16dBi 5GHz Integrated CPE/Backbone RBSXTSQG-5acD Ideal Use Cases

This device is best suited for:

• Point-to-point wireless links
• Building-to-building connections
• Outdoor network backbones
• ISP customer-premises installations
• Wireless internet distribution
• CCTV backhaul connections
• Remote network connectivity
• Rural wireless networking
• Campus network links
• Long-distance outdoor networking

MikroTik SXTsq 5 ac 16dBi 5GHz Integrated CPE/Backbone RBSXTSQG-5acD Pros and Cons

MikroTik SXTsq 5 ac 16dBi 5GHz Integrated CPE/Backbone RBSXTSQG-5acD FAQs

What is the MikroTik SXTsq 5 ac used for?
It is designed primarily for outdoor point-to-point wireless links, backbone connections, and CPE installations.

What antenna gain does the SXTsq 5 ac have?
It has an integrated 16dBi directional antenna operating on the 5GHz band.

Does it support Gigabit Ethernet?
Yes. The device has one 10/100/1000Mbps Gigabit Ethernet port.

What wireless standard does it use?
It supports 802.11a/n/ac on the 5GHz band.

Does the SXTsq 5 ac support PoE?
Yes. It accepts passive PoE input and has a maximum power consumption of 7W.

Is it suitable for outdoor use?
Yes. The device has an IP55-rated enclosure and is designed for outdoor installations.

Does it have built-in Wi-Fi?
Yes. It has an integrated 5GHz wireless radio with a directional 16dBi antenna.

What RouterOS license does it use?
The SXTsq 5 ac uses a Level 3 RouterOS license, which is suitable for CPE and point-to-point applications.

MikroTik SXTsq 5 ac 16dBi 5GHz Integrated CPE/Backbone RBSXTSQG-5acD Conclusion

The MikroTik SXTsq 5 ac is a compact and capable outdoor 5GHz wireless device designed for point-to-point links, CPE installations, and wireless backbone connections. Its 16dBi integrated directional antenna, 802.11ac wireless technology, Gigabit Ethernet port, RouterOS, and IP55 outdoor protection make it a practical solution for professional outdoor networking.

At KSh 10,500, the MikroTik SXTsq 5 ac offers a cost-effective option for users looking to establish reliable 5GHz wireless links and outdoor network connections.
