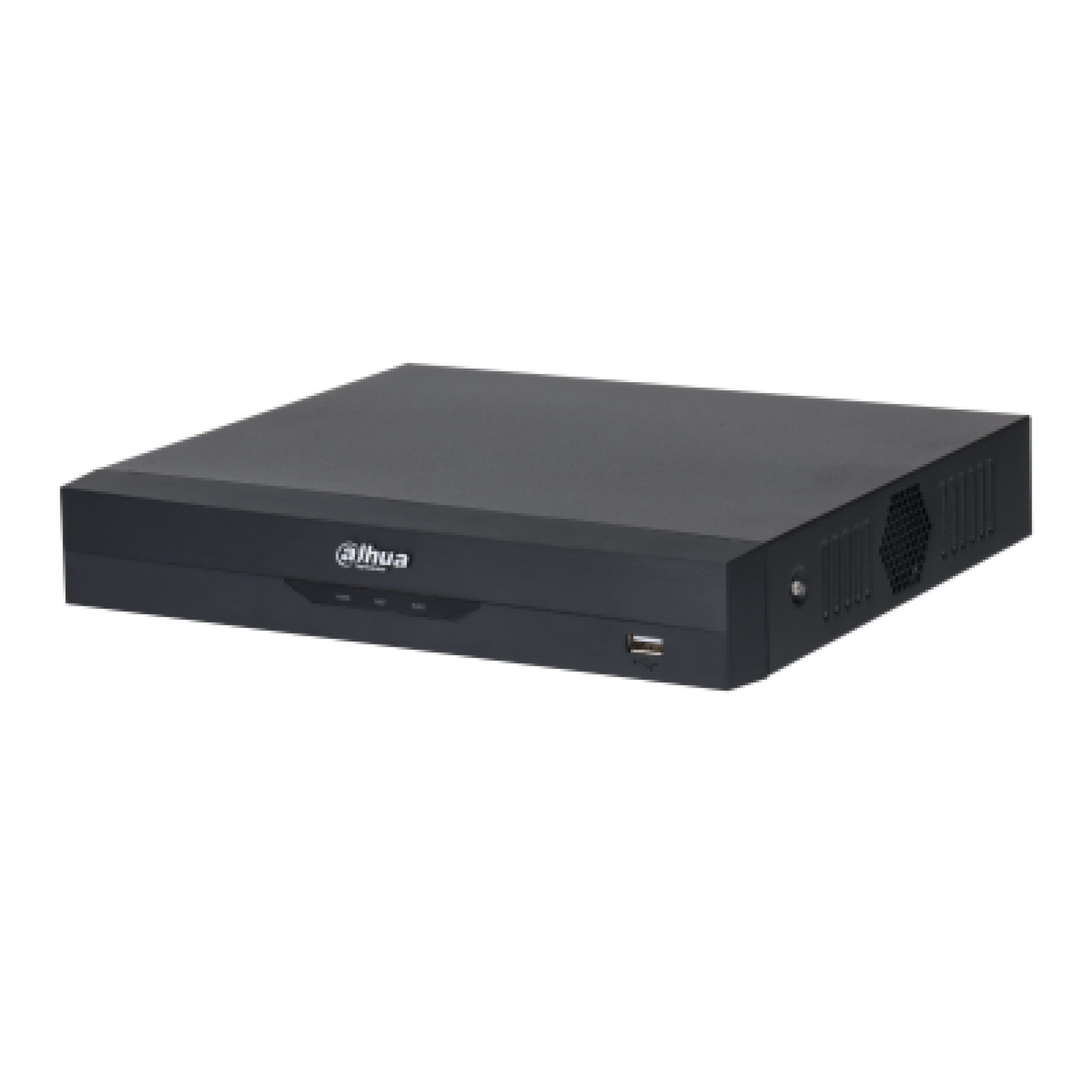

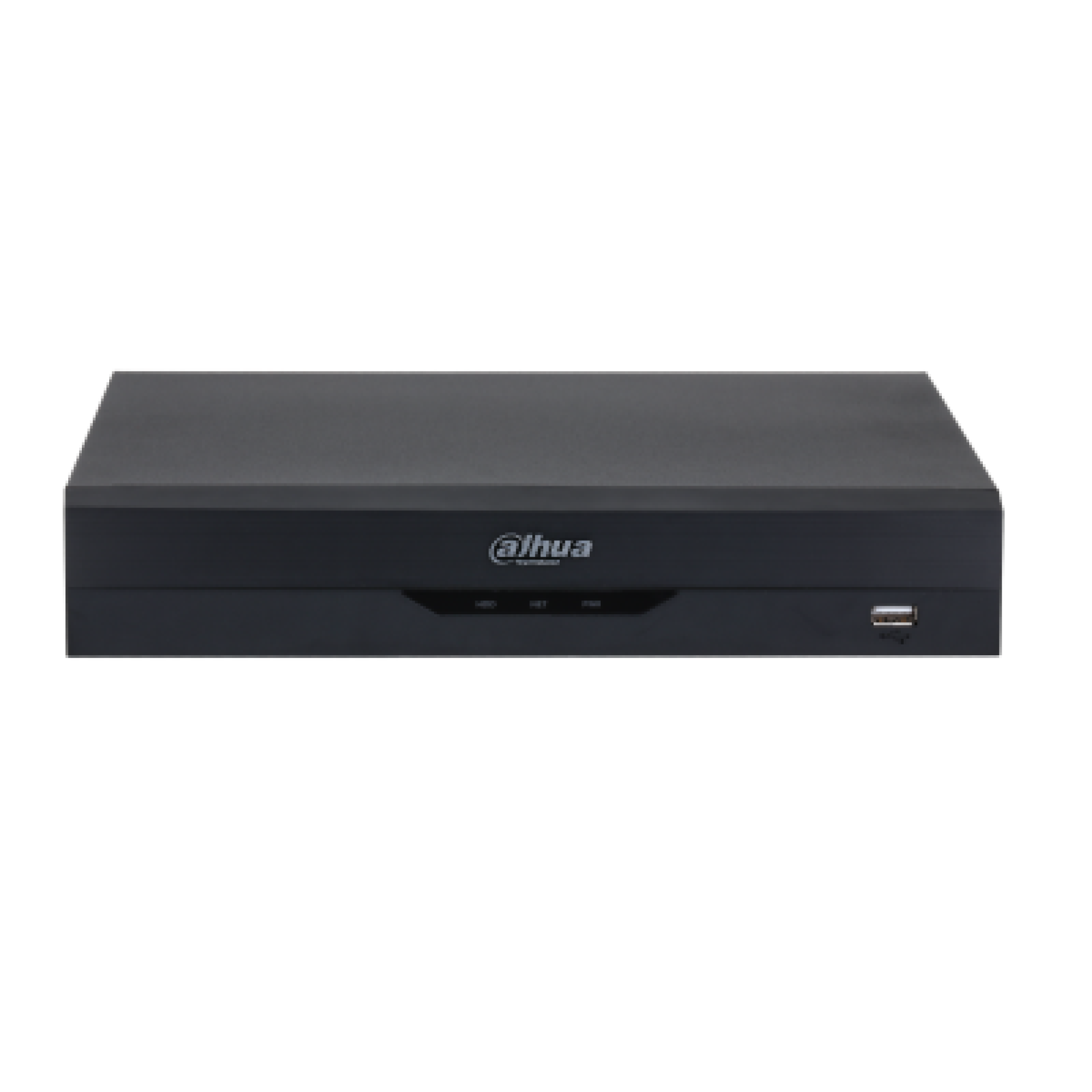

Dahua XVR5108HS Penta-brid 5MP 8 Channel BNC inputs 12 IP camera channels

Dahua XVR5108HS Penta-brid 5MP 8 Channel BNC inputs 12 IP camera channels

• Model – Dahua XVR5108HS Penta‑brid DVR/NVR

• Video inputs – 8 BNC channels (supports HDCVI, AHD, TVI, CVBS)

• IP camera channels – Up to 12 IP camera channels (max 6 MP input)

• Resolution – 5MP recording capability

• Compression – H.265+/H.265/H.264+ encoding

• Outputs – HDMI and VGA simultaneous video output

• Storage – 1 SATA HDD up to 6 TB

• Smart features – Motion detection, smart search, playback, AI coding support

• Network – 1 RJ‑45 port (10/100 Mbps Ethernet)

• Audio – 1 channel input, 1 channel output

• Power supply – DC 12 V/2 A

• Operating conditions – –10 °C to +55 °C, humidity ≤95%

Dahua XVR5108HS Penta-brid 5MP 8 Channel BNC inputs 12 IP camera channels

The Dahua XVR5108HS Penta-brid 5MP DVR is a professional hybrid video recorder designed for reliable surveillance in homes, offices, schools, retail stores, and commercial properties. It features 8 BNC analog camera inputs and supports up to 12 IP camera channels, providing flexibility for expanding CCTV systems. The recorder supports HDCVI, AHD, TVI, CVBS, and IP cameras, incorporates Smart H.265+ compression, WizSense AI features, and allows remote monitoring through the DMSS mobile application. It is an excellent choice for users seeking an intelligent and scalable CCTV recording solution.

Dahua XVR5108HS 8-Channel Penta-brid 5MP DVR Price in Kenya

Dahua XVR5108HS 8-Channel Penta-brid 5MP DVR Key Specifications

Dahua XVR5108HS 8-Channel Penta-brid 5MP DVR Design & Build

• Compact 1U desktop design.
• Durable metal chassis.
• Front LED status indicators.
• HDMI and VGA display outputs.
• USB ports for mouse and data backup.
• Designed for continuous 24/7 operation.

Dahua XVR5108HS 8-Channel Penta-brid 5MP DVR Features and Performance

• Supports HDCVI, AHD, TVI, CVBS, and IP cameras.
• Connects up to 8 analog cameras and 12 IP cameras.
• Smart H.265+ compression reduces storage and bandwidth usage.
• WizSense AI features include Smart Motion Detection (SMD), perimeter protection, and face recognition.
• AI Coding optimizes video quality while saving storage space.
• Supports simultaneous live view, recording, playback, backup, and remote monitoring.

Dahua XVR5108HS 8-Channel Penta-brid 5MP DVR Ideal Use Cases

• Home CCTV systems.
• Office surveillance.
• Retail stores and supermarkets.
• Schools and colleges.
• Warehouses.
• Commercial buildings.

Dahua XVR5108HS 8-Channel Penta-brid 5MP DVR Connectivity and Compatibility

• Compatible with HDCVI, AHD, TVI, CVBS, and IP cameras.
• Supports ONVIF-compatible IP cameras.
• HDMI and VGA outputs for monitor connection.
• Ethernet port for network access and remote management.
• Compatible with Android and iOS through the DMSS app.
• USB ports support external storage devices for backups.

Dahua XVR5108HS 8-Channel Penta-brid 5MP DVR Pros and Cons

FAQs

1. How many cameras does the Dahua XVR5108HS support?

It supports 8 analog cameras through BNC inputs and can be expanded to 12 IP camera channels, depending on the system configuration.

2. Which camera technologies are supported?

The recorder supports HDCVI, AHD, TVI, CVBS, and IP cameras, making it suitable for hybrid CCTV installations.

3. What is the maximum hard drive capacity?

The XVR supports one SATA hard drive with a capacity of up to 16TB for long-term video storage.

4. Can I monitor the recorder remotely?

Yes. It supports remote live viewing, playback, and device management through the DMSS mobile application for Android and iOS devices.

5. Does it support AI features?

Yes. It includes WizSense AI features such as Smart Motion Detection (SMD), perimeter protection, face recognition, and AI Coding for improved security and storage efficiency.

6. Is the Dahua XVR5108HS 8-Channel Penta-brid 5MP DVR worth buying?

Yes. With support for 8 analog channels, 12 IP camera channels, Smart H.265+ compression, WizSense AI features, up to 16TB storage, and remote monitoring through the DMSS app, it is an excellent recording solution for medium-sized CCTV installations. At KSh 14,500, it offers excellent value for residential and commercial security systems.

Conclusion

The Dahua XVR5108HS 8-Channel Penta-brid 5MP DVR is a powerful hybrid recorder that combines support for multiple camera technologies with advanced WizSense AI, Smart H.265+ compression, and flexible expansion to 12 IP cameras. Its dependable performance, intelligent surveillance features, and affordable price of KSh 14,500 make it an excellent choice for businesses, institutions, and homeowners looking to build a reliable CCTV system.
