DAHUA NVR1104HS-P-S3/H(V2.0) 4‑Channel PoE NVR Embedded Linux Operating system

DAHUA NVR1104HS-P-S3/H(V2.0) 4‑Channel PoE NVR Embedded Linux Operating system

• Model – Dahua NVR1104HS‑P‑S3/H (V2.0)

• Channels – 4 IP camera channels

• PoE ports – 4 PoE ports (IEEE 802.3af/at)

• Resolution – Up to 6 MP recording per channel

• Compression – H.265+/H.265/H.264+ encoding

• Operating system – Embedded Linux

• Outputs – HDMI and VGA simultaneous video output

• Storage – 1 SATA HDD up to 6 TB

• Smart features – Motion detection, playback, smart search, AI coding support

• Network – 1 RJ‑45 port (10/100 Mbps Ethernet)

• Audio – 1 channel input, 1 channel output

• Power supply – DC 48 V (PoE integrated)

• Operating conditions – –10 °C to +55 °C, humidity ≤95%

DAHUA NVR1104HS-P-S3/H(V2.0) 4‑Channel PoE NVR Embedded Linux Operating system

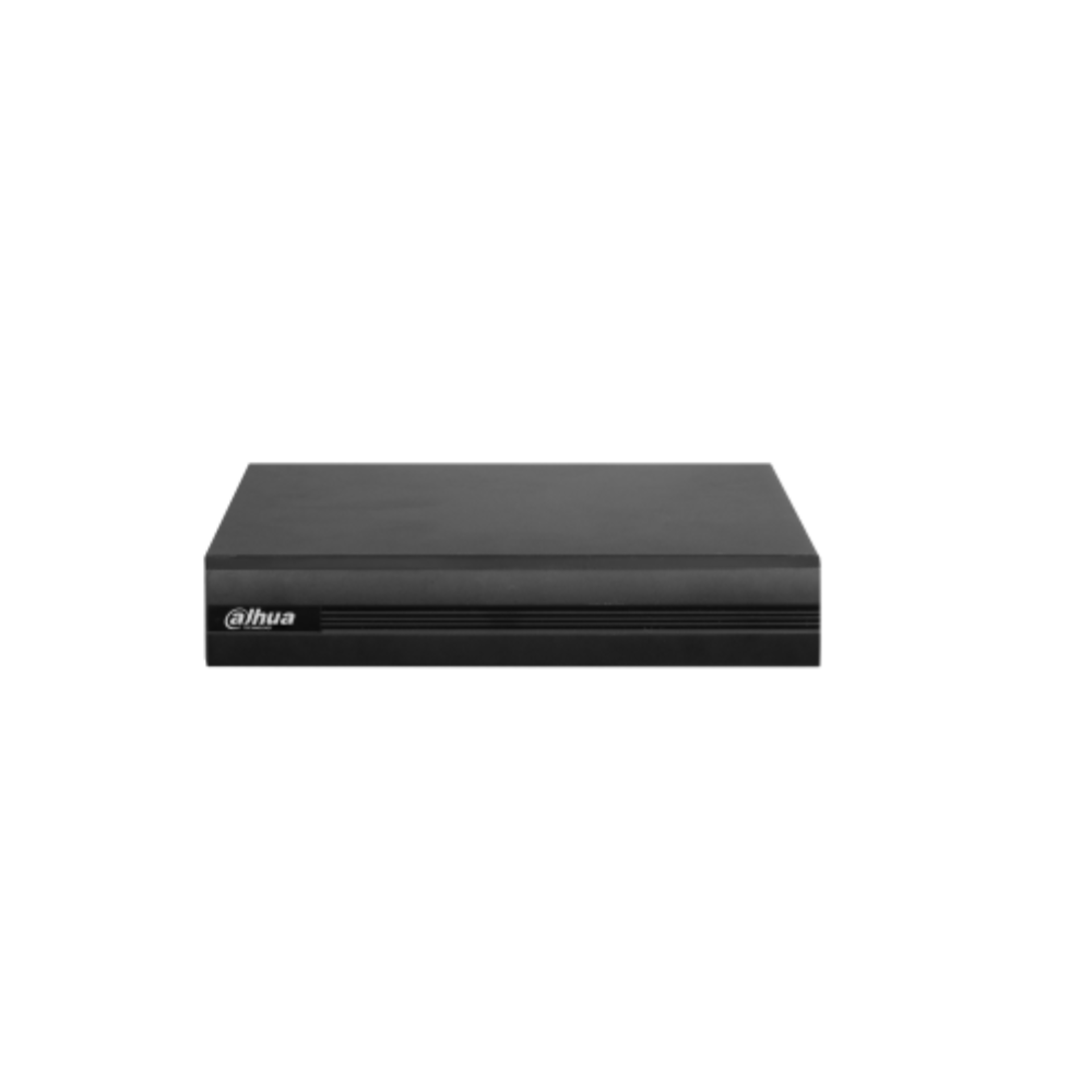

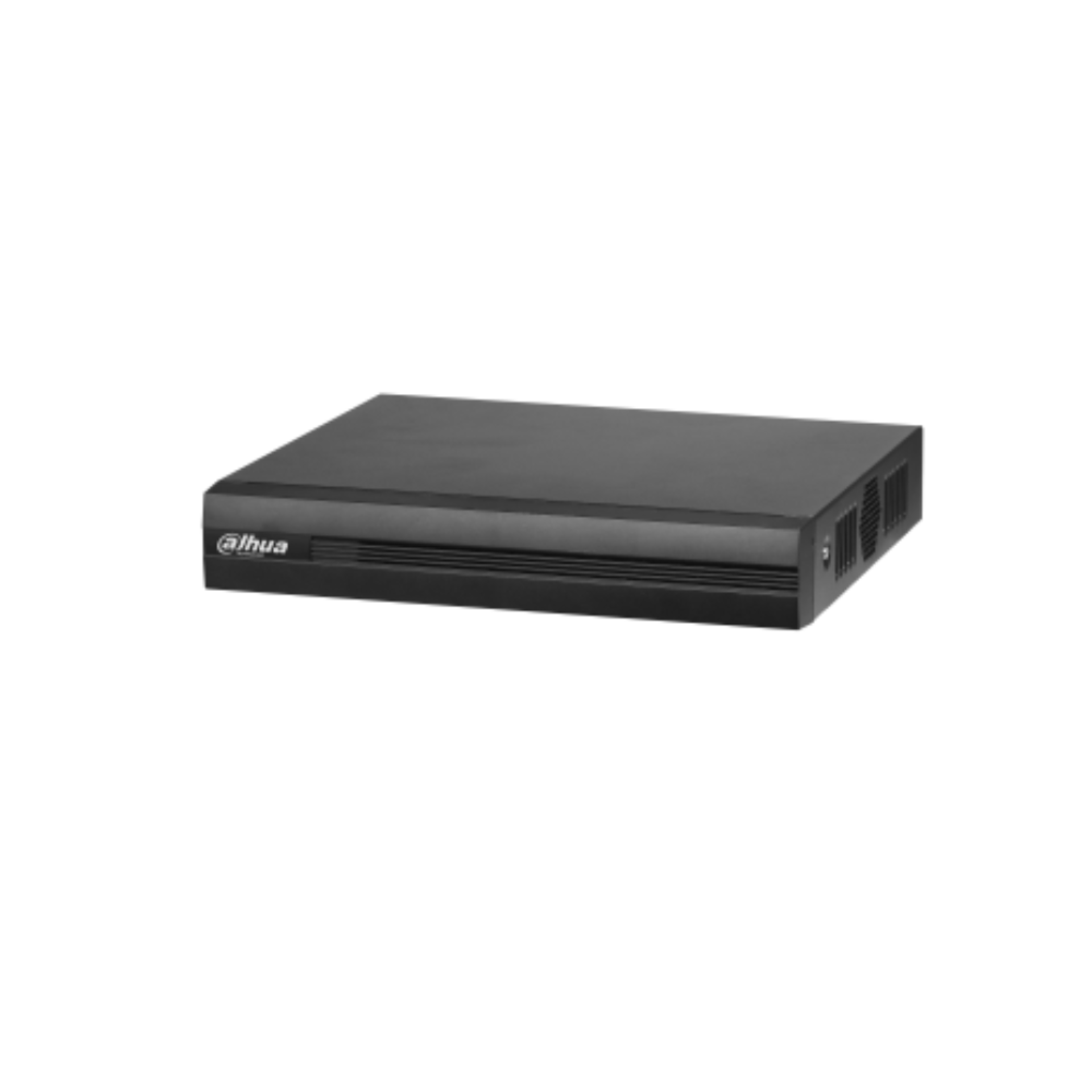

The DAHUA NVR1104HS-P-S3/H (V2.0) 4-Channel PoE NVR is a compact network video recorder designed for small surveillance systems. Running on an Embedded Linux operating system, it supports up to 4 IP cameras with 4 built-in PoE ports for simplified installation. The recorder supports H.265+ and H.264+ video compression, up to 8MP recording resolution, HDMI and VGA video outputs, and remote monitoring through the DMSS mobile application. It is ideal for homes, offices, retail shops, and small businesses.

DAHUA NVR1104HS-P-S3/H (V2.0) 4-Channel PoE NVR Price in Kenya

DAHUA NVR1104HS-P-S3/H (V2.0) 4-Channel PoE NVR Key Specifications

DAHUA NVR1104HS-P-S3/H (V2.0) 4-Channel PoE NVR Design & Build

• Compact 1U desktop design.
• Durable metal enclosure.
• Four integrated PoE ports.
• HDMI and VGA display outputs.
• Front and rear USB 2.0 ports.
• Designed for reliable 24/7 surveillance.

DAHUA NVR1104HS-P-S3/H (V2.0) 4-Channel PoE NVR Features and Performance

• Supports up to 4 IP cameras with plug-and-play PoE connectivity.
• Records video at resolutions up to 8MP.
• Smart H.265+ compression reduces storage and bandwidth usage.
• Supports ONVIF and RTSP protocols for broad camera compatibility.
• Provides remote live viewing, playback, and device management through the DMSS app.
• Offers incoming and recording bandwidth of up to 80 Mbps for smooth video performance.

DAHUA NVR1104HS-P-S3/H (V2.0) 4-Channel PoE NVR Ideal Use Cases

• Home security systems.
• Small office surveillance.
• Retail stores.
• Clinics and pharmacies.
• Small warehouses.
• Educational institutions.

DAHUA NVR1104HS-P-S3/H (V2.0) 4-Channel PoE NVR Connectivity and Compatibility

• Supports ONVIF and RTSP compatible IP cameras.
• Features four built-in PoE ports for direct camera connection.
• HDMI and VGA outputs for monitor connectivity.
• Ethernet port for remote access and network management.
• Compatible with Android and iOS through the DMSS app.
• Supports remote camera configuration and firmware updates for compatible Dahua cameras.

DAHUA NVR1104HS-P-S3/H (V2.0) 4-Channel PoE NVR Pros and Cons

FAQs

1. How many cameras does the DAHUA NVR1104HS-P-S3/H (V2.0) support?

It supports up to 4 IP cameras and includes 4 built-in PoE ports for direct camera connection.

2. What is the maximum recording resolution?

The NVR supports recording at up to 8MP resolution, providing high-quality video for detailed surveillance.

3. Does it include Power over Ethernet (PoE)?

Yes. It has 4 integrated PoE ports, allowing compatible IP cameras to receive power and data through a single Ethernet cable.

4. What is the maximum hard drive capacity?

The recorder supports one SATA hard drive with a capacity of up to 8TB for video storage.

5. Can I monitor the recorder remotely?

Yes. The DMSS mobile application allows live viewing, playback, notifications, and remote management from Android and iOS devices.

6. Is the DAHUA NVR1104HS-P-S3/H (V2.0) 4-Channel PoE NVR worth buying?

Yes. With 4 built-in PoE ports, 8MP recording support, Embedded Linux, Smart H.265+ compression, and convenient remote monitoring, it is an excellent choice for small IP surveillance systems. At KSh 10,000, it delivers reliable performance and great value.

Conclusion

The DAHUA NVR1104HS-P-S3/H (V2.0) 4-Channel PoE NVR is a dependable recorder for modern IP surveillance installations. Its Embedded Linux operating system, 4 integrated PoE ports, 8MP recording capability, Smart H.265+ compression, and easy remote management through the DMSS app make it an ideal solution for homes, offices, and small businesses. At KSh 10,000, it offers an affordable and efficient network video recording solution.
