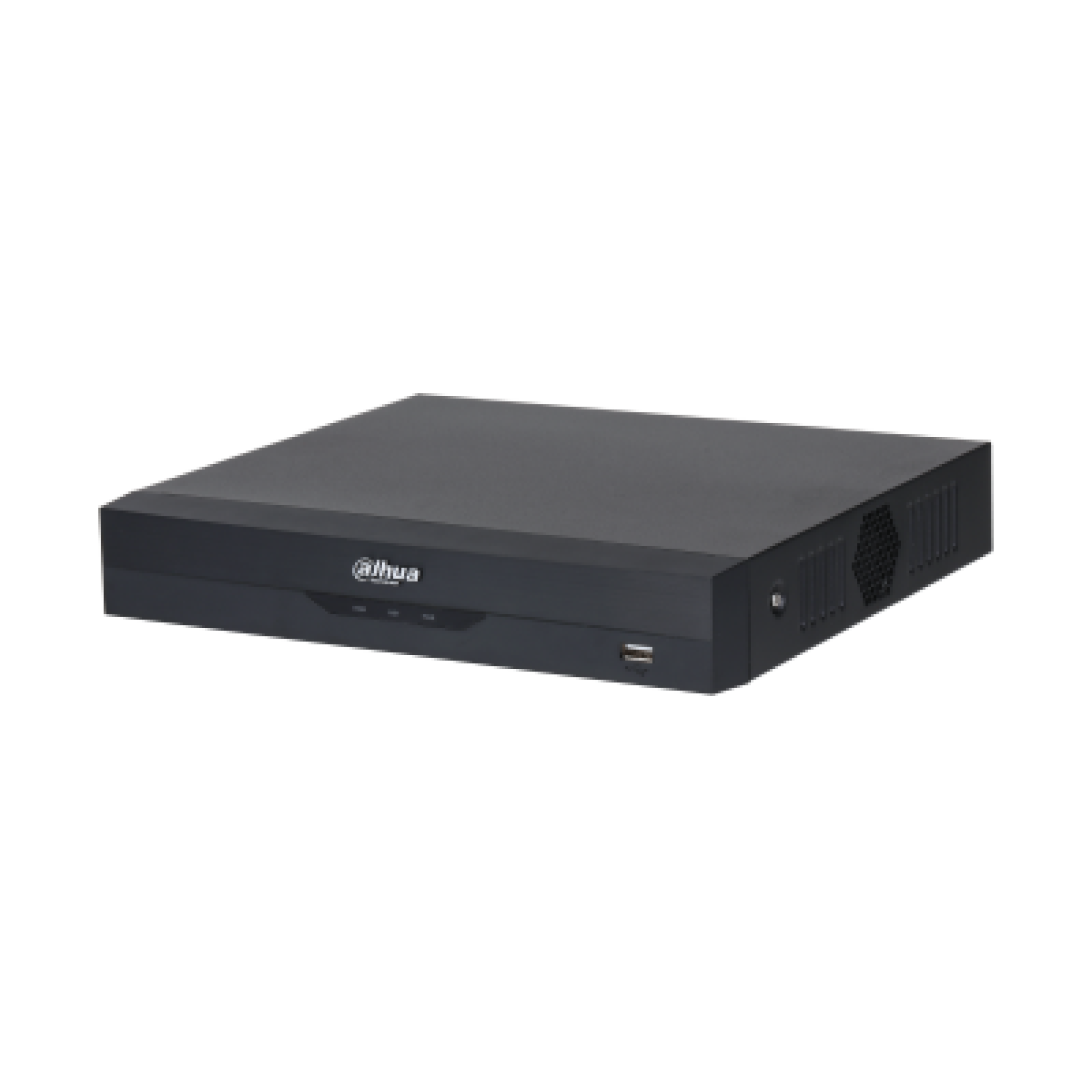

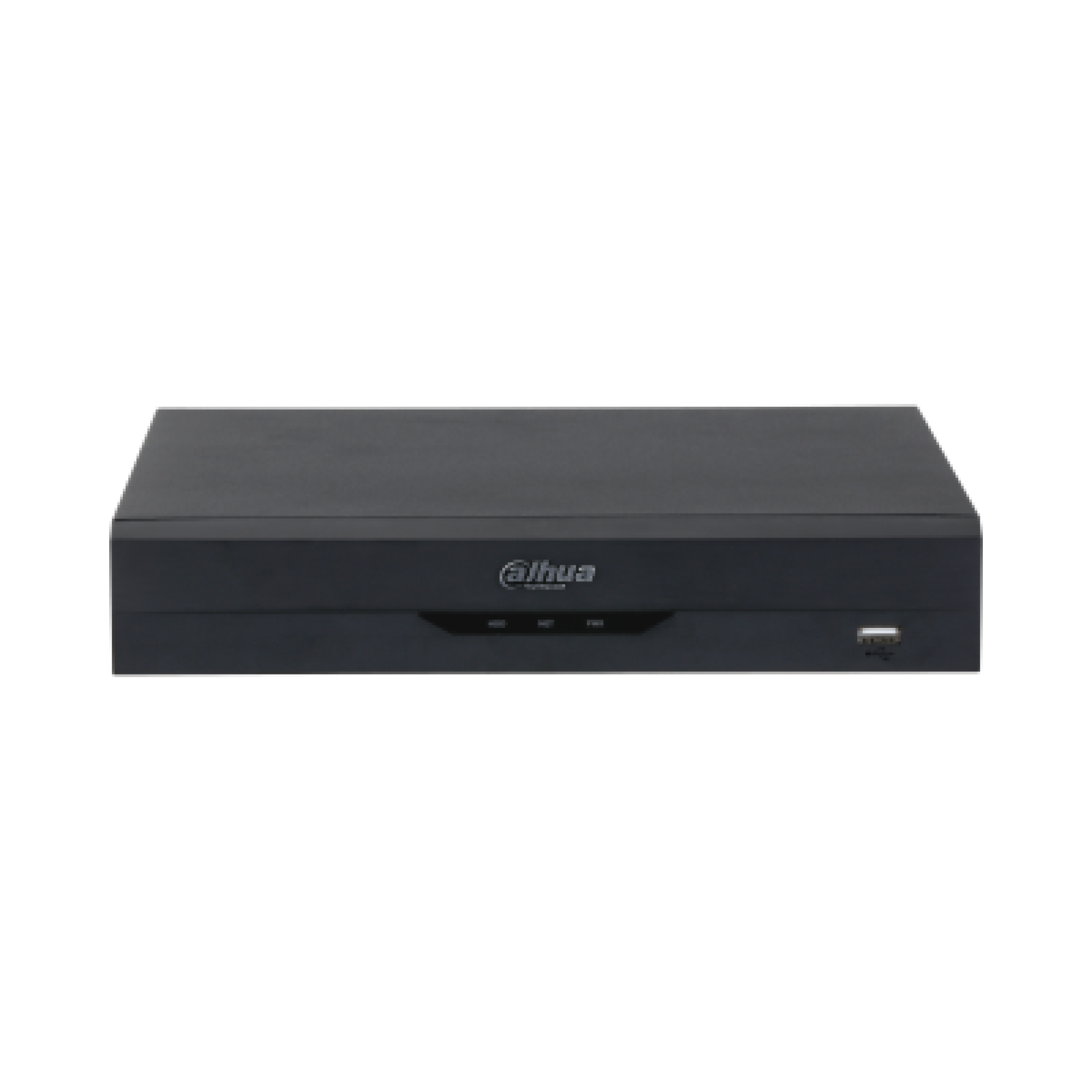

DAHUA NVR4232-16P-EI NVR -32CH 1U 16PoE 2HDDs Embedded Linux Operating system
-
Model – Dahua NVR4232‑16P‑EI
-
Channels – 32 IP camera channels
-
PoE ports – 16 PoE ports (IEEE 802.3af/at)
-
Resolution – Up to 12 MP recording per channel (enhanced compared to Lite series)
-
Compression – H.265+/H.265/H.264+ encoding
-
Operating system – Embedded Linux
-
Outputs – HDMI and VGA simultaneous video output
-
Storage – 2 SATA HDDs up to 10 TB each (20 TB total)
-
Smart features – AI functions (face detection, perimeter protection, SMD Plus), motion detection, playback, smart search
-
Network – 1 RJ‑45 port (10/100/1000 Mbps Gigabit Ethernet)
-
Audio – 1 channel input, 1 channel output
-
Power supply – DC 48 V (PoE integrated)
-
Operating conditions – –10 °C to +55 °C, humidity ≤95%
DAHUA NVR4232-16P-EI NVR -32CH 1U 16PoE 2HDDs Embedded Linux Operating system
The DAHUA NVR4232-16P-EI 32-Channel 1U 16-PoE 2-HDD NVR is a professional-grade WizSense Network Video Recorder designed for medium and large IP surveillance systems. Powered by an Embedded Linux operating system, it supports up to 32 IP cameras and includes 16 built-in PoE ports for plug-and-play camera installation. The recorder supports up to 16MP camera resolution, Smart H.265+ video compression, advanced AI functions such as face recognition, Smart Motion Detection (SMD Plus), and perimeter protection, making it ideal for businesses, schools, hotels, warehouses, and commercial properties.
DAHUA NVR4232-16P-EI 32-Channel 16-PoE NVR Price in Kenya
| Product | Price |
|---|---|
| DAHUA NVR4232-16P-EI 32-Channel 1U 16-PoE 2-HDD NVR | KSh 33,000 |
DAHUA NVR4232-16P-EI 32-Channel 16-PoE NVR Key Specifications
| Specification | Details |
|---|---|
| Product Type | 32-Channel PoE Network Video Recorder |
| Model | NVR4232-16P-EI |
| Operating System | Embedded Linux |
| IP Camera Channels | 32 |
| PoE Ports | 16 × IEEE 802.3af/at PoE Ports |
| Maximum Camera Resolution | Up to 16MP |
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG |
| Incoming/Recording/Outgoing Bandwidth | 256 Mbps |
| Storage | 2 SATA HDD Bays (Up to 20TB per HDD) |
| Network Interface | 1 × Gigabit Ethernet (RJ-45) |
DAHUA NVR4232-16P-EI 32-Channel 16-PoE NVR Design & Build
- Compact 1U rack-mountable design.
- Durable metal enclosure.
- Sixteen integrated PoE ports for simplified installation.
- HDMI and VGA simultaneous display outputs.
- Front and rear USB ports for backup and peripherals.
- Designed for continuous 24/7 surveillance.
DAHUA NVR4232-16P-EI 32-Channel 16-PoE NVR Features and Performance
- Supports up to 32 IP cameras with resolutions up to 16MP.
- Smart H.265+ compression minimizes storage and bandwidth usage.
- AI by Recorder supports 1-channel face detection and recognition.
- Supports 4-channel Smart Motion Detection (SMD Plus) and 2-channel perimeter protection.
- AI by Camera supports face recognition, ANPR, people counting, stereo analysis, and heat mapping.
- Provides up to 256 Mbps incoming, recording, and outgoing bandwidth for smooth video management.
DAHUA NVR4232-16P-EI 32-Channel 16-PoE NVR Ideal Use Cases
- Corporate office buildings.
- Shopping malls and retail stores.
- Hotels and hospitality facilities.
- Schools and universities.
- Warehouses and manufacturing plants.
- Large residential and commercial security installations.
DAHUA NVR4232-16P-EI 32-Channel 16-PoE NVR Connectivity and Compatibility
- Compatible with ONVIF-compliant IP cameras.
- Features 16 built-in PoE ports for direct camera connectivity.
- HDMI and VGA outputs for monitor connection.
- Gigabit Ethernet port for high-speed networking.
- Compatible with Android and iOS through the DMSS app.
- Supports remote configuration, playback, firmware updates, and integration with Dahua AI cameras.
DAHUA NVR4232-16P-EI 32-Channel 16-PoE NVR Pros and Cons
| Pros | Cons |
|---|---|
| Supports up to 32 IP cameras | Hard drives sold separately |
| Sixteen built-in PoE ports | AI features require compatible cameras for full functionality |
| Supports up to 16MP camera resolution | |
| 256 Mbps bandwidth for high-performance recording | |
| Advanced WizSense AI analytics | |
| Remote monitoring via the DMSS app |
FAQs
1. How many cameras does the DAHUA NVR4232-16P-EI support?
It supports up to 32 IP cameras and includes 16 built-in PoE ports for direct connection of compatible cameras.
2. What is the maximum supported camera resolution?
The recorder supports IP cameras with resolutions of up to 16MP, delivering highly detailed surveillance footage.
3. How much storage does the NVR support?
It features 2 SATA HDD bays, with up to 20TB supported per hard drive, providing a maximum storage capacity of 40TB.
4. What AI features are available?
The recorder supports face detection, face recognition, Smart Motion Detection (SMD Plus), perimeter protection, and AI features from compatible cameras, including ANPR, people counting, stereo analysis, and heat mapping.
5. Can I monitor the recorder remotely?
Yes. The DMSS mobile application allows remote live viewing, playback, notifications, and recorder management from Android and iOS devices.
6. Is the DAHUA NVR4232-16P-EI 32-Channel 16-PoE NVR worth buying?
Yes. With 32-channel support, 16 integrated PoE ports, 16MP recording capability, 256 Mbps bandwidth, advanced WizSense AI, and dual HDD support, it is an excellent solution for demanding commercial surveillance systems. At KSh 33,000, it delivers exceptional performance and scalability.
Conclusion
The DAHUA NVR4232-16P-EI 32-Channel 1U 16-PoE 2-HDD NVR is a powerful enterprise-grade recorder built for advanced IP surveillance. Its Embedded Linux operating system, 32-channel capacity, 16 integrated PoE ports, 16MP camera support, 256 Mbps bandwidth, dual HDD bays, and intelligent WizSense AI capabilities make it an excellent choice for businesses, educational institutions, warehouses, hotels, and large commercial installations. At KSh 33,000, it offers a reliable, scalable, and future-ready surveillance recording solution.
