Dahua KTA02 wire analog video intercom kit:Indoor monitor specs

Dahua KTA02 wire analog video intercom kit:Indoor monitor specs

• Display – 7.0″ TFT screen, resolution 1024 × 600

• Communication mode – Analog (4‑wire system)

• Functions – Unlock, voice call, video call, volume adjustment

• System capacity – Supports 2 door stations + 3 indoor monitors

• Bell sounds – Multiple selectable tones

• Dynamic range – Digital Wide Dynamic Range (DWDR) supported

• Status indicator – 1 green LED (power on)

• Casing – PC + ABS plastic, white color

• Installation – Surface mount, bracket included

• Power supply – DC 12 V/1A or 12 V/2A adapter (included)

• Power consumption – ≤2 W standby, ≤5 W working

• Dimensions – 133.9 × 182.7 × 17.7 mm (5.27″ × 7.19″ × 0.70″)

• Weight – Net 0.25 kg, gross 0.48 kg

• Operating conditions – –10 °C to +55 °C, humidity 10%–95%

• Certifications – CE/FCC

Dahua KTA02 wire analog video intercom kit:Indoor monitor specs

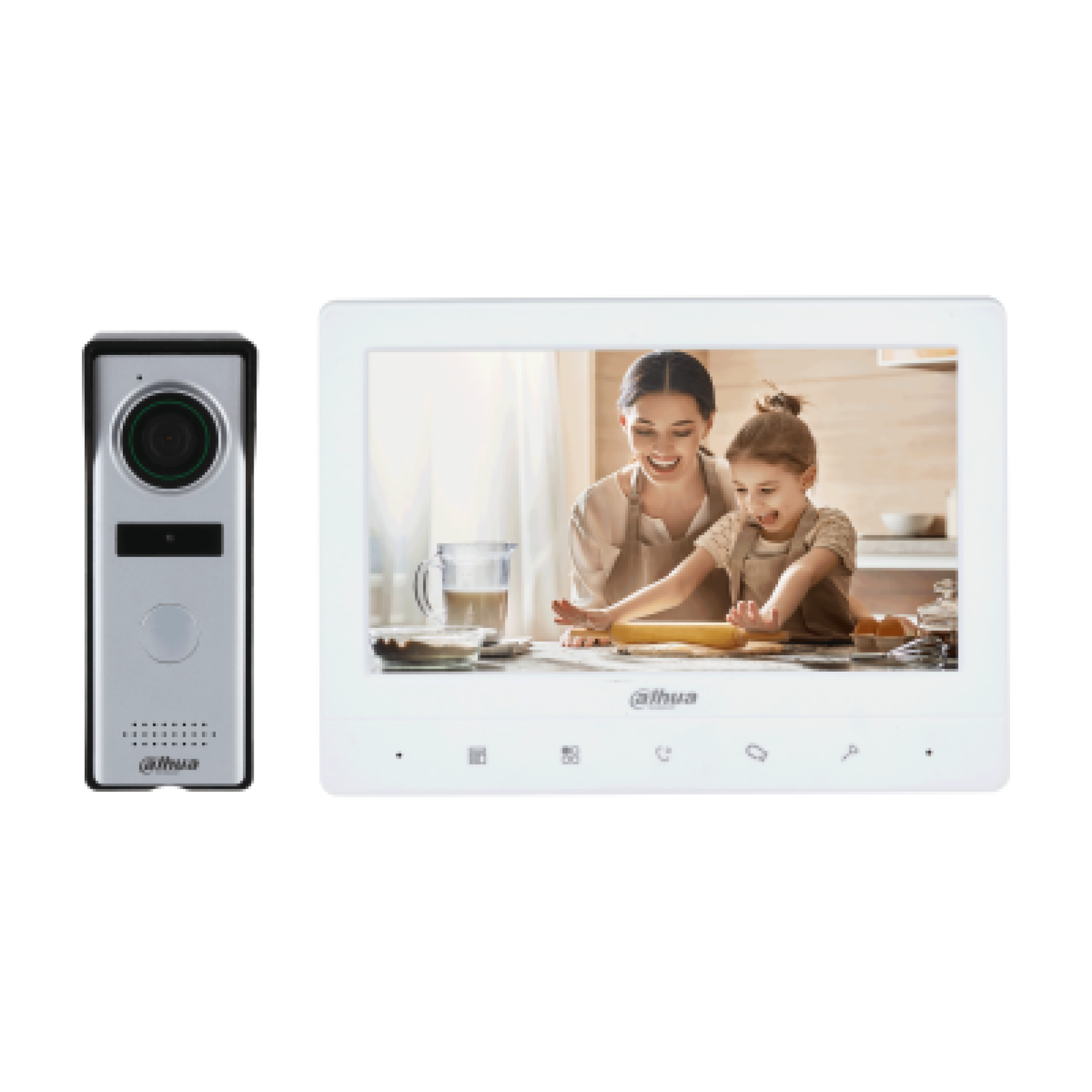

The Dahua KTA02 Wired Analog Video Intercom Kit is a complete analog video intercom solution designed for homes, apartments, offices, and small commercial buildings. The kit includes a 7-inch TFT indoor monitor (VTH1020J) and a 1.3MP outdoor door station (VTO1000J), providing clear video communication, remote door unlocking, and reliable visitor management.

The system supports up to 2 door stations and 3 indoor monitors, making it suitable for expanding access control in residential and business environments. With its simple 4-wire installation, digital WDR, infrared night vision, and durable outdoor design, the KTA02 offers dependable security and convenience.

Dahua KTA02 Wired Analog Video Intercom Kit Price in Kenya

Dahua KTA02 Wired Analog Video Intercom Kit Key Specifications

Dahua KTA02 Wired Analog Video Intercom Kit Design & Build

• Slim 7-inch indoor monitor with touch buttons.
• Compact outdoor door station with integrated camera.
• Weather-resistant IP66 outdoor unit.
• Durable PC + ABS construction.
• Surface-mounted installation.
• Modern design suitable for residential and office entrances.

Dahua KTA02 Wired Analog Video Intercom Kit Features and Performance

• 7-inch TFT display with 1024 × 600 resolution.
• 1.3MP outdoor camera for clear visitor identification.
• Video calling, voice calling, and remote door unlock functions.
• Digital Wide Dynamic Range (DWDR) improves image quality.
• Automatic infrared night vision for low-light conditions.
• Multiple ringtone options with adjustable call volume.

Dahua KTA02 Wired Analog Video Intercom Kit Ideal Use Cases

• Residential homes.
• Apartments and gated communities.
• Offices.
• Shops and retail stores.
• Small commercial buildings.
• Staff entrances and reception areas.

Dahua KTA02 Wired Analog Video Intercom Kit Connectivity and Compatibility

• Supports analog 4-wire communication.
• Expandable to 2 outdoor stations.
• Supports up to 3 indoor monitors.
• Compatible with Dahua analog video intercom accessories.

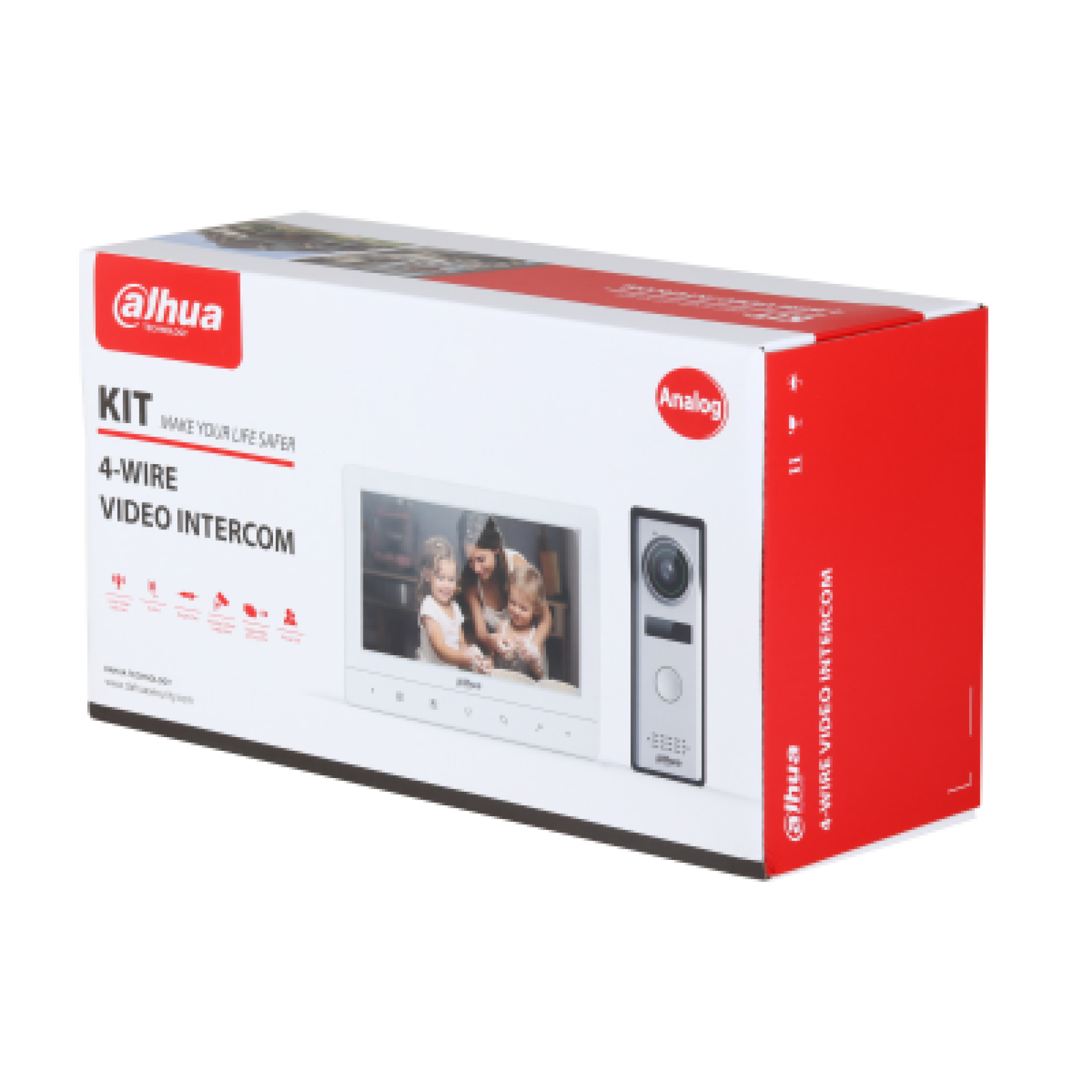

• Includes power adapter, mounting bracket, rain cover, and connection cables.
• Supports local door unlocking from the indoor monitor.

Dahua KTA02 Wired Analog Video Intercom Kit Pros and Cons

FAQs

1. What is included in the Dahua KTA02 kit?

The kit includes a 7-inch indoor monitor (VTH1020J), 1.3MP outdoor door station (VTO1000J), power adapter, rain cover, brackets, and installation accessories.

2. Can the system be expanded?

Yes. The KTA02 supports up to 2 outdoor door stations and 3 indoor monitors.

3. Does the outdoor station support night vision?

Yes. The outdoor unit features automatic infrared night vision for clear images in low-light conditions.

4. Can I unlock the door from the indoor monitor?

Yes. The system supports remote door unlocking directly from the indoor monitor.

5. Is the outdoor unit weather resistant?

Yes. The door station has an IP66 weather-resistance rating, making it suitable for outdoor installation.

6. Is the Dahua KTA02 Wired Analog Video Intercom Kit worth buying?

Yes. With its 7-inch TFT display, 1.3MP camera, remote door unlocking, expandable system capacity, and IP66-rated outdoor station, the Dahua KTA02 is a dependable solution for residential and small commercial access control. At KSh 8,500, it offers excellent value for secure visitor communication.

Conclusion

The Dahua KTA02 Wired Analog Video Intercom Kit delivers reliable visitor communication and access control with a 7-inch indoor monitor, 1.3MP outdoor camera, remote unlocking, night vision, and expandable analog system. Designed for homes, offices, and apartments, it provides dependable performance and straightforward installation. At KSh 8,500, it is an excellent choice for enhancing property security.
