AV MATRIX MINI SC 1221 HDMI 3G SDI CONVERTOR-AVMMINHSC

AV MATRIX MINI SC 1221 HDMI 3G SDI CONVERTOR Key Specifications

• Product Type: HDMI to 3G-SDI Mini Converter
• HDMI Input: 1 × HDMI Type-A
• SDI Outputs: 2 × 3G/HD/SD-SDI
• Maximum Resolution: 1080p60
• HDMI Support: RGB 4:4:4, YUV 4:4:4 and YUV 4:2:2
• SDI Color Space: YUV 4:2:2
• SDI Standards: SMPTE 292M / 259M / 424M
• Power Input: Micro-USB
• Power Range: 3.3–5V
• Power Consumption: Approximately 2W
• Dimensions: Approximately 74 × 41 × 23mm
• Operating Temperature: -20°C to 60°C
• Mounting: Detachable mounting bracket
• Design: Pocket-size broadcast converter

AV MATRIX MINI SC 1221 HDMI 3G SDI CONVERTOR Overview

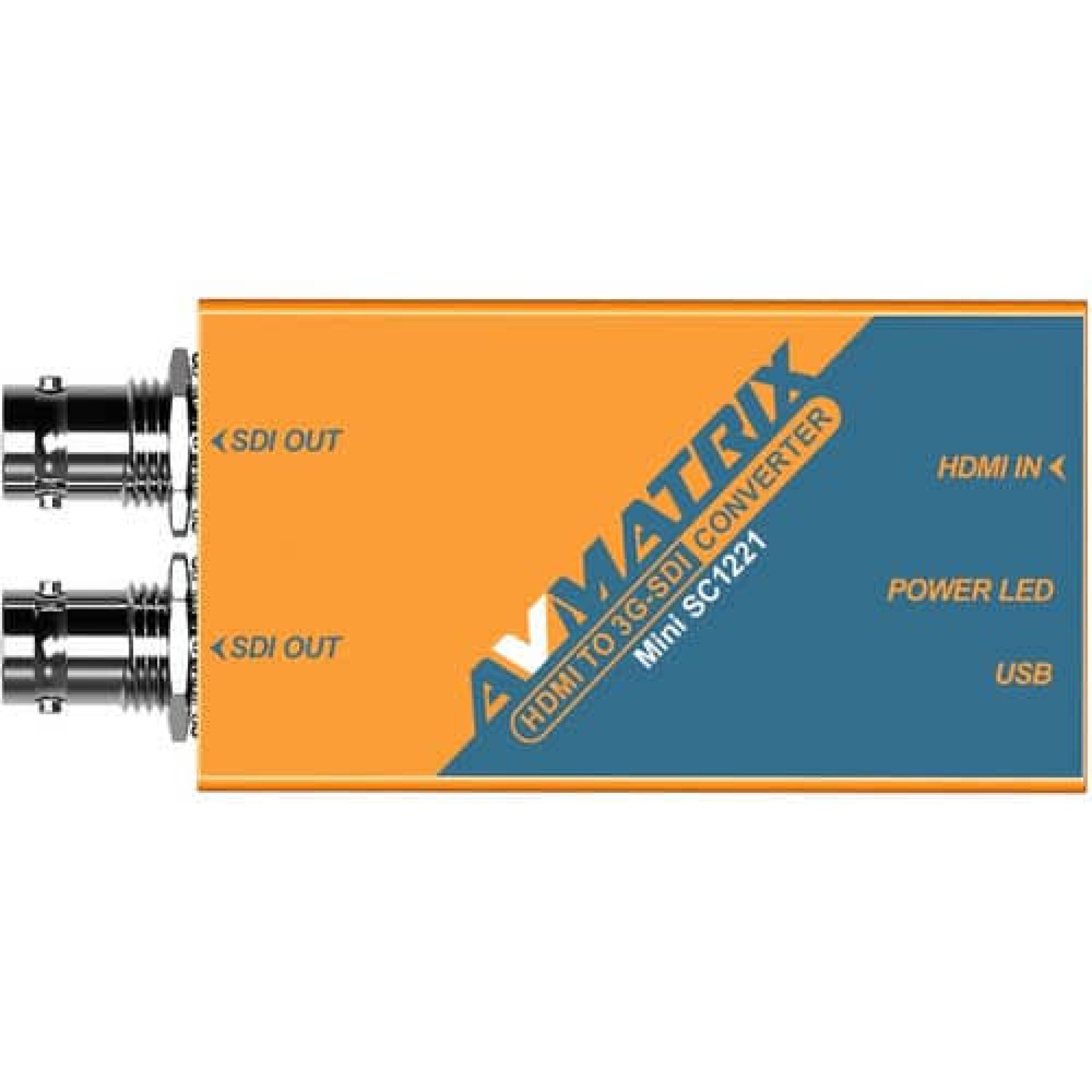

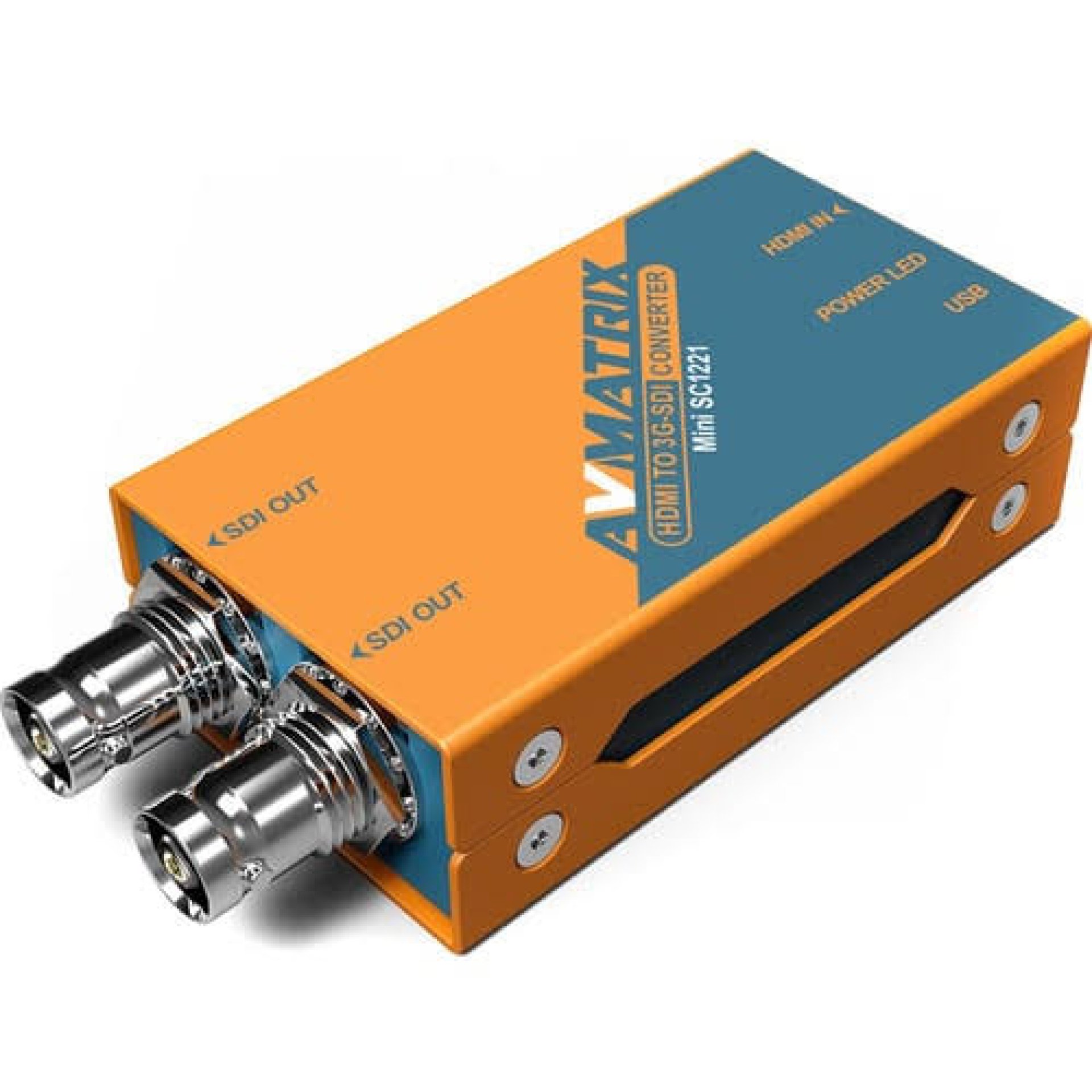

The AV MATRIX MINI SC 1221 HDMI 3G SDI CONVERTOR is a compact professional converter designed to transform an HDMI video signal into two simultaneous 3G/HD/SD-SDI outputs. It is suitable for connecting HDMI cameras, computers and other HDMI sources to professional SDI switchers, monitors, recorders and broadcast equipment.

The converter supports video formats up to 1080p60 and automatically handles compatible input signals. Its compact pocket-size construction and USB-powered design make it particularly useful for field production, live events, studios and mobile broadcasting.

AV MATRIX MINI SC 1221 HDMI 3G SDI CONVERTOR Price in Kenya

AV MATRIX MINI SC 1221 HDMI 3G SDI CONVERTOR Full Specifications

The published specifications confirm one HDMI Type-A input, two SDI outputs, support for 1080p60 and multiple SD/HD video formats, with USB power and a compact 74 × 41 × 23mm enclosure.

AV MATRIX MINI SC 1221 HDMI 3G SDI CONVERTOR Performance

• Converts HDMI signals to professional SDI signals.
• Provides two simultaneous 3G/HD/SD-SDI outputs.
• Supports video resolutions up to 1080p60.
• Supports 720p, 1080i and 1080p formats.
• Supports HDMI RGB 4:4:4 and YUV 4:4:4/4:2:2 color formats.
• Automatically detects and configures compatible input signals.
• Designed for stable 24/7 operation without added processing delay.
• Suitable for connecting consumer/professional HDMI sources to SDI production equipment.

AV MATRIX MINI SC 1221 HDMI 3G SDI CONVERTOR Design and Build Quality

• Pocket-size professional converter.
• Compact metal housing.
• Approximately 74 × 41 × 23mm.
• Lightweight design for mobile production.
• Detachable mounting bracket included.
• Suitable for indoor and outdoor production.
• Designed for professional broadcast environments.

AV MATRIX MINI SC 1221 HDMI 3G SDI CONVERTOR Smart Features

• HDMI-to-dual-SDI conversion.
• Automatic input detection.
• Dual SDI signal distribution.
• Supports SDI Level A and Level B.
• LED power and signal indicators.
• USB-powered operation.
• Low power consumption.
• Detachable mounting bracket.
• Designed for continuous 24/7 operation.

AV MATRIX MINI SC 1221 HDMI 3G SDI CONVERTOR Connectivity

• 1 × HDMI Type-A input

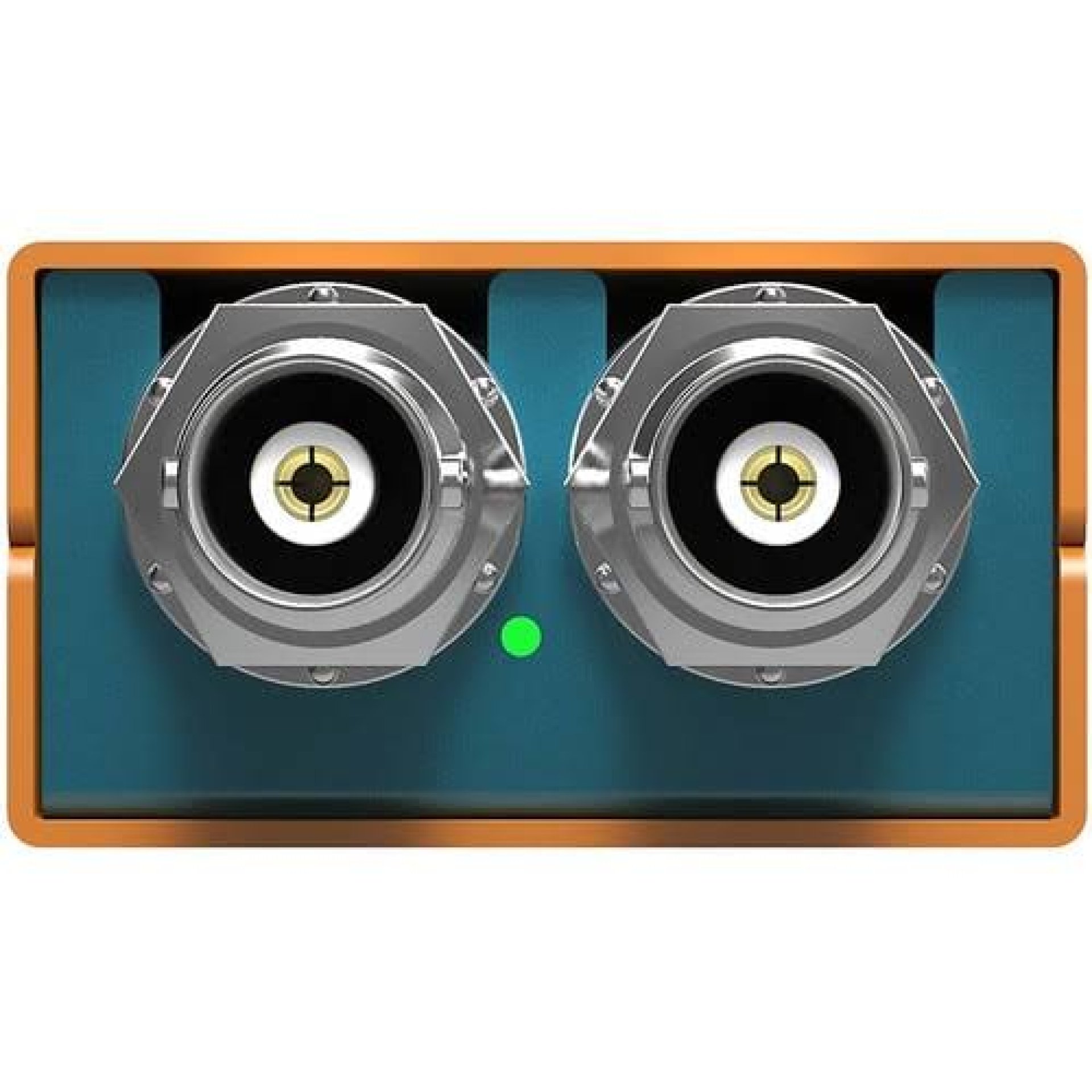

• 2 × 3G/HD/SD-SDI outputs
• 1 × Micro-USB power connection
• Compatible with HDMI cameras
• Compatible with computers and media players
• Compatible with SDI switchers
• Compatible with SDI monitors
• Compatible with SDI recorders
• Compatible with broadcast distribution equipment

AV MATRIX MINI SC 1221 HDMI 3G SDI CONVERTOR Efficiency

• Approximately 2W power consumption.
• 3.3–5V USB power range.
• Can be powered from a USB power adapter.
• Can be powered from a laptop or computer.
• Can be powered from a compatible power bank.
• Low-power operation is useful for mobile and field production.

AV MATRIX MINI SC 1221 HDMI 3G SDI CONVERTOR Compatibility

• HDMI cameras
• Mirrorless cameras with HDMI output
• DSLR cameras with HDMI output
• Professional camcorders
• Computers
• Media players
• HDMI video sources
• SDI switchers
• SDI mixers
• SDI monitors
• SDI recorders
• Broadcast equipment
• Projectors and professional displays

AV MATRIX MINI SC 1221 HDMI 3G SDI CONVERTOR Ideal Use Cases

• HDMI-to-SDI conversion
• Live broadcasting
• Studio production
• Multi-camera production
• Church services
• Conferences
• Corporate events
• Live streaming
• Field production
• Mobile broadcasting
• Video recording
• SDI signal distribution
• Professional monitoring
• Event production

AV MATRIX MINI SC 1221 HDMI 3G SDI CONVERTOR Pros & Cons

AV MATRIX MINI SC 1221 HDMI 3G SDI CONVERTOR FAQs

1. What does the AV MATRIX MINI SC 1221 do?
It converts an HDMI video source into two 3G/HD/SD-SDI outputs for use with professional SDI equipment.

2. Does it support 1080p60?
Yes. The SC1221 supports HDMI video formats up to 1080p60.

3. How many SDI outputs does it have?
It provides two 3G/HD/SD-SDI outputs, allowing the converted signal to be distributed to two SDI devices.

4. Can it convert SDI to HDMI?
No. The SC1221 is an HDMI-to-SDI converter. For SDI-to-HDMI conversion, a model such as the SC1112 is designed for that direction.

5. How is the SC1221 powered?
It uses a Micro-USB power connection and can be powered from a suitable USB adapter, computer or power bank.

6. Does it support 4K?
No. The standard SC1221 is designed for SD, HD and 3G-SDI workflows up to 1080p60. AVMATRIX also offers a separate SC1221-12G model for 4K HDMI-to-12G-SDI conversion.

AV MATRIX MINI SC 1221 HDMI 3G SDI CONVERTOR Conclusion

The AV MATRIX MINI SC 1221 HDMI 3G SDI CONVERTOR is a compact and practical solution for converting HDMI sources into professional SDI signals. With one HDMI input, two 3G/HD/SD-SDI outputs, 1080p60 support, automatic signal detection, USB power and a detachable mounting bracket, it is well suited to live broadcasting, studios, events, mobile production and professional video distribution. At KSh 10,100, it provides an affordable way to integrate HDMI equipment into SDI-based production systems.
