AV MATRIX UC 1118 SDI-USB 3.1 TYPE C CAPTURE CARD- AVMUC1118SDIUSBCCC

AV MATRIX UC 1118 SDI-USB 3.1 TYPE C CAPTURE CARD Key Specifications

• Product Type: SDI to USB Video Capture Card
• SDI Input: 1 × SD/HD/3G-SDI
• Audio Input: 1 × 3.5mm stereo audio input
• USB Output: 1 × USB 3.1 Gen 1 Type-C
• Maximum Capture Resolution: 1920 × 1080 at 60 fps
• Video Capture: Uncompressed, low-latency
• USB Protocols: UVC 1.1 and UAC 1.0
• Audio: 2-channel, 16-bit PCM, 48kHz
• SDI Support: 3G-SDI / HD-SDI / SD-SDI
• SDI Standards: SMPTE 292M / 259M / 296M / 352M / 424M / 425M
• USB Transfer Rate: Up to 200 Mbps
• Power: USB bus-powered
• Power Consumption: Up to 3.5W
• Dimensions: Approximately 92.5 × 58.5 × 20mm
• Weight: Approximately 220g
• Operating Temperature: -20°C to 60°C
• Compatibility: Windows and macOS
• Design: Compact portable capture device

AV MATRIX UC 1118 SDI-USB 3.1 TYPE C CAPTURE CARD Overview

The AV MATRIX UC 1118 SDI-USB 3.1 TYPE C CAPTURE CARD is a professional SDI video capture solution designed to transfer SD/HD/3G-SDI video and audio to a computer through USB 3.1 Gen 1 Type-C. It supports capture up to 1080p60 and uses UVC/UAC standards for plug-and-play operation with compatible software.

The compact unit is suitable for live streaming, recording, video conferencing, podcasting, screen capture, broadcast production and professional AV workflows. It is USB bus-powered, so it does not require a separate power supply.

AV MATRIX UC 1118 SDI-USB 3.1 TYPE C CAPTURE CARD Price in Kenya

AV MATRIX UC 1118 SDI-USB 3.1 TYPE C CAPTURE CARD Full Specifications

The manufacturer specifies SD/HD/3G-SDI input, USB Type-C 3.1 Gen 1 output, UVC/UAC compatibility, up to 1080p60 output and a compact 92.5 × 58.5 × 20mm enclosure.

AV MATRIX UC 1118 SDI-USB 3.1 TYPE C CAPTURE CARD Performance

• Supports SD/HD/3G-SDI video input.
• Captures video at up to 1080p60.
• Provides uncompressed, low-latency video transfer.
• Automatically detects compatible SDI input formats.
• Supports multiple SDI standards and video formats.
• Uses UVC for broad software compatibility.
• Uses UAC for USB audio capture.
• Supports embedded and compatible external audio workflows.
• Suitable for live streaming, recording and professional video capture.

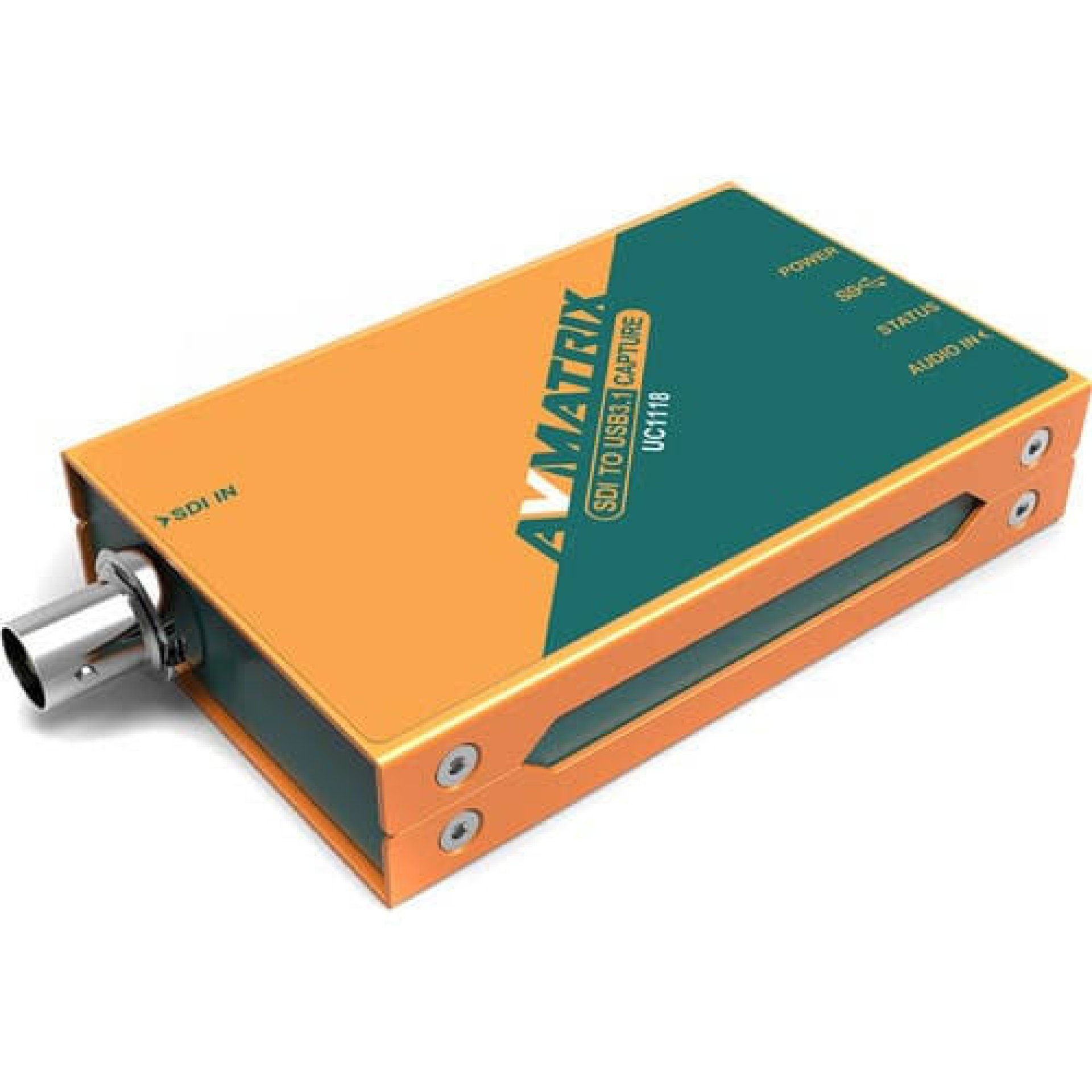

AV MATRIX UC 1118 SDI-USB 3.1 TYPE C CAPTURE CARD Design and Build Quality

• Compact professional capture-card design.
• Approximately 92.5 × 58.5 × 20mm.
• Approximately 220g.
• Designed for portable production environments.
• USB bus-powered operation reduces setup requirements.
• Suitable for studio and field production.
• Compact construction makes it easy to integrate into mobile streaming systems.

AV MATRIX UC 1118 SDI-USB 3.1 TYPE C CAPTURE CARD Smart Features

• SDI-to-USB conversion.
• Up to 1080p60 capture.
• UVC 1.1 compatibility.
• UAC 1.0 compatibility.
• Automatic input signal detection.
• Uncompressed video capture.
• Low-latency signal transfer.
• USB bus-powered operation.
• Plug-and-play operation without dedicated capture drivers.
• Compact portable construction.

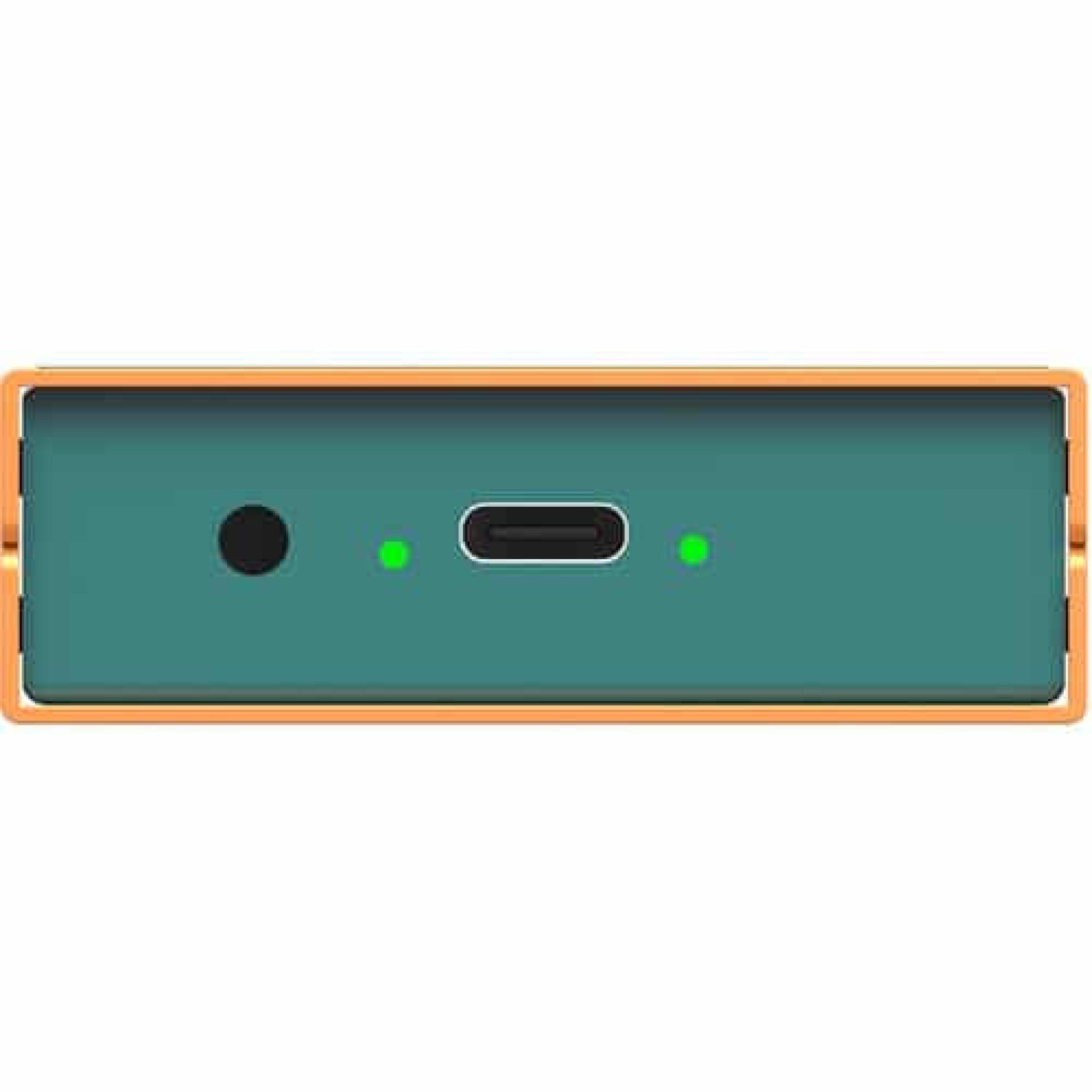

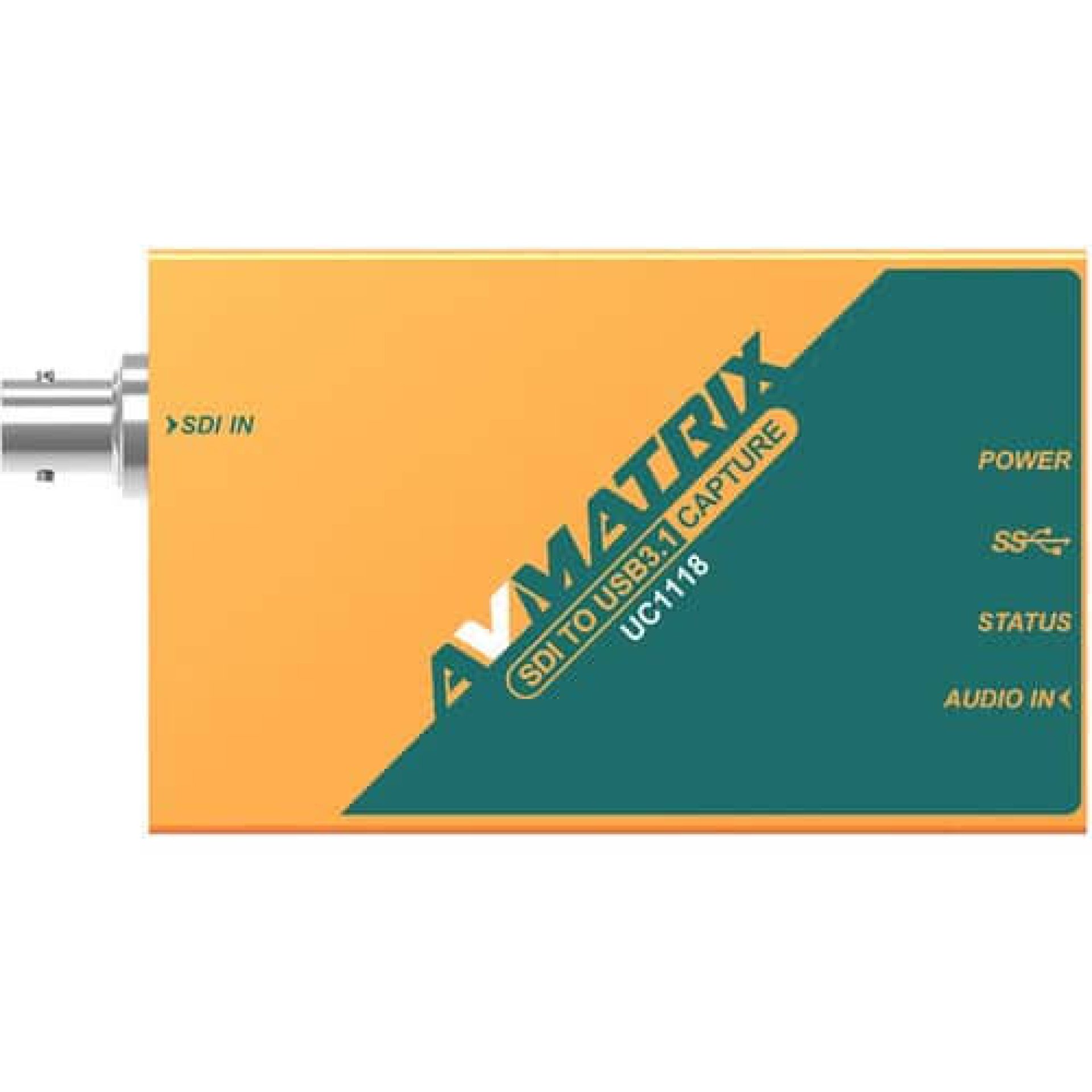

AV MATRIX UC 1118 SDI-USB 3.1 TYPE C CAPTURE CARD Connectivity

• 1 × 3G/HD/SD-SDI input
• 1 × 3.5mm stereo audio input
• 1 × USB 3.1 Gen 1 Type-C output
• Compatible with USB 3.1 Gen 1 and Thunderbolt 3-equipped computers
• SDI connection for professional cameras and video equipment
• USB-C connection for computers and streaming systems

AV MATRIX UC 1118 SDI-USB 3.1 TYPE C CAPTURE CARD Efficiency

• USB bus-powered design.
• No dedicated external power supply required.
• Maximum power consumption of approximately 3.5W.
• Suitable for laptop and mobile production.
• Can be integrated into portable streaming setups.
• USB 3.1 Gen 1 interface provides sufficient bandwidth for supported HD capture.

AV MATRIX UC 1118 SDI-USB 3.1 TYPE C CAPTURE CARD Compatibility

• Professional SDI cameras
• Broadcast cameras
• SDI switchers
• SDI mixers
• SDI recorders
• Professional SDI monitors
• Windows computers
• macOS computers
• USB-C computers
• Thunderbolt 3-equipped systems
• OBS
• Zoom
• Microsoft Teams
• Twitch
• Live-streaming platforms
• Video conferencing applications

AV MATRIX UC 1118 SDI-USB 3.1 TYPE C CAPTURE CARD Ideal Use Cases

• Professional live streaming
• Broadcast production
• SDI camera capture
• Video recording
• Podcast production
• Web conferencing
• Online meetings
• YouTube production
• OBS streaming
• Church broadcasting
• Corporate presentations
• Education and training
• Event production
• Studio production
• Field video production
• Screen capture

AV MATRIX UC 1118 SDI-USB 3.1 TYPE C CAPTURE CARD Pros & Cons

AV MATRIX UC 1118 SDI-USB 3.1 TYPE C CAPTURE CARD FAQs

1. What does the AV MATRIX UC 1118 do?
It captures SD/HD/3G-SDI video and transfers it to a computer through USB 3.1 Gen 1 Type-C.

2. What is the maximum capture resolution?
The UC1118 supports video capture up to 1920 × 1080 at 60 fps.

3. Does the UC1118 support audio?
Yes. It supports two-channel 16-bit PCM audio at 48kHz and provides a 3.5mm stereo audio input.

4. Does it require an external power adapter?
No. The UC1118 is USB bus-powered and has a maximum power consumption of approximately 3.5W.

5. Is it compatible with OBS?
Yes. Its UVC/UAC compatibility makes it suitable for computer-based streaming applications, including OBS and other compatible software.

6. Does it support 4K capture?
No. The UC1118 is designed for SD/HD/3G-SDI workflows with capture up to 1080p60.

7. Is the UC1118 plug-and-play?
Yes. It is designed for driver-free UVC/UAC operation with compatible systems.

AV MATRIX UC 1118 SDI-USB 3.1 TYPE C CAPTURE CARD Conclusion

The AV MATRIX UC 1118 SDI-USB 3.1 TYPE C CAPTURE CARD is a compact professional solution for capturing SD/HD/3G-SDI video and transferring it to a computer through USB Type-C. With 1080p60 support, uncompressed low-latency capture, UVC/UAC compatibility, USB bus-powered operation, audio support and compact construction, it is well suited for live streaming, recording, broadcasting, conferencing and professional AV production. At KSh 19,600, it offers a practical way to integrate SDI sources into modern USB-based production workflows.
