AV MATRIX MINI SC 1112 3G SDI-HDMI CONVERTOR-AVMMINSHC

AV MATRIX MINI SC 1112 3G SDI-HDMI CONVERTOR Key Specifications

• Product Type: 3G-SDI to HDMI Mini Converter
• SDI Input: 1 × 3G/HD/SD-SDI
• HDMI Output: 1 × HDMI Type-A
• SDI Loop Output: 1 × 3G/HD/SD-SDI
• SDI Support: 3G-SDI, HD-SDI and SD-SDI
• Maximum Video Format: 1080p60
• SDI Level: Level A/B
• Color Space: YUV 4:2:2
• SDI Standards: SMPTE 292M / 259M / 424M
• Power: DC 5V via USB
• Power Consumption: Up to 2W
• Dimensions: Approximately 74 × 41 × 24.5mm
• Weight: Approximately 168g
• Mounting: Detachable mounting bracket
• Operating Temperature: -20°C to 60°C
• HDCP: Not supported

AV MATRIX MINI SC 1112 3G SDI-HDMI CONVERTOR Overview

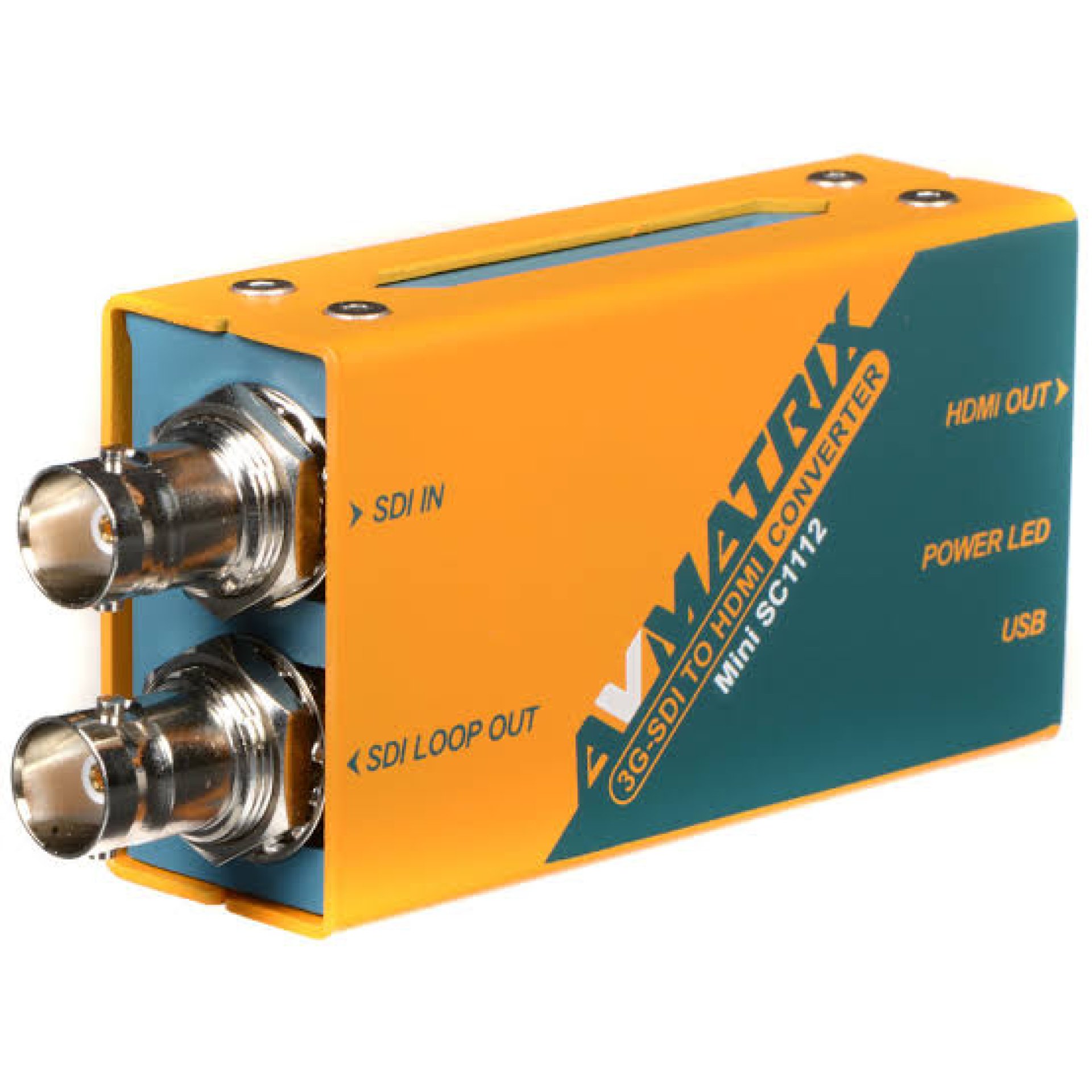

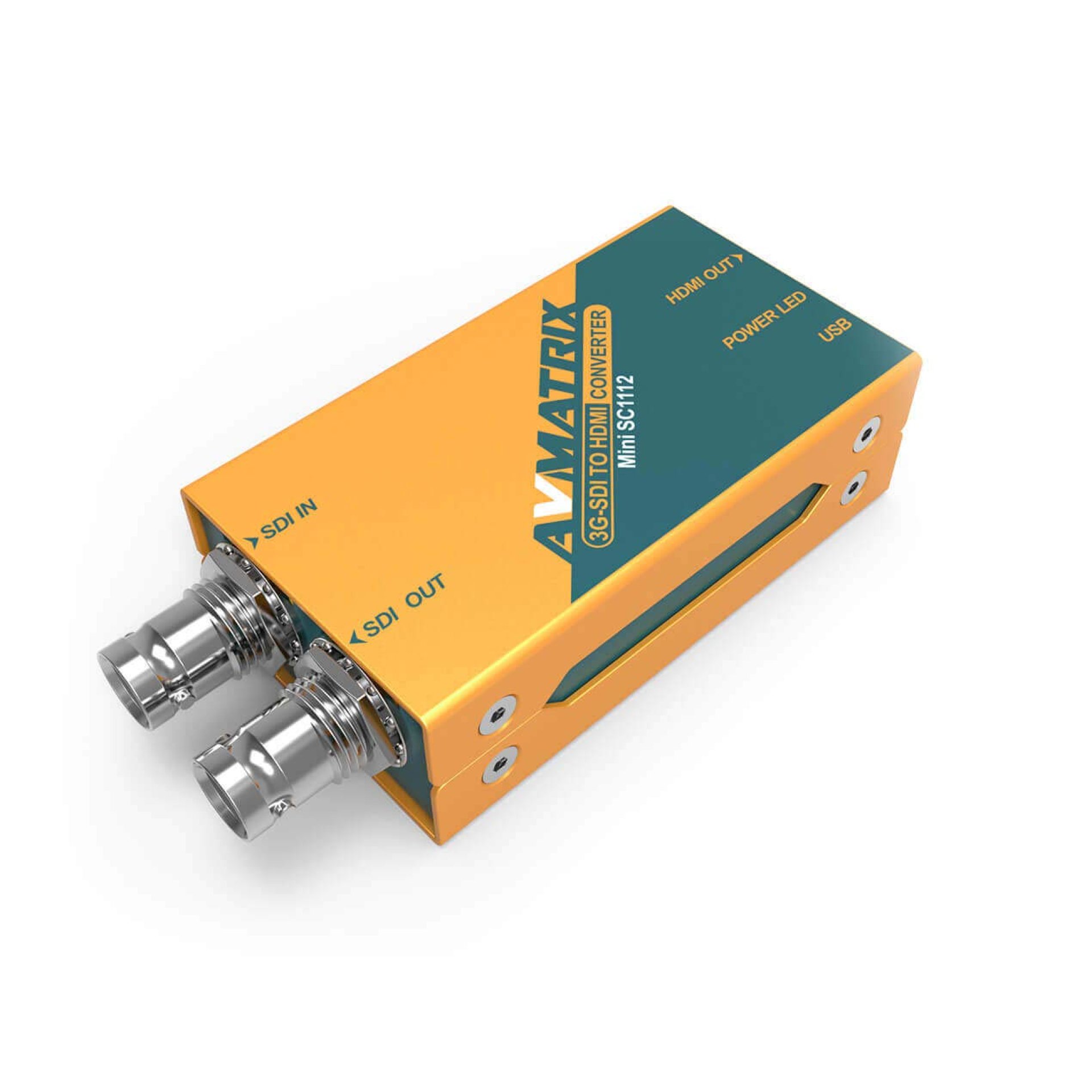

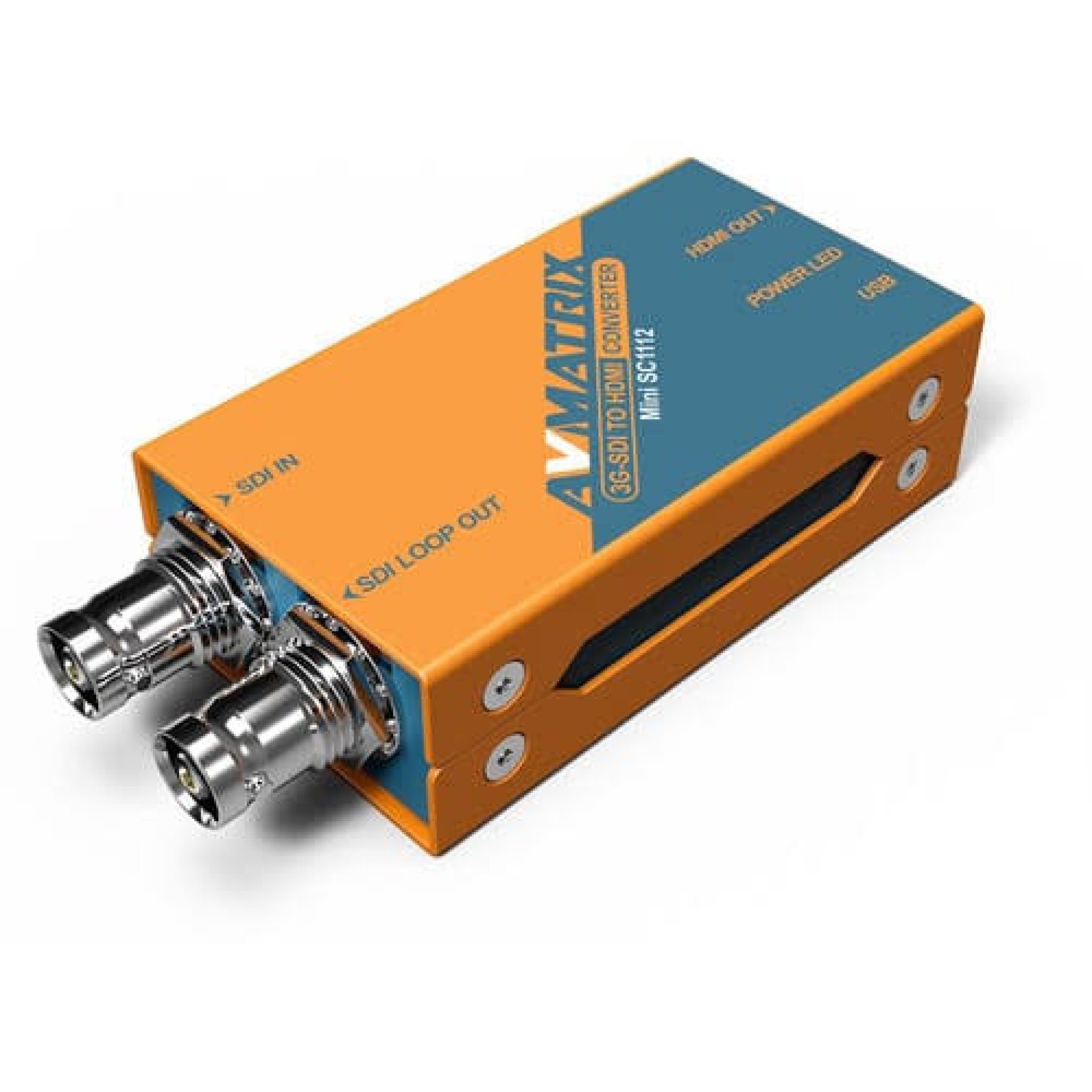

The AV MATRIX MINI SC 1112 3G SDI-HDMI CONVERTOR is a compact professional signal converter designed to convert 3G/HD/SD-SDI signals to HDMI for connection to HDMI monitors, displays, recorders and other HDMI equipment. It also includes an SDI loop output, allowing the original SDI signal to be passed through to another SDI device.

Its pocket-sized design makes it suitable for broadcast, live production, studio, event and mobile video applications. The converter supports SDI formats up to 1080p60 and can be powered through USB, making it convenient for portable setups.

AV MATRIX MINI SC 1112 3G SDI-HDMI CONVERTOR Price in Kenya

AV MATRIX MINI SC 1112 3G SDI-HDMI CONVERTOR Full Specifications

AV MATRIX MINI SC 1112 3G SDI-HDMI CONVERTOR Performance

• Converts 3G/HD/SD-SDI signals to HDMI.
• Supports SDI video formats up to 1080p60.
• Automatically identifies compatible SDI input formats.
• Supports both SDI Level A and Level B.
• Provides an SDI loop-through output for monitoring or onward distribution.
• Maintains YUV 4:2:2 video processing.
• Supports a broad range of 720p, 1080i and 1080p HD formats.
• Designed for reliable continuous operation with low power consumption.

AV MATRIX MINI SC 1112 3G SDI-HDMI CONVERTOR Design and Build Quality

• Pocket-sized professional converter.
• Compact metal housing.
• Approximately 168g in weight.
• Approximately 74 × 41 × 24.5mm in size.
• Includes a detachable mounting bracket.
• Suitable for mobile and fixed installations.
• Low-power design helps reduce heat generation.
• Designed for professional broadcast and production environments.

AV MATRIX MINI SC 1112 3G SDI-HDMI CONVERTOR Smart Features

• 3G/HD/SD-SDI automatic input detection.
• HDMI Type-A output.
• SDI loop-through output.
• Level A/B SDI support.
• USB-powered operation.
• LED power and signal indication.
• Compact mounting solution.
• Low power consumption of up to approximately 2W.
• Designed for continuous operation.

AV MATRIX MINI SC 1112 3G SDI-HDMI CONVERTOR Connectivity

• 1 × 3G/HD/SD-SDI input
• 1 × HDMI Type-A output
• 1 × 3G/HD/SD-SDI loop output
• USB power connection
• Compatible with SDI cameras and professional video equipment
• Compatible with HDMI monitors and displays

AV MATRIX MINI SC 1112 3G SDI-HDMI CONVERTOR Efficiency

• Maximum power consumption of approximately 2W.
• USB-powered design allows flexible power options.
• Can be powered from compatible USB power sources.
• Low-power architecture helps minimize heat generation.
• Suitable for mobile production where power availability may be limited.

AV MATRIX MINI SC 1112 3G SDI-HDMI CONVERTOR Compatibility

• Professional SDI cameras
• Broadcast cameras
• SDI video switchers
• SDI recorders
• SDI monitors
• HDMI monitors
• HDMI televisions
• HDMI projectors
• HDMI recorders
• Live-production equipment
• Broadcast equipment
• Mobile production systems

AV MATRIX MINI SC 1112 3G SDI-HDMI CONVERTOR Ideal Use Cases

• SDI-to-HDMI monitoring
• Live broadcasting
• Studio production
• Multi-camera production
• Event production
• Conference AV
• Church services
• Educational video production
• Mobile broadcasting
• Field production
• Video recording
• SDI signal distribution
• Professional monitoring

AV MATRIX MINI SC 1112 3G SDI-HDMI CONVERTOR Pros & Cons

AV MATRIX MINI SC 1112 3G SDI-HDMI CONVERTOR FAQs

1. What does the AV MATRIX MINI SC 1112 do?
It converts a 3G/HD/SD-SDI input into an HDMI output, allowing professional SDI equipment to connect to HDMI displays and other HDMI devices.

2. Does it support 1080p60?
Yes. The converter supports 3G-SDI formats including 1080p50, 1080p59.94 and 1080p60.

3. Does it have SDI loop-through?
Yes. It has one 3G/HD/SD-SDI loop output, allowing the incoming SDI signal to be passed to another SDI device.

4. Can it convert HDMI to SDI?
No. The MINI SC1112 is designed specifically for SDI-to-HDMI conversion.

5. How is the converter powered?
It can be powered through a 5V USB connection, making it convenient for portable production setups.

6. Does it support 4K video?
No. The MINI SC1112 is designed for SD, HD and 3G-SDI workflows with resolutions up to 1080p60.

AV MATRIX MINI SC 1112 3G SDI-HDMI CONVERTOR Conclusion

The AV MATRIX MINI SC 1112 3G SDI-HDMI CONVERTOR is a compact and practical solution for connecting professional SDI equipment to HDMI displays and monitoring systems. With 3G/HD/SD-SDI support, HDMI output, SDI loop-through, 1080p60 compatibility, Level A/B support, USB power and a compact 168g design, it is well suited to broadcast, studio, event and mobile production environments. At KSh 11,400, it provides an affordable and flexible SDI-to-HDMI conversion solution.
