AVMATRIX VS0601U Mini 6-Channel SDI/HDMI Multi-Format AV Switcher

AVMATRIX VS0601U Mini 6-Channel SDI/HDMI Multi-Format AV Switcher Key Specifications

• Product Type: 6-Channel Multi-Format Video Switcher
• Video Inputs: 4 × 3G-SDI + 2 × HDMI
• Processing Resolution: Up to 1080p60
• Switching: T-Bar
• Program Outputs: 2 × 3G-SDI + 1 × HDMI
• Monitor Outputs: 2 × 3G-SDI + 1 × HDMI
• USB-C Output: UVC/USB Video Program Output
• Multiview: 6-Way Multiview
• Audio Inputs: 1 × 3.5mm Stereo + 1 × RCA Stereo
• Audio Outputs: 1 × 3.5mm Stereo + 1 × RCA Stereo
• Embedded Audio: HDMI and SDI
• Streaming: USB-C Computer Streaming
• Tally: DB-15/GPIO
• Network: RJ45 LAN
• Video Standards: SMPTE 259M / 292M / 424M
• HDCP: Not Supported
• Power Input: 12V DC
• Power Consumption: Up to approximately 22W
• Weight: Approximately 1.2kg

AVMATRIX VS0601U Mini 6-Channel SDI/HDMI Multi-Format AV Switcher Overview

The AVMATRIX VS0601U Mini 6-Channel SDI/HDMI Multi-Format AV Switcher is a compact professional switcher designed for multi-camera live production, streaming, education, events, houses of worship and sports production. It combines four 3G-SDI inputs and two HDMI inputs, allowing six video sources to be connected simultaneously.

The switcher supports video processing up to 1080p60 and provides SDI, HDMI and USB-C program outputs. It also offers dedicated SDI and HDMI monitoring outputs with a six-way multiview layout, allowing operators to monitor multiple connected sources during production.

AVMATRIX VS0601U Mini 6-Channel SDI/HDMI Multi-Format AV Switcher Price in Kenya

AVMATRIX VS0601U Mini 6-Channel SDI/HDMI Multi-Format AV Switcher Full Specifications

Published specifications confirm support for 4 × 3G-SDI and 2 × HDMI inputs, SDI/HDMI program and monitor outputs, USB-C video output, six-way multiview and analog audio connections.

AVMATRIX VS0601U Mini 6-Channel SDI/HDMI Multi-Format AV Switcher Performance

• Supports six simultaneous video input sources.
• Provides 4 × 3G-SDI and 2 × HDMI inputs.
• Processes video up to 1080p60.
• Provides two SDI program outputs and one HDMI program output.
• Offers two SDI monitor outputs and one HDMI monitor output.
• Six-way multiview allows multiple sources to be monitored simultaneously.
• T-bar provides hands-on live switching control.
• Supports common SDI and HDMI HD video formats.
• Compact design makes it suitable for mobile production.
• USB-C program output allows computer-based video capture and streaming.

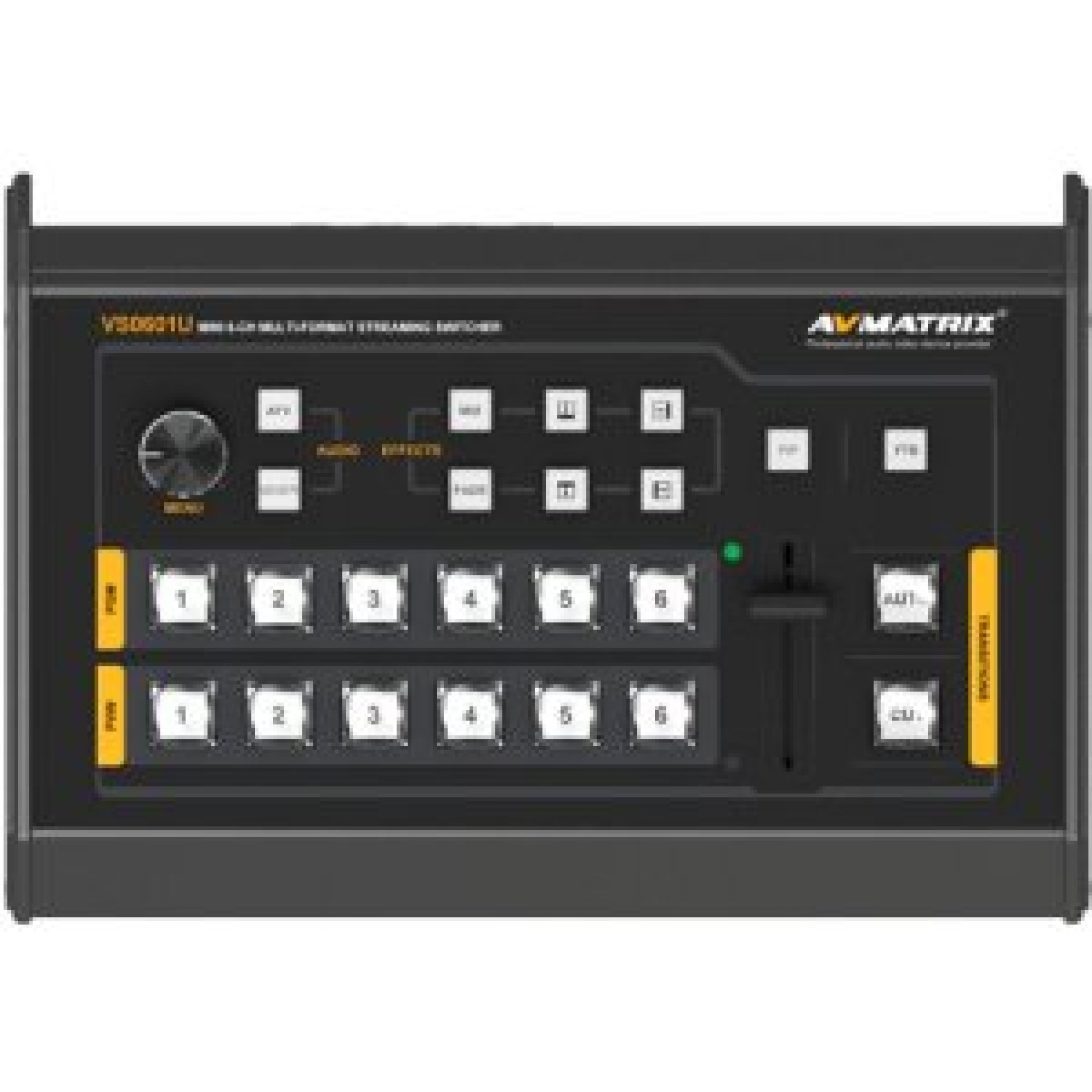

AVMATRIX VS0601U Mini 6-Channel SDI/HDMI Multi-Format AV Switcher Design and Build Quality

• Compact professional production chassis.
• Approximately 1.2kg in weight.
• Designed for portable and desktop production.
• Physical T-bar control provides traditional live-switching operation.
• Multiple SDI and HDMI outputs provide flexible system integration.
• Suitable for studios, event production and mobile broadcasting.

AVMATRIX VS0601U Mini 6-Channel SDI/HDMI Multi-Format AV Switcher Smart Features

• Six-channel video switching.
• 6-way multiview monitoring.
• USB-C video output.
• SDI and HDMI program outputs.
• SDI and HDMI monitor outputs.
• T-bar switching.
• Quick FTB fade-to-black function.
• GPIO tally support.
• RJ45 LAN connectivity.
• Embedded HDMI and SDI audio.
• Support for Windows, macOS and Linux systems.

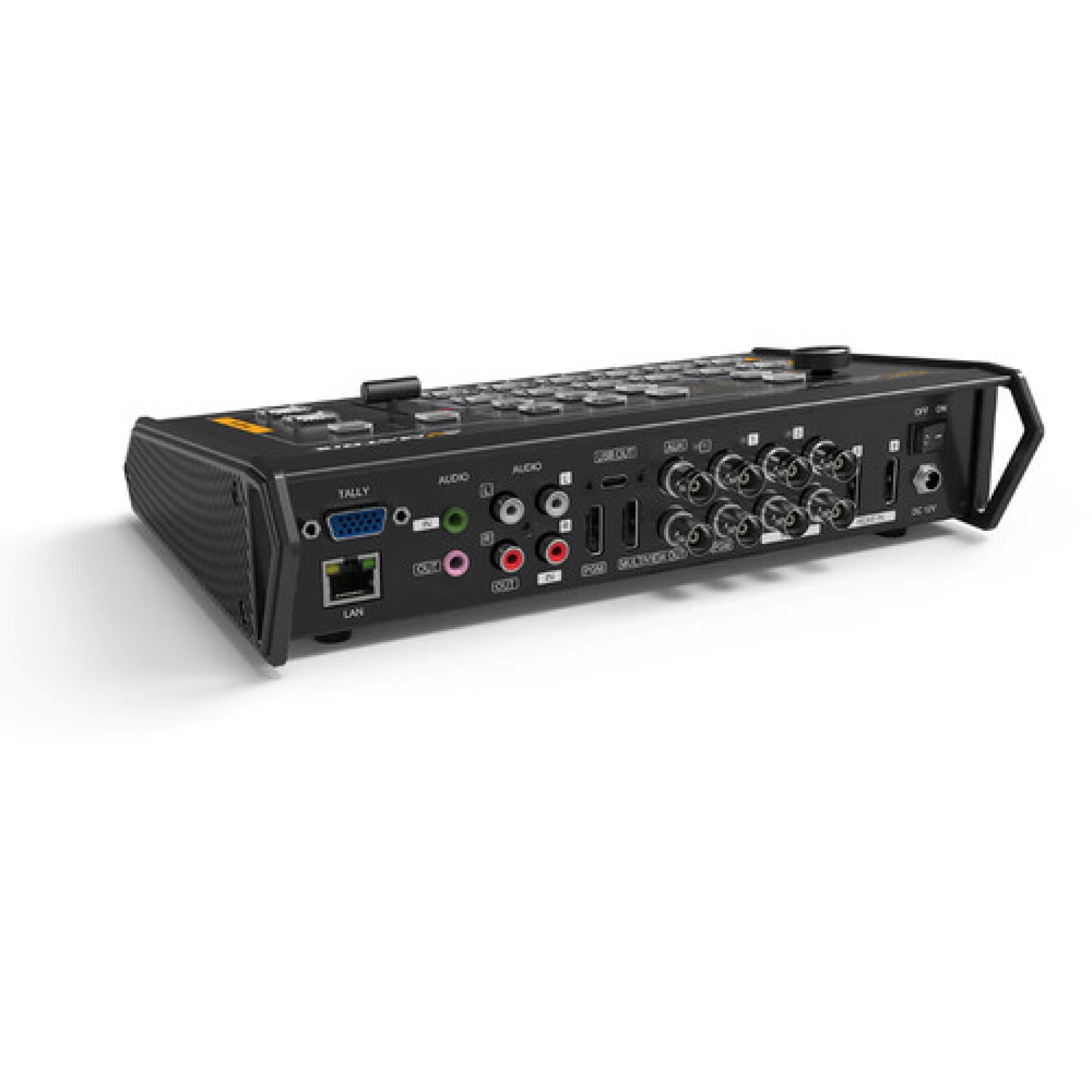

AVMATRIX VS0601U Mini 6-Channel SDI/HDMI Multi-Format AV Switcher Connectivity

• 4 × 3G-SDI video inputs
• 2 × HDMI video inputs
• 2 × 3G-SDI program outputs
• 1 × HDMI program output
• 2 × 3G-SDI monitor outputs
• 1 × HDMI monitor output
• 1 × USB-C program output
• 1 × 3.5mm stereo audio input
• 1 × RCA stereo audio input
• 1 × 3.5mm stereo audio output
• 1 × RCA stereo audio output
• RJ45 LAN
• DB-15/GPIO tally interface

AVMATRIX VS0601U Mini 6-Channel SDI/HDMI Multi-Format AV Switcher Audio Performance

• Supports embedded audio through HDMI and SDI sources.
• Provides a 3.5mm stereo analog audio input.
• Provides RCA stereo analog audio input.
• Provides 3.5mm stereo audio output.
• Provides RCA stereo audio output.
• Embedded audio can be carried through HDMI, SDI and USB-C program workflows.
• Suitable for live events, presentations and multi-camera productions requiring integrated audio.

AVMATRIX VS0601U Mini 6-Channel SDI/HDMI Multi-Format AV Switcher Streaming and Recording

• USB-C provides the program feed to a computer for streaming and capture.
• Compatible with Windows, macOS and Linux.
• Suitable for platforms and software such as YouTube Live, Zoom, Skype, OBS and other computer-based streaming applications.
• USB-C carries video with embedded audio.
• The switcher is designed primarily around computer-based USB streaming rather than standalone network streaming.

AVMATRIX VS0601U Mini 6-Channel SDI/HDMI Multi-Format AV Switcher Compatibility

• Professional SDI cameras
• HDMI cameras
• Mirrorless cameras with HDMI output
• DSLR cameras with HDMI output
• Professional camcorders
• PTZ cameras with compatible SDI/HDMI output
• Computers with HDMI output
• Media players
• Broadcast monitors
• SDI monitors
• HDMI monitors
• Projectors
• Streaming computers
• USB-C capture workflows
• External audio equipment

AVMATRIX VS0601U Mini 6-Channel SDI/HDMI Multi-Format AV Switcher Ideal Use Cases

• Multi-camera live production
• Live streaming
• Broadcast production
• Church services
• Conferences
• Corporate events
• Education and training
• Webinars
• Live concerts
• House of worship
• Sports production
• Studio production
• Event videography
• YouTube production
• Online broadcasting
• Portable video production

AVMATRIX VS0601U Mini 6-Channel SDI/HDMI Multi-Format AV Switcher Pros & Cons

AVMATRIX VS0601U Mini 6-Channel SDI/HDMI Multi-Format AV Switcher FAQs

1. How many video sources can the VS0601U connect?
The VS0601U supports six video sources: four 3G-SDI and two HDMI.

2. Does the VS0601U support 1080p60?
Yes. It supports video processing up to 1080p60 and accepts a range of SD, HD and 3G-SDI/HDMI formats.

3. Can the VS0601U stream to a computer?
Yes. Its USB-C output provides the program video with embedded audio for computer-based capture and streaming.

4. Does it support HDMI and SDI cameras together?
Yes. The four SDI inputs and two HDMI inputs allow both formats to be used in the same production.

5. Does the VS0601U have multiview?
Yes. It supports a six-way multiview through its HDMI and SDI monitor outputs.

6. Does it support tally?
Yes. The switcher provides a DB-15/GPIO tally interface for live-production tally systems.

AVMATRIX VS0601U Mini 6-Channel SDI/HDMI Multi-Format AV Switcher Conclusion

The AVMATRIX VS0601U Mini 6-Channel SDI/HDMI Multi-Format AV Switcher is a compact professional solution for productions that need to combine multiple SDI and HDMI cameras. With four 3G-SDI inputs, two HDMI inputs, 1080p60 processing, SDI and HDMI program outputs, six-way multiview, USB-C computer streaming, embedded audio and tally support, it is well suited to churches, conferences, events, education, sports and portable live production. At KSh 81,700, it offers a practical six-channel HD switching platform for professional multi-camera workflows.
