AVMATRIX Shark S6 6-Channel HDMI/SDI Video Switcher

AVMATRIX Shark S6 6-Channel HDMI/SDI Video Switcher

Key Specifications

• Product Type: 6-Channel Professional Video Switcher
• Video Inputs: 4 × 3G-SDI + 2 × HDMI
• Maximum Video Processing: Up to 1080p60
• Program Outputs: 2 × 3G-SDI + 1 × HDMI
• AUX Outputs: 2 × 3G-SDI
• Multiview Output: 1 × HDMI
• USB-C: Program UVC Video Output
• Display: Built-in 5-inch LCD
• Audio Inputs: 2 × 3.5mm Mic Inputs
• Embedded Audio: SDI and HDMI
• Streaming: RTMP, RTMPS, RTSP and SRT
• Recording: USB Disk and SD Card
• Keying: Chroma Key and Downstream Key
• PiP/PoP: Supported
• Logo Overlay: Supported
• Transitions: Cut, Auto, Mix, Dip and Wipe
• PTZ Control: VISCA, VISCA over IP, Pelco D/P and ONVIF
• Tally: GPIO/Tally Support
• Control Ports: RS232 / RS422 / RS485
• Network: RJ45 LAN
• USB Capture: Supported
• Power Input: 12V DC
• Display Mode: Landscape and Portrait
• Weight: Approximately 1.5kg

AVMATRIX Shark S6 6-Channel HDMI/SDI Video Switcher Overview

The AVMATRIX Shark S6 6-Channel HDMI/SDI Video Switcher is a professional live-production switcher designed for multi-camera broadcasting, live streaming, events, conferences, houses of worship and studio production. It combines four 3G-SDI inputs and two HDMI inputs, providing six video channels in a compact production unit.

The Shark S6 also features a built-in 5-inch LCD display, direct network streaming, USB capture, USB and SD-card recording, professional keying, PiP/PoP, logo overlays and PTZ camera control.

AVMATRIX Shark S6 6-Channel HDMI/SDI Video Switcher Price in Kenya

AVMATRIX Shark S6 6-Channel HDMI/SDI Video Switcher Full Specifications

The manufacturer lists four SDI and two HDMI inputs, two SDI program outputs, one HDMI program output, two SDI AUX outputs, HDMI multiview and USB-C program output.

AVMATRIX Shark S6 6-Channel HDMI/SDI Video Switcher Performance

• Supports six video input channels through four 3G-SDI and two HDMI inputs.
• Handles common HD formats up to 1080p60.
• Provides two SDI program outputs and one HDMI program output.
• Two SDI AUX outputs allow additional routing flexibility.
• Built-in 5-inch LCD provides convenient monitoring and menu control.
• HDMI multiview output allows external monitoring of sources and production status.
• Supports professional chroma key and downstream key functions.
• Two PiP/PoP configurations provide flexible multi-source layouts.
• Logo overlay functionality supports branded live productions.
• T-bar, Auto and Cut controls provide fast live switching.
• Mix, Dip and Wipe transitions add professional visual effects.

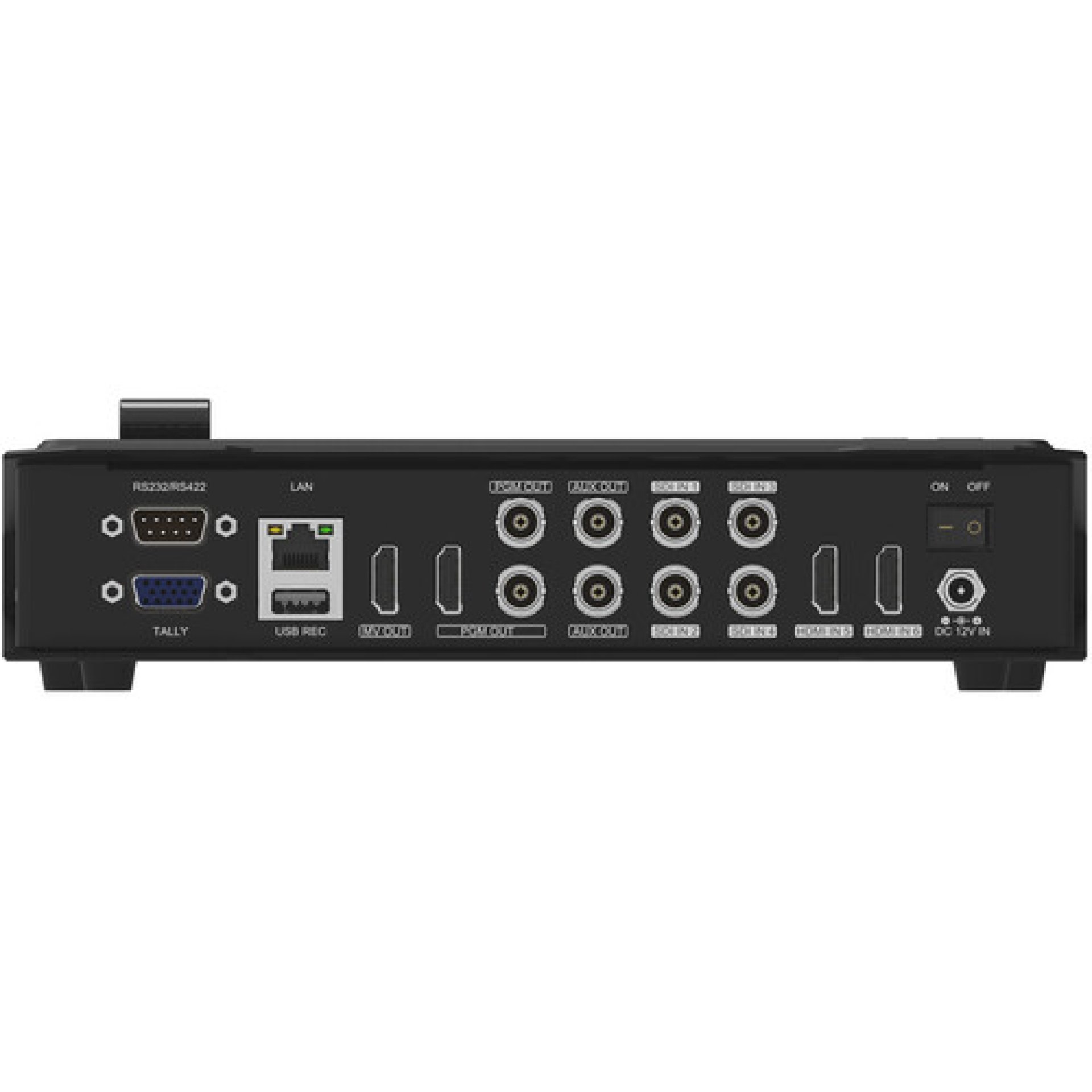

AVMATRIX Shark S6 6-Channel HDMI/SDI Video Switcher Connectivity

• 4 × 3G-SDI video inputs
• 2 × HDMI video inputs
• 2 × 3G-SDI program outputs
• 1 × HDMI program output
• 2 × 3G-SDI AUX outputs
• 1 × HDMI multiview output
• 1 × USB-C program output
• 2 × 3.5mm microphone inputs
• RJ45 Ethernet
• USB-A
• SD card slot
• RS232 / RS422 / RS485
• GPIO tally connection

The combination of SDI, HDMI, USB, network and serial connections makes the S6 suitable for complex live-production systems.

AVMATRIX Shark S6 6-Channel HDMI/SDI Video Switcher Audio Performance

• Supports embedded audio from SDI and HDMI sources.
• Two 3.5mm microphone inputs provide external audio connectivity.
• Integrated audio mixer allows audio sources to be incorporated into the live production.
• Supports audio output through the production workflow.
• Suitable for presentations, interviews, conferences, worship and live events.

AVMATRIX Shark S6 6-Channel HDMI/SDI Video Switcher Streaming & Recording

• Supports direct network streaming.
• Streaming protocols include RTMP, RTMPS, RTSP and SRT.
• USB-C provides a program video feed for computer-based capture and streaming.
• Supports recording to an external USB drive.
• Supports recording to an SD card.
• Recording supports Full HD up to 60 fps.
• Compatible with common streaming workflows and platforms.

AVMATRIX Shark S6 6-Channel HDMI/SDI Video Switcher PTZ Control

• Supports VISCA camera control.
• Supports VISCA over IP.
• Supports Pelco D.
• Supports Pelco P.
• Supports ONVIF.
• Network and serial interfaces provide flexible PTZ integration.
• Useful for conferences, churches, studios and multi-camera events.

AVMATRIX Shark S6 6-Channel HDMI/SDI Video Switcher Design & Build Quality

• Compact professional production chassis.
• Built-in 5-inch LCD reduces dependence on an external control monitor.
• Dedicated physical switching controls support hands-on operation.
• T-bar provides traditional broadcast-style switching.
• Approximately 1.5kg in weight.
• Suitable for mobile, studio and event production.
• Designed for professional live-production environments.

AVMATRIX Shark S6 6-Channel HDMI/SDI Video Switcher Power & Efficiency

• Uses a 12V DC power input.
• Approximately 18W device power consumption.
• Compact design helps simplify mobile production setups.
• Integrated switching, streaming, recording, monitoring and PTZ functions reduce the need for multiple separate devices.

AVMATRIX Shark S6 6-Channel HDMI/SDI Video Switcher Compatibility

• Professional SDI cameras
• HDMI mirrorless cameras
• HDMI DSLR cameras
• Professional camcorders
• PTZ cameras
• HDMI media players
• Computers with HDMI output
• Broadcast monitors
• SDI monitors
• Projectors
• Streaming computers
• External USB storage
• SD cards
• Professional audio equipment

AVMATRIX Shark S6 6-Channel HDMI/SDI Video Switcher Ideal Use

• Multi-camera live production
• Professional broadcasting
• Live streaming
• Church services
• Conferences
• Corporate events
• Education and training
• Webinars
• Live concerts
• House of worship
• Sports production
• Studio production
• Event videography
• YouTube production
• Online broadcasting
• PTZ camera production

AVMATRIX Shark S6 6-Channel HDMI/SDI Video Switcher Pros & Cons

AVMATRIX Shark S6 6-Channel HDMI/SDI Video Switcher FAQs

1. How many cameras can the Shark S6 connect?
The Shark S6 provides six video inputs: four 3G-SDI and two HDMI, allowing up to six compatible video sources to be connected.

2. Does the Shark S6 support 1080p60?
Yes. The switcher supports HD video formats up to 1080p60.

3. Does the Shark S6 have a built-in display?
Yes. It features a 5-inch LCD display for monitoring and operating the switcher.

4. Can the Shark S6 stream directly?
Yes. It supports network streaming using protocols including RTMP, RTMPS, RTSP and SRT.

5. Can it record video?
Yes. The Shark S6 supports recording to USB storage and SD cards, with Full HD recording up to 60 fps.

6. Does it support PTZ cameras?
Yes. It supports VISCA, VISCA over IP, Pelco D/P and ONVIF PTZ control.

AVMATRIX Shark S6 6-Channel HDMI/SDI Video Switcher Conclusion

The AVMATRIX Shark S6 6-Channel HDMI/SDI Video Switcher is a versatile professional switching system for productions that require multiple HDMI and SDI sources. Its six-channel input configuration, built-in 5-inch LCD, SDI and HDMI outputs, AUX routing, multiview, USB-C capture, direct streaming, USB/SD recording, advanced keying and PTZ control make it well suited to broadcasting, churches, conferences, events and professional live streaming. At KSh 107,900, it provides a comprehensive all-in-one production platform for HD multi-camera workflows.
