Blackmagic Design ATEM Production Studio 4K Live Switcher Key Features

• 8 Video Inputs (4 x 6G-SDI, 4 x HDMI)

• Ultra HD 4K up to 2160p30 Support

• 6 Video Outputs

• Built-In MultiView Monitoring

• 2 Downstream Keyers

• Upstream Chroma Keyer

• Fairlight-Style Audio Mixer

• Media Pool for Graphics & Titles

• Professional Transitions & Effects

• USB & Ethernet Control

• ATEM Software Control Included

• Rack-Mount Broadcast Design

The Blackmagic Design ATEM Production Studio 4K Live Switcher is a professional Ultra HD live production switcher that combines SDI and HDMI connectivity with advanced broadcast features, making it ideal for television production, live events, houses of worship, and professional streaming studios.

Blackmagic Design ATEM Production Studio 4K Live Switcher Overview

The Blackmagic Design ATEM Production Studio 4K Live Switcher is a full-featured broadcast production switcher designed for professional live production environments that demand high-quality Ultra HD video switching, advanced effects, and flexible connectivity. Unlike compact desktop switchers, the Production Studio 4K is built as a 1RU rack-mounted system, making it suitable for television studios, OB vans, conference centers, houses of worship, educational institutions, and production companies.

Featuring eight video inputs, including four professional 6G-SDI inputs and four HDMI inputs, the switcher allows operators to connect broadcast cameras, professional camcorders, media players, computers, replay systems, and presentation devices simultaneously. Every input supports automatic switching between SD, HD, and Ultra HD formats, providing exceptional flexibility for professional production environments.

Designed to support Ultra HD 4K production up to 2160p30, the switcher delivers broadcast-quality image processing while providing advanced live production tools including chroma keying, downstream keyers, media players, transitions, MultiView monitoring, and integrated audio mixing. These features enable production teams to create polished broadcasts without relying on additional production hardware.

The integrated MultiView output allows operators to monitor all video inputs, preview, program output, graphics, and audio levels simultaneously on a single display, significantly improving production efficiency during fast-paced live events.

Professional audio support includes balanced XLR audio inputs and outputs together with embedded SDI and HDMI audio processing. Combined with ATEM Software Control for Windows and macOS, the Production Studio 4K offers a complete live production solution for demanding broadcast applications.

Blackmagic Design ATEM Production Studio 4K Live Switcher Price in Kenya

Blackmagic Design ATEM Production Studio 4K Live Switcher Specifications

These specifications are based on Blackmagic Design's official technical documentation.

Blackmagic Design ATEM Production Studio 4K Live Switcher Performance

Blackmagic Design ATEM Production Studio 4K Live Production Performance

• The ATEM Production Studio 4K is engineered for professional broadcast environments where multiple camera feeds, presentation systems, and graphics must be managed simultaneously, allowing operators to deliver television-quality productions for concerts, conferences, worship services, sporting events, news broadcasts, and corporate productions with exceptional reliability and image quality.

• Eight independent video inputs combining both 6G-SDI and HDMI connectivity provide outstanding production flexibility, enabling broadcast cameras, professional cinema cameras, laptops, graphics workstations, replay systems, and media players to operate together within a single production workflow. This hybrid connectivity makes the switcher suitable for facilities using both professional SDI equipment and HDMI presentation sources.

• The switcher's Ultra HD 4K processing delivers exceptionally detailed images while maintaining full compatibility with SD and HD workflows, allowing production companies to support both modern 4K productions and traditional HD broadcasts using the same hardware.

• Integrated MultiView monitoring displays every video input, preview, program output, graphics, and live audio meters simultaneously, giving operators a complete overview of the production while helping reduce operational errors during demanding live broadcasts.

• Automatic video format support across SD, HD, and Ultra HD simplifies production setup and allows facilities to accommodate a wide range of professional video equipment without requiring separate switchers for different production formats.

• Broadcast-grade processing delivers smooth transitions, low latency, and dependable performance suitable for continuous professional operation during extended live productions.

Blackmagic Design ATEM Production Studio 4K Live Switcher Video & Audio Features

• The professional chroma key engine enables realistic green-screen productions, allowing presenters to appear inside virtual studios, weather graphics, educational presentations, corporate environments, and television-style broadcast sets while maintaining clean edge detail and accurate color separation.

• Two downstream keyers and an upstream chroma keyer provide extensive graphics capabilities, allowing broadcasters to overlay logos, lower thirds, sponsor graphics, scoreboards, titles, and branding elements while maintaining a professional broadcast appearance throughout the production.

• The integrated audio mixer processes embedded SDI audio, HDMI audio, balanced XLR audio, and analog RCA sources, allowing operators to maintain consistent sound quality across multiple microphones, music playback systems, and presentation devices during complex productions.

• Professional transitions including dissolves, wipes, fades, and digital effects allow producers to create visually engaging broadcasts that closely resemble traditional television productions without requiring additional video processing hardware.

• The built-in media pool allows production teams to store logos, graphics, and still images directly inside the switcher, providing immediate access to frequently used broadcast assets during live productions while simplifying workflow management.

• ATEM Software Control expands production capabilities by providing advanced switcher configuration, remote operation, media management, macro programming, and audio control from Windows and macOS computers, making it easier to manage complex productions efficiently.

Blackmagic Design ATEM Production Studio 4K Live Switcher Build & Design

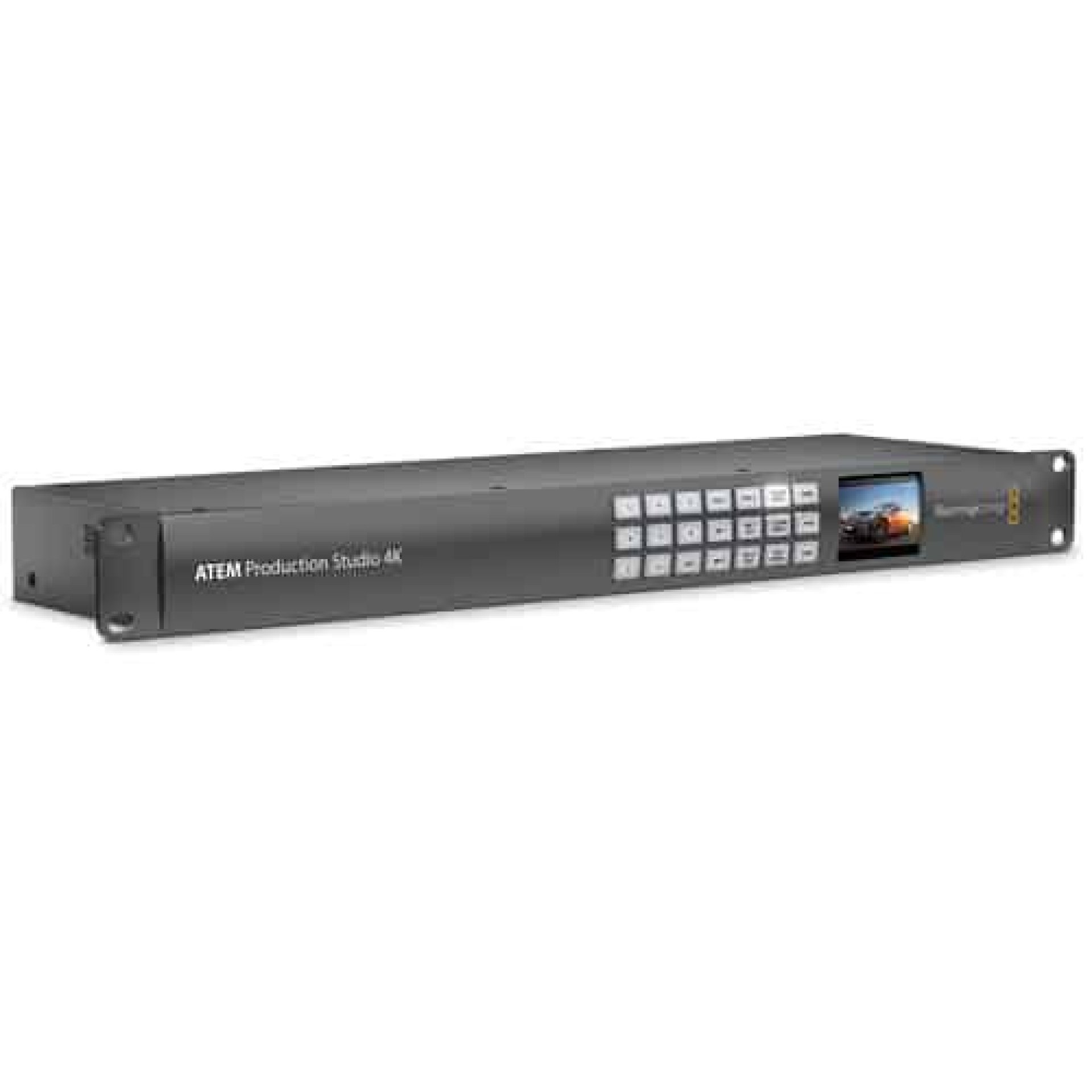

• The 1RU rack-mounted chassis is designed for professional broadcast installations, fitting easily into equipment racks used in television studios, mobile production vehicles, houses of worship, educational institutions, and corporate production facilities while maintaining excellent durability for continuous operation.

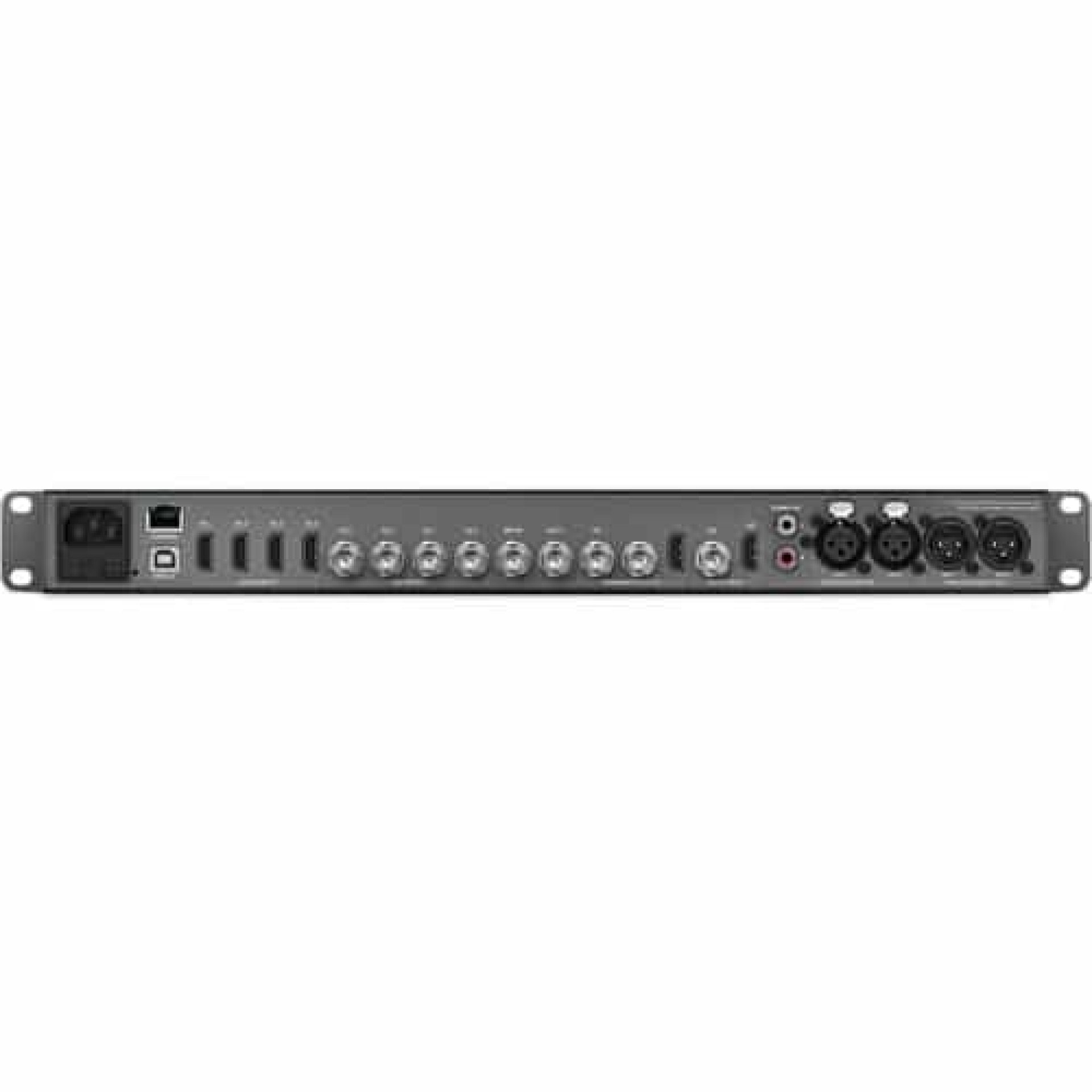

• Professional 6G-SDI connectivity supports secure locking cable connections and long-distance signal transmission, making the switcher particularly suitable for broadcast facilities where cameras may be positioned significant distances from the production control room.

• The combination of SDI and HDMI connectivity allows production teams to integrate both broadcast-grade equipment and consumer presentation devices, making the switcher highly adaptable for mixed production environments where flexibility is essential.

• Front-panel controls provide convenient access to core operational functions while ATEM Software Control delivers deeper configuration options for more sophisticated production workflows.

• The internal power supply eliminates the need for external adapters while supporting reliable long-term operation in permanent broadcast installations.

• Robust construction and professional broadcast engineering ensure dependable performance during continuous daily operation in demanding production environments.

Blackmagic Design ATEM Production Studio 4K Live Switcher Applications

The Blackmagic Design ATEM Production Studio 4K Live Switcher is ideal for:

• Television broadcasting

• Live event production

• House of worship broadcasting

• Corporate presentations

• Sports production

• University broadcasting

• Conference streaming

• Studio production

• Concert production

• Professional live video production

Blackmagic Design ATEM Production Studio 4K Live Switcher FAQs

How many video inputs does the ATEM Production Studio 4K have?

It provides 8 total video inputs, consisting of 4 x 6G-SDI and 4 x HDMI inputs.

Does the switcher support Ultra HD 4K?

Yes. It supports SD, HD, and Ultra HD 4K production up to 2160p30.

Does it include MultiView monitoring?

Yes. The switcher includes built-in MultiView monitoring for simultaneously viewing all inputs, preview, and program output.

Can it be controlled from a computer?

Yes. It supports both USB and Ethernet control using the included ATEM Software Control application for Windows and macOS.

Is it suitable for professional broadcast production?

Yes. Its SDI connectivity, rack-mounted design, advanced keying, professional audio support, and Ultra HD processing make it well suited for professional broadcast environments.

Blackmagic Design ATEM Production Studio 4K Live Switcher Pros & Cons

Blackmagic Design ATEM Production Studio 4K Live Switcher Conclusion

The Blackmagic Design ATEM Production Studio 4K Live Switcher remains an excellent professional broadcast solution for production companies, television studios, educational institutions, houses of worship, and corporate AV teams requiring dependable Ultra HD switching, hybrid SDI/HDMI connectivity, professional keying, MultiView monitoring, and broadcast-quality image processing. Its robust rack-mounted design and extensive production features make it a reliable centerpiece for demanding live production workflows.

Available in Kenya for KSh 701,000, the Blackmagic Design ATEM Production Studio 4K Live Switcher delivers professional broadcast performance for high-end live productions.
