AV MATRIX PVS0615U 6 CHANNEL SWITCHER-AVMATPVS0615U Key Specifications

• Product Type: Portable 6-Channel Multi-Format Video Switcher
• Video Inputs: 4 × 3G-SDI + 2 × HDMI
• Additional Input Support: DVI-I, VGA and USB through the multi-format input section
• Processing: Multi-format input auto-detection
• Program Outputs: 2 × HDMI + 2 × 3G-SDI
• AUX Output: SDI
• Multiview: 6-Way Multiview
• Built-in Display: 15.6-inch Full HD LCD
• Display Resolution: 1920 × 1080
• USB-C Output: UVC/UAC Live Streaming and Capture
• Audio: Analog and embedded SDI/HDMI/USB audio
• Keying: Luma Key and Chroma Key
• Transitions: Cut, Auto, Mix, Fade and Wipe
• Recording: SD Card
• Tally: DB-25/GPIO
• Network: RJ45
• Power Input: 12V DC
• Power Consumption: Approximately 33W
• Weight: Approximately 4kg

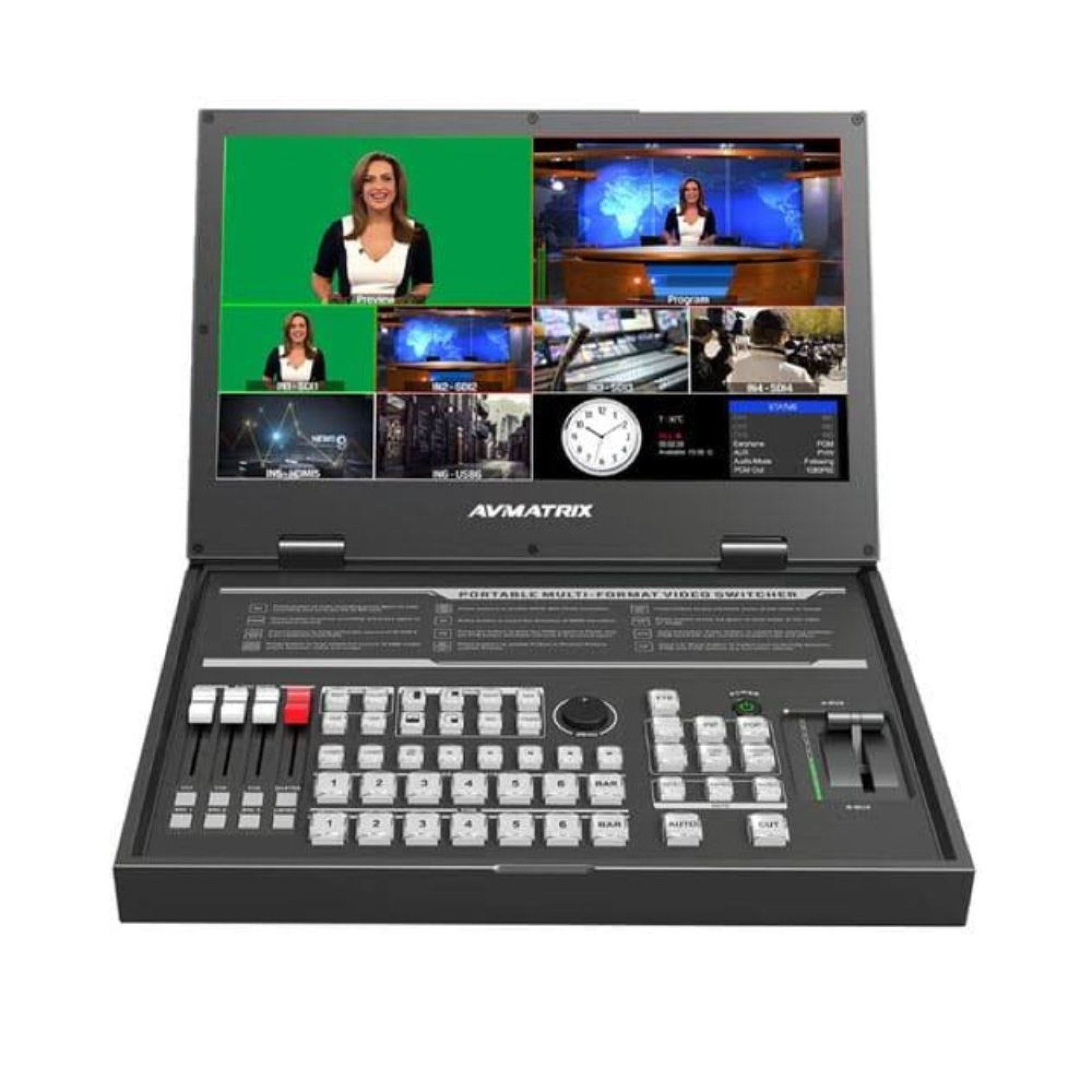

AV MATRIX PVS0615U 6 CHANNEL SWITCHER-AVMATPVS0615U Overview

The AV MATRIX PVS0615U 6 CHANNEL SWITCHER-AVMATPVS0615U is a professional portable all-in-one video switcher designed for multi-camera production, broadcasting, live streaming, events, presentations and studio workflows. It combines six-channel multi-format switching with an integrated 15.6-inch Full HD display for convenient multiview monitoring.

The switcher accepts four 3G-SDI sources plus two HDMI-based inputs, while the multi-format input system also supports DVI-I, VGA and USB sources. It automatically detects compatible input formats and provides selectable program/AUX output formats.

AV MATRIX PVS0615U 6 CHANNEL SWITCHER-AVMATPVS0615U Price in Kenya

AV MATRIX PVS0615U 6 CHANNEL SWITCHER-AVMATPVS0615U Full Specifications

The PVS0615U supports a wide range of SDI, HDMI and computer-oriented input formats, while its outputs include HDMI, SDI and USB-C. Its built-in display is a 15.6-inch 1920 × 1080 screen.

AV MATRIX PVS0615U 6 CHANNEL SWITCHER-AVMATPVS0615U Performance

• Supports six-channel live video switching.
• Combines 4 × 3G-SDI with 2 × HDMI inputs.
• Supports multi-format sources including compatible DVI-I, VGA and USB sources.
• Automatically detects compatible input formats.
• Provides two HDMI program outputs.
• Provides two 3G-SDI program outputs.
• Dedicated SDI AUX output provides additional routing flexibility.
• Supports selectable PGM/AUX output formats.
• Six-way multiview allows multiple sources to be monitored simultaneously.
• T-Bar, Auto and Cut controls support fast live switching.
• Mix, Fade and Wipe transitions provide additional production effects.
• Luma and Chroma Key support advanced compositing.
• Adjustable PiP/PoP layouts are suitable for presentations and multi-source productions.

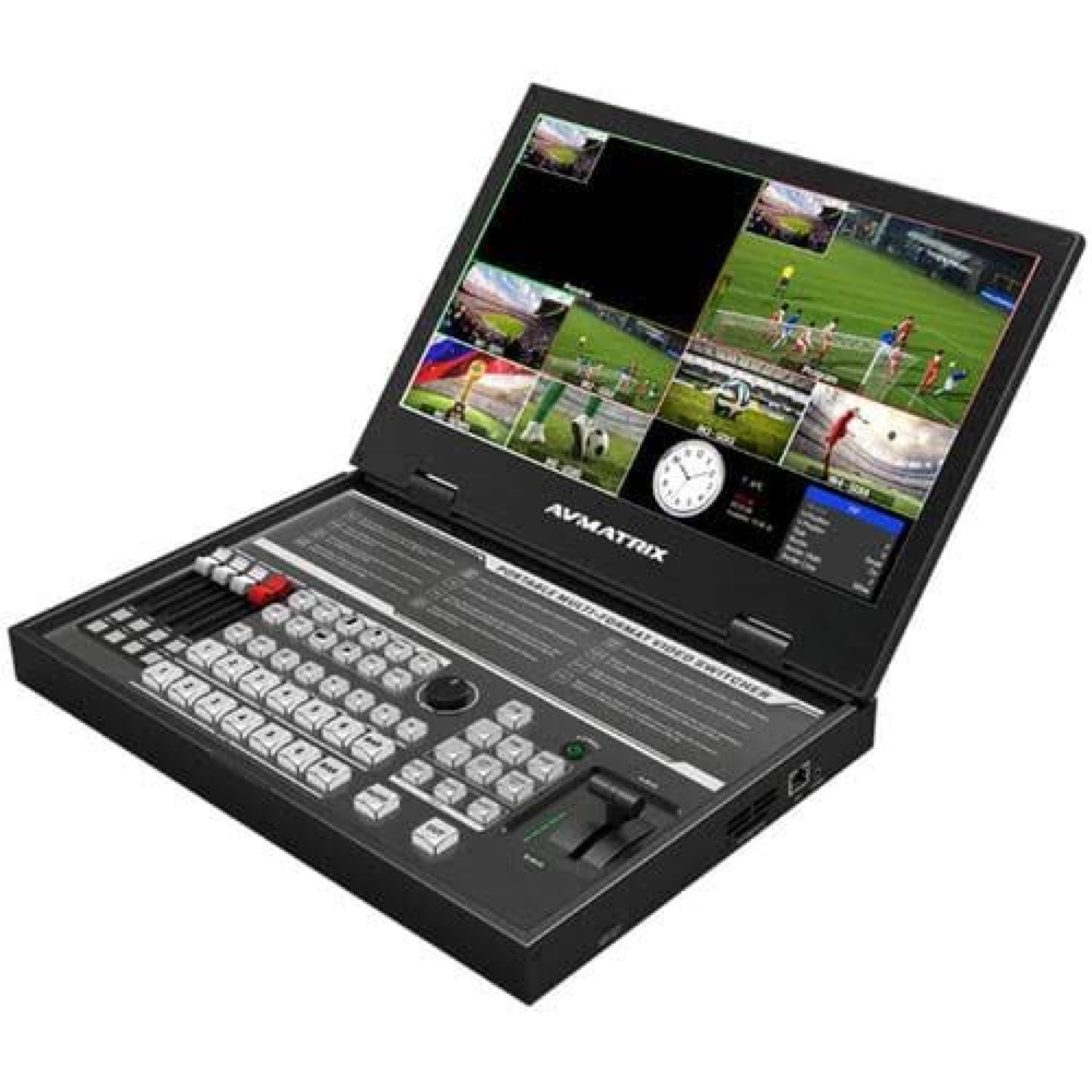

AV MATRIX PVS0615U 6 CHANNEL SWITCHER-AVMATPVS0615U Design and Build Quality

• Portable all-in-one production design.
• Integrated 15.6-inch Full HD LCD display.
• Metal chassis designed for professional production environments.
• Approximately 4kg in weight.
• Physical switching controls provide direct operation.
• T-Bar provides traditional broadcast-style switching.
• Integrated display reduces the need for a separate multiview monitor.
• Suitable for studio, event and mobile production setups.

AV MATRIX PVS0615U 6 CHANNEL SWITCHER-AVMATPVS0615U Smart Features

• 15.6-inch Full HD multiview display.
• Six-channel multi-format switching.
• Automatic input format detection.
• Luma Key and Chroma Key.
• PiP and PoP functionality.
• Mix, Fade and Wipe transitions.
• T-Bar, Auto and Cut switching.
• SD card recording.
• USB-C UVC/UAC streaming output.
• Six-way multiview.
• SDI AUX output.
• GPIO/DB-25 tally interface.

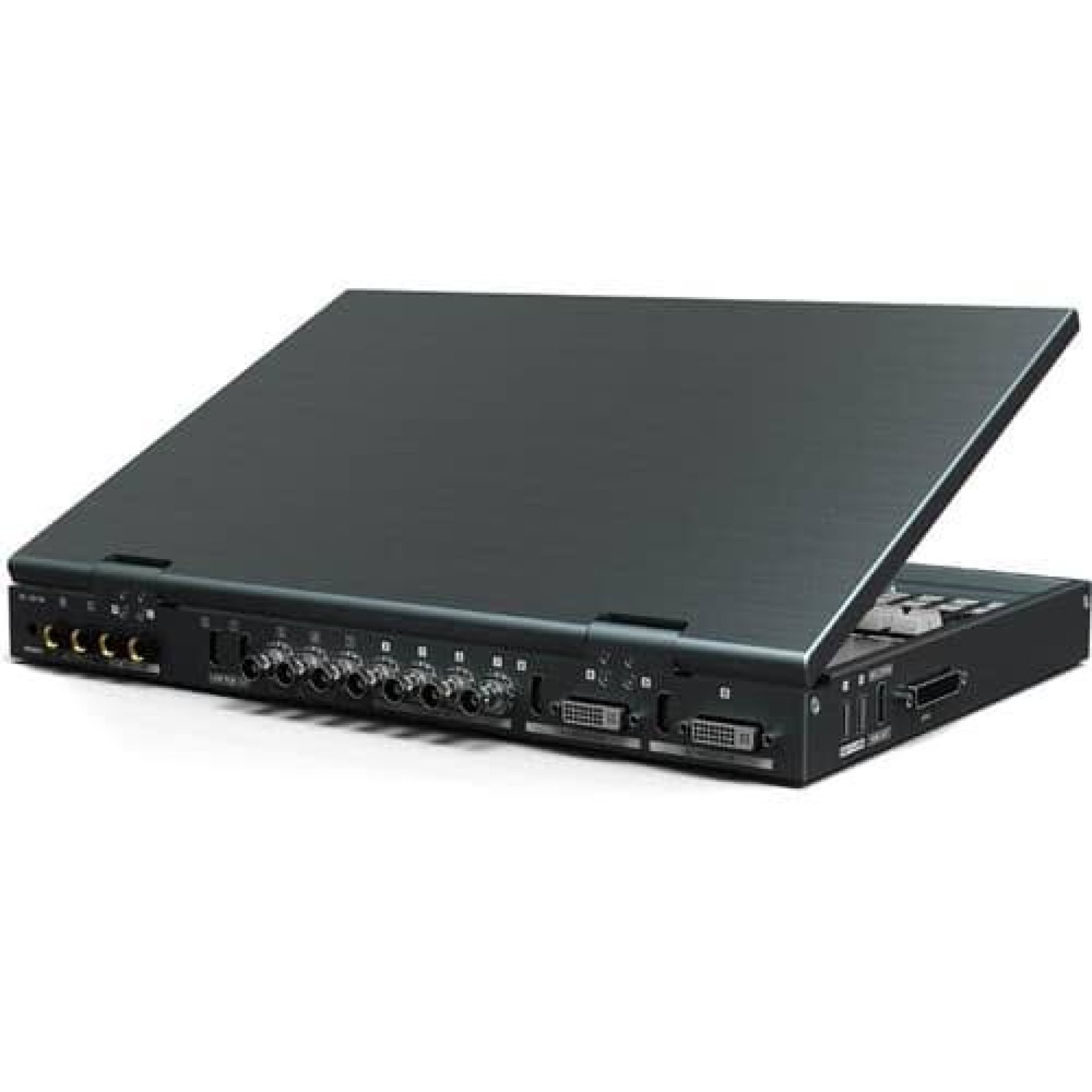

AV MATRIX PVS0615U 6 CHANNEL SWITCHER-AVMATPVS0615U Connectivity

• 4 × 3G-SDI video inputs
• 2 × HDMI video inputs
• DVI-I/VGA/USB multi-format input support
• 2 × 3G-SDI program outputs
• 2 × HDMI program outputs
• 1 × SDI AUX output
• 1 × HDMI multiview output
• 1 × USB-C UVC/UAC output
• RCA analog audio input/output
• 3.5mm headphone/audio output
• 2 × USB-A inputs
• DB-25 tally interface
• RJ45 LAN interface

AV MATRIX PVS0615U 6 CHANNEL SWITCHER-AVMATPVS0615U Audio Performance

• Supports analog RCA audio.
• Supports embedded SDI audio.
• Supports embedded HDMI audio.
• Supports embedded USB audio.
• Integrated audio mixer for live production.
• Audio delay functionality helps synchronize audio and video.
• Headphone monitoring is supported.
• Suitable for productions requiring integrated video and audio control.

AV MATRIX PVS0615U 6 CHANNEL SWITCHER-AVMATPVS0615U Streaming and Recording

• USB-C provides uncompressed live-streaming capture.
• USB-C output complies with UVC/UAC standards.
• Connects to a computer as a video/audio capture device.
• Suitable for OBS, Wirecast, vMix and similar streaming software.
• Records program video to an SD card.
• USB-C streaming allows custom streaming destinations through computer software.
• The RJ45 connection is not used as a standalone internet streaming encoder.

AV MATRIX PVS0615U 6 CHANNEL SWITCHER-AVMATPVS0615U Compatibility

• Professional SDI cameras
• HDMI cameras
• Mirrorless cameras with HDMI output
• DSLR cameras with HDMI output
• Professional camcorders
• PTZ cameras with compatible SDI/HDMI output
• Computers with HDMI output
• Computers with DVI/VGA output
• USB video sources
• Media players
• Broadcast monitors
• HDMI displays
• SDI monitors
• Streaming computers
• SD cards
• External audio equipment

AV MATRIX PVS0615U 6 CHANNEL SWITCHER-AVMATPVS0615U Ideal Use Cases

• Multi-camera live production
• Professional live streaming
• Broadcast production
• Church services
• Conferences
• Corporate events
• Education and training
• Webinars
• Live concerts
• House of worship
• Sports production
• Studio production
• Event videography
• YouTube production
• Online broadcasting
• Portable video production

AV MATRIX PVS0615U 6 CHANNEL SWITCHER-AVMATPVS0615U Pros & Cons

AV MATRIX PVS0615U 6 CHANNEL SWITCHER-AVMATPVS0615U FAQs

1. How many video channels does the PVS0615U support?
It is a six-channel switcher with four SDI inputs and two HDMI-based channels, with additional DVI-I, VGA and USB source compatibility.

2. Does the PVS0615U have a built-in monitor?
Yes. It features a 15.6-inch Full HD LCD display with 1920 × 1080 resolution for multiview monitoring.

3. Does the PVS0615U support USB streaming?
Yes. Its USB-C port provides UVC/UAC video and audio output for computer-based live streaming and capture.

4. Can the PVS0615U record video?
Yes. The switcher supports recording the program feed to an SD card.

5. Does it support SDI and HDMI simultaneously?
Yes. The four SDI and two HDMI channels allow SDI and HDMI sources to be integrated into the same production.

6. Does the PVS0615U support keying?
Yes. It supports both Luma Key and Chroma Key for compositing and virtual-production workflows.

7. Can it stream directly through Ethernet?
No. The USB-C connection is used for computer-based streaming; the RJ45 connection is not a standalone internet streaming encoder.

AV MATRIX PVS0615U 6 CHANNEL SWITCHER-AVMATPVS0615U Conclusion

The AV MATRIX PVS0615U 6 CHANNEL SWITCHER-AVMATPVS0615U is a versatile all-in-one production switcher for professional multi-camera workflows. Its six-channel multi-format inputs, 15.6-inch Full HD multiview display, SDI and HDMI program outputs, SDI AUX, USB-C UVC/UAC streaming, SD card recording, audio mixing, Luma/Chroma Key and professional transition controls make it suitable for broadcasting, churches, conferences, events, education and live streaming. At KSh 190,400, it provides a comprehensive portable switching and monitoring solution.
