AVMATRIX SHARK S4M 4-Channel HDMI/SDI AV Switcher

AVMATRIX SHARK S4M 4-Channel HDMI/SDI AV Switcher

Key Specifications

• Product Type: 4-Channel HDMI/SDI AV Switcher
• Video Inputs: 2 × HDMI + 2 × SDI
• Video Processing: Up to 1080p60
• Program Outputs: 2 × HDMI
• Multiview Output: 1 × HDMI
• USB-C Output: UVC Video Capture/Streaming
• Audio Inputs: 6 × Mono Mic/Line + 2 × Stereo Line
• Audio Outputs: 2 × Balanced XLR + 1 × Stereo Headphone
• Audio Mixing: Multi-channel
• Audio Processing: Gain, 2-Band EQ, Low-Cut Filter
• Phantom Power: 48V
• DSP Effects: 99 Built-in Modes
• Keying: Chroma Key, Luma Key and DSK
• PiP/PoP: 2 × PiP / 1 × PoP
• Logo Overlay: Supported
• Transitions: Cut, Auto, Mix, Dip and Wipe
• Streaming: RTMP and SRT
• Recording: USB Disk and SD Card
• Network: RJ45 LAN
• Wireless Audio: Bluetooth
• Tally: Supported
• Control: Physical Controls, T-Bar and Web Interface
• Power: 12V DC

AVMATRIX SHARK S4M 4-Channel HDMI/SDI AV Switcher Overview

The AVMATRIX SHARK S4M 4-Channel HDMI/SDI AV Switcher is an all-in-one live-production workstation that combines professional video switching with an integrated audio mixer. It accepts two HDMI and two SDI video sources, making it suitable for mixed-camera productions where both HDMI and SDI equipment need to be used together. It supports video processing up to 1080p60 and provides HDMI program and multiview outputs.

The S4M also adds extensive audio functionality, including six mono microphone inputs, two stereo line inputs, balanced XLR outputs, headphone monitoring, 48V phantom power and built-in DSP effects. USB-C UVC output, direct RTMP/SRT streaming and recording to USB or SD card make it suitable for complete live-production workflows.

AVMATRIX SHARK S4M 4-Channel HDMI/SDI AV Switcher Price in Kenya

AVMATRIX SHARK S4M 4-Channel HDMI/SDI AV Switcher Full Specifications

The published S4M specifications confirm its four-channel HDMI/SDI video architecture, integrated audio mixing, streaming, recording and production effects.

AVMATRIX SHARK S4M 4-Channel HDMI/SDI AV Switcher Performance

• Supports four video sources using 2 HDMI and 2 SDI inputs.
• Handles video production up to 1080p60.
• Provides two HDMI program outputs.
• Dedicated HDMI multiview output allows simultaneous source monitoring.
• USB-C provides UVC video output for computer-based capture and streaming.
• T-bar, Auto and Cut controls support fast live switching.
• Mix, Dip and Wipe transitions provide professional presentation options.
• Chroma and Luma Key support green-screen and compositing workflows.
• Two PiP groups and PoP provide flexible multi-source layouts.
• DSK and logo overlay functions support branded productions.

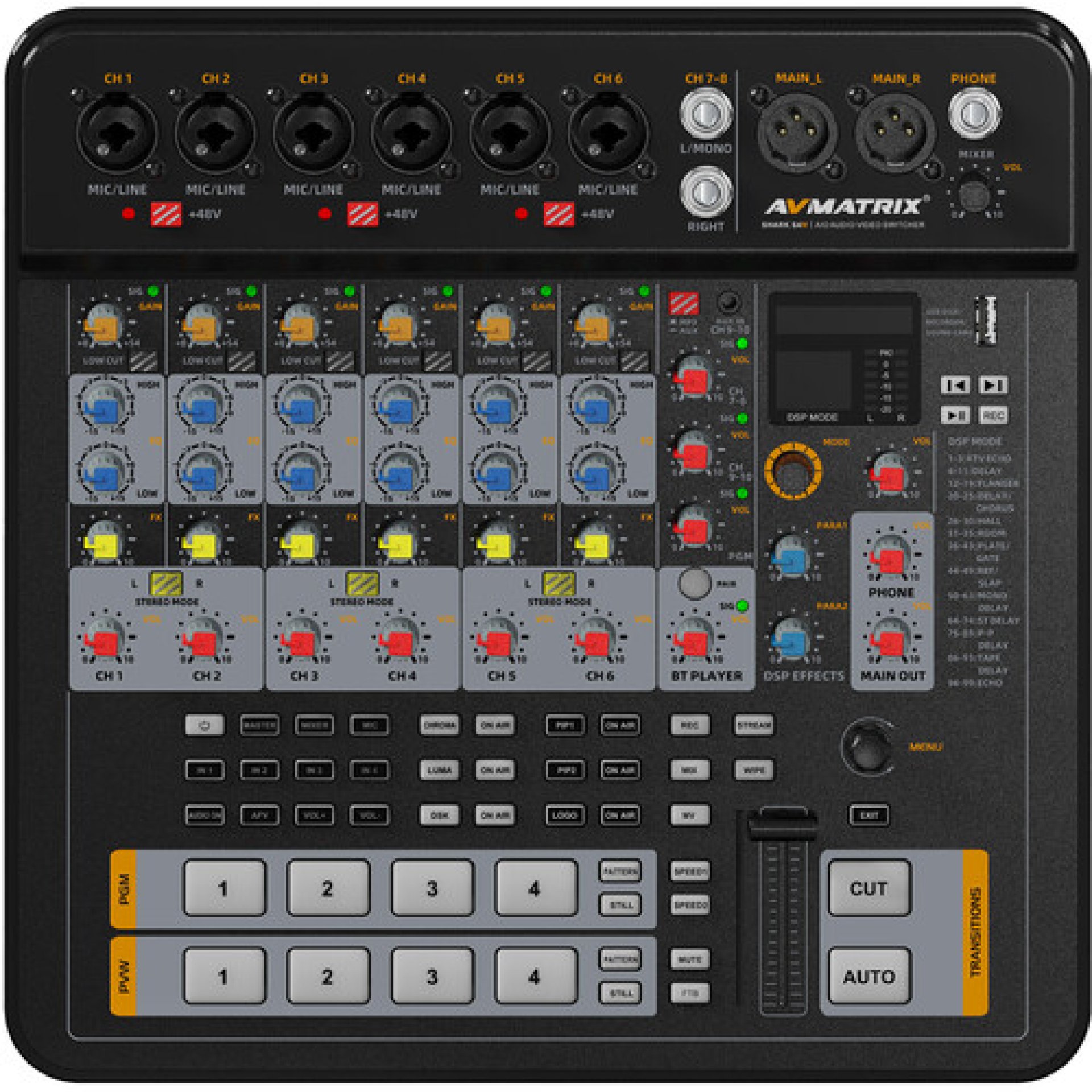

AVMATRIX SHARK S4M 4-Channel HDMI/SDI AV Switcher Audio Performance

• Six mono microphone/line inputs provide extensive audio connectivity.
• Two stereo line inputs accommodate additional audio sources.
• Two balanced XLR outputs integrate with professional PA systems and mixers.
• Stereo headphone output supports operator monitoring.
• 48V phantom power supports compatible condenser microphones.
• Individual gain controls allow precise input-level adjustment.
• Two-band EQ helps shape individual channels.
• Low-cut filtering helps reduce unwanted low-frequency noise.
• 99 built-in DSP effects provide additional audio-processing options.
• Bluetooth audio input provides another source for playback.
• USB sound-card functionality supports computer-based audio workflows.

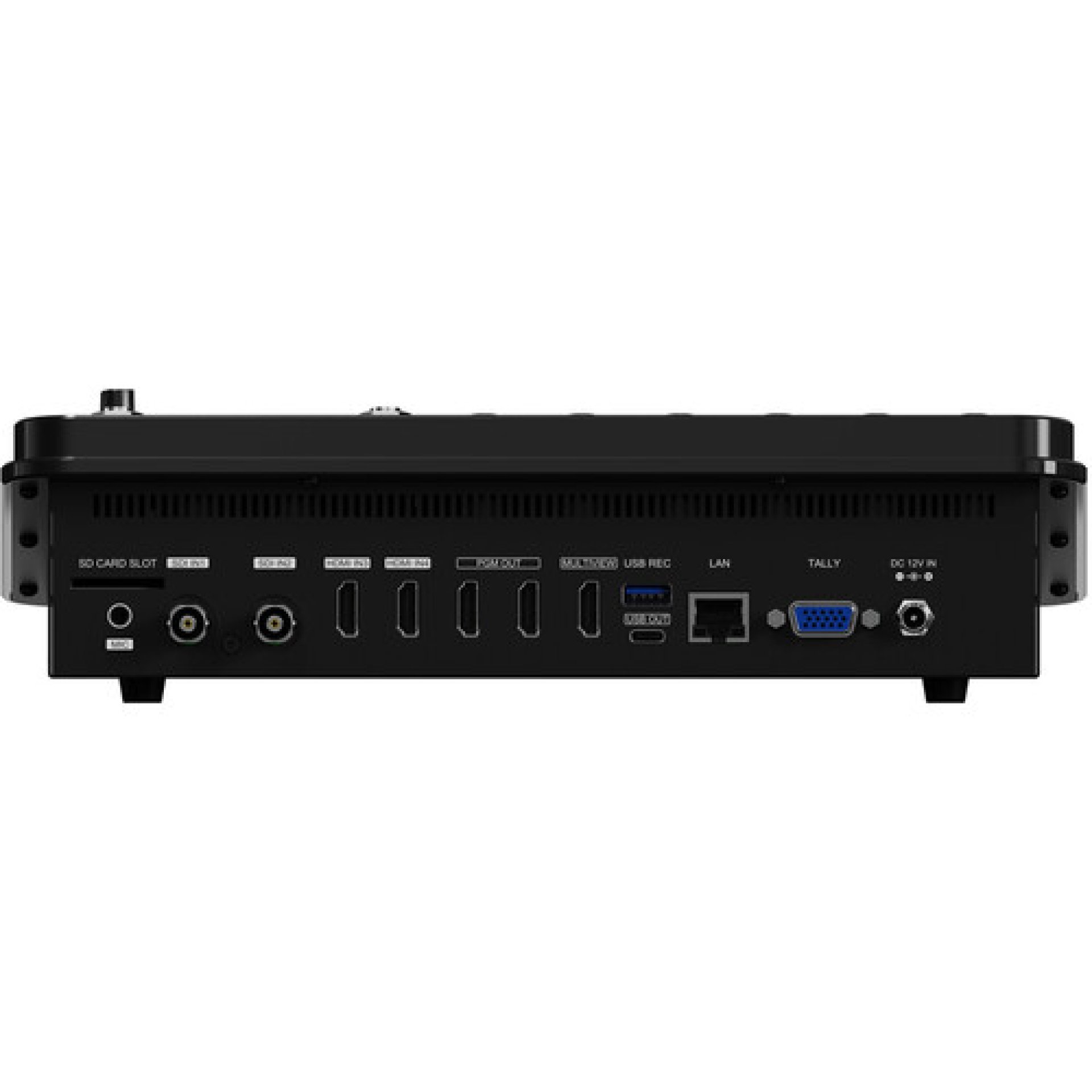

AVMATRIX SHARK S4M 4-Channel HDMI/SDI AV Switcher Connectivity

• 2 × HDMI video inputs
• 2 × SDI video inputs
• 2 × HDMI program outputs
• 1 × HDMI multiview output
• USB-C UVC video output
• 6 × mono microphone/line inputs
• 2 × stereo line inputs
• 2 × balanced XLR audio outputs
• Stereo headphone output
• RJ45 LAN
• USB recording interface
• SD card recording
• Tally connection
• Bluetooth audio

The mixed HDMI/SDI design makes the S4M particularly useful where professional SDI cameras need to work alongside HDMI cameras or other HDMI sources.

AVMATRIX SHARK S4M 4-Channel HDMI/SDI AV Switcher Streaming & Recording

• Supports direct network streaming using RTMP and SRT.
• LAN connectivity enables network-based production and web control.
• USB-C provides UVC output for streaming through a computer.
• Supports recording to USB storage.
• Supports SD card recording.
• Suitable for direct streaming as well as computer-based production workflows.

AVMATRIX SHARK S4M 4-Channel HDMI/SDI AV Switcher Design & Build Quality

• Compact all-in-one production design.
• Combines video switching and professional audio mixing in one device.
• Physical controls provide direct access during live production.
• T-bar provides traditional broadcast-style switching.
• Designed for desktop, studio and mobile production.
• Integrated controls reduce dependence on a computer during live operation.
• Portable form factor is suitable for event and field production.

AVMATRIX SHARK S4M 4-Channel HDMI/SDI AV Switcher Power & Efficiency

• Operates from a 12V DC power supply.
• Integrated video, audio, streaming and recording functions reduce the need for multiple separate devices.
• Compact design is suitable for mobile production.
• USB-C UVC connectivity simplifies computer-based streaming setups.
• One integrated workstation can replace separate basic switching and audio-mixing equipment.

AVMATRIX SHARK S4M 4-Channel HDMI/SDI AV Switcher Compatibility

• Professional SDI cameras
• HDMI mirrorless cameras
• HDMI DSLR cameras
• Professional camcorders
• PTZ cameras
• HDMI media players
• Computers with HDMI output
• Microphones
• Line-level audio sources
• Professional PA systems
• Broadcast monitors
• Projectors
• Streaming computers
• Live-production systems

AVMATRIX SHARK S4M 4-Channel HDMI/SDI AV Switcher Ideal Use

• Live streaming
• Multi-camera production
• Broadcast production
• Church services
• Conferences
• Corporate events
• Education and training
• Webinars
• Interviews
• Live concerts
• House of worship
• Sports and event production
• Studio production
• YouTube production
• Online broadcasting
• Professional event production

AVMATRIX SHARK S4M 4-Channel HDMI/SDI AV Switcher Pros & Cons

AVMATRIX SHARK S4M 4-Channel HDMI/SDI AV Switcher FAQs

1. How many video sources can the S4M connect?
The S4M supports four video sources, consisting of two HDMI and two SDI inputs.

2. Does the S4M support 1080p60?
Yes. The switcher supports video processing up to 1080p60.

3. Does the S4M include an audio mixer?
Yes. It includes six mono microphone/line inputs, two stereo line inputs, balanced XLR outputs, headphone monitoring, EQ, low-cut filtering and DSP effects.

4. Does it support direct streaming?
Yes. The S4M supports network streaming using RTMP and SRT, while USB-C provides UVC output for computer-based streaming.

5. Can it record video?
Yes. The S4M supports recording to USB disk and SD card.

6. Does it support both HDMI and SDI cameras?
Yes. The combination of two HDMI and two SDI inputs allows both types of camera sources to be used in the same production.

AVMATRIX SHARK S4M 4-Channel HDMI/SDI AV Switcher Conclusion

The AVMATRIX SHARK S4M 4-Channel HDMI/SDI AV Switcher is a comprehensive live-production workstation for users who need mixed HDMI and SDI video switching together with professional audio mixing. Its four video inputs, 1080p60 processing, dual HDMI program outputs, multiview, USB-C UVC output, RTMP/SRT streaming, USB and SD recording, keying, PiP/PoP and extensive audio controls make it well suited to churches, conferences, broadcasters, educators, event producers and professional content creators. At KSh 64,000, it offers an extensive all-in-one production feature set.
