AVMATRIX Shark S4 4-Channel 3G-SDI/HDMI Video Switcher

AVMATRIX Shark S4 4-Channel 3G-SDI/HDMI Video Switcher

Key Specifications

• Product Type: 4-Channel Professional Video Switcher
• Video Inputs: 2 × 3G-SDI + 2 × HDMI
• Maximum Processing: 1080p60
• Program Outputs: 2 × HDMI
• Multiview Output: 1 × HDMI
• USB-C Output: UVC Video Capture/Streaming
• USB-A: Program Recording
• SD Card: Recording
• Audio Inputs: 2 × 3.5mm Stereo Mic/Line
• Audio Mixing: 2-Channel
• Audio: HDMI and SDI Embedded Audio
• Keying: Luma Key, Chroma Key
• PiP/PoP: 2 × PiP / PoP
• Downstream Key: Supported
• Logo Overlay: Supported
• Transitions: Cut, Auto, Mix, Dip and Wipe
• Streaming: RTMP, RTMPS and SRT
• Tally: GPIO/Tally Support
• Network: RJ45 LAN
• Control: Pushbuttons, Software and T-Bar
• Power Input: 12V DC
• Power Consumption: Approximately 16.8W
• Weight: Approximately 1kg

AVMATRIX Shark S4 4-Channel 3G-SDI/HDMI Video Switcher Overview

The AVMATRIX Shark S4 4-Channel 3G-SDI/HDMI Video Switcher is a compact professional switcher designed for multi-camera live production, broadcasting, streaming, conferences, education, events and houses of worship. It combines two 3G-SDI inputs and two HDMI inputs, allowing four different video sources to be managed from one unit.

The Shark S4 supports video processing up to 1080p60 and provides two HDMI program outputs, an HDMI multiview output and USB-C connectivity for computer-based capture and streaming. It also includes audio mixing, keying, PiP/PoP, transitions, recording and direct IP streaming capabilities.

AVMATRIX Shark S4 4-Channel 3G-SDI/HDMI Video Switcher Price in Kenya

AVMATRIX Shark S4 4-Channel 3G-SDI/HDMI Video Switcher Full Specifications

Specifications are based on AVMATRIX and published product specifications.

AVMATRIX Shark S4 4-Channel 3G-SDI/HDMI Video Switcher Performance

• Supports four video sources through 2 × HDMI and 2 × 3G-SDI inputs.
• Handles video formats up to 1080p60.
• Provides two HDMI program outputs for flexible production setups.
• Dedicated HDMI multiview output allows monitoring of connected sources.
• USB-C output can function as a UVC video source for computer streaming and capture.
• T-bar, Cut and Auto controls provide flexible live switching.
• Supports Mix, Dip and Wipe transitions.
• Chroma and Luma Key provide advanced compositing options.
• Two PiP layouts and PoP support allow multiple sources to appear on screen.
• Downstream key and logo overlay functions support branded productions.

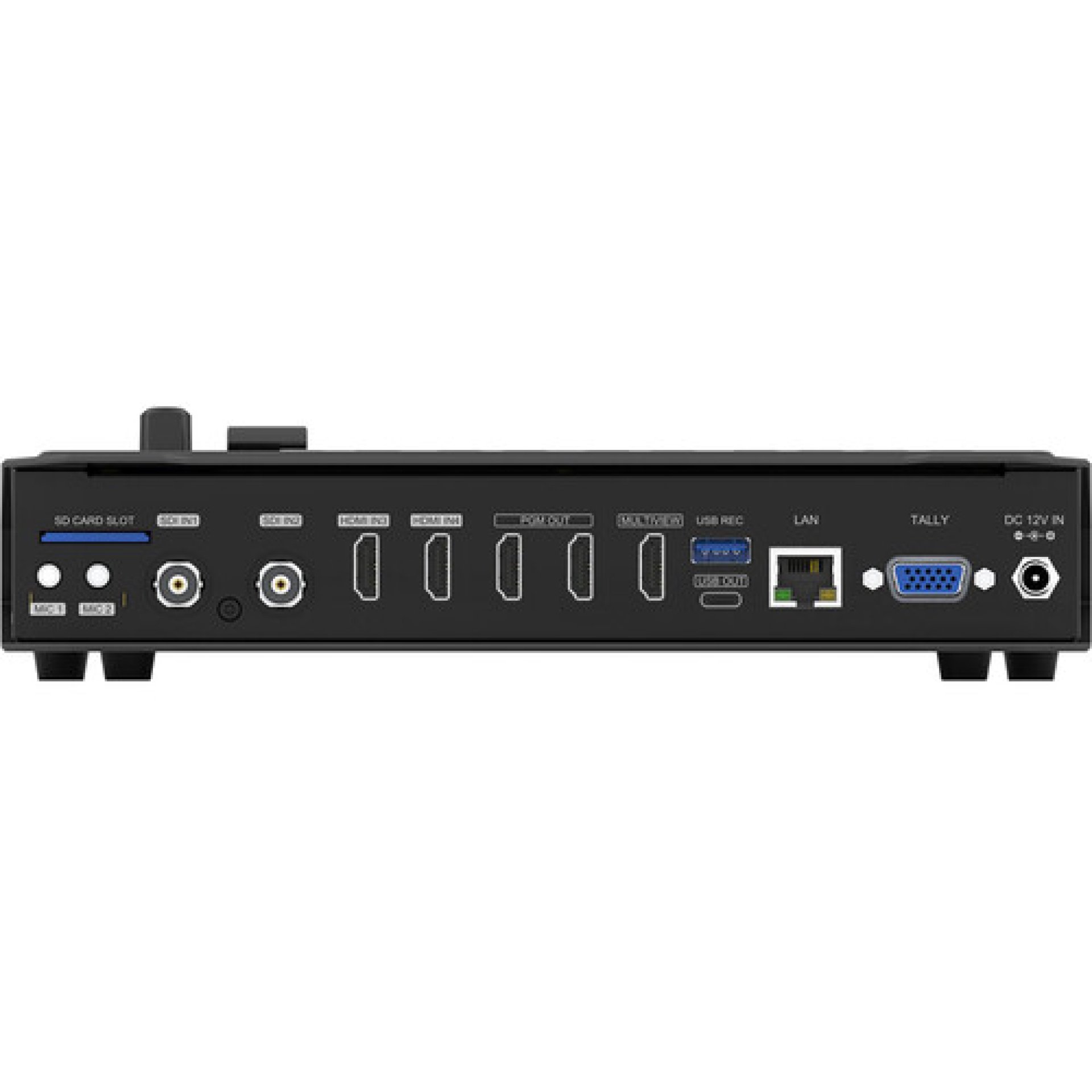

AVMATRIX Shark S4 4-Channel 3G-SDI/HDMI Video Switcher Connectivity

• 2 × HDMI video inputs
• 2 × 3G-SDI video inputs
• 2 × HDMI program outputs
• 1 × HDMI multiview output
• 1 × USB-C video output
• 1 × USB-A recording/output interface
• 2 × 3.5mm stereo analog audio inputs
• 1 × 3.5mm stereo audio loop output
• RJ45 LAN
• Tally interface
• SD card recording

The combination of HDMI and SDI connectivity makes the Shark S4 suitable for mixed-camera environments where professional SDI cameras need to be used alongside HDMI cameras.

AVMATRIX Shark S4 4-Channel 3G-SDI/HDMI Video Switcher Audio Performance

• Supports two-channel audio mixing.
• Accepts two 3.5mm stereo analog microphone/line inputs.
• Supports embedded two-channel audio from HDMI sources.
• Supports embedded two-channel audio from SDI sources.
• Provides a 3.5mm stereo audio loop output.
• Audio delay is available for synchronization workflows.

AVMATRIX Shark S4 4-Channel 3G-SDI/HDMI Video Switcher Streaming & Recording

• Supports direct network streaming through RJ45 LAN.
• Compatible with RTMP, RTMPS and SRT streaming protocols.
• Supports streaming at up to 1920 × 1080.
• USB-C can provide UVC output for software such as OBS, Zoom, Teams and vMix.
• USB-A supports program recording to external storage.
• Built-in SD card recording provides an additional recording option.
• Suitable for both direct streaming and computer-based production workflows.

AVMATRIX Shark S4 4-Channel 3G-SDI/HDMI Video Switcher Design & Build Quality

• Compact professional production design.
• Approximately 1kg in weight.
• Approximately 24.45 × 14.32 × 4.45cm in size.
• Dedicated physical controls for live operation.
• T-bar provides traditional broadcast-style switching.
• Suitable for desktop, studio, mobile and event production.
• Compact construction makes it easier to transport between production locations.

AVMATRIX Shark S4 4-Channel 3G-SDI/HDMI Video Switcher Power & Efficiency

• Uses a 12V DC power supply.
• Power consumption is approximately 16.8W.
• Compact design helps minimize equipment requirements for mobile production.
• Combining switching, streaming, recording and audio functions reduces the need for multiple separate devices.

AVMATRIX Shark S4 4-Channel 3G-SDI/HDMI Video Switcher Compatibility

• Professional SDI cameras
• HDMI mirrorless cameras
• HDMI DSLR cameras
• Professional camcorders
• PTZ cameras
• HDMI media players
• Computers with HDMI output
• Broadcast monitors
• Projectors
• Streaming computers
• External audio sources
• Live-production systems

AVMATRIX Shark S4 4-Channel 3G-SDI/HDMI Video Switcher Ideal Use

• Live streaming
• Multi-camera production
• Broadcast production
• Church services
• Conferences
• Corporate events
• Education and training
• Webinars
• Interviews
• Live concerts
• House of worship
• Sports and event production
• Studio production
• YouTube production
• Online broadcasting

AVMATRIX Shark S4 4-Channel 3G-SDI/HDMI Video Switcher Pros & Cons

AVMATRIX Shark S4 4-Channel 3G-SDI/HDMI Video Switcher FAQs

1. How many video sources can the Shark S4 connect?
The Shark S4 supports four video sources, consisting of two HDMI and two 3G-SDI inputs.

2. Does the Shark S4 support 1080p60?
Yes. It supports processing and switching at up to 1080p60.

3. Can the Shark S4 stream directly without a computer?
Yes. Its Ethernet connection supports direct IP streaming using RTMP, RTMPS and SRT.

4. Can it be used as a USB capture device?
Yes. The USB-C output provides a UVC video signal that can be used with a computer for capture and streaming.

5. Does the Shark S4 support recording?
Yes. It supports program recording through USB storage and an SD card.

6. Does it support HDMI and SDI cameras together?
Yes. The combination of two HDMI and two 3G-SDI inputs allows HDMI and SDI sources to be used within the same production.

AVMATRIX Shark S4 4-Channel 3G-SDI/HDMI Video Switcher Conclusion

The AVMATRIX Shark S4 4-Channel 3G-SDI/HDMI Video Switcher is a versatile compact production system for users who need to combine HDMI and SDI cameras in one workflow. Its four inputs, 1080p60 processing, dual HDMI program outputs, multiview, USB-C capture, direct RTMP/RTMPS/SRT streaming, recording, audio mixing, keying and PiP/PoP functions make it suitable for professional live production, streaming, events, education and broadcasting. At KSh 51,900, it offers a strong feature set for mixed HDMI and SDI production environments.
