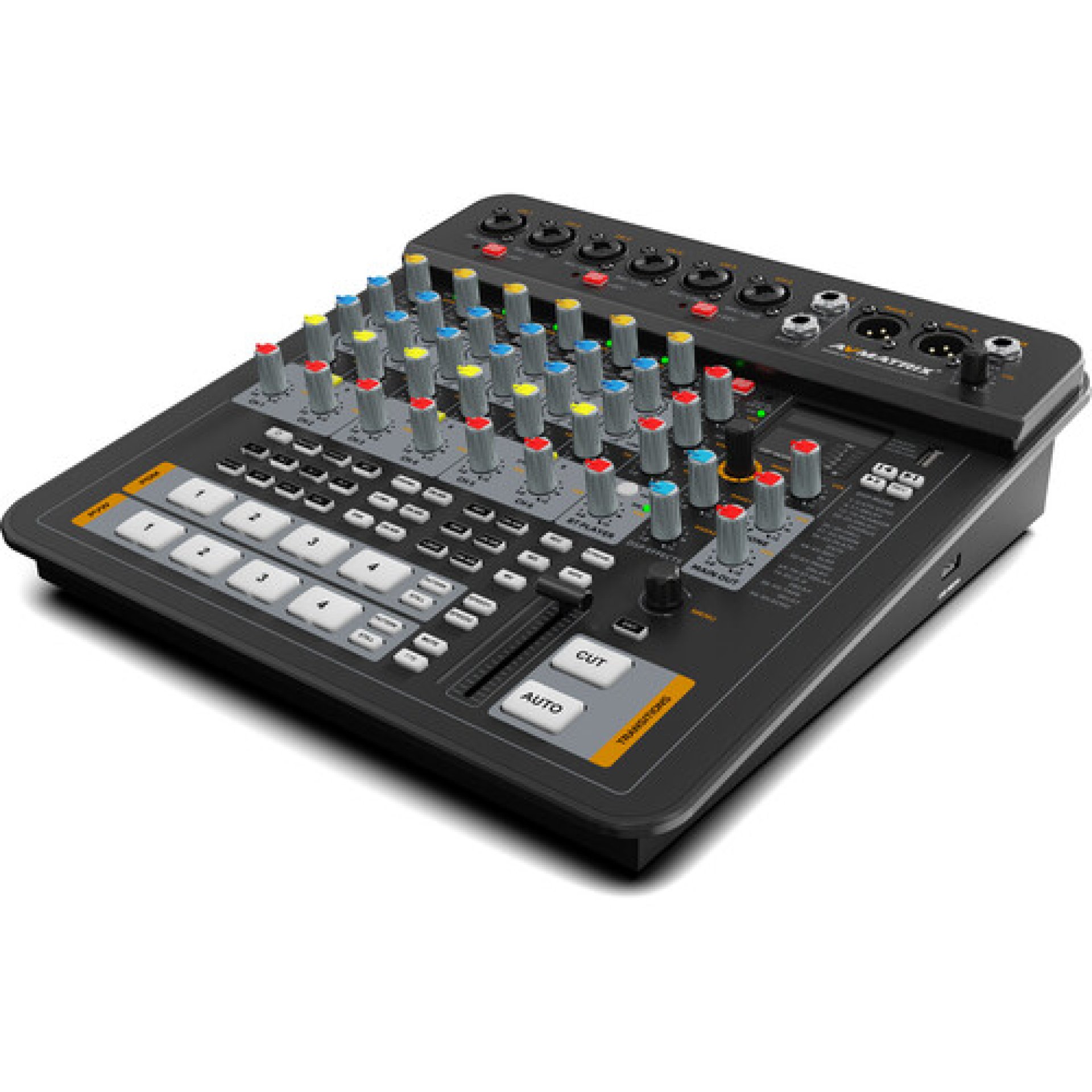

AVMATRIX SHARK H4M 4-Channel HDMI AV Switcher

AVMATRIX SHARK H4M 4-Channel HDMI AV Switcher

Key Specifications

• Product Type: All-in-One HDMI Video Switcher & Audio Mixer
• Video Inputs: 4 × HDMI
• Maximum Video Resolution: 1080p60
• Program Outputs: 2 × HDMI
• Multiview Output: 1 × HDMI
• USB-C Output: UVC Capture/Streaming
• Audio Inputs: 6 × Mono Microphone + 2 × Stereo Line
• Audio Outputs: 2 × Balanced XLR + 1 × TRS Headphone
• Embedded Audio: HDMI
• Audio Mixing: 2-Channel
• Audio Processing: Gain, 2-Band EQ, Low-Cut Filter
• DSP Effects: 99 Modes
• Keying: Chroma Key, Luma Key and DSK
• PiP/PoP: 2 × PiP / 1 × PoP
• Logo Overlay: Supported
• Transitions: Cut, Auto, Mix, Dip and Wipe
• Streaming: RTMP / SRT
• Recording: USB Drive / SD Card
• Network: RJ45 LAN
• Tally: Supported
• Wireless: Bluetooth
• Control: Physical Controls, Software and T-Bar
• Power Input: 12V DC
• Construction: Portable Professional Design

AVMATRIX SHARK H4M 4-Channel HDMI AV Switcher Overview

The AVMATRIX SHARK H4M 4-Channel HDMI AV Switcher is an all-in-one live-production workstation combining four-channel HDMI video switching with professional audio mixing in a compact unit. It is designed for content creators, educators, houses of worship, conferences, events and live-streaming productions.

The H4M supports video switching up to 1080p60, with two HDMI program outputs, an HDMI multiview output and USB-C UVC output for computer-based capture and streaming. Its integrated audio section provides six mono microphone inputs, two stereo line inputs, balanced XLR outputs and extensive DSP processing.

AVMATRIX SHARK H4M 4-Channel HDMI AV Switcher Price in Kenya

AVMATRIX SHARK H4M 4-Channel HDMI AV Switcher Full Specifications

The published H4M specifications confirm four HDMI inputs, 1080p60 processing, dual HDMI program outputs, HDMI multiview, USB-C UVC output and the integrated audio mixer.

AVMATRIX SHARK H4M 4-Channel HDMI AV Switcher Performance

• Supports up to four HDMI video sources simultaneously.
• Switches video at up to 1080p60.
• Provides two HDMI program outputs for flexible live-production setups.
• Dedicated HDMI multiview output allows monitoring of connected sources.
• USB-C provides UVC output for computer-based streaming and capture.
• T-bar, Auto and Cut controls enable professional switching workflows.
• Supports Mix, Dip and Wipe transition effects.
• Chroma key and luma key provide advanced compositing capabilities.
• PiP and PoP functions allow multiple video sources to appear simultaneously.
• DSK and logo overlay support additional production graphics.

AVMATRIX SHARK H4M 4-Channel HDMI AV Switcher Audio Performance

• Six mono microphone inputs provide extensive microphone connectivity.
• Two stereo line inputs accommodate external audio sources.
• Balanced XLR main outputs are suitable for professional audio systems.
• TRS headphone monitoring is available.
• Individual channels provide gain adjustment.
• Two-band tone control helps shape audio.
• Low-cut filtering helps reduce unwanted low-frequency noise.
• 99 DSP effect modes provide additional audio-processing options.
• Bluetooth playback provides another convenient audio-source option.
• Built-in recording and USB sound-card functions expand its audio-production capabilities.

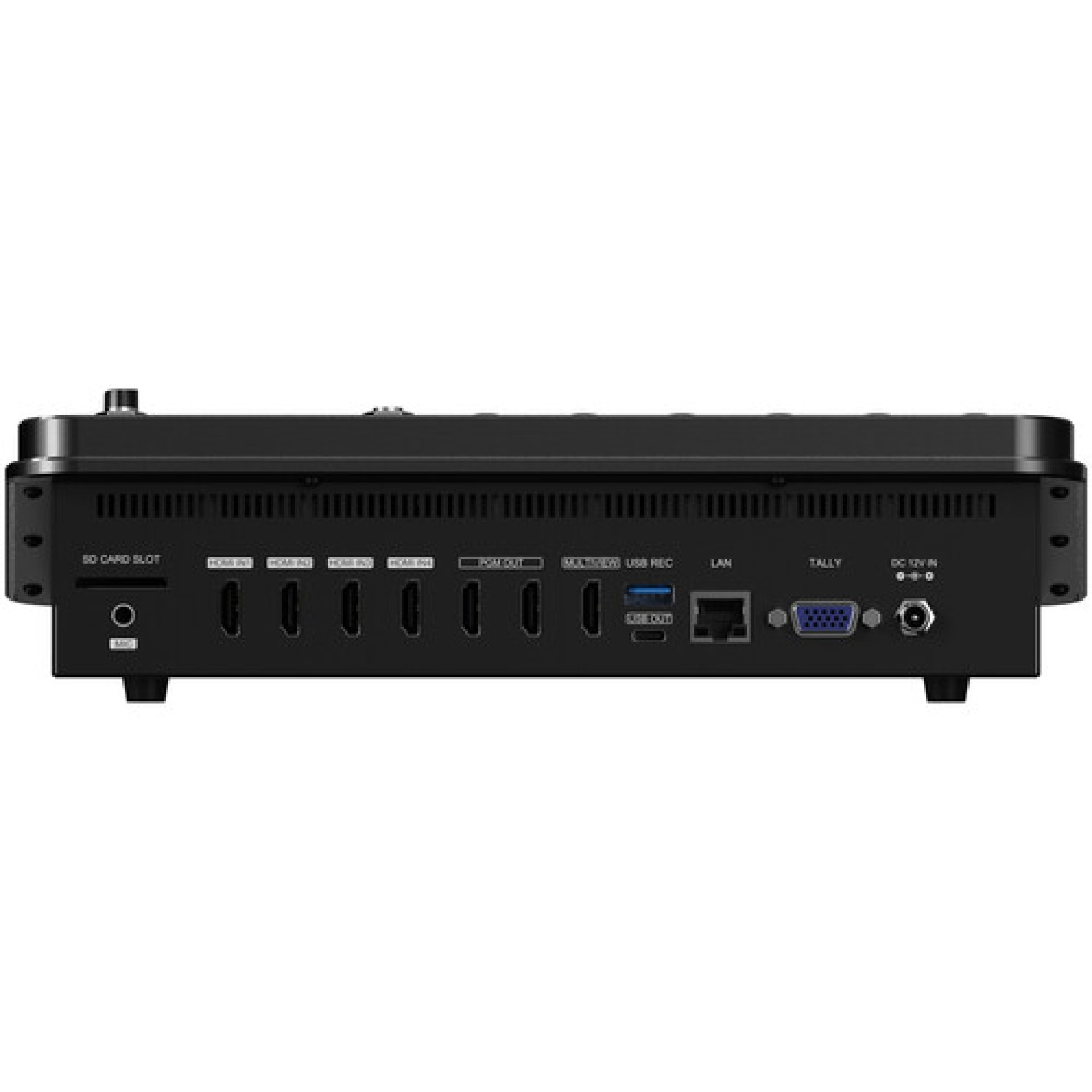

AVMATRIX SHARK H4M 4-Channel HDMI AV Switcher Connectivity

• 4 × HDMI video inputs
• 2 × HDMI program outputs
• 1 × HDMI multiview output
• 1 × USB-C UVC output
• 6 × microphone inputs
• 2 × stereo line inputs
• 2 × balanced XLR outputs
• 1 × TRS headphone output
• RJ45 LAN
• USB recording interface
• SD card recording
• Tally interface
• Bluetooth connectivity.

AVMATRIX SHARK H4M 4-Channel HDMI AV Switcher Streaming & Recording

• Supports direct RTMP and SRT streaming through the network connection.
• USB-C provides UVC output for streaming through a computer.
• Supports recording to USB storage.
• SD card recording is supported.
• 1080p60 processing provides smooth output for live broadcasts.
• Suitable for streaming platforms, online conferences and multi-camera productions.

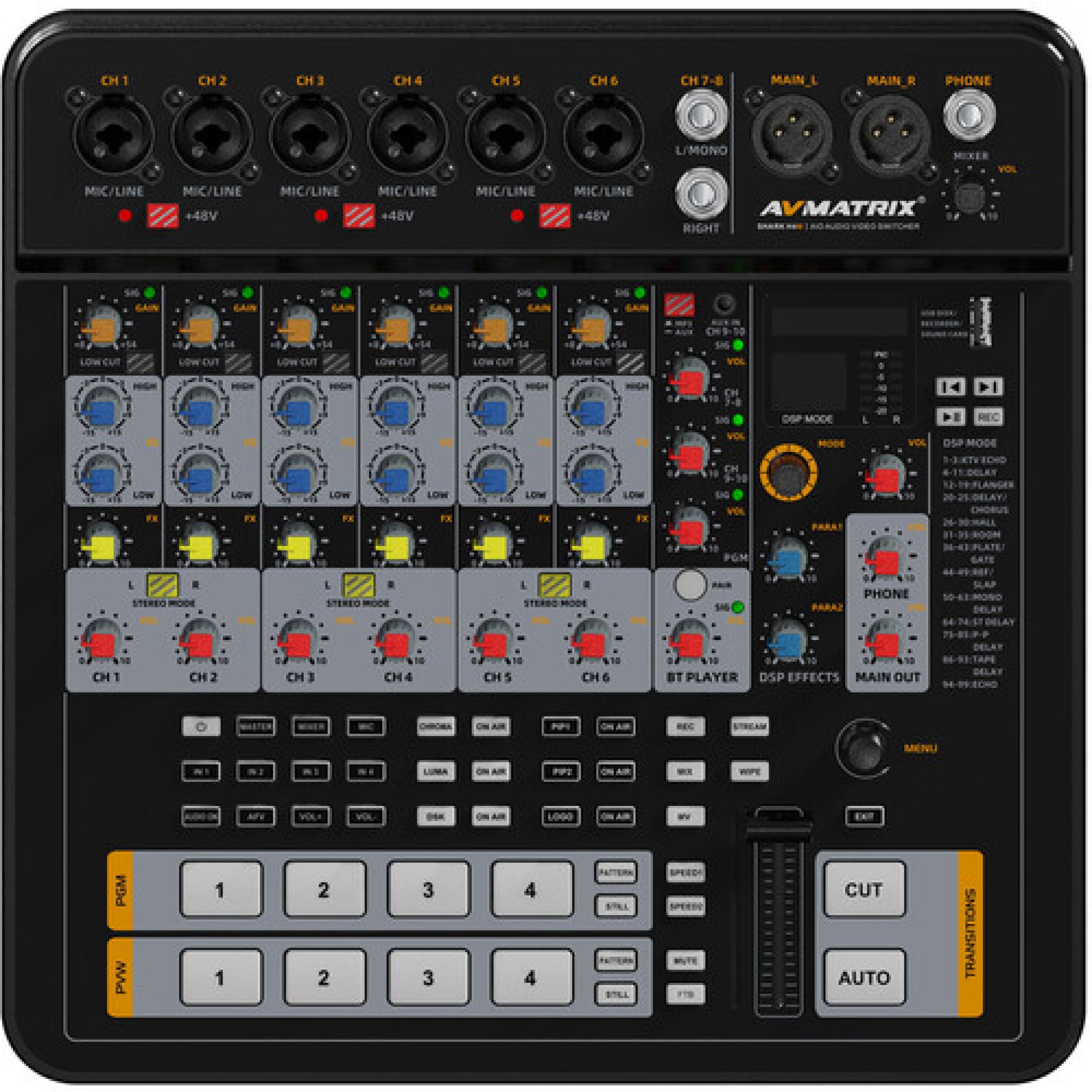

AVMATRIX SHARK H4M 4-Channel HDMI AV Switcher Design & Build Quality

• Compact all-in-one production design.
• Combines video switching and audio mixing in one unit.
• Physical controls provide direct access during live production.
• T-bar provides traditional professional transition control.
• Designed for portable production and event environments.
• Suitable for desktop, studio and mobile production setups.

AVMATRIX SHARK H4M 4-Channel HDMI AV Switcher Power & Efficiency

• Operates from 12V DC power.
• Integrated video and audio functions reduce the need for multiple separate production devices.
• Compact all-in-one construction is convenient for mobile production.
• USB-C UVC connectivity can simplify computer-based streaming setups.

AVMATRIX SHARK H4M 4-Channel HDMI AV Switcher Compatibility

• HDMI cameras
• DSLR cameras with HDMI output
• Mirrorless cameras with HDMI output
• Camcorders
• PTZ cameras
• HDMI media players
• External audio equipment
• Microphones
• Powered speakers and PA systems
• Streaming computers
• Live-production monitors
• Projectors
• Conference displays

AVMATRIX SHARK H4M 4-Channel HDMI AV Switcher Ideal Use

• Live streaming
• Church services
• Conferences
• Corporate events
• Education
• Webinars
• Interviews
• Multi-camera YouTube production
• Live concerts
• House of worship
• Sports and event production
• Online broadcasting
• Studio production
• Content creation

AVMATRIX SHARK H4M 4-Channel HDMI AV Switcher Pros & Cons

AVMATRIX SHARK H4M 4-Channel HDMI AV Switcher FAQs

1. How many HDMI cameras can the H4M connect?
The H4M has four HDMI video inputs, allowing up to four HDMI video sources to be connected.

2. What is the maximum video resolution?
The H4M supports video processing and switching up to 1080p60.

3. Does the H4M include audio mixing?
Yes. It integrates a professional audio mixer with six mono microphone inputs, two stereo line inputs, balanced XLR outputs and DSP effects.

4. Can the H4M stream directly?
Yes. The H4M supports network streaming using RTMP and SRT, while USB-C provides UVC output for computer-based streaming.

5. Does the H4M support multiview?
Yes. It has a dedicated HDMI multiview output for monitoring connected video sources.

6. Can it record video?
Yes. The H4M supports recording to USB storage and SD card.

AVMATRIX SHARK H4M 4-Channel HDMI AV Switcher Conclusion

The AVMATRIX SHARK H4M 4-Channel HDMI AV Switcher is a versatile all-in-one production system for users who need both multi-camera HDMI switching and professional audio mixing. With four HDMI inputs, 1080p60 processing, dual program outputs, multiview, USB-C UVC streaming, RTMP/SRT streaming, recording, keying, PiP/PoP and extensive audio controls, it is well suited to live events, churches, education, conferences and professional content production. At KSh 57,400, it provides a comprehensive production solution without requiring separate video-switching and audio-mixing equipment.
