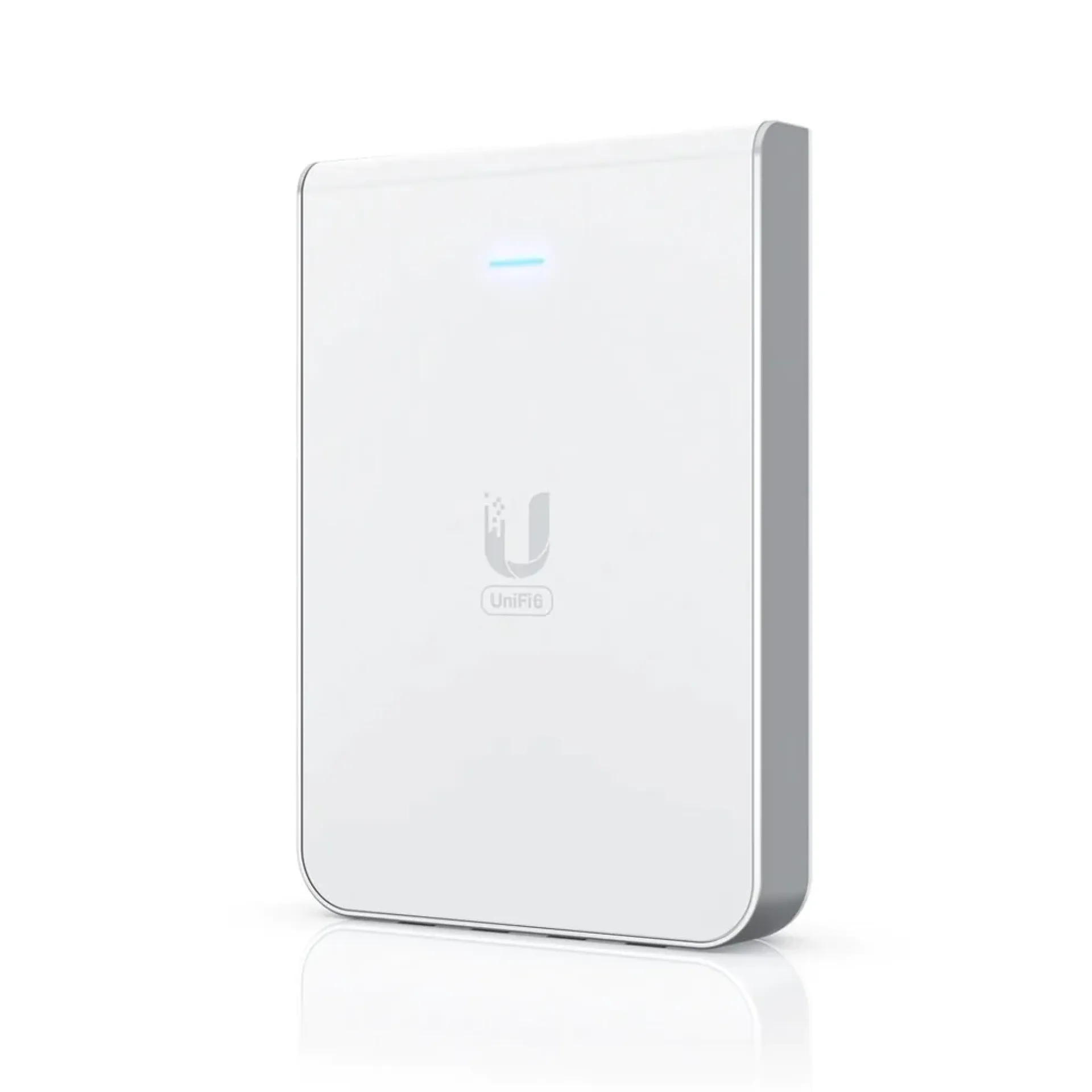

Ubiquiti UniFi 6 In-Wall Access Point (U6-IW)

Ubiquiti UniFi 6 In-Wall Access Point U6-IW Key Features

• Ubiquiti UniFi 6 In-Wall Access Point

• Model: U6-IW

• WiFi 6 (802.11ax) dual-band access point

• 5 GHz 4×4 MU-MIMO

• 2.4 GHz 2×2 MU-MIMO

• Up to 4.8 Gbps on 5 GHz

• Up to 573.5 Mbps on 2.4 GHz

• 6 spatial streams

• Coverage of approximately 115 m²

• 300+ client capacity

• 4 Gigabit Ethernet output ports

• 1 PoE output port

• PoE-powered

• PoE+ required for PoE output

• Bluetooth management

• Wall-mounted design

• UniFi Network management

Ubiquiti UniFi 6 In-Wall Access Point U6-IW Overview

The Ubiquiti UniFi 6 In-Wall Access Point U6-IW is a wall-mounted WiFi 6 access point designed to provide high-speed wireless connectivity while also expanding wired network connectivity within a room. It is particularly suited to offices, hotels, hospitality environments, apartments, classrooms and other spaces where a discreet in-wall access point is preferred. Ubiquiti specifies six spatial streams, approximately 115 m² of coverage and support for 250+ clients on its current technical specifications page.

The U6-IW operates on both 2.4 GHz and 5 GHz WiFi 6 bands. Its 5 GHz radio uses 4×4 MU-MIMO, while the 2.4 GHz radio uses 2×2 MU-MIMO. Maximum data rates are listed at 4.8 Gbps on 5 GHz and 573.5 Mbps on 2.4 GHz, providing substantial wireless capacity for demanding environments with multiple connected devices.

A major advantage of the U6-IW is its built-in four-port Gigabit Ethernet switch. One of the Ethernet ports can provide PoE output to a compatible device, allowing the access point to extend wired connectivity to devices such as IP phones, cameras or other network equipment. PoE+ input is required when using the PoE output.

The access point supports features such as wireless meshing, band steering, fast roaming, 802.11k/v radio management, guest network isolation, VLANs, RADIUS authentication and captive portals. It can be configured and managed through the UniFi Network platform, with Bluetooth also available for management and setup.

Price in Kenya: KSh 30,000. This is consistent with a current Kenyan listing at KSh 30,000, while other local listings are around KSh 28,000–35,000.

Ubiquiti UniFi 6 In-Wall Access Point U6-IW Price

Ubiquiti UniFi 6 In-Wall Access Point U6-IW Specifications

Specifications are based primarily on Ubiquiti's official technical specifications and datasheet.

Ubiquiti UniFi 6 In-Wall Access Point U6-IW Wireless Performance Features

• WiFi 6 technology provides improved wireless efficiency, capacity and performance compared with older WiFi generations.

• 4×4 MU-MIMO on 5 GHz allows the access point to communicate efficiently with multiple compatible devices simultaneously.

• 2×2 MU-MIMO on 2.4 GHz provides additional wireless capacity for compatible devices operating on the longer-range frequency band.

• Up to 4.8 Gbps 5 GHz data rate provides substantial wireless bandwidth for demanding applications such as video streaming, cloud services and high-volume data transfers.

• 6 spatial streams provide additional wireless capacity for environments with multiple connected clients.

• 115 m² coverage makes the U6-IW suitable for providing dedicated wireless coverage within individual rooms and medium-sized spaces.

Ubiquiti UniFi 6 In-Wall Access Point U6-IW Connectivity & Networking Features

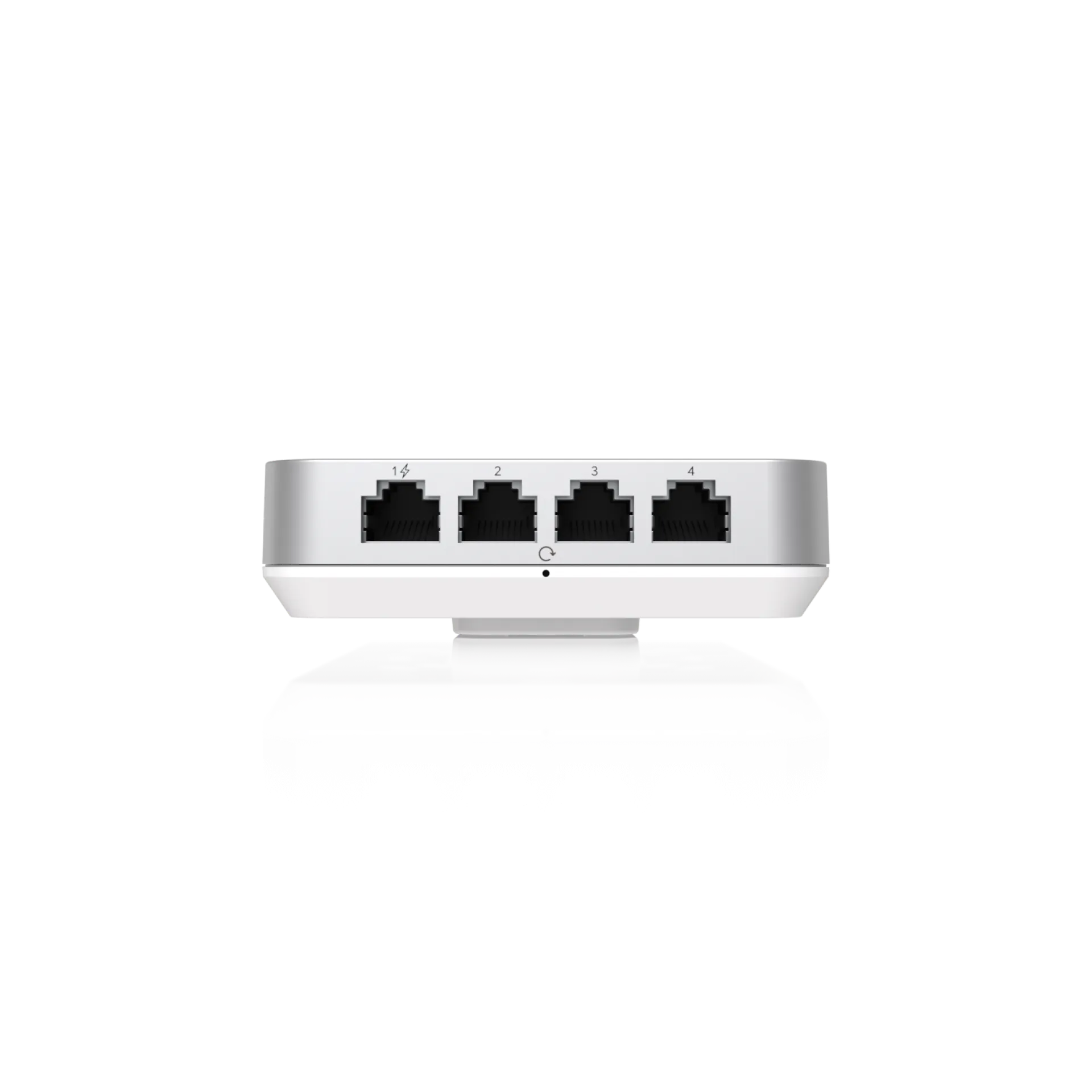

• Four Gigabit Ethernet ports provide wired network connectivity for computers, IP phones, cameras and other compatible Ethernet devices.

• PoE input allows the access point to receive both power and network connectivity through compatible Ethernet infrastructure.

• PoE output allows one of the downstream Ethernet ports to power a compatible device, with PoE+ input required for this function.

• Gigabit Ethernet uplink provides a high-speed wired connection between the access point and the wider network.

• Bluetooth management simplifies initial setup and management through the UniFi Network platform.

• Wireless meshing allows the U6-IW to participate in compatible UniFi wireless mesh deployments.

Ubiquiti UniFi 6 In-Wall Access Point U6-IW Network Management Features

• UniFi Network management provides centralized configuration and monitoring of the access point.

• Band steering helps direct compatible clients toward the appropriate wireless band.

• 802.11r fast roaming helps supported client devices move between compatible UniFi access points more efficiently.

• 802.11k radio resource management assists with wireless network optimization.

• Guest network isolation helps separate guest devices from protected network resources.

• Dynamic RADIUS-assigned VLAN support enables compatible enterprise networks to apply VLAN assignments based on user authentication.

• Captive portal and voucher authentication provide options for managed guest WiFi deployments.

Ubiquiti UniFi 6 In-Wall Access Point U6-IW Design & Installation Features

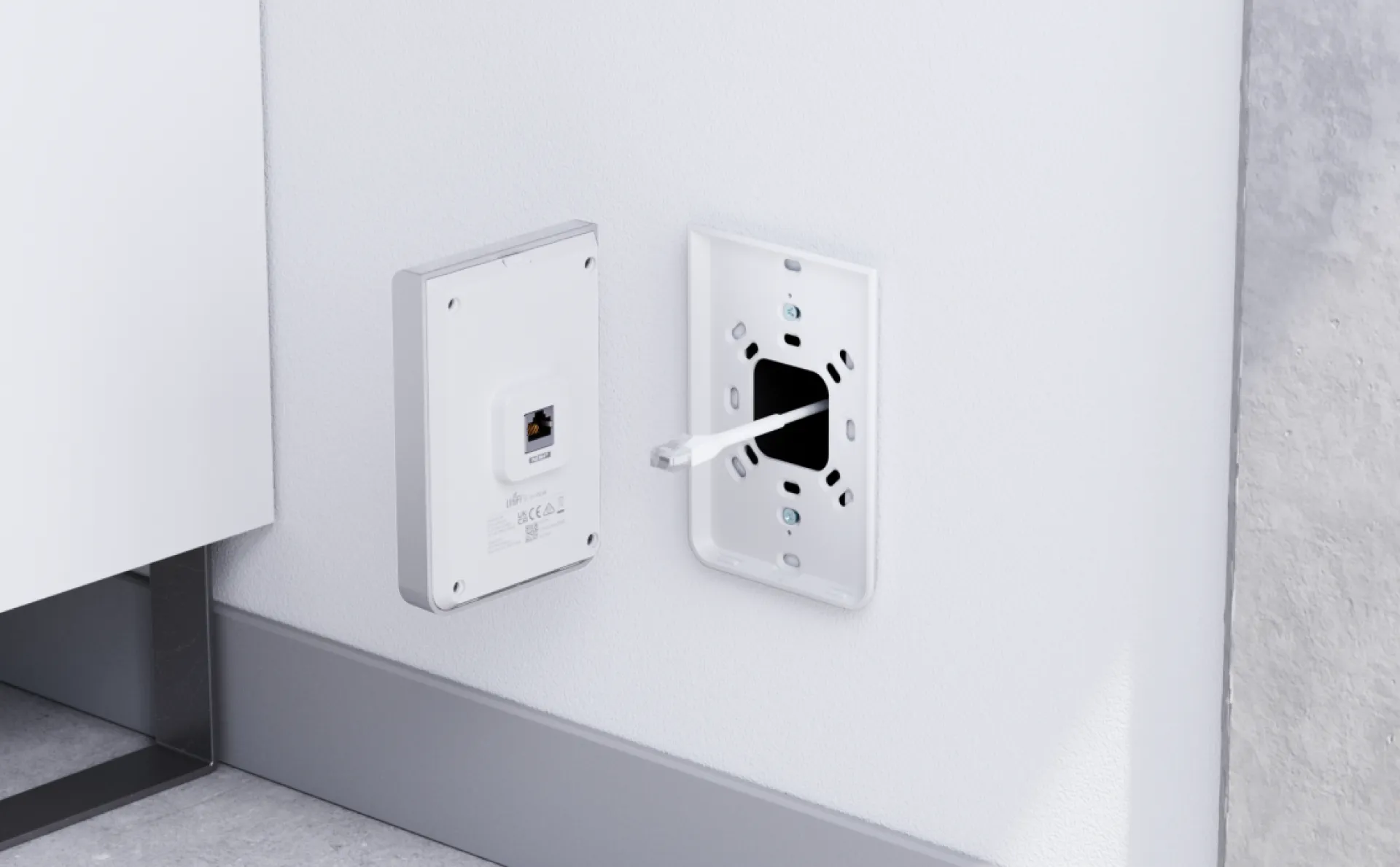

• In-wall form factor provides a clean installation that avoids the appearance of a conventional ceiling-mounted access point.

• Wall mounting makes the U6-IW particularly suitable for hotel rooms, offices, apartments, boardrooms and other individual-room deployments.

• Compact enclosure measures approximately 139.7 × 96 × 31.2 mm, allowing it to occupy relatively little wall space.

• Wide operating temperature range from -30°C to 60°C provides flexibility for different installation environments.

• Up to 95% non-condensing humidity tolerance supports deployment in a variety of indoor environments.

Ubiquiti UniFi 6 In-Wall Access Point U6-IW Applications

• Office WiFi

• Hotel and Hospitality WiFi

• Apartment WiFi

• Boardrooms

• Classrooms

• Guest Networks

• Small Business Networks

• High-Density Wireless Environments

• Conference Rooms

• Residential Networks

• IP Phone Connectivity

• Networked IoT Devices

Ubiquiti UniFi 6 In-Wall Access Point U6-IW Pros and Cons

Ubiquiti UniFi 6 In-Wall Access Point U6-IW FAQs

What is the Ubiquiti U6-IW used for?

The U6-IW is designed to provide WiFi 6 wireless connectivity and Gigabit Ethernet connectivity from a compact wall-mounted unit.

How fast is the U6-IW?

The maximum data rate is 4.8 Gbps on 5 GHz and 573.5 Mbps on 2.4 GHz under the specified configurations.

How many Ethernet ports does the U6-IW have?

It has four Gigabit Ethernet output ports, with one supporting PoE output when the access point receives suitable PoE+ power.

Does the U6-IW support PoE?

Yes. The access point is powered through PoE, while PoE+ input is required to enable its PoE output.

How much area can the U6-IW cover?

Ubiquiti lists approximately 115 m² (1,250 ft²) of coverage. Actual coverage varies depending on walls, interference, building materials and client devices.

How many devices can the U6-IW support?

Ubiquiti's current technical specifications list 250+ maximum clients, while some Kenyan product listings advertise 300+ connected devices.

What is the Ubiquiti UniFi 6 In-Wall U6-IW price in Kenya?

The listed selling price is KSh 30,000.

Ubiquiti UniFi 6 In-Wall Access Point U6-IW Conclusion

The Ubiquiti UniFi 6 In-Wall Access Point U6-IW is a versatile WiFi 6 networking solution that combines high-speed dual-band wireless connectivity with four Gigabit Ethernet ports and PoE output. Its 4×4 5 GHz MU-MIMO, 6 spatial streams, centralized UniFi management and compact wall-mounted design make it especially useful for offices, hotels, apartments, classrooms and other room-focused deployments.
