Cambium Networks Force 300-25L

Cambium Networks Force 300-25L Key Features

• 5GHz 802.11ac Wave 2 wireless technology

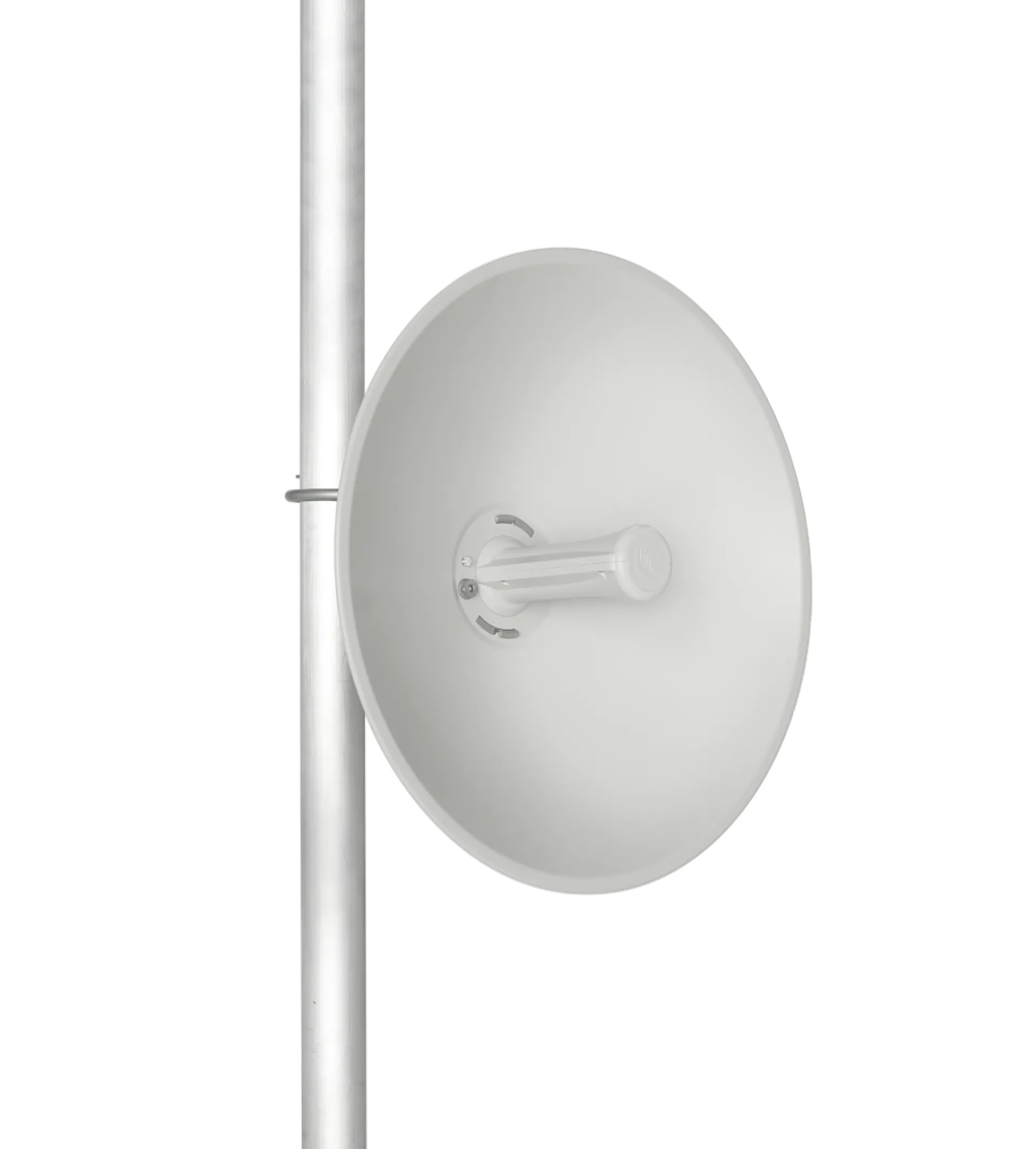

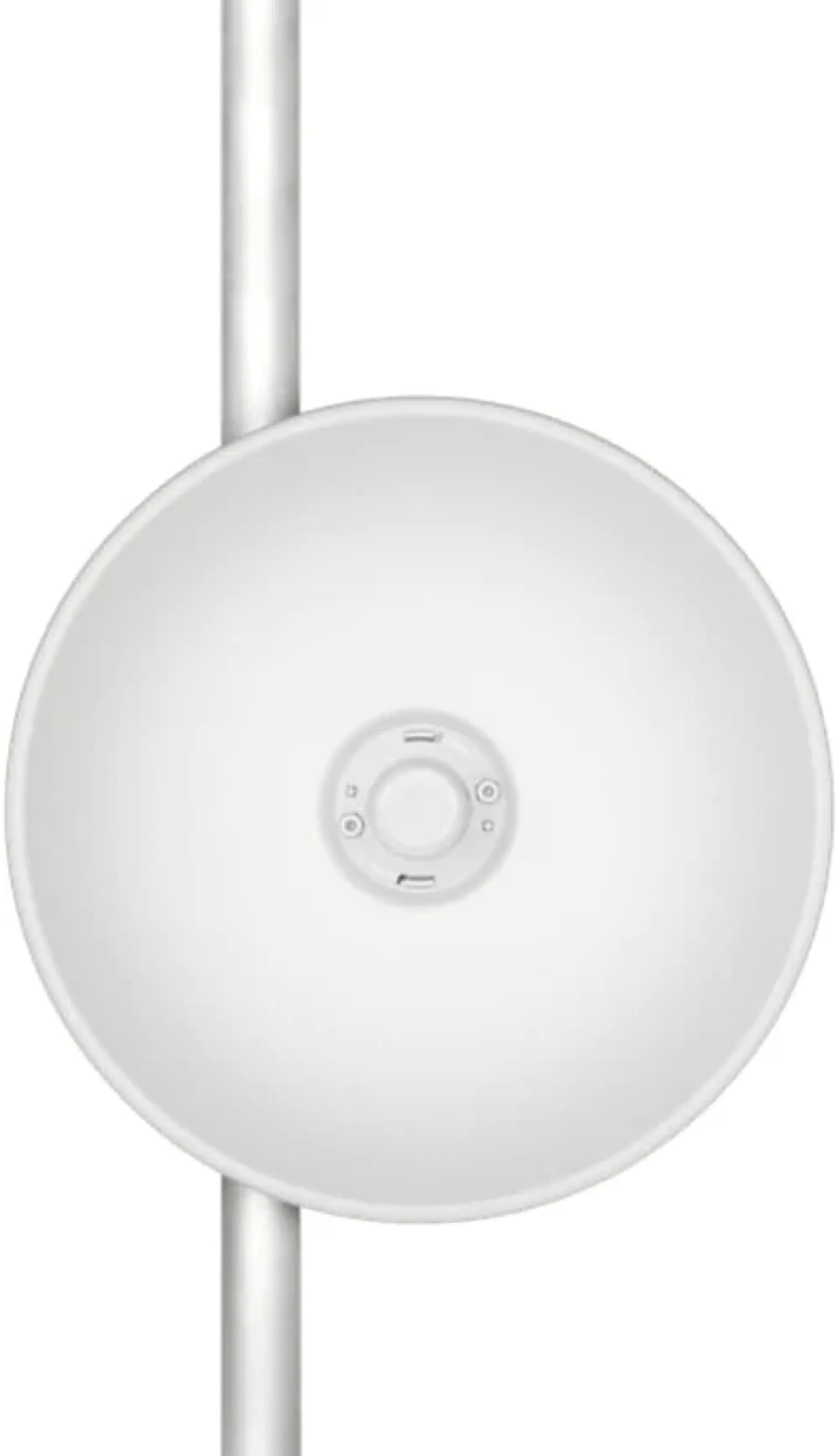

• Integrated 25dBi high-gain directional dish antenna
• 2×2 MIMO technology
• Supports 20MHz, 40MHz and 80MHz channel widths
• More than 400Mbps real user throughput
• Designed for high-interference environments
• Suitable for point-to-point and point-to-multipoint wireless links
• Gigabit Ethernet connectivity
• 30V passive PoE power
• Built-in spectrum analysis capabilities
• IP55-rated outdoor construction
• Supports cnMaestro cloud-based management
• 128-bit AES encryption

Cambium Networks Force 300-25L Introduction

The Cambium Networks Force 300-25L is a high-gain outdoor wireless subscriber module designed for long-distance broadband connectivity. It operates in the 5GHz spectrum and uses 802.11ac Wave 2 technology with 2×2 MIMO to provide high-capacity wireless links for service providers, enterprises and other fixed wireless deployments.

With its integrated 25dBi directional dish antenna, the Force 300-25L is designed to establish focused long-distance connections while helping minimize interference. Cambium states that the device can provide more than 400Mbps of real user data throughput in suitable deployments.

Cambium Networks Force 300-25L Price in Kenya

Cambium Networks Force 300-25L Key Specifications

The Force 300-25L supports configurable channel spacing, 5GHz operation, Gigabit Ethernet, IP55 environmental protection and 30V passive PoE.

Cambium Networks Force 300-25L Performance

• The 25dBi integrated dish antenna provides focused wireless transmission for long-distance links.
• 2×2 MIMO helps improve wireless capacity and link efficiency.
• 802.11ac Wave 2 technology enables high-speed wireless broadband connectivity.
• Supports up to 80MHz channel width for high-capacity deployments.
• Designed to maintain reliable performance in high-interference RF environments.
• Cambium rates the platform at more than 400Mbps of real user data under suitable conditions.

Cambium Networks Force 300-25L Design

• Built for outdoor fixed wireless installations.
• Integrated directional dish antenna eliminates the need for a separate external dish.
• IP55-rated construction provides protection for outdoor deployment.
• Designed to withstand operating temperatures from -30°C to 60°C.
• Supports pole mounting for point-to-point and point-to-multipoint installations.
• The Force L Series is designed for demanding wireless broadband applications.

Cambium Networks Force 300-25L Connectivity

• Gigabit Ethernet port supports 10/100/1000Mbps connections.
• Power and data are delivered through the Ethernet connection using PoE.
• Supports Cambium PoE and standard PoE pinouts.
• IPv4 and IPv6 dual-stack support is available.
• Supports networking protocols including TCP, UDP, ICMP, SNMP and SSH.

Cambium Networks Force 300-25L Wireless Applications

• Point-to-point wireless links
• Point-to-multipoint broadband networks
• ISP last-mile connectivity
• Enterprise network backhaul
• Rural internet deployment
• Building-to-building wireless connections
• Campus network links
• High-capacity outdoor wireless networks
• Fixed wireless broadband services

Cambium Networks Force 300-25L Management

• Compatible with Cambium cnMaestro management.
• Supports centralized monitoring and configuration for managed deployments.
• Spectrum analysis helps identify interference affecting wireless performance.
• Quality of Service features help prioritize different traffic types.
• Can be deployed as part of Cambium ePMP wireless infrastructure.

Cambium Networks Force 300-25L Pros and Cons

Cambium Networks Force 300-25L FAQs

What is the Cambium Networks Force 300-25L used for?
The Force 300-25L is designed for long-distance fixed wireless connectivity, including point-to-point and point-to-multipoint broadband links.

What frequency does the Force 300-25L use?
It operates in the 5GHz wireless spectrum. Cambium lists wide-band operation covering approximately 4910MHz to 6200MHz depending on the specific regulatory configuration.

What is the antenna gain of the Force 300-25L?
It features an integrated 25dBi directional dish antenna, making it suitable for focused long-distance wireless connections.

How fast is the Cambium Force 300-25L?
Cambium states that the Force 300-25L provides more than 400Mbps of real user data throughput under suitable conditions.

Does the Force 300-25L support Gigabit Ethernet?
Yes. It features a 10/100/1000Mbps Ethernet interface.

Does the Cambium Force 300-25L support PoE?
Yes. It uses 30V passive Power over Ethernet for power delivery.

Is the Force 300-25L suitable for outdoor use?
Yes. It has an IP55-rated outdoor enclosure and is designed for outdoor fixed wireless deployments.

How much is the Cambium Networks Force 300-25L in Kenya?
The price provided for this product is KSh 20,000.

Cambium Networks Force 300-25L Conclusion

The Cambium Networks Force 300-25L is a high-performance outdoor wireless radio designed for long-distance connectivity. Its integrated 25dBi directional antenna, 802.11ac Wave 2 technology, 2×2 MIMO and Gigabit Ethernet make it suitable for demanding point-to-point and point-to-multipoint deployments.

At KSh 20,000, the Force 300-25L is a practical option for ISPs, businesses and organizations looking to establish reliable high-capacity wireless links between locations without running physical network cables.
