TP-Link 5GHz 300Mbps 23dBi Outdoor CPE - TL-CPE610

TP-Link 5GHz 300Mbps 23dBi Outdoor CPE TL-CPE610 – Overview

The TP-Link 5GHz 300Mbps 23dBi Outdoor CPE TL-CPE610 is a professional outdoor wireless bridge designed for long-range Point-to-Point (PtP) and Point-to-Multipoint (PtMP) deployments. Operating on the 5GHz frequency band with wireless speeds of up to 300Mbps, it features a 23dBi dual-polarized directional MIMO antenna, Pharos MAXtream TDMA technology, Passive PoE, and a rugged IP65 weatherproof enclosure. It is ideal for ISPs, campuses, farms, warehouses, CCTV backhaul, and long-distance outdoor wireless networking.

TP-Link 5GHz 300Mbps 23dBi Outdoor CPE TL-CPE610 – Key Features

• 5GHz 300Mbps Wireless Connectivity

• Built-in 23dBi Dual-Polarized Directional Antenna

• 2×2 MIMO Technology

• Qualcomm Atheros 560MHz Processor

• Pharos MAXtream TDMA Technology

• Up to 30km Long-Range Wireless Transmission

• 1 × 10/100Mbps Shielded Ethernet Port

• Passive PoE Support

• IP65 Weatherproof Enclosure

• 15kV ESD Protection

• 6kV Lightning Protection

• Pharos Control Centralized Management

TP-Link 5GHz 300Mbps 23dBi Outdoor CPE TL-CPE610 Price in Kenya

TP-Link 5GHz 300Mbps 23dBi Outdoor CPE TL-CPE610 Specifications Table

TP-Link 5GHz 300Mbps 23dBi Outdoor CPE TL-CPE610 – Performance

• Delivers wireless speeds of up to 300Mbps.

• Supports long-distance wireless links of up to 30km under ideal conditions.

• 23dBi directional antenna provides excellent beam directivity and improved noise immunity.

• Pharos MAXtream TDMA technology improves throughput, capacity, and latency in outdoor deployments.

• Adjustable transmit power up to 25dBm.

TP-Link 5GHz 300Mbps 23dBi Outdoor CPE TL-CPE610 – Build and Design

• Industrial-grade IP65 weatherproof enclosure.

• Integrated 23dBi directional antenna.

• Wind-resistant structural design with snap-lock assembly.

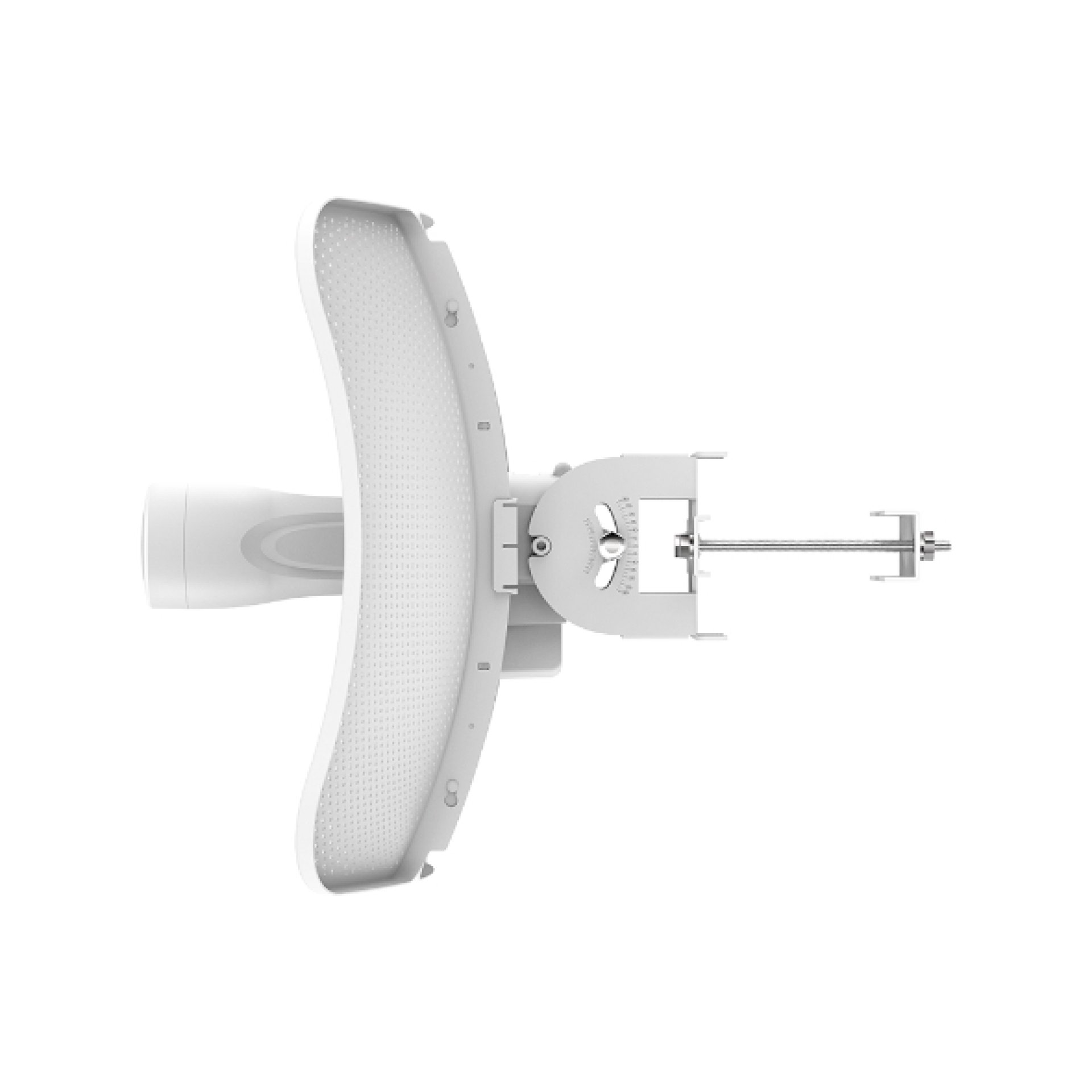

• Pole mounting kit included.

• Designed for operation between -40°C and +70°C.

TP-Link 5GHz 300Mbps 23dBi Outdoor CPE TL-CPE610 – Connectivity

• Operates on the 5GHz wireless band.

• 1 × 10/100Mbps Shielded Ethernet Port.

• Supports 24V Passive PoE for cable runs up to 60 metres.

• Supports AP, Client, Bridge, Repeater, AP Router, and WISP modes.

• Managed using Pharos Control centralized software.

TP-Link 5GHz 300Mbps 23dBi Outdoor CPE TL-CPE610 – Ideal Use Cases

• Point-to-Point wireless links

• Point-to-Multipoint deployments

• ISP wireless distribution

• Campus networking

• Farm connectivity

• Warehouse networking

• CCTV backhaul

• Rural broadband

• Outdoor Wi-Fi coverage

• Remote building connections

TP-Link 5GHz 300Mbps 23dBi Outdoor CPE TL-CPE610 – FAQs

1. What wireless speed does the TL-CPE610 support?

It supports wireless speeds of up to 300Mbps on the 5GHz band.

2. What is the maximum wireless transmission distance?

The TL-CPE610 is designed for wireless links of up to 30km under ideal line-of-sight conditions.

3. Does it support PoE?

Yes. It supports 24V Passive PoE, allowing deployment using a single Ethernet cable up to 60 metres.

4. Is it suitable for outdoor installation?

Yes. It features an IP65 weatherproof enclosure with 15kV ESD and 6kV lightning protection.

5. What operating modes are supported?

It supports AP, Client, Bridge, Repeater, AP Router, and WISP operating modes.

TP-Link 5GHz 300Mbps 23dBi Outdoor CPE TL-CPE610 – Pros and Cons

TP-Link 5GHz 300Mbps 23dBi Outdoor CPE TL-CPE610 – Conclusion

The TP-Link 5GHz 300Mbps 23dBi Outdoor CPE TL-CPE610 is an excellent choice for long-range outdoor wireless networking. Its high-gain directional antenna, up to 30km transmission capability, weatherproof construction, Passive PoE support, and centralized Pharos management make it a dependable solution for ISPs, businesses, surveillance systems, and campus networking.
