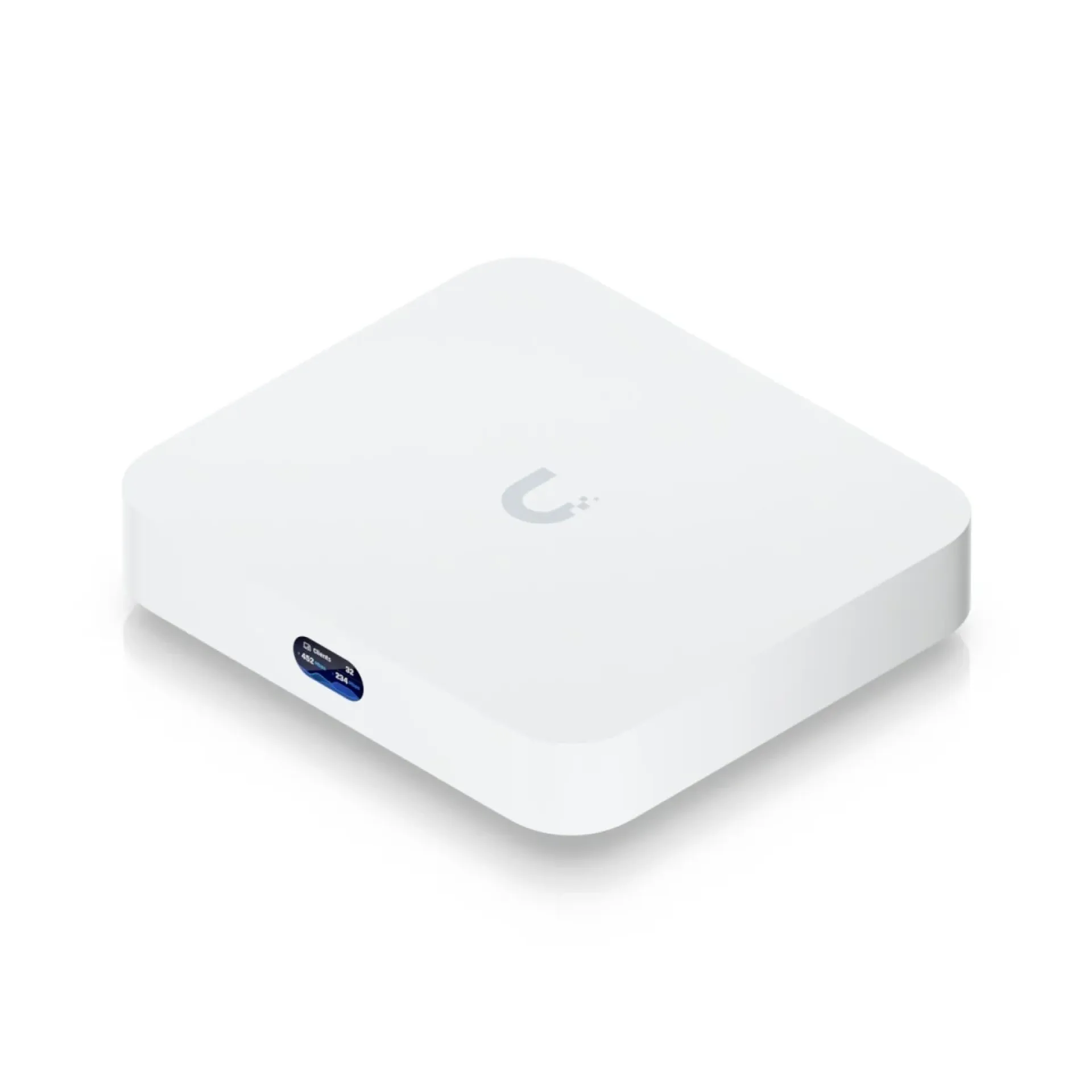

Ubiquiti UCG-Max Cloud Gateway Max

Ubiquiti UCG-Max Cloud Gateway Max (UCG-Max) Key Features

• Ubiquiti UniFi Cloud Gateway Max

• Model: UCG-Max

• Compact 2.5 GbE Cloud Gateway

• 5 × 2.5 GbE RJ45 ports

• Up to 4 configurable WAN ports

• 2.3 Gbps IDS/IPS throughput

• Supports 30+ UniFi devices and 300+ clients

• UniFi Network, Protect, Access, Talk and Connect support

• Selectable NVMe SSD storage up to 2 TB

• Multi-WAN load balancing and failover

• Built-in firewall and traffic management

• WireGuard, OpenVPN, IPsec and Teleport VPN support

• 0.96-inch status display

• Compact desktop design

Ubiquiti UCG-Max Cloud Gateway Max (UCG-Max) Overview

The Ubiquiti UCG-Max Cloud Gateway Max (UCG-Max) is a compact UniFi Cloud Gateway designed to combine network routing, security and UniFi application management in a single device. It features five 2.5 GbE ports, support for up to four WAN connections, 2.3 Gbps IDS/IPS throughput, management of 30+ UniFi devices and 300+ clients, plus selectable NVMe storage for UniFi Protect video recording. It is suitable for small businesses, offices, homes, retail environments and other UniFi deployments requiring high-speed networking, centralized management and advanced security.

Ubiquiti UCG-Max Cloud Gateway Max (UCG-Max) Price

Ubiquiti UCG-Max Cloud Gateway Max (UCG-Max) Specifications

Specifications based on Ubiquiti's technical information and current product listings.

Ubiquiti UCG-Max Cloud Gateway Max (UCG-Max) Networking and Routing Features

• Five 2.5 GbE ports provide high-speed wired connectivity, with one port configured as the default WAN and additional ports available for flexible WAN/LAN configurations.

• Up to four WAN connections support multi-WAN deployments with load balancing and failover.

• 2.3 Gbps IDS/IPS throughput provides high-speed routing while applying supported intrusion detection and prevention features.

• Advanced NAT and firewall capabilities support traffic control and network security.

• VLAN and subnet-based traffic segmentation allows networks to be separated for different users, devices or services.

• Advanced QoS and traffic identification help manage bandwidth and prioritize network traffic.

Ubiquiti UCG-Max Cloud Gateway Max (UCG-Max) UniFi Application and Storage Features

• UniFi Network support provides centralized management of compatible UniFi networking equipment.

• UniFi Protect support allows the gateway to manage compatible UniFi security cameras and video surveillance deployments.

• UniFi Access, Talk and Connect support allows additional UniFi applications to be managed from the same platform.

• Selectable NVMe SSD storage up to 2 TB provides storage capacity for supported UniFi Protect deployments.

• 30+ managed UniFi devices and 300+ clients make the UCG-Max suitable for growing small-business and advanced home networks.

Ubiquiti UCG-Max Cloud Gateway Max (UCG-Max) Security and VPN Features

• Stateful firewall provides network traffic filtering and protection.

• Application-aware Layer 7 firewall provides more detailed traffic-control options.

• Intrusion Prevention and Detection (IPS/IDS) helps identify and block supported network threats.

• Content and traffic filtering provides additional control over network access.

• WireGuard, OpenVPN and IPsec VPN support provides secure remote and site-to-site connectivity.

• Teleport and Site Magic provide simplified options for remote and site-to-site networking.

• License-free SD-WAN provides additional options for connecting and managing network sites.

Ubiquiti UCG-Max Cloud Gateway Max (UCG-Max) Design and Management Features

• Compact desktop form factor makes the UCG-Max suitable for offices, homes, retail environments and small network cabinets.

• 0.96-inch status display provides quick access to device information without requiring the management interface.

• Ethernet and Bluetooth management provide flexible configuration options.

• USB Type-C power input keeps the compact gateway easy to deploy.

• Polycarbonate enclosure provides a lightweight desktop construction.

• 141.8 × 127.6 × 30 mm dimensions allow the gateway to fit into space-constrained installations.

Ubiquiti UCG-Max Cloud Gateway Max (UCG-Max) Applications

• Small Business Networks

• Office Network Management

• UniFi Network Deployments

• Multi-WAN Networks

• Network Security

• UniFi Protect Camera Systems

• Remote Access VPN

• Site-to-Site VPN

• Home Networking

• Retail Networks

• Enterprise Branch Networks

• UniFi Application Management

Ubiquiti UCG-Max Cloud Gateway Max (UCG-Max) Pros and Cons

Ubiquiti UCG-Max Cloud Gateway Max (UCG-Max) FAQs

What is the Ubiquiti UCG-Max used for?

The UCG-Max is a UniFi Cloud Gateway that combines routing, firewall, VPN, network management and supported UniFi applications in one compact device.

How many Ethernet ports does the UCG-Max have?

It has five 2.5 GbE RJ45 ports, with one default WAN port and up to four ports configurable for WAN use.

How many UniFi devices can the UCG-Max manage?

The current Ubiquiti specification lists support for 30+ UniFi devices and 300+ clients.

Does the UCG-Max support 2.5 GbE?

Yes. All five RJ45 ports support 2.5 GbE connectivity.

Does the UCG-Max support multiple WAN connections?

Yes. It supports up to four WAN ports, allowing multi-WAN load balancing and failover configurations.

Does the UCG-Max support UniFi Protect?

Yes. The UCG-Max supports the UniFi Protect application and selectable NVMe storage for compatible surveillance deployments.

What VPN protocols does the UCG-Max support?

It supports VPN technologies including WireGuard, OpenVPN, IPsec, L2TP and Teleport.

What is the Ubiquiti UCG-Max price in Kenya?

The indicative price range is KSh 53,000 – 60,000.

Ubiquiti UCG-Max Cloud Gateway Max (UCG-Max) Conclusion

The Ubiquiti UCG-Max Cloud Gateway Max (UCG-Max) is a compact and capable UniFi gateway offering five 2.5 GbE ports, 2.3 Gbps IDS/IPS throughput, multi-WAN support, advanced firewall and VPN features, UniFi application support and expandable NVMe storage. It is a strong choice for small businesses, offices and advanced home networks that want centralized UniFi management without a larger rackmount gateway.

Price Range in Kenya: KSh 53,000 – 60,000.
