Ubiquiti NanoStation Loco M5 5GHz CPE (LOCOM5) Key Features
-

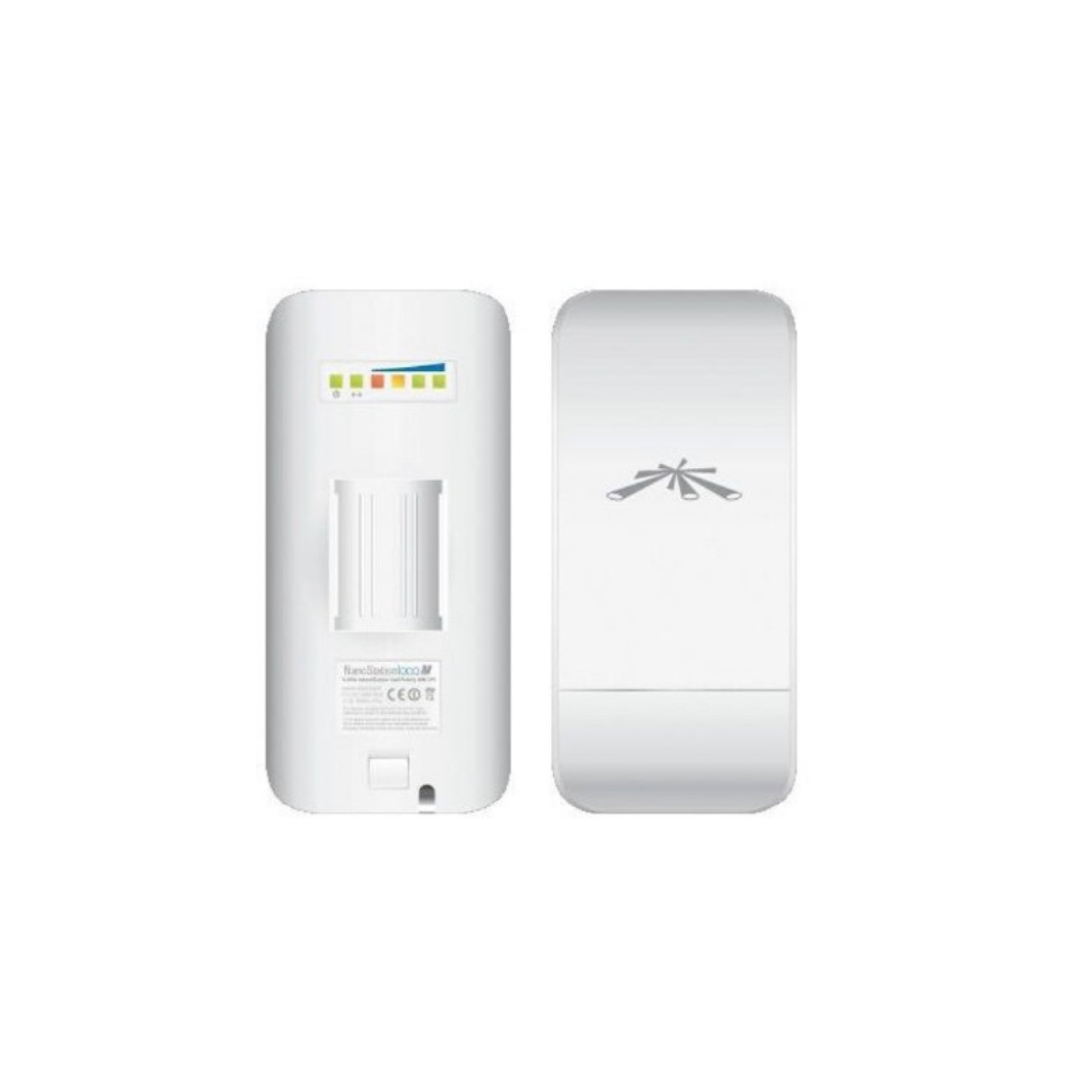

Ubiquiti airMAX NanoStation Loco M5
-
Model: LOCOM5
-
5 GHz airMAX M wireless technology
-
13 dBi integrated antenna gain
-
Dual-linear polarization
-
45° H / 45° V / 45° elevation beamwidth
-
1 × 10/100 Mbps Ethernet port
-
Access Point and Station modes
-
Passive PoE power
-
24V, 0.5A PoE adapter included
-
Outdoor UV-stabilized polycarbonate enclosure
-
Pole-mounting kit included
-
Compact 180g design
Ubiquiti NanoStation Loco M5 5GHz CPE (LOCOM5) Overview
The Ubiquiti NanoStation Loco M5 5GHz CPE (LOCOM5) is a compact outdoor 5 GHz airMAX M wireless CPE designed for fixed wireless connectivity, featuring a 13 dBi integrated dual-polarized antenna, 10/100 Mbps Ethernet and passive PoE power. Its lightweight 180g construction and directional antenna make it suitable for Point-to-Point links, Point-to-Multipoint networks, wireless ISP deployments, CCTV connectivity and outdoor network extensions.
Ubiquiti NanoStation Loco M5 5GHz CPE (LOCOM5) Price
| Product | Price Range |
|---|---|
| Ubiquiti NanoStation Loco M5 5GHz CPE (LOCOM5) | KSh 9,500 – 12,000 |
Ubiquiti NanoStation Loco M5 5GHz CPE (LOCOM5) Specifications
| Specification | Details |
|---|---|
| Brand | Ubiquiti |
| Product Family | airMAX |
| Model | LOCOM5 |
| Product Type | Outdoor Wireless CPE |
| Wireless Technology | airMAX M |
| Frequency | 5 GHz |
| Antenna Gain | 13 dBi |
| Polarization | Dual Linear |
| Beamwidth | 45° H / 45° V / 45° Elevation |
| Ethernet | 1 × 10/100 Mbps RJ45 |
| Operating Modes | Access Point, Station |
| Power Method | Passive PoE |
| Power Supply | 24V, 0.5A PoE Adapter |
| Maximum Power Consumption | 5.5W |
| Mounting | Pole Mount |
| Enclosure | Outdoor UV-Stabilized Polycarbonate |
| Dimensions | 161 × 31 × 80 mm |
| Weight | 180g |
| Operating Temperature | -30°C to 75°C |
| Price Range | KSh 9,500 – 12,000 |
Ubiquiti NanoStation Loco M5 5GHz CPE (LOCOM5) Wireless Performance Features
-
13 dBi integrated antenna gain provides focused 5 GHz wireless connectivity for fixed wireless deployments.
-
Dual-linear polarization supports compatible airMAX M wireless configurations.
-
45° directional beamwidth provides focused coverage toward the intended wireless endpoint.
-
airMAX M technology is designed for Ubiquiti fixed wireless networks.
-
Access Point and Station modes allow the device to be deployed in different wireless network configurations.
-
5 GHz operation provides a suitable platform for outdoor fixed wireless links where spectrum availability permits.
Ubiquiti NanoStation Loco M5 5GHz CPE (LOCOM5) Connectivity and Installation Features
-
10/100 Mbps Ethernet port provides the wired network connection to a router, switch or other network equipment.
-
Passive PoE allows power to be delivered through the Ethernet connection.
-
24V, 0.5A PoE adapter included provides the required power supply.
-
180g lightweight design makes installation and positioning easier.
-
Pole-mounting kit included provides a straightforward outdoor installation option.
-
UV-stabilized polycarbonate enclosure is designed for outdoor deployment.
Ubiquiti NanoStation Loco M5 5GHz CPE (LOCOM5) Design and Management Features
-
Compact integrated radio and antenna reduces the need for separate antenna hardware.
-
Outdoor enclosure supports fixed wireless installations in suitable environmental conditions.
-
Wide operating temperature range of -30°C to 75°C supports operation in demanding outdoor environments.
-
AirOS management provides configuration and monitoring of wireless settings.
-
Dual-linear antenna system supports compatible 2 × 2 airMAX M wireless operation.
-
Low 5.5W maximum power consumption helps keep power requirements modest.
Ubiquiti NanoStation Loco M5 5GHz CPE (LOCOM5) Applications
-
Point-to-Point Wireless Links
-
Point-to-Multipoint Networks
-
Wireless ISP Networks
-
Building-to-Building Connectivity
-
CCTV Wireless Links
-
Rural Wireless Broadband
-
Remote Site Connectivity
-
Outdoor Network Extensions
-
Fixed Wireless Access
-
Community Internet Networks
-
airMAX M Deployments
Ubiquiti NanoStation Loco M5 5GHz CPE (LOCOM5) Pros and Cons
| Pros | Cons |
|---|---|
| 13 dBi integrated antenna | 5 GHz only |
| Compact 180g design | 10/100 Mbps Ethernet |
| Dual-linear polarization | Older airMAX M platform |
| Passive PoE | Requires proper wireless alignment |
| Low 5.5W power consumption | — |
| Outdoor UV-stabilized enclosure | — |
| Pole-mounting kit included | — |
| Access Point and Station modes | — |
Ubiquiti NanoStation Loco M5 5GHz CPE (LOCOM5) FAQs
What is the Ubiquiti NanoStation Loco M5 used for?
The LOCOM5 is an outdoor 5 GHz airMAX M CPE designed for fixed wireless networking, Point-to-Point links and Point-to-Multipoint deployments.
What is the antenna gain of the LOCOM5?
The NanoStation Loco M5 has a 13 dBi integrated antenna.
What frequency does the LOCOM5 use?
It operates on the 5 GHz frequency band.
Does the NanoStation Loco M5 have Gigabit Ethernet?
No. The LOCOM5 has one 10/100 Mbps Ethernet port.
Can the LOCOM5 be used for Point-to-Point connections?
Yes. It can be used to establish fixed wireless connections between compatible network locations.
How is the NanoStation Loco M5 powered?
It uses passive PoE and comes with a 24V, 0.5A PoE adapter.
Is the LOCOM5 suitable for outdoor installation?
Yes. It has an outdoor UV-stabilized polycarbonate enclosure and supports operating temperatures from -30°C to 75°C.
What is the Ubiquiti NanoStation Loco M5 price in Kenya?
The indicative price range is KSh 9,500 – 12,000.
Ubiquiti NanoStation Loco M5 5GHz CPE (LOCOM5) Conclusion
The Ubiquiti NanoStation Loco M5 5GHz CPE (LOCOM5) is a compact outdoor airMAX M wireless solution offering 13 dBi antenna gain, dual-linear polarization, passive PoE and Point-to-Point/Point-to-Multipoint support. It is suitable for wireless ISP networks, CCTV links, remote connectivity and outdoor fixed wireless deployments.
Price Range in Kenya: KSh 9,500 – 12,000.
