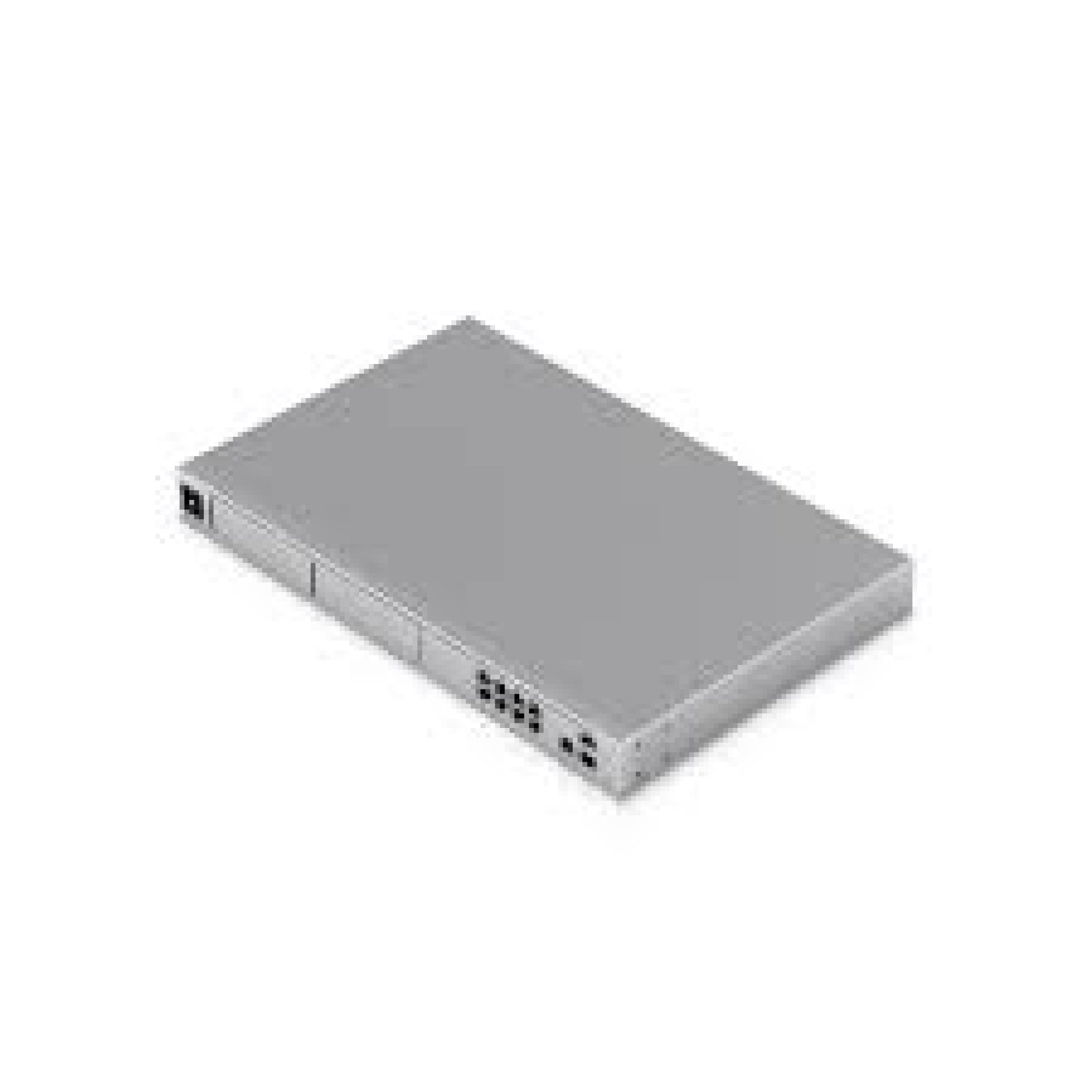

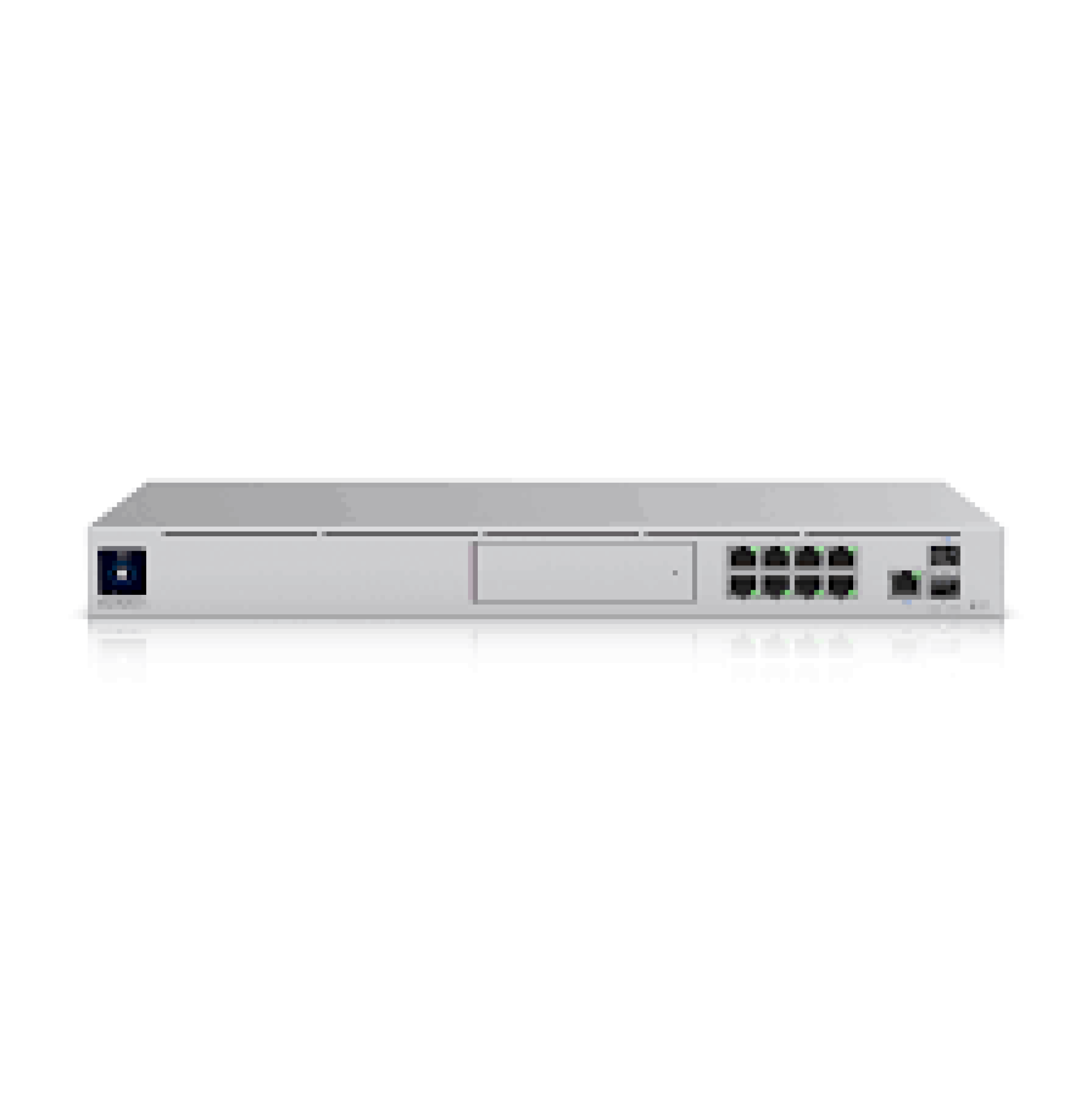

Ubiquiti UniFi Dream Machine Special Edition (UDM-SE)

Ubiquiti UniFi Dream Machine Special Edition (UDM-SE) Key Features

• Ubiquiti UniFi Dream Machine Special Edition

• Model: UDM-SE

• Integrated UniFi OS Console

• 8 × Gigabit Ethernet LAN ports

• 1 × 2.5 GbE RJ45 WAN port

• 1 × 10G SFP+ WAN port

• 2 × 10G SFP+ ports

• 180W integrated power supply

• 8 × PoE ports

• 2 × PoE+ ports

• 3.5-inch HDD bay for UniFi Protect

• 128 GB internal storage

• 3.5 Gbps IDS/IPS throughput

• UniFi Network, Protect, Access, Talk and Connect support

• 1.3-inch touchscreen display

• 1U rackmount design

Ubiquiti UniFi Dream Machine Special Edition (UDM-SE) Overview

The Ubiquiti UniFi Dream Machine Special Edition (UDM-SE) is an all-in-one 1U UniFi console combining high-performance routing, firewall security, network management, PoE switching and UniFi Protect surveillance capabilities in one rackmount appliance. It provides 2.5 GbE and 10G SFP+ WAN connectivity, eight Gigabit Ethernet ports, PoE/PoE+ outputs, 3.5 Gbps IDS/IPS throughput, 128 GB internal storage and a dedicated 3.5-inch HDD bay, making it well suited for businesses and professional UniFi installations that need a centralized network and security platform.

Ubiquiti UniFi Dream Machine Special Edition (UDM-SE) Price

Ubiquiti UniFi Dream Machine Special Edition (UDM-SE) Specifications

Ubiquiti UniFi Dream Machine Special Edition (UDM-SE) Networking and Routing Features

• 2.5 GbE RJ45 WAN port provides high-speed connectivity for modern internet connections.

• 10G SFP+ WAN port supports compatible fiber or high-speed Ethernet connections.

• Eight Gigabit Ethernet LAN ports provide wired connectivity for computers, switches, access points, cameras and other network devices.

• Two additional 10G SFP+ ports provide high-speed connectivity to compatible network infrastructure.

• 3.5 Gbps IDS/IPS throughput provides substantial capacity for security inspection on business networks.

• VLAN and advanced routing support enable network segmentation and flexible traffic management.

Ubiquiti UniFi Dream Machine Special Edition (UDM-SE) PoE Switching Features

• Eight PoE ports allow compatible UniFi devices to receive power and network connectivity directly from the console.

• Two PoE+ ports provide higher-power delivery for compatible access points, cameras and other PoE equipment.

• 180W total PoE power budget provides substantial capacity for powering multiple compatible devices.

• Integrated PoE switching reduces the need for a separate PoE switch in many deployments.

• Centralized management allows connected UniFi devices to be configured and monitored from the UniFi interface.

• PoE connectivity simplifies installations by reducing the number of individual power adapters and cables required.

Ubiquiti UniFi Dream Machine Special Edition (UDM-SE) Security and Firewall Features

• 3.5 Gbps IDS/IPS throughput enables high-performance intrusion detection and prevention.

• Stateful firewall provides control over network connections and traffic.

• Layer 7 application-aware firewall enables more granular traffic filtering and management.

• Intrusion detection and prevention helps identify and block supported network threats.

• WireGuard VPN provides secure remote connectivity.

• OpenVPN and IPsec support provide additional VPN deployment options.

• Traffic management and content filtering provide greater control over network activity.

Ubiquiti UniFi Dream Machine Special Edition (UDM-SE) UniFi Management and Protect Features

• Integrated UniFi OS Console eliminates the need for a separate UniFi Network controller.

• UniFi Network support provides centralized management of compatible UniFi switches, access points and other networking equipment.

• UniFi Protect support allows the UDM-SE to manage compatible UniFi cameras and surveillance devices.

• 128 GB internal storage provides built-in storage for supported UniFi applications.

• 3.5-inch SATA HDD bay provides additional storage capacity for UniFi Protect recordings.

• UniFi Access, Talk and Connect support extends the console to additional UniFi applications.

Ubiquiti UniFi Dream Machine Special Edition (UDM-SE) Storage and Hardware Features

• Dedicated 3.5-inch SATA HDD bay allows additional storage to be installed for UniFi Protect.

• 128 GB internal storage provides dedicated onboard storage for supported UniFi applications.

• 1.3-inch touchscreen display provides quick access to system and network information.

• Integrated 180W power supply eliminates the need for an external power adapter.

• 1U rackmount form factor allows installation in standard network racks.

• Integrated switching and PoE reduce the amount of additional networking hardware required.

Ubiquiti UniFi Dream Machine Special Edition (UDM-SE) Applications

• Business Network Management

• Enterprise Network Security

• UniFi Network Controller

• UniFi Protect CCTV

• IP Camera Management

• PoE Access Point Deployment

• PoE Camera Deployment

• VPN Connectivity

• VLAN Segmentation

• High-Speed WAN Connectivity

• 10G Network Uplinks

• Rackmount Network Infrastructure

Ubiquiti UniFi Dream Machine Special Edition (UDM-SE) Pros and Cons

Ubiquiti UniFi Dream Machine Special Edition (UDM-SE) FAQs

What is the Ubiquiti UDM-SE used for?

The UDM-SE combines routing, firewall security, UniFi management, PoE switching and UniFi Protect surveillance management in a single 1U rackmount appliance.

How many PoE ports does the UDM-SE have?

It has 8 PoE ports and 2 PoE+ ports, with an overall 180W PoE budget.

Does the UDM-SE support 10G connectivity?

Yes. It provides 10G SFP+ connectivity, including a 10G SFP+ WAN port and additional SFP+ ports.

Does the UDM-SE have a 2.5 GbE WAN port?

Yes. It includes one 2.5 GbE RJ45 WAN port.

Does the UDM-SE support UniFi Protect?

Yes. It supports UniFi Protect and includes a dedicated 3.5-inch SATA drive bay for additional surveillance storage.

Does the UDM-SE include an HDD?

No. The 3.5-inch HDD bay is provided, but the hard drive is installed separately.

How much internal storage does the UDM-SE have?

The UDM-SE includes 128 GB of internal storage for supported UniFi applications.

Does the UDM-SE have built-in WiFi?

No. It is a wired rackmount console. Separate UniFi access points are required for wireless connectivity.

What is the UDM-SE IDS/IPS throughput?

The UDM-SE supports up to 3.5 Gbps IDS/IPS throughput.

What is the Ubiquiti UniFi Dream Machine Special Edition UDM-SE price in Kenya?

The indicative price range is KSh 90,000 – 102,000.

Ubiquiti UniFi Dream Machine Special Edition (UDM-SE) Conclusion

The Ubiquiti UniFi Dream Machine Special Edition (UDM-SE) is a powerful all-in-one rackmount platform combining 2.5 GbE WAN, 10G SFP+ connectivity, eight Gigabit LAN ports, 8 PoE and 2 PoE+ ports, 180W PoE capacity, 3.5 Gbps IDS/IPS, 128 GB internal storage and UniFi Protect support. It is an excellent choice for businesses and professional installations that need a centralized UniFi gateway, controller, PoE switch and surveillance platform.

Price Range in Kenya: KSh 90,000 – 102,000.
