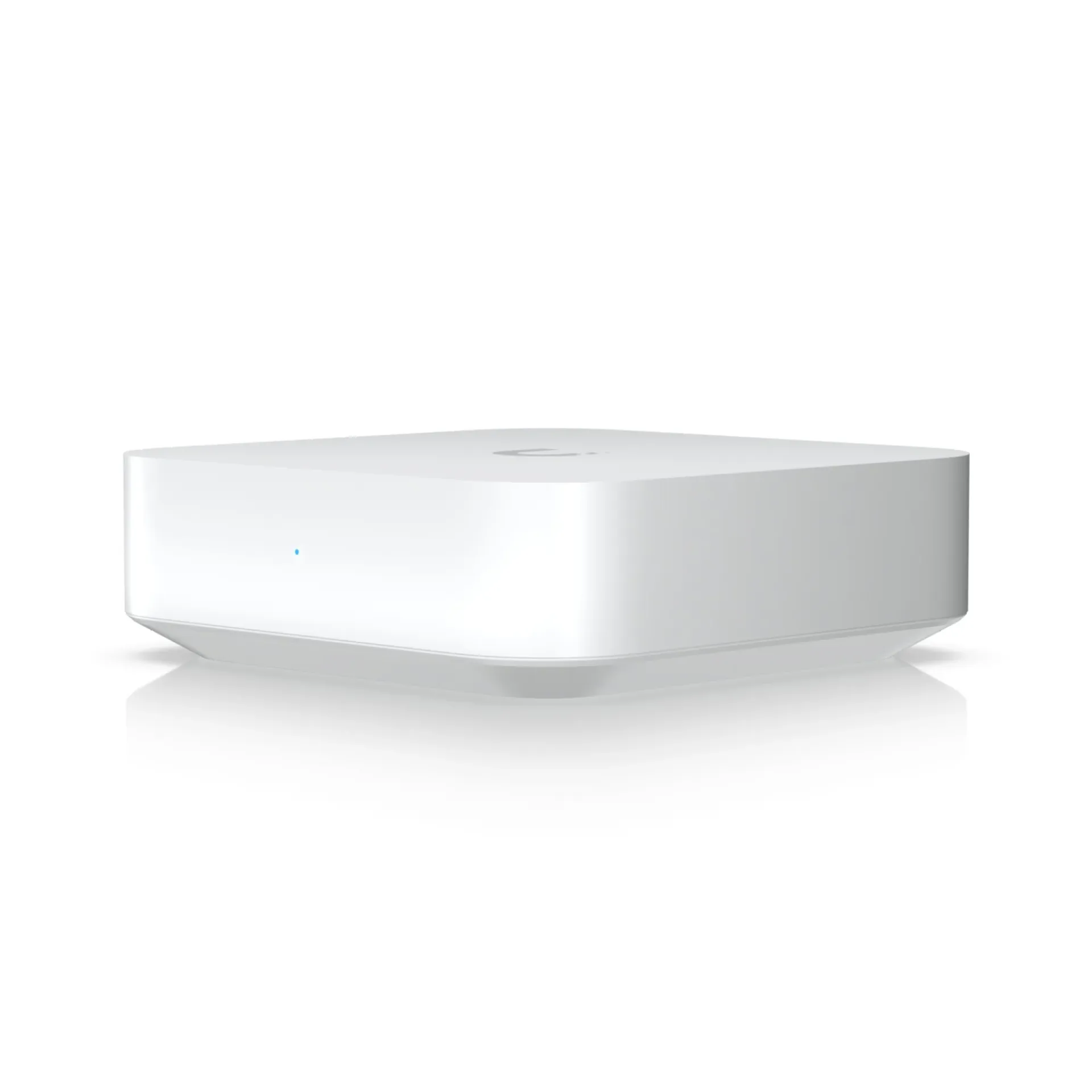

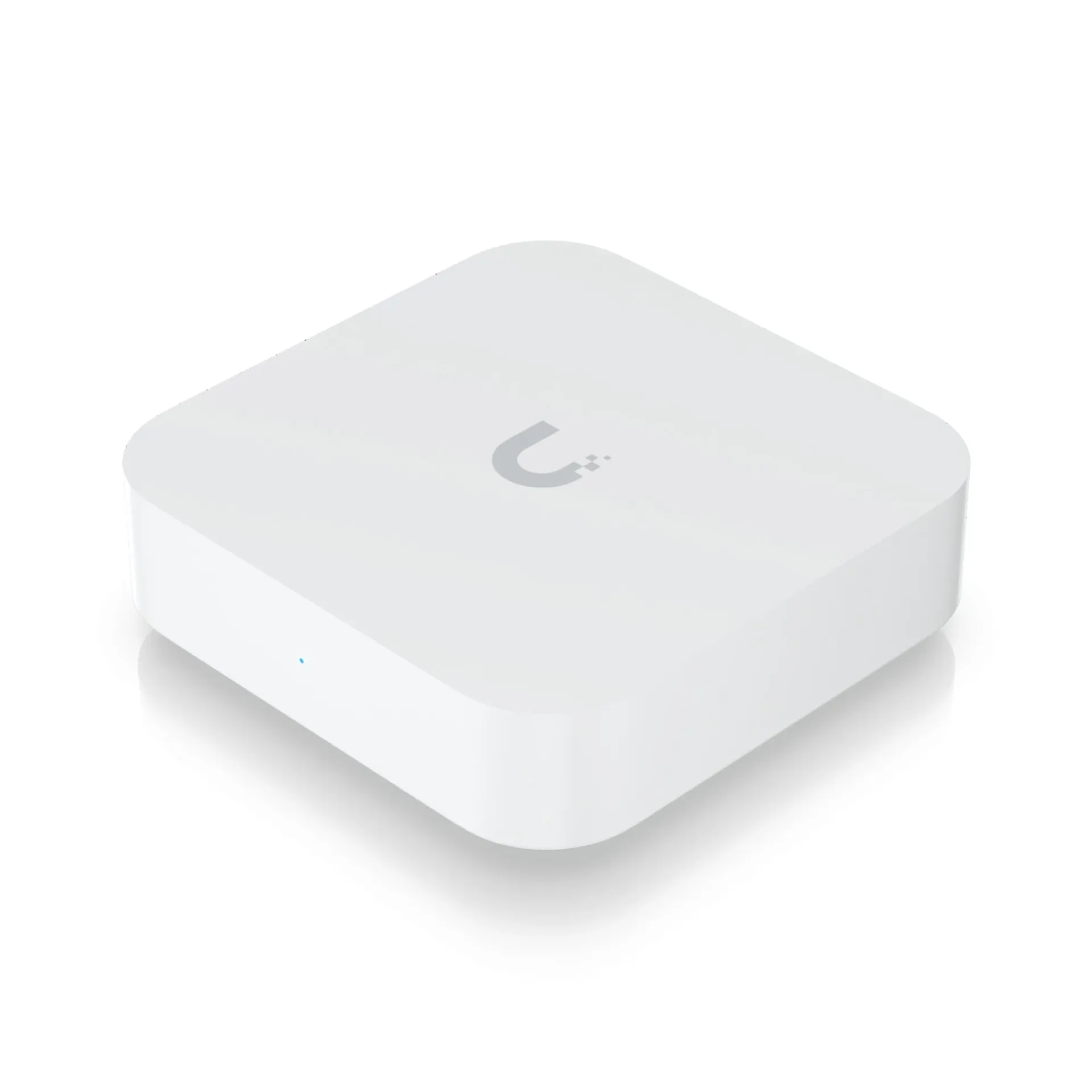

Ubiquiti UXG-Lite Next-Generation Gateway Lite (UXG-Lite)

Ubiquiti UXG-Lite Next-Generation Gateway Lite (UXG-Lite) Key Features

• Ubiquiti UniFi Next-Generation Gateway Lite

• Model: UXG-Lite

• Compact standalone UniFi security gateway

• 1 × 1 GbE WAN port

• 1 × 1 GbE LAN port

• 1 Gbps routing throughput

• 1 Gbps IDS/IPS throughput

• Stateful firewall

• Layer 7 application-aware firewall

• VLAN and advanced routing support

• WireGuard, OpenVPN and IPsec VPN

• Multi-WAN load balancing and failover

• Managed through UniFi Network

• Fanless cooling

• Compact desktop design

Ubiquiti UXG-Lite Next-Generation Gateway Lite (UXG-Lite) Overview

The Ubiquiti UXG-Lite Next-Generation Gateway Lite (UXG-Lite) is a compact standalone UniFi security gateway designed to provide high-performance routing, firewall protection, VPN connectivity and advanced traffic management without combining the functions of a wireless access point or UniFi controller. It provides 1 Gbps routing and IDS/IPS throughput, one Gigabit WAN port and one Gigabit LAN port, making it suitable for homes, small offices and existing UniFi deployments that already have a separate UniFi Network controller.

Ubiquiti UXG-Lite Next-Generation Gateway Lite (UXG-Lite) Price

Ubiquiti UXG-Lite Next-Generation Gateway Lite (UXG-Lite) Specifications

Ubiquiti UXG-Lite Next-Generation Gateway Lite (UXG-Lite) Networking and Routing Features

• 1 Gbps routing throughput provides sufficient capacity for high-speed home and small-office internet connections.

• Gigabit WAN port connects the gateway to a modem, ONT or upstream network.

• Gigabit LAN port connects to a UniFi switch or other downstream network equipment.

• VLAN support allows networks to be separated for guests, IoT devices, employees and other applications.

• Advanced routing capabilities provide flexible management of network traffic and connected subnets.

• Multi-WAN support provides options for internet failover and load balancing where compatible configurations are used.

Ubiquiti UXG-Lite Next-Generation Gateway Lite (UXG-Lite) Security and VPN Features

• 1 Gbps IDS/IPS throughput allows security inspection at Gigabit-class speeds.

• Stateful firewall provides control over network connections and traffic.

• Layer 7 firewall enables application-aware traffic filtering and management.

• Intrusion Detection and Prevention helps identify and block supported network threats.

• WireGuard VPN provides secure remote-access connectivity.

• OpenVPN and IPsec support provides additional options for VPN deployments.

• Traffic management and content filtering provide greater control over network usage.

Ubiquiti UXG-Lite Next-Generation Gateway Lite (UXG-Lite) UniFi Management Features

• UniFi Network integration allows the gateway to be configured and monitored from the UniFi management platform.

• Standalone gateway design allows users to add advanced routing and security to an existing UniFi network.

• Centralized management makes it possible to manage the gateway alongside compatible UniFi switches and access points.

• Remote management allows administrators to monitor and configure the gateway through supported UniFi management tools.

• Automatic configuration and firmware management help simplify ongoing network administration.

Ubiquiti UXG-Lite Next-Generation Gateway Lite (UXG-Lite) Design and Installation Features

• Compact 98 × 98 × 30 mm form factor allows installation in small spaces.

• Fanless cooling provides quiet operation without a mechanical cooling fan.

• USB-C power provides a simple and compact power connection.

• 320g lightweight design makes the gateway easy to position and deploy.

• Minimalist desktop construction allows it to sit alongside other networking equipment.

• Low power consumption makes it suitable for continuously operating network installations.

Ubiquiti UXG-Lite Next-Generation Gateway Lite (UXG-Lite) Applications

• UniFi Home Networks

• Small Business Networks

• Office Networks

• Network Security

• UniFi Gateway Deployments

• VLAN Segmentation

• VPN Connectivity

• Multi-WAN Networks

• Guest Networks

• IoT Network Segmentation

• Remote Network Management

• Existing UniFi Network Upgrades

Ubiquiti UXG-Lite Next-Generation Gateway Lite (UXG-Lite) Pros and Cons

Ubiquiti UXG-Lite Next-Generation Gateway Lite (UXG-Lite) FAQs

What is the Ubiquiti UXG-Lite used for?

The UXG-Lite is a standalone UniFi security gateway designed for routing, firewall protection, VPN connectivity and advanced network management.

Does the UXG-Lite have WiFi?

No. The UXG-Lite is a wired gateway and requires separate access points for WiFi connectivity.

How many Ethernet ports does the UXG-Lite have?

It has one Gigabit WAN port and one Gigabit LAN port.

What is the UXG-Lite IDS/IPS throughput?

The UXG-Lite supports up to 1 Gbps IDS/IPS throughput.

Does the UXG-Lite support VPN?

Yes. It supports WireGuard, OpenVPN and IPsec VPN technologies.

Does the UXG-Lite require a UniFi controller?

Yes. Unlike UniFi Cloud Gateway products with an integrated controller, the UXG-Lite is designed to be managed through UniFi Network, requiring a compatible UniFi Network host or controller.

Is the UXG-Lite suitable for small businesses?

Yes. Its Gigabit routing, advanced firewall, VPN and VLAN features make it suitable for many small-office and home network deployments.

Is the UXG-Lite fanless?

Yes. The gateway uses fanless cooling, allowing quiet operation.

What is the Ubiquiti UXG-Lite price in Kenya?

The indicative price range is KSh 21,000 – 25,000.

Ubiquiti UXG-Lite Next-Generation Gateway Lite (UXG-Lite) Conclusion

The Ubiquiti UXG-Lite Next-Generation Gateway Lite (UXG-Lite) is a compact standalone UniFi security gateway offering 1 Gbps routing, 1 Gbps IDS/IPS, advanced firewall protection, VLAN support, multi-WAN capabilities and WireGuard, OpenVPN and IPsec VPN support. It is particularly useful for existing UniFi networks that need a dedicated gateway without replacing their separate UniFi Network controller.

Price Range in Kenya: KSh 21,000 – 25,000.
