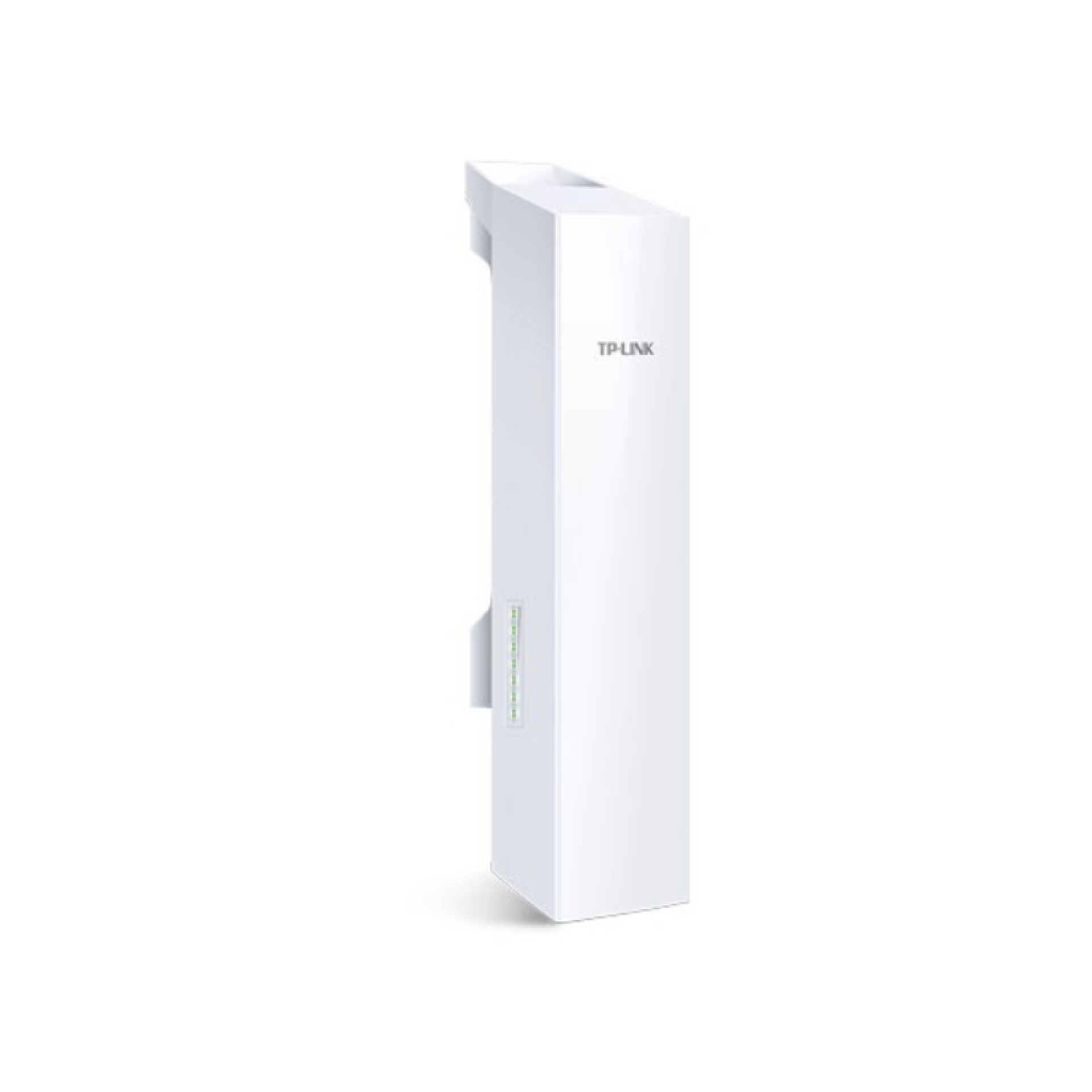

TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE

TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE – Overview

The TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE is a professional outdoor wireless access point designed for long-range point-to-point (PtP), point-to-multipoint (PtMP), and outdoor Wi-Fi coverage applications. Operating on the 2.4GHz band with wireless speeds of up to 300Mbps, it features a built-in 12dBi dual-polarised directional MIMO antenna, Passive PoE support, and Pharos MAXtream TDMA technology for stable long-distance wireless performance. It is ideal for ISPs, CCTV deployments, farms, campuses, warehouses, and outdoor networking.

TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE – Key Features

• 2.4GHz Wireless Frequency

• Up to 300Mbps Wireless Speed

• Built-in 12dBi Dual-Polarised Directional Antenna

• 2×2 MIMO Technology

• Qualcomm Atheros 560MHz Processor

• Pharos MAXtream TDMA Technology

• Long-Range Wireless Transmission (Up to 13km+)

• Passive PoE Support

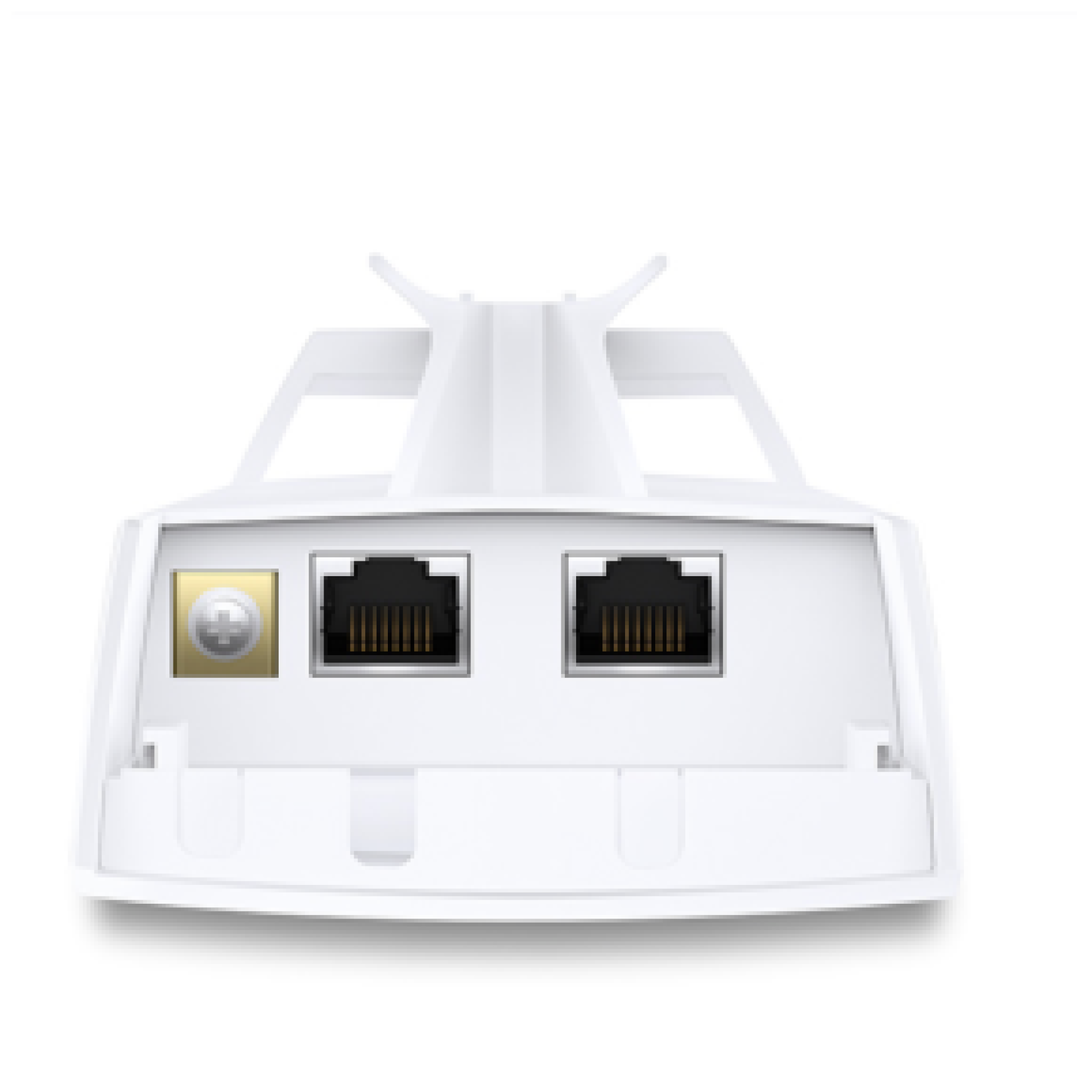

• Dual 10/100Mbps Shielded Ethernet Ports

• AP, Client, Bridge, Repeater Modes

• WISP Client Router Mode

• Pharos Control Centralised Management

• Adjustable Transmit Power

• 15kV ESD Protection

• 6kV Lightning Protection

• IPX5 Weatherproof Enclosure

• Remote Reset via PoE Adapter

TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE Price in Kenya

TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE Specifications Table

TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE – Performance

• Delivers wireless speeds of up to 300Mbps on the 2.4GHz band.

• Supports long-distance wireless links of over 13km under optimal line-of-sight conditions.

• Pharos MAXtream TDMA technology improves throughput, capacity, and latency for point-to-multipoint deployments.

• Built-in directional antenna provides focused signal transmission for stable outdoor connectivity.

• Passive PoE enables installation up to 60 metres from the power source using a single Ethernet cable.

TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE – Build and Design

• Durable outdoor IPX5 weatherproof enclosure.

• Compact directional antenna design.

• Integrated grounding terminal for improved safety.

• Fanless construction for silent operation.

• Designed to withstand harsh outdoor environments.

• Includes Passive PoE adapter for simplified installation.

TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE – Ideal Use Cases

• Point-to-point wireless links

• Point-to-multipoint networks

• Outdoor Wi-Fi coverage

• CCTV network connectivity

• Farm and agricultural networking

• Campus networking

• Warehouse connectivity

• Rural internet deployment

• ISP wireless installations

• Building-to-building networking

TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE – FAQs

1. What is the maximum wireless speed of the CPE220?

It supports wireless speeds of up to 300Mbps on the 2.4GHz frequency band.

2. How far can the CPE220 transmit wirelessly?

Under ideal line-of-sight conditions, it is designed for wireless links of up to 13km or more.

3. Does it support Power over Ethernet (PoE)?

Yes. It includes a 24V Passive PoE adapter, allowing installation up to 60 metres from the power source.

4. Which operating modes are available?

It supports Access Point, Client, Bridge, Repeater, AP Router, and WISP Client Router modes.

5. Is the CPE220 suitable for outdoor installation?

Yes. It features an IPX5 weatherproof enclosure, 15kV ESD protection, and 6kV lightning protection for reliable outdoor operation.

TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE – Pros and Cons

TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE – Conclusion

The TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE is an excellent solution for long-distance outdoor wireless networking. With its 12dBi directional antenna, Pharos MAXtream technology, weatherproof design, and flexible operating modes, it provides dependable connectivity for businesses, campuses, surveillance systems, and internet service providers requiring reliable outdoor wireless links.
