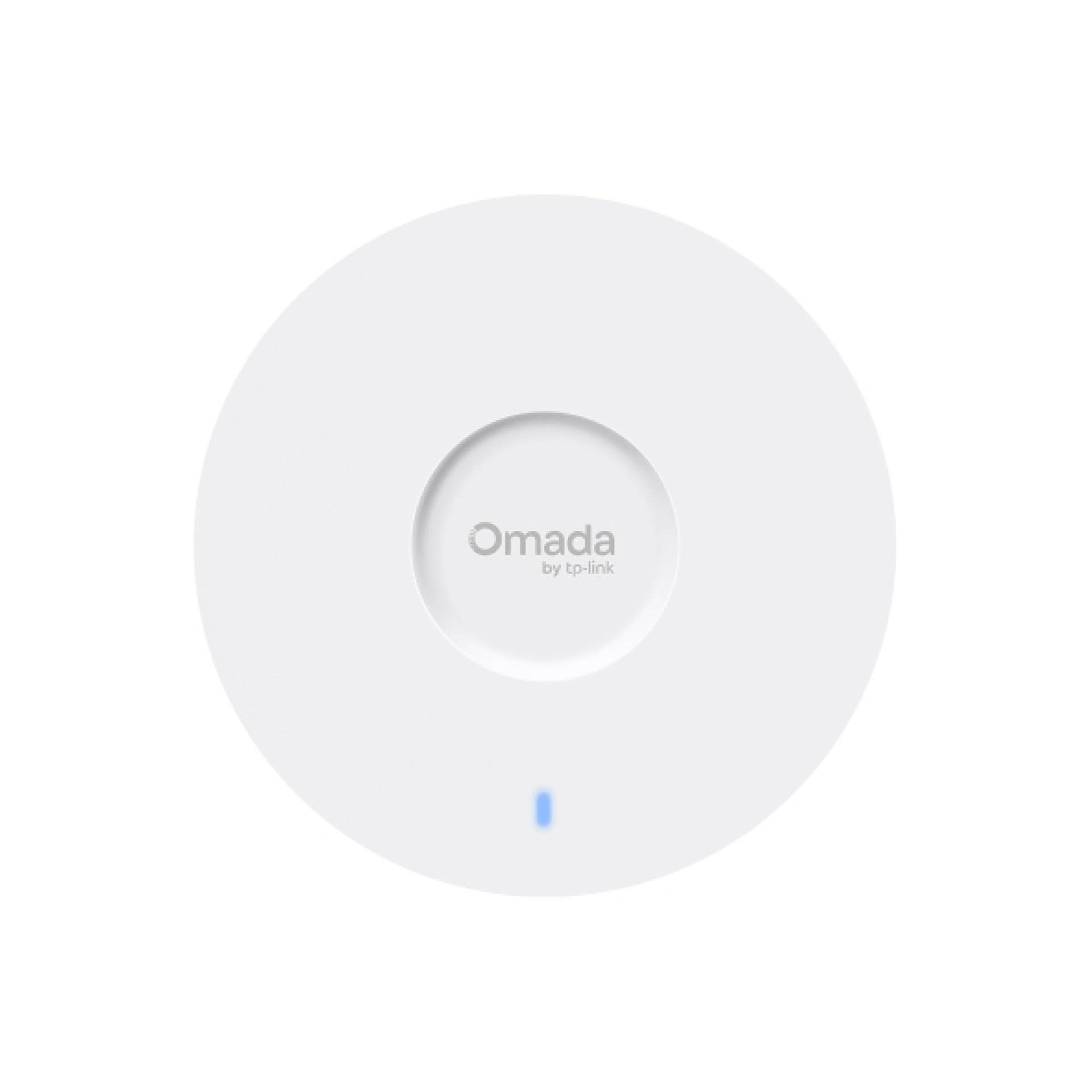

TP-Link AX3000 Ceiling-Mount Wi-Fi 6 Access Point-EAP653

TP-Link AX3000 Ceiling-Mount Wi-Fi 6 Access Point-EAP653 Overview

The TP-Link AX3000 Ceiling-Mount Wi-Fi 6 Access Point-EAP653 is a high-performance dual-band wireless access point designed for modern business, education, hospitality, and residential networks. It combines Wi-Fi 6 technology with up to 2402Mbps on the 5GHz band and 574Mbps on the 2.4GHz band, providing a combined AX3000-class wireless solution.

The EAP653 features a slim ceiling-mount design, Gigabit Ethernet, PoE+ support, MU-MIMO, OFDMA, HE160, and centralized Omada management. It can support 250+ concurrent clients under specified conditions and offers coverage of up to 140m² in laboratory conditions, making it suitable for offices, hotels, schools, meeting rooms, and other environments with multiple connected devices.

TP-Link AX3000 Ceiling-Mount Wi-Fi 6 Access Point-EAP653 Key Features

• AX3000 Wi-Fi 6: Delivers up to 2402Mbps on 5GHz and 574Mbps on 2.4GHz.

• Dual-band connectivity: Provides both 2.4GHz and 5GHz wireless networking.

• Wi-Fi 6 efficiency: Uses technologies such as OFDMA and MU-MIMO to improve performance with multiple connected clients.

• HE160 support: Supports 160MHz channel bandwidth for higher peak wireless throughput with compatible devices.

• Gigabit Ethernet: Provides a high-speed wired network connection.

• PoE+ support: Supports IEEE 802.3at PoE+ for flexible installation.

• Omada SDN integration: Allows centralized management of compatible network devices through the Omada platform.

• Omada Mesh: Supports wireless networking between compatible access points for flexible deployments.

• Seamless Roaming: Helps compatible clients move between access points with reduced interruption.

• Up to 16 SSIDs: Supports up to 16 SSIDs, with up to 8 SSIDs on each wireless band.

• VLAN support: Allows wireless networks to be mapped to separate VLANs.

• Captive portal: Supports controlled guest and public Wi-Fi authentication.

• Advanced security: Supports WPA3 along with WPA2 and WPA enterprise security options.

• Band steering: Can direct compatible dual-band devices toward the 5GHz band.

• Load balancing and airtime fairness: Helps optimize wireless resources in busy environments.

TP-Link AX3000 Ceiling-Mount Wi-Fi 6 Access Point-EAP653 Price in Kenya

The final selling price may vary depending on availability, hardware version, supplier, and included accessories.

TP-Link AX3000 Ceiling-Mount Wi-Fi 6 Access Point-EAP653 Specifications

Specifications such as antenna configuration and power requirements can vary between EAP653 hardware versions, so the exact version should be confirmed before installation.

TP-Link AX3000 Ceiling-Mount Wi-Fi 6 Access Point-EAP653 Performance

• AX3000-class wireless performance provides substantial bandwidth for modern business and residential networks.

• The 5GHz band supports speeds of up to 2402Mbps, making it suitable for demanding applications such as video conferencing, cloud applications, large file transfers, and high-quality streaming.

• The 2.4GHz band supports up to 574Mbps and provides compatibility with a broad range of wireless devices.

• OFDMA improves wireless resource allocation when multiple compatible devices are communicating.

• MU-MIMO helps the access point serve multiple compatible clients more efficiently.

• HE160 can provide higher peak throughput with compatible Wi-Fi 6 clients and suitable channel conditions.

• Band steering can encourage compatible dual-band devices to use the 5GHz band where appropriate.

• Load balancing and airtime fairness are useful in busy wireless environments where many clients compete for network resources.

TP-Link AX3000 Ceiling-Mount Wi-Fi 6 Access Point-EAP653 Design and Build

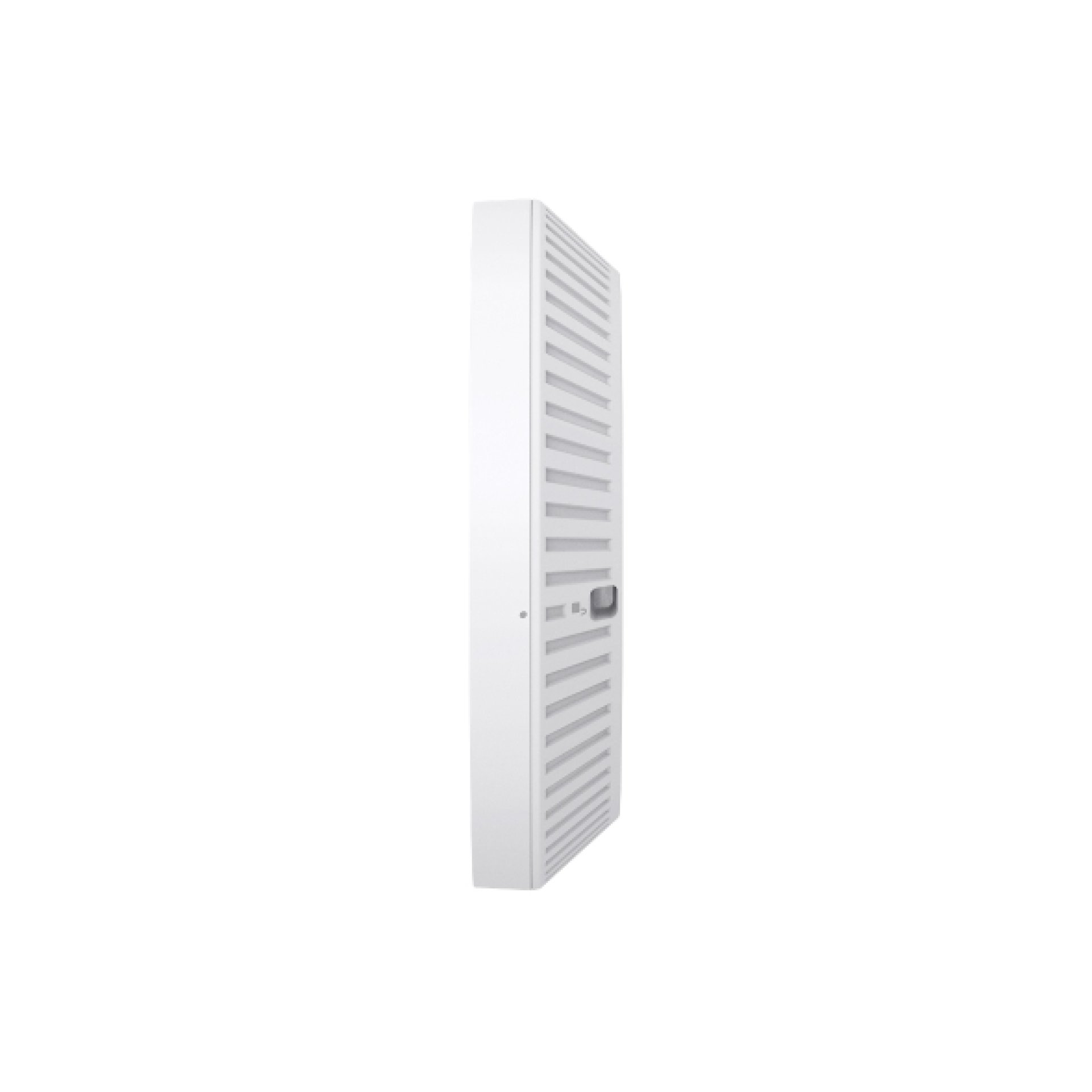

• Features a slim, professional ceiling-mount design measuring approximately 160 × 160 × 33.6mm.

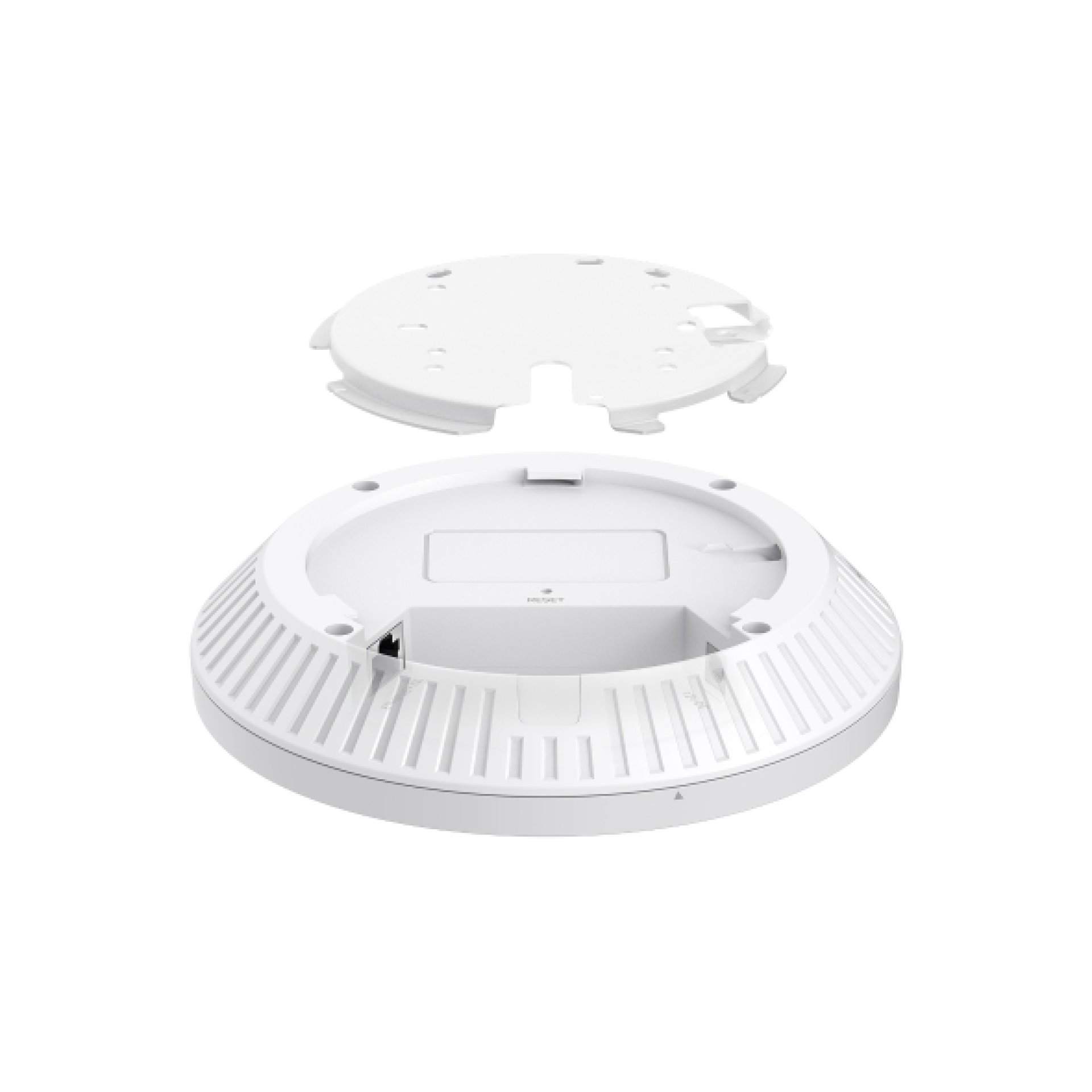

• Designed for ceiling and wall installation, with mounting kits included.

• Junction box mounting is also supported for suitable installations.

• The low-profile design helps the access point blend into professional office, hotel, school, and commercial environments.

• Internal omnidirectional antennas provide a clean external appearance.

• PoE+ support helps simplify installation by carrying power and network data over compatible Ethernet infrastructure.

• The access point is designed for indoor deployment and operates within specified temperature and humidity ranges.

TP-Link AX3000 Ceiling-Mount Wi-Fi 6 Access Point-EAP653 Connectivity and Compatibility

• Supports dual-band 2.4GHz and 5GHz Wi-Fi.

• Compatible with Wi-Fi 6 and previous IEEE 802.11 wireless standards.

• Includes one Gigabit Ethernet port with IEEE 802.3at PoE+ support.

• Supports 12V DC power on compatible versions.

• Supports multiple SSIDs for separating staff, guest, departmental, or device networks.

• VLAN mapping enables network segmentation.

• Omada Mesh allows compatible access points to be connected wirelessly where suitable.

• Seamless Roaming helps compatible devices transition between access points.

• Captive portal authentication can be used for guest Wi-Fi.

• Supports WPA3, WPA2, WPA Enterprise, access control, wireless isolation, MAC filtering, rogue AP detection, and 802.1X.

• Omada management can be handled through compatible hardware, software, or cloud-based controllers.

TP-Link AX3000 Ceiling-Mount Wi-Fi 6 Access Point-EAP653 Ideal Use Cases

• Business offices: Provides fast Wi-Fi for laptops, smartphones, cloud applications, VoIP devices, and collaboration tools.

• Hotels: Suitable for guest Wi-Fi deployments requiring centralized management.

• Schools and institutions: Supports large numbers of connected students, teachers, staff, and devices.

• Meeting rooms: Suitable for video conferencing, wireless presentations, streaming, and cloud collaboration.

• Shopping centres: Can support managed customer and business Wi-Fi networks.

• Restaurants and cafés: Suitable for guest and staff wireless connectivity.

• Large homes: Provides a high-performance option for centralized indoor Wi-Fi coverage.

• Commercial buildings: Works well as part of a multi-access-point Omada deployment.

• High-density environments: Wi-Fi 6 technologies help improve wireless efficiency where many compatible clients are connected.

• Multi-access-point networks: Omada Mesh and Seamless Roaming can support larger wireless deployments.

TP-Link AX3000 Ceiling-Mount Wi-Fi 6 Access Point-EAP653 FAQs

What is the TP-Link AX3000 Ceiling-Mount Wi-Fi 6 Access Point-EAP653?

• It is a dual-band Wi-Fi 6 access point designed for high-speed indoor wireless networking and professional ceiling-mounted installations.

What wireless speeds does the EAP653 support?

• It supports up to 574Mbps on 2.4GHz and up to 2402Mbps on 5GHz, giving it an AX3000-class wireless rating.

Does the EAP653 support Wi-Fi 6?

• Yes. It supports IEEE 802.11ax Wi-Fi 6 and incorporates technologies including OFDMA, MU-MIMO, 1024-QAM, and HE160.

Does the EAP653 support PoE?

• Yes. The EAP653 supports IEEE 802.3at PoE+. Certain hardware versions also support 48V passive PoE and 12V DC power.

Does the EAP653 include a power adapter?

• The DC power adapter is not included according to TP-Link's specifications. A compatible PoE installation can therefore be a convenient alternative where suitable network infrastructure is available.

Can the EAP653 be ceiling mounted?

• Yes. It supports ceiling and wall mounting, and compatible mounting kits are included. Junction box mounting is also supported.

How many devices can the EAP653 support?

• TP-Link lists support for 250+ concurrent clients under specified conditions. Actual capacity depends on the wireless environment, client behaviour, and network traffic.

What coverage can the EAP653 provide?

• TP-Link lists coverage of up to 140m² under laboratory conditions. Actual coverage varies depending on building construction, interference, client devices, placement, and other environmental factors.

Can the EAP653 be managed through Omada?

• Yes. It integrates with the Omada SDN ecosystem and can be centrally managed through compatible Omada controllers and management platforms.

Does the EAP653 support guest Wi-Fi?

• Yes. Captive portal authentication, multiple SSIDs, access control, and other wireless-management features can be used to create controlled guest networks.

TP-Link AX3000 Ceiling-Mount Wi-Fi 6 Access Point-EAP653 Pros and Cons

TP-Link AX3000 Ceiling-Mount Wi-Fi 6 Access Point-EAP653 Conclusion

The TP-Link AX3000 Ceiling-Mount Wi-Fi 6 Access Point-EAP653 is a capable solution for organizations and users looking for fast, efficient, and centrally managed wireless connectivity. Its AX3000-class Wi-Fi 6 performance, HE160, OFDMA, MU-MIMO, Gigabit Ethernet, PoE+ support, multiple SSIDs, advanced security, Omada Mesh, and Seamless Roaming make it well suited to offices, hotels, schools, meeting rooms, shopping centres, restaurants, and other professional environments.
