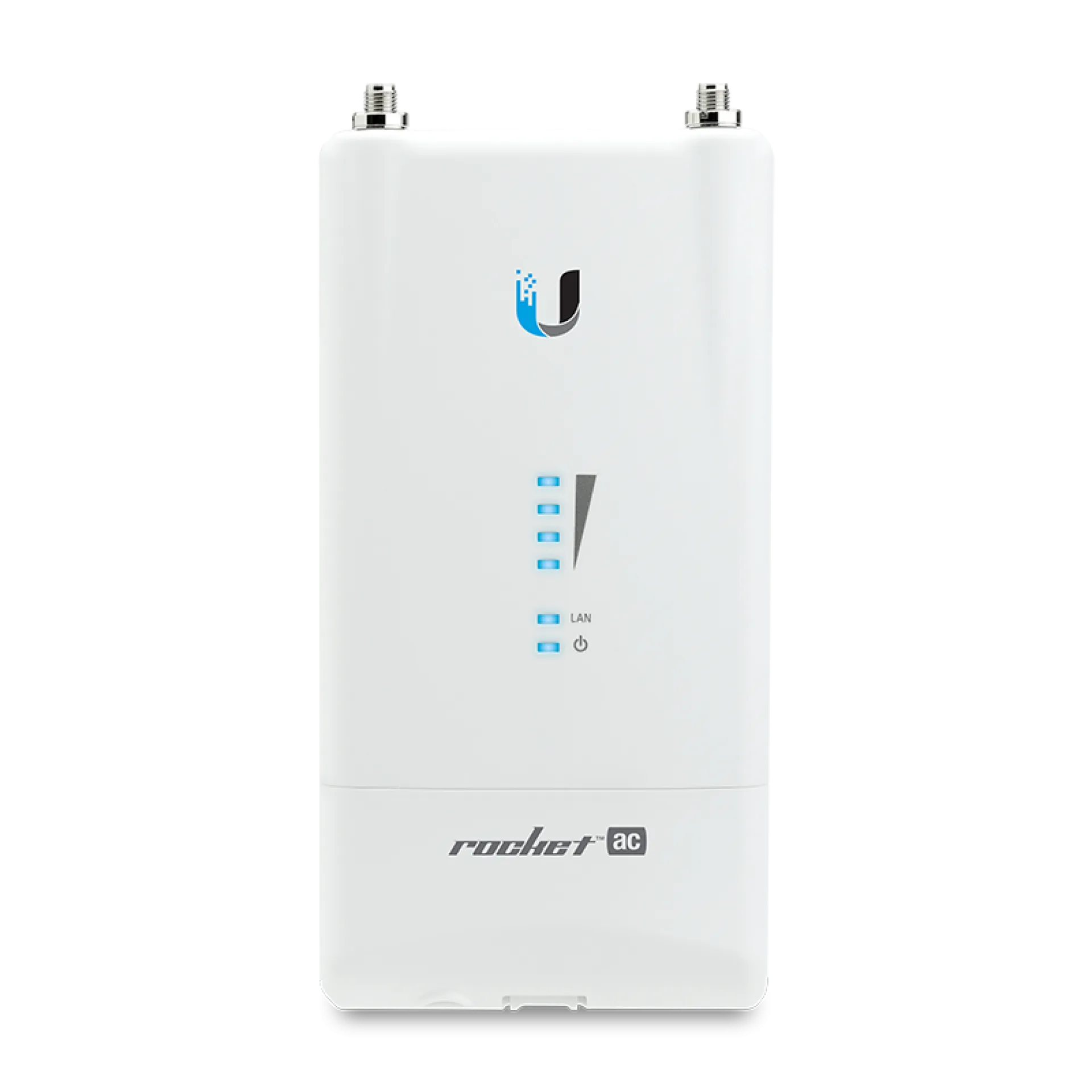

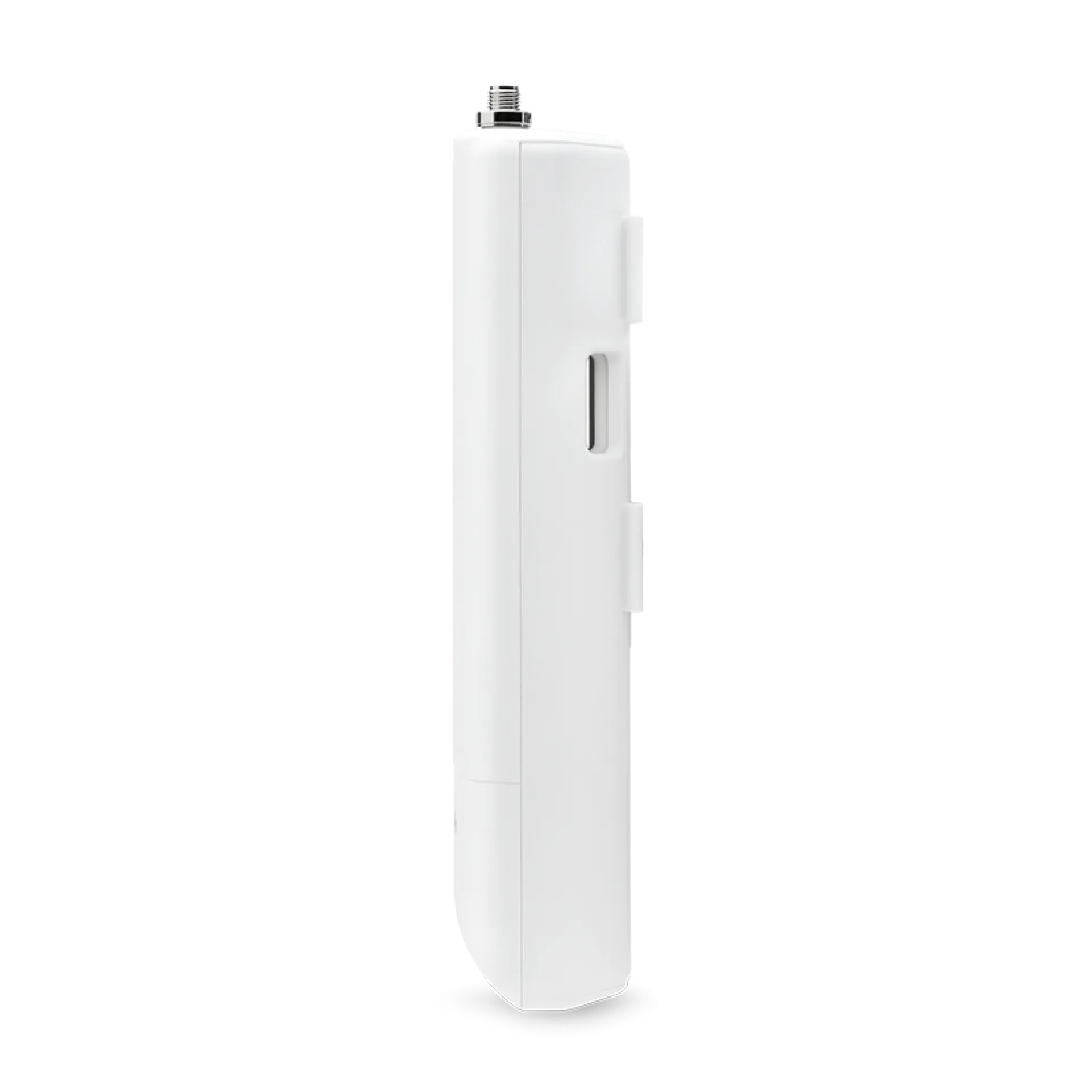

Rocket ac airMAX ac BaseStation (R5AC-LITE)

Ubiquiti Rocket AC airMAX AC BaseStation (R5AC-LITE) Key Features

• Ubiquiti Rocket AC airMAX AC BaseStation

• Model: R5AC-LITE

• 5 GHz airMAX AC wireless technology

• Up to 500+ Mbps throughput

• Access Point and Station operating modes

• 1 × Gigabit Ethernet port

• 2 × waterproof RP-SMA RF connectors

• Passive PoE power

• 24V, 0.5A Gigabit PoE adapter included

• Outdoor UV-stabilized enclosure

• Suitable for Point-to-Point and Point-to-Multipoint wireless links

• Designed for external airMAX antennas

Ubiquiti Rocket AC airMAX AC BaseStation (R5AC-LITE) Overview

The Ubiquiti Rocket AC airMAX AC BaseStation (R5AC-LITE) is a 5 GHz outdoor wireless base station designed for high-throughput Point-to-Point (PtP) and Point-to-Multipoint (PtMP) wireless networks. It uses Ubiquiti's airMAX AC technology and can deliver up to 500+ Mbps throughput, making it suitable for wireless broadband, backhaul and long-range network deployments.

The R5AC-LITE is designed to work with compatible external airMAX antennas. It features two waterproof RP-SMA RF connectors, allowing it to be connected to suitable sector or dish antennas depending on the intended deployment. This makes it particularly useful for wireless ISPs, enterprise wireless infrastructure and long-distance outdoor links.

For wired connectivity, the unit provides one Gigabit Ethernet port, which carries the network connection and power when using the supplied passive PoE adapter. The included 24V, 0.5A Gigabit PoE adapter helps simplify installation by allowing the device to be powered over the Ethernet connection.

The R5AC-LITE supports both Access Point and Station modes, allowing it to be deployed on different sides of a wireless link depending on the network design. It also supports features such as dynamic ACK, traffic shaping, QoS and selectable channel widths for wireless deployments.

Its outdoor enclosure is made from UV-stabilized polycarbonate, while the unit is designed to operate across a wide temperature range of -40°C to 80°C. This makes it suitable for demanding outdoor installations.

The R5AC-LITE also includes signal-strength indicators, allowing installers to monitor the wireless link during alignment and deployment.

Price in Kenya: KSh 2,500.

Ubiquiti Rocket AC airMAX AC BaseStation (R5AC-LITE) Price

Ubiquiti Rocket AC airMAX AC BaseStation (R5AC-LITE) Specifications

Ubiquiti Rocket AC airMAX AC BaseStation (R5AC-LITE) Wireless Performance Features

• airMAX AC technology provides high-throughput wireless connectivity for outdoor broadband and backhaul deployments.

• Up to 500+ Mbps throughput provides substantial wireless capacity for compatible PtP and PtMP applications.

• 5 GHz operation provides a wireless platform suitable for long-distance outdoor network links.

• Access Point and Station modes allow the device to be configured according to its position within a wireless network.

• Selectable channel widths provide flexibility when configuring wireless links according to network requirements.

• Dynamic ACK and Ackless modes support wireless deployments requiring distance and latency optimization.

• Traffic shaping with burst support provides additional control over network traffic.

• WMM QoS allows traffic to be prioritized according to application requirements.

Ubiquiti Rocket AC airMAX AC BaseStation (R5AC-LITE) Antenna & Link Features

• Two waterproof RP-SMA connectors allow connection to compatible external airMAX antennas.

• External antenna compatibility provides flexibility for sector and dish-based wireless deployments.

• Point-to-Point support makes the R5AC-LITE suitable for connecting two distant network locations.

• Point-to-Multipoint support allows a base station to communicate with multiple remote wireless stations.

• Antenna alignment tools assist with setting up directional wireless links.

• Signal-strength LEDs provide visual feedback during installation and antenna alignment.

• Plug-and-play antenna integration makes it suitable for compatible RocketDish and other airMAX antenna deployments.

Ubiquiti Rocket AC airMAX AC BaseStation (R5AC-LITE) Outdoor Installation Features

• UV-stabilized enclosure is designed for outdoor installations and exposure to sunlight.

• Wide operating temperature range of -40°C to 80°C supports deployment in demanding outdoor environments.

• Waterproof RF connectors help protect the antenna connections against environmental exposure.

• Compact 250g design makes the unit relatively easy to install on compatible outdoor antenna systems.

• ESD/EMP protection provides additional protection for outdoor wireless infrastructure.

• Integrated signal indicators make installation and wireless alignment easier.

• Outdoor-focused construction makes the unit suitable for wireless infrastructure where indoor access points are not appropriate.

Ubiquiti Rocket AC airMAX AC BaseStation (R5AC-LITE) Network Management Features

• Web-based management provides configuration and monitoring of the wireless device.

• SNMP support allows integration with network monitoring systems.

• SSH support provides command-line management options.

• DHCP, NAT and routing features provide additional network configuration capabilities.

• Ping watchdog helps monitor network connectivity.

• Statistical reporting provides information including data rates, packet errors, Ethernet link rate and wireless distance.

• VLAN support provides network segmentation options for supported deployments.

Ubiquiti Rocket AC airMAX AC BaseStation (R5AC-LITE) Applications

• Wireless Internet Service Provider Networks

• Point-to-Point Wireless Links

• Point-to-Multipoint Wireless Networks

• Wireless Backhaul

• Long-Distance Network Links

• Rural Broadband Networks

• Campus Connectivity

• Enterprise Wireless Infrastructure

• Outdoor Network Extensions

• CCTV Wireless Backhaul

• Building-to-Building Connectivity

• Remote Site Connectivity

• airMAX Network Deployments

Ubiquiti Rocket AC airMAX AC BaseStation (R5AC-LITE) Pros and Cons

Ubiquiti Rocket AC airMAX AC BaseStation (R5AC-LITE) FAQs

What is the Ubiquiti R5AC-LITE used for?

The R5AC-LITE is a 5 GHz outdoor wireless base station designed for PtP and PtMP wireless networks, including broadband, backhaul and building-to-building links.

What is the throughput of the R5AC-LITE?

Ubiquiti specifies up to 500+ Mbps throughput for the airMAX AC Lite.

Does the R5AC-LITE have a built-in antenna?

No. It uses external antennas connected through its two RP-SMA RF connectors.

What antenna can be used with the R5AC-LITE?

It can be paired with compatible airMAX external antennas, including suitable sector and dish antennas.

Does the R5AC-LITE support Point-to-Point links?

Yes. It supports PtP wireless deployments and selectable channel widths for such links.

Does the R5AC-LITE support Point-to-Multipoint?

Yes. It can operate as an airMAX AC base station in PtMP deployments.

What Ethernet port does the R5AC-LITE have?

It has one Gigabit Ethernet RJ45 port.

How is the R5AC-LITE powered?

It uses passive PoE and is supplied with a 24V, 0.5A Gigabit PoE adapter.

What frequency does the R5AC-LITE use?

The worldwide supported frequency range is 5150–5875 MHz, subject to applicable regional regulations.

Is the R5AC-LITE suitable for outdoor use?

Yes. It has a UV-stabilized enclosure and is designed to operate from -40°C to 80°C.

What is the Ubiquiti Rocket AC airMAX AC BaseStation price in Kenya?

The listed price is KSh 2,500.

Ubiquiti Rocket AC airMAX AC BaseStation (R5AC-LITE) Conclusion

The Ubiquiti Rocket AC airMAX AC BaseStation (R5AC-LITE) is designed for outdoor wireless infrastructure requiring high-throughput 5 GHz connectivity. With airMAX AC technology, up to 500+ Mbps throughput, two waterproof RP-SMA connectors, Gigabit Ethernet, Access Point and Station modes, and a rugged outdoor enclosure, it is suitable for PtP links, PtMP networks, wireless backhaul and long-distance connectivity
