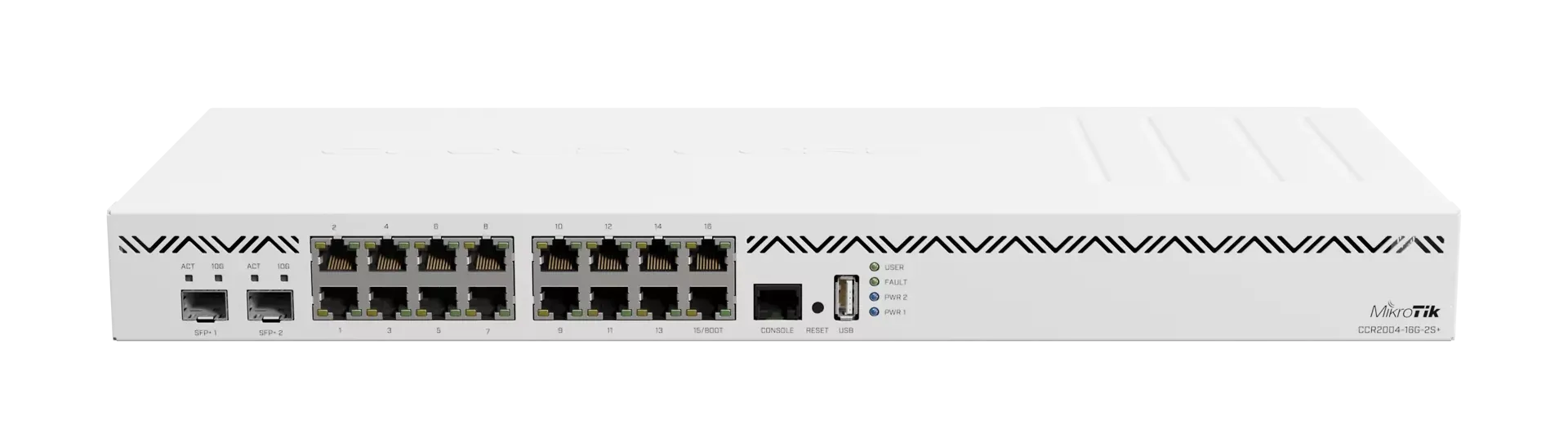

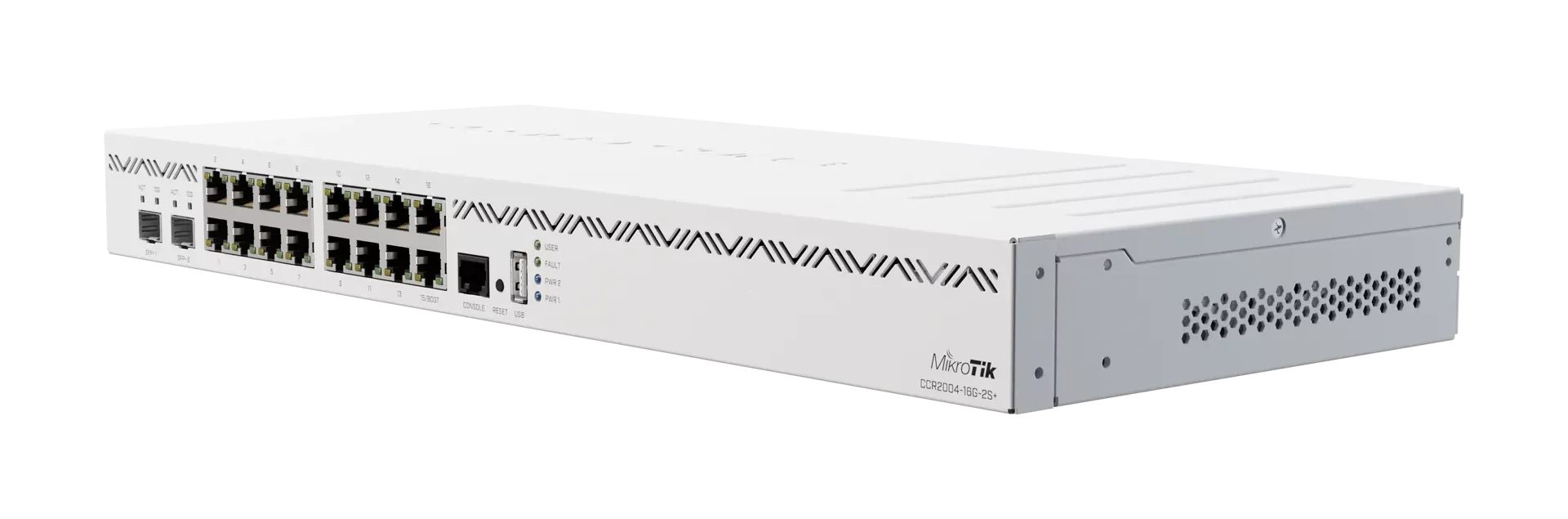

MikroTik CCR2004-16G-2S+PC Ethernet Router 16×Gigabit Ethernet Ports 2×10G SFP+ Key Features
- Quad-core 1.2GHz ARM64 processor
- 4GB DDR4 RAM
- 128MB NAND storage
- 16 × Gigabit Ethernet ports
- 2 × 10G SFP+ ports
- RouterOS v7
- Level 6 RouterOS license
- Passive cooling for quiet operation
- Dual DC power inputs
- USB 3.0 Type-A port
- RJ45 serial console port
- Hardware monitoring
- Compact desktop and rack-mountable design
- Designed for high-performance business and professional networks
MikroTik CCR2004-16G-2S+PC Ethernet Router 16×Gigabit Ethernet Ports 2×10G SFP+ Introduction
The MikroTik CCR2004-16G-2S+PC is a powerful Ethernet router designed for small and medium-sized businesses, professional networks, server rooms, and advanced home labs. It combines 16 Gigabit Ethernet ports with two 10G SFP+ cages, providing extensive wired connectivity and high-speed uplink options.
Powered by a quad-core 1.2GHz 64-bit ARM processor and 4GB of DDR4 RAM, the CCR2004-16G-2S+PC is built to handle demanding routing and network-management workloads. It runs RouterOS v7 with a Level 6 license and provides advanced routing, firewall, VPN, VLAN, and traffic-management capabilities.
MikroTik CCR2004-16G-2S+PC Ethernet Router 16×Gigabit Ethernet Ports 2×10G SFP+ Price in Kenya
| Product | Price |
|---|---|
| MikroTik CCR2004-16G-2S+PC Ethernet Router 16×Gigabit Ethernet Ports 2×10G SFP+ | KSh 70,000 |
MikroTik CCR2004-16G-2S+PC Ethernet Router 16×Gigabit Ethernet Ports 2×10G SFP+ Key Specifications
| Feature | Details |
|---|---|
| Model | CCR2004-16G-2S+PC |
| Product Type | Ethernet Router |
| Architecture | ARM 64bit |
| Processor | AL32400 |
| CPU Cores | 4 |
| CPU Speed | 1.2GHz |
| RAM | 4GB DDR4 |
| Storage | 128MB NAND |
| Ethernet Ports | 16 × 10/100/1000 Mbps |
| SFP+ Ports | 2 × 10Gbps |
| Operating System | RouterOS v7 |
| RouterOS License | Level 6 |
| Switch Chip | 88E6191X |
| USB | 1 × USB 3.0 Type-A |
| Console | RJ45 Serial |
| Power Inputs | 2 × DC |
| Input Voltage | 36–57V DC |
| Cooling | Passive |
| Maximum Power Consumption | 36W |
| Dimensions | 272 × 195 × 44 mm |
| Operating Temperature | -20°C to 60°C |
MikroTik CCR2004-16G-2S+PC Ethernet Router 16×Gigabit Ethernet Ports 2×10G SFP+ Performance
The CCR2004-16G-2S+PC delivers strong routing and switching performance for professional network environments.
- 16 Gigabit Ethernet ports provide extensive wired connectivity
- Two 10G SFP+ ports provide high-speed fiber or direct-attach uplinks
- Quad-core ARM processor provides strong routing performance
- 4GB DDR4 RAM supports demanding RouterOS configurations
- Separate switch chips handle groups of Gigabit ports
- Each SFP+ interface has a dedicated 10Gbps connection to the CPU
- Supports advanced routing, firewall, VLAN, VPN, and traffic-management functions
- MikroTik's testing demonstrates multi-gigabit throughput depending on packet size and configuration.
MikroTik CCR2004-16G-2S+PC Ethernet Router 16×Gigabit Ethernet Ports 2×10G SFP+ Build Quality & Design
The CCR2004-16G-2S+PC features a compact metal chassis designed for quiet operation and flexible installation.
- 272 × 195 × 44 mm enclosure
- Compact 1U-height design
- Passive cooling for silent operation
- Can be placed on a desktop or installed using compatible rack-mount accessories
- Durable construction for continuous networking workloads
- Designed for indoor environments
- Hardware monitoring for CPU temperature, PCB temperature, and voltage
MikroTik CCR2004-16G-2S+PC Ethernet Router 16×Gigabit Ethernet Ports 2×10G SFP+ Connectivity & Compatibility
The router provides a combination of Gigabit Ethernet and 10Gbps fiber connectivity.
- 16 × Gigabit Ethernet ports
- 2 × 10G SFP+ ports
- Compatible with appropriate SFP+ modules and direct-attach cables
- USB 3.0 Type-A port
- RJ45 serial console
- Dual DC power inputs
- Supports RouterOS v7
- Suitable for fiber uplinks, enterprise networks, server environments, VLANs, VPNs, and advanced routing deployments
MikroTik CCR2004-16G-2S+PC Ethernet Router 16×Gigabit Ethernet Ports 2×10G SFP+ Ideal Use Cases
This router is best suited for:
- Small and medium businesses
- Enterprise networks
- Server rooms
- Network cabinets
- Internet service providers
- High-speed fiber networks
- Corporate network infrastructure
- VPN deployments
- VLAN-based networks
- Network aggregation
- Advanced home labs
- Professional networking environments
MikroTik CCR2004-16G-2S+PC Ethernet Router 16×Gigabit Ethernet Ports 2×10G SFP+ Pros and Cons
| Pros | Cons |
|---|---|
| 16 Gigabit Ethernet ports | No built-in Wi-Fi |
| 2 × 10G SFP+ ports | SFP+ modules may need to be purchased separately |
| 4GB DDR4 RAM | Advanced configuration requires networking knowledge |
| Quad-core ARM64 processor | Not designed for basic home networking |
| RouterOS v7 Level 6 | No standard 2.5GbE copper port |
| Passive and quiet cooling | Requires compatible DC power source |
| USB 3.0 port | Desktop form factor may require separate rack accessories |
| Extensive routing capabilities | More features than basic users may need |
MikroTik CCR2004-16G-2S+PC Ethernet Router 16×Gigabit Ethernet Ports 2×10G SFP+ FAQs
How many Ethernet ports does the CCR2004-16G-2S+PC have?
It has 16 Gigabit Ethernet ports for wired network connections.
Does the CCR2004-16G-2S+PC support 10Gbps?
Yes. It has two 10G SFP+ cages for high-speed fiber or compatible direct-attach connections.
How much RAM does the CCR2004-16G-2S+PC have?
It has 4GB of DDR4 RAM and 128MB of NAND storage.
Does it have Wi-Fi?
No. The CCR2004-16G-2S+PC is a wired Ethernet router and does not include built-in wireless connectivity.
What operating system does it use?
It runs RouterOS v7 with a Level 6 license.
Does the router have USB connectivity?
Yes. It includes one USB Type-A port.
Does it use active cooling?
No. The CCR2004-16G-2S+PC uses passive cooling, making it a particularly quiet option for offices, studios, server rooms, and homelabs.
Can it be rack mounted?
Yes. Its compact 1U-height chassis can be installed in a rack using compatible mounting accessories.
MikroTik CCR2004-16G-2S+PC Ethernet Router 16×Gigabit Ethernet Ports 2×10G SFP+ Conclusion
The MikroTik CCR2004-16G-2S+PC is a powerful professional Ethernet router offering an excellent combination of high port density, strong processing power, and high-speed connectivity. With 16 Gigabit Ethernet ports, two 10G SFP+ interfaces, 4GB DDR4 RAM, a quad-core ARM64 processor, RouterOS v7, USB 3.0, and silent passive cooling, it is well suited for business networks, ISPs, server environments, and advanced networking projects.
At KSh 70,000, the MikroTik CCR2004-16G-2S+PC offers strong value for users who need a high-performance router with extensive Gigabit connectivity and 10Gbps uplink capability.
