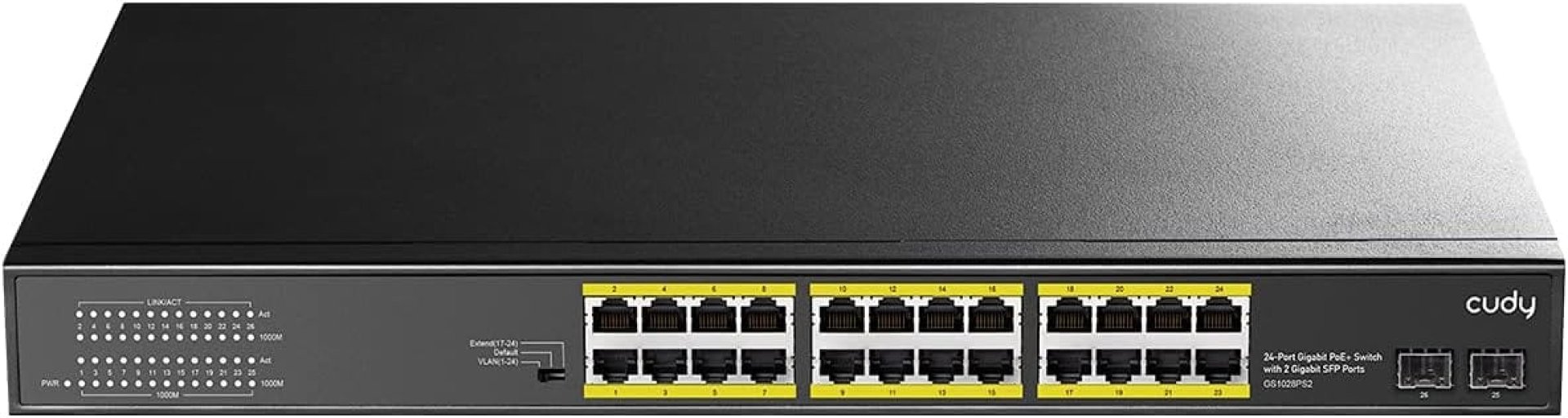

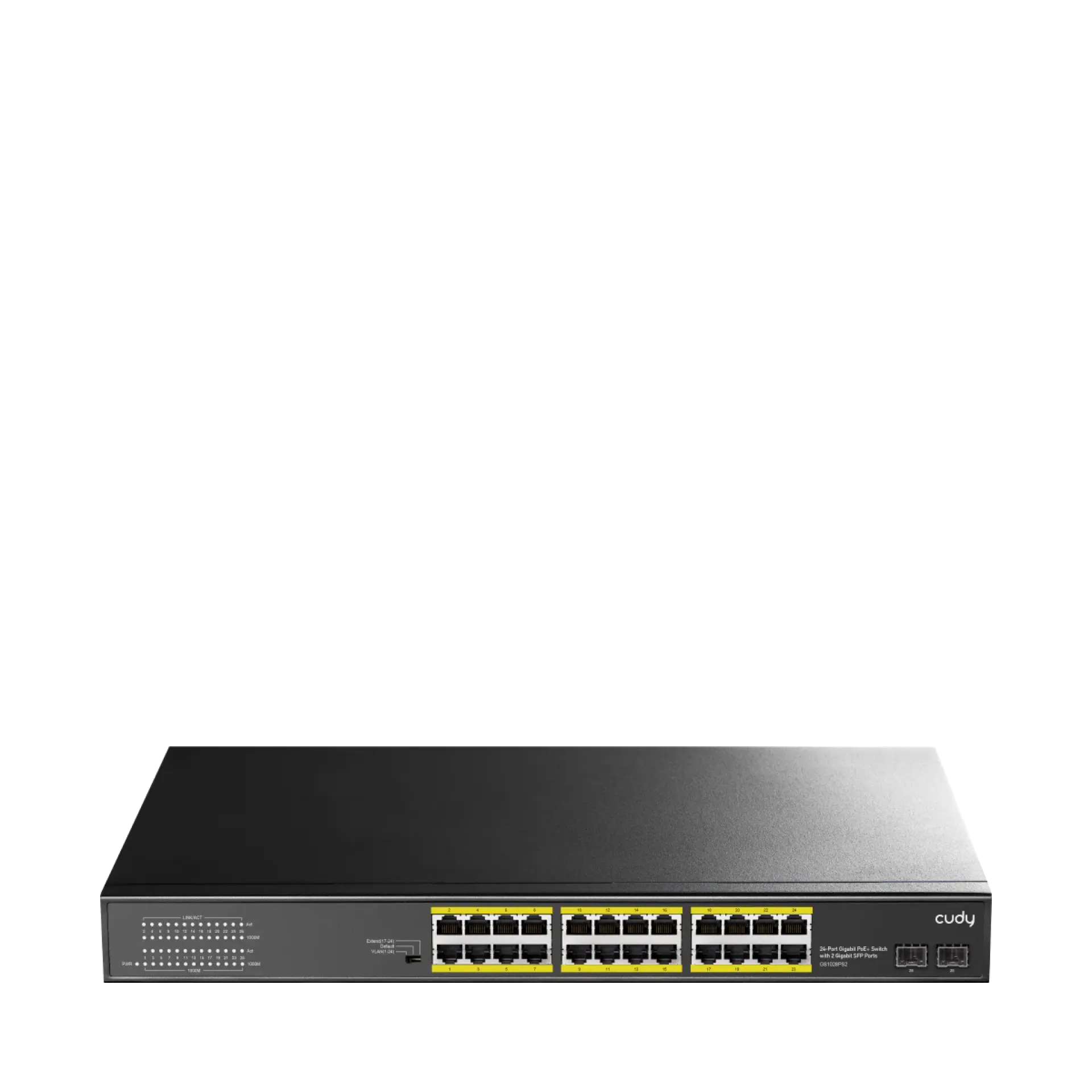

CUDY 24-PORT GIGABIT PoE(300watts) + Switch with 2 Gigabit SFP Slot-GS1028PS2

CUDY GS1028PS2 24-Port Gigabit PoE+ Switch with 2 Gigabit SFP Slots Key Features

• 24 × Gigabit 802.3af/at PoE+ RJ45 Ports

• 2 × Gigabit SFP Uplink Slots

• 300W Total PoE Power Budget

• Up to 30W PoE Output Per Port

• 52Gbps Switching Capacity

• Intelligent PoE Power Management

• VLAN Mode

• Extend Mode (Up to 250m)

• PoE Watchdog Function

• Silent Cooling System

• Desktop & Rack-Mount Design

• Model: GS1028PS2

CUDY GS1028PS2 24-Port Gigabit PoE+ Switch with 2 Gigabit SFP Slots Overview

The CUDY GS1028PS2 24-Port Gigabit PoE+ Switch is a professional unmanaged network switch designed for enterprise networks, IP surveillance systems, hotels, schools, offices, and commercial installations. It features twenty-four Gigabit PoE+ Ethernet ports alongside two dedicated Gigabit SFP uplink slots, providing flexible fibre connectivity for long-distance backbone networking.

With a powerful 300W PoE power budget, the GS1028PS2 can simultaneously power IP cameras, wireless access points, VoIP phones, digital signage, and other IEEE 802.3af/at compliant devices through a single Ethernet cable. Intelligent PoE management, Extend Mode, VLAN isolation, and PoE Watchdog ensure stable and reliable operation for demanding network environments.

CUDY GS1028PS2 24-Port Gigabit PoE+ Switch with 2 Gigabit SFP Slots Price in Kenya

CUDY GS1028PS2 24-Port Gigabit PoE+ Switch with 2 Gigabit SFP Slots Specifications

CUDY GS1028PS2 24-Port Gigabit PoE+ Switch with 2 Gigabit SFP Slots High-Speed Network Performance

• Twenty-four Gigabit PoE+ ports deliver reliable high-speed connectivity for IP cameras, wireless access points, VoIP phones, NVRs, servers, and other Ethernet devices.

• A 52Gbps switching capacity and 38.68Mpps forwarding rate ensure smooth wire-speed performance for busy enterprise and surveillance networks.

• Two dedicated Gigabit SFP slots provide fibre uplinks for long-distance backbone connectivity between buildings or network cabinets.

• Supports Jumbo Frames up to 15KB to improve efficiency during large file transfers and high-bandwidth applications.

CUDY GS1028PS2 24-Port Gigabit PoE+ Switch with 2 Gigabit SFP Slots Advanced PoE Features

• Twenty-four IEEE 802.3af/at compliant PoE+ ports provide both power and network connectivity through a single Ethernet cable.

• A powerful 300W PoE power budget supports multiple IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices simultaneously.

• Each PoE port delivers up to 30W of output, making it suitable for most enterprise PoE networking equipment.

• Intelligent PoE power management automatically protects the switch by prioritizing powered devices when the available power budget is exceeded.

CUDY GS1028PS2 24-Port Gigabit PoE+ Switch with 2 Gigabit SFP Slots Intelligent Switching Features

• VLAN mode isolates downlink ports to improve network security and reduce unnecessary broadcast traffic.

• Extend Mode supports PoE transmission distances of up to 250 metres for compatible surveillance deployments.

• PoE Watchdog automatically detects and restarts unresponsive powered devices, minimizing downtime without manual intervention.

• Simple hardware switches allow quick activation of operating modes without requiring software configuration.

CUDY GS1028PS2 24-Port Gigabit PoE+ Switch with 2 Gigabit SFP Slots Build Quality and Installation

• Heavy-duty metal housing provides excellent durability and efficient heat dissipation for continuous operation.

• Silent intelligent cooling helps maintain stable operating temperatures while minimizing noise in office and server room environments.

• Standard rack-mount and desktop installation options allow flexible deployment in network cabinets and equipment rooms.

• Built for 24/7 operation in surveillance systems, enterprise networks, educational institutions, hospitality environments, and commercial buildings.

CUDY GS1028PS2 24-Port Gigabit PoE+ Switch with 2 Gigabit SFP Slots Ideal For

• Enterprise Networks

• CCTV Surveillance Systems

• Wireless Access Points

• VoIP Phone Deployments

• Hotels

• Schools

• Office Buildings

• Warehouses

• Data Centres

• Commercial Buildings

CUDY GS1028PS2 24-Port Gigabit PoE+ Switch with 2 Gigabit SFP Slots Pros and Cons

CUDY GS1028PS2 24-Port Gigabit PoE+ Switch with 2 Gigabit SFP Slots FAQs

Does every Ethernet port support PoE+?

Yes. All 24 RJ45 ports support IEEE 802.3af/at PoE+ with up to 30W output per port.

What is the total PoE power budget?

The switch provides a total PoE power budget of 300W for connected powered devices.

What are the SFP ports used for?

The two Gigabit SFP slots are designed for fibre optic uplink connections, allowing long-distance network expansion between buildings or network cabinets.

What does Extend Mode do?

Extend Mode increases PoE transmission distance to up to 250 metres for compatible devices by reducing transmission speed to 10Mbps.

Is this a managed switch?

No. The GS1028PS2 is an unmanaged switch that offers hardware-controlled VLAN, Extend Mode, and PoE Watchdog features for simple deployment.

CUDY GS1028PS2 24-Port Gigabit PoE+ Switch with 2 Gigabit SFP Slots Conclusion

The CUDY GS1028PS2 24-Port Gigabit PoE+ Switch is an excellent solution for organizations requiring reliable, high-capacity PoE networking. With twenty-four Gigabit PoE+ ports, a 300W power budget, dual Gigabit SFP uplinks, intelligent PoE management, and durable rack-mount construction, it delivers dependable performance for surveillance systems, enterprise networks, schools, hotels, and commercial installations.
