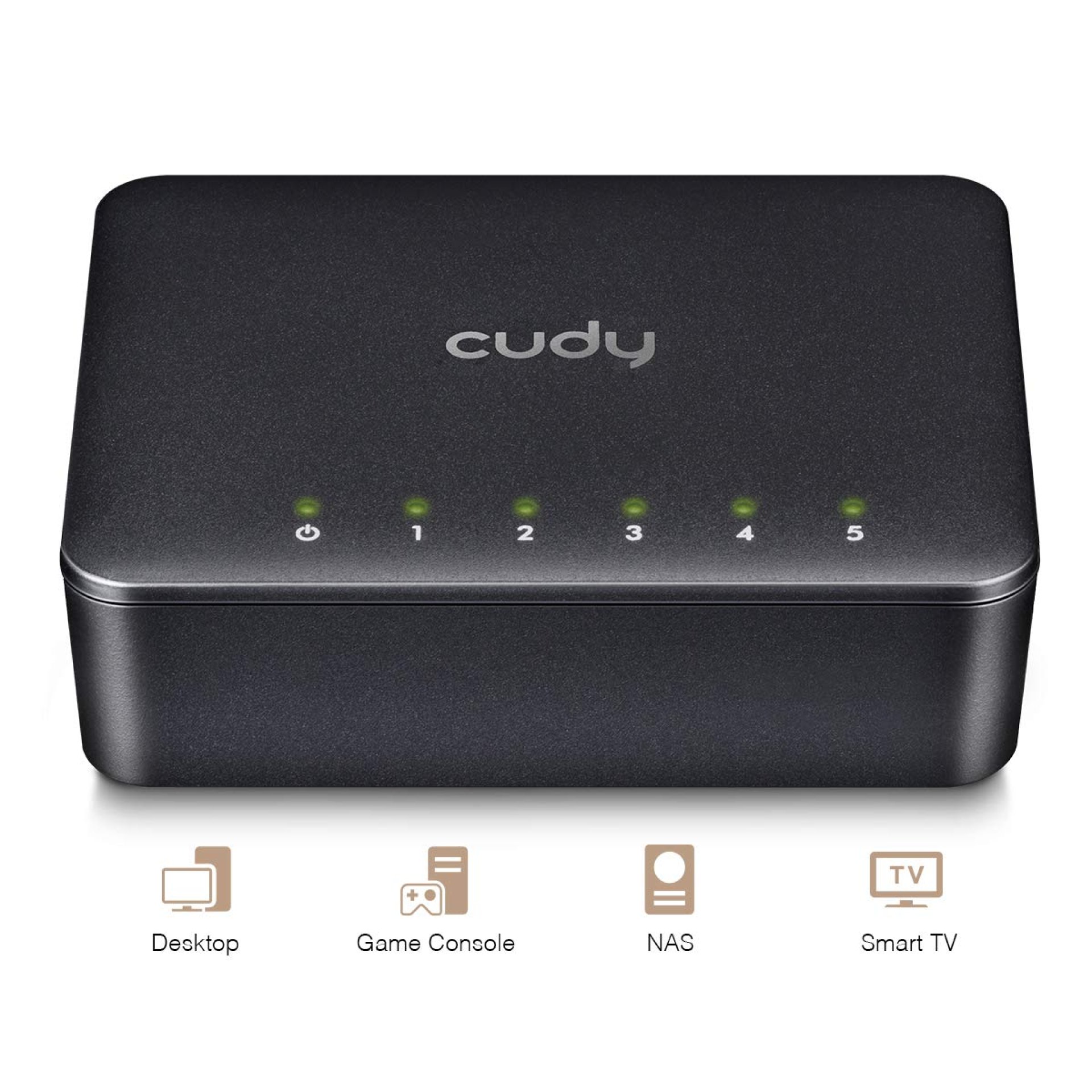

CUDY FS105D 5-Port Fast Ethernet Plastic Desktop Switch Key Features
-
5 × 10/100Mbps Fast Ethernet RJ45 Ports
-
Unmanaged Plug-and-Play Operation
-
1Gbps Switching Capacity
-
Auto MDI/MDIX Support
-
Store-and-Forward Switching Architecture
-
Energy-Efficient Power Saving Technology
-
Compact Plastic Desktop Design
-
Desktop and Wall-Mount Installation
-
LED Status Indicators
-
Fanless Silent Operation
-
USB-C Power Input
-
Model: FS105D
CUDY FS105D 5-Port Fast Ethernet Plastic Desktop Switch Overview
The CUDY FS105D 5-Port Fast Ethernet Plastic Desktop Switch is an affordable unmanaged network switch designed to expand wired network connections in homes, offices, retail shops, and small businesses. With five 10/100Mbps Fast Ethernet ports, it allows multiple wired devices such as desktop computers, printers, IP cameras, smart TVs, and network storage devices to communicate efficiently on the same network.
Its plug-and-play functionality eliminates the need for software installation or configuration, making deployment simple even for first-time users. The compact plastic enclosure, fanless operation, and energy-efficient design make it an ideal networking solution where quiet and reliable performance is required.
CUDY FS105D 5-Port Fast Ethernet Plastic Desktop Switch Price in Kenya
| Product | Price |
|---|---|
| CUDY FS105D 5-Port Fast Ethernet Plastic Desktop Switch | KSh 1,150 |
CUDY FS105D 5-Port Fast Ethernet Plastic Desktop Switch Specifications
| Specification | Details |
|---|---|
| Brand | CUDY |
| Model | FS105D |
| Switch Type | Unmanaged |
| Ports | 5 × 10/100Mbps RJ45 |
| Switching Capacity | 1Gbps |
| Forwarding Rate | 0.744Mpps |
| MAC Address Table | 2K |
| Switching Method | Store-and-Forward |
| Installation | Desktop / Wall Mount |
| Housing | Plastic |
| Cooling | Fanless |
| Power Input | USB-C (5V) |
| Dimensions | 88 × 52.5 × 24 mm |
CUDY FS105D 5-Port Fast Ethernet Plastic Desktop Switch Fast Network Performance
-
Five Fast Ethernet ports deliver reliable 10/100Mbps wired connections for computers, printers, IP cameras, DVRs, smart TVs, and other Ethernet-enabled devices.
-
A 1Gbps switching capacity ensures smooth internal data transmission between connected devices for everyday networking applications.
-
Store-and-forward switching technology checks data integrity before forwarding packets, improving network reliability and reducing transmission errors.
-
Auto-negotiation automatically detects the optimal network speed for each connected device to maximize compatibility.
CUDY FS105D 5-Port Fast Ethernet Plastic Desktop Switch Plug-and-Play Installation
-
Unmanaged operation requires no software installation or network configuration, allowing users to connect devices and begin networking immediately.
-
Auto MDI/MDIX support automatically detects cable types, eliminating the need for crossover Ethernet cables.
-
Compact desktop design also supports wall mounting, giving users flexible installation options in homes or offices.
-
LED indicators provide real-time information about power status and network activity for quick troubleshooting.
CUDY FS105D 5-Port Fast Ethernet Plastic Desktop Switch Energy Efficiency
-
Built-in power-saving technology minimizes electricity consumption without affecting network performance.
-
Low power consumption makes it suitable for continuous 24/7 operation in homes and small business environments.
-
USB-C power input offers convenient and modern power connectivity.
-
Fanless cooling design ensures completely silent operation while reducing maintenance requirements.
CUDY FS105D 5-Port Fast Ethernet Plastic Desktop Switch Durable Compact Design
-
Lightweight plastic housing provides durability while keeping the switch compact and easy to position.
-
Small footprint allows installation on desks, shelves, entertainment units, or network cabinets with limited space.
-
Wall-mount support offers flexible deployment for organized cable management.
-
Designed for reliable daily operation in home networks, offices, classrooms, surveillance systems, and retail environments.
CUDY FS105D 5-Port Fast Ethernet Plastic Desktop Switch Ideal For
-
Home Networks
-
Small Offices
-
Retail Shops
-
CCTV Systems
-
Desktop PCs
-
Smart TVs
-
Network Printers
-
Schools
-
Internet Cafés
-
Small Businesses
CUDY FS105D 5-Port Fast Ethernet Plastic Desktop Switch Pros and Cons
| Pros | Cons |
|---|---|
| Easy plug-and-play installation with no configuration required. | Limited to Fast Ethernet (100Mbps) speeds. |
| Five Fast Ethernet ports for expanding wired networks. | Not a Gigabit Ethernet switch. |
| Silent fanless operation for noise-free environments. | No PoE support. |
| Energy-efficient design reduces power consumption. | No advanced VLAN or management features. |
| Compact plastic housing supports desktop or wall mounting. | Plastic enclosure is less robust than metal alternatives. |
| USB-C power input offers modern connectivity. | Intended for small network deployments. |
CUDY FS105D 5-Port Fast Ethernet Plastic Desktop Switch FAQs
Is the CUDY FS105D a managed switch?
No. It is an unmanaged switch that works immediately without configuration.
Does it support Gigabit Ethernet?
No. It provides five 10/100Mbps Fast Ethernet ports.
Can I mount it on a wall?
Yes. The switch supports both desktop placement and wall mounting.
Does it require special Ethernet cables?
No. Auto MDI/MDIX support automatically detects cable types, allowing the use of standard Ethernet cables.
Is it suitable for CCTV systems?
Yes. It is suitable for connecting DVRs, NVRs, IP cameras, and other wired networking devices operating within Fast Ethernet speeds.
CUDY FS105D 5-Port Fast Ethernet Plastic Desktop Switch Conclusion
The CUDY FS105D 5-Port Fast Ethernet Plastic Desktop Switch is an economical networking solution for expanding wired Ethernet connections in homes and small businesses. With plug-and-play installation, silent fanless operation, energy-efficient performance, and five reliable Fast Ethernet ports, it provides dependable connectivity for everyday networking requirements.
