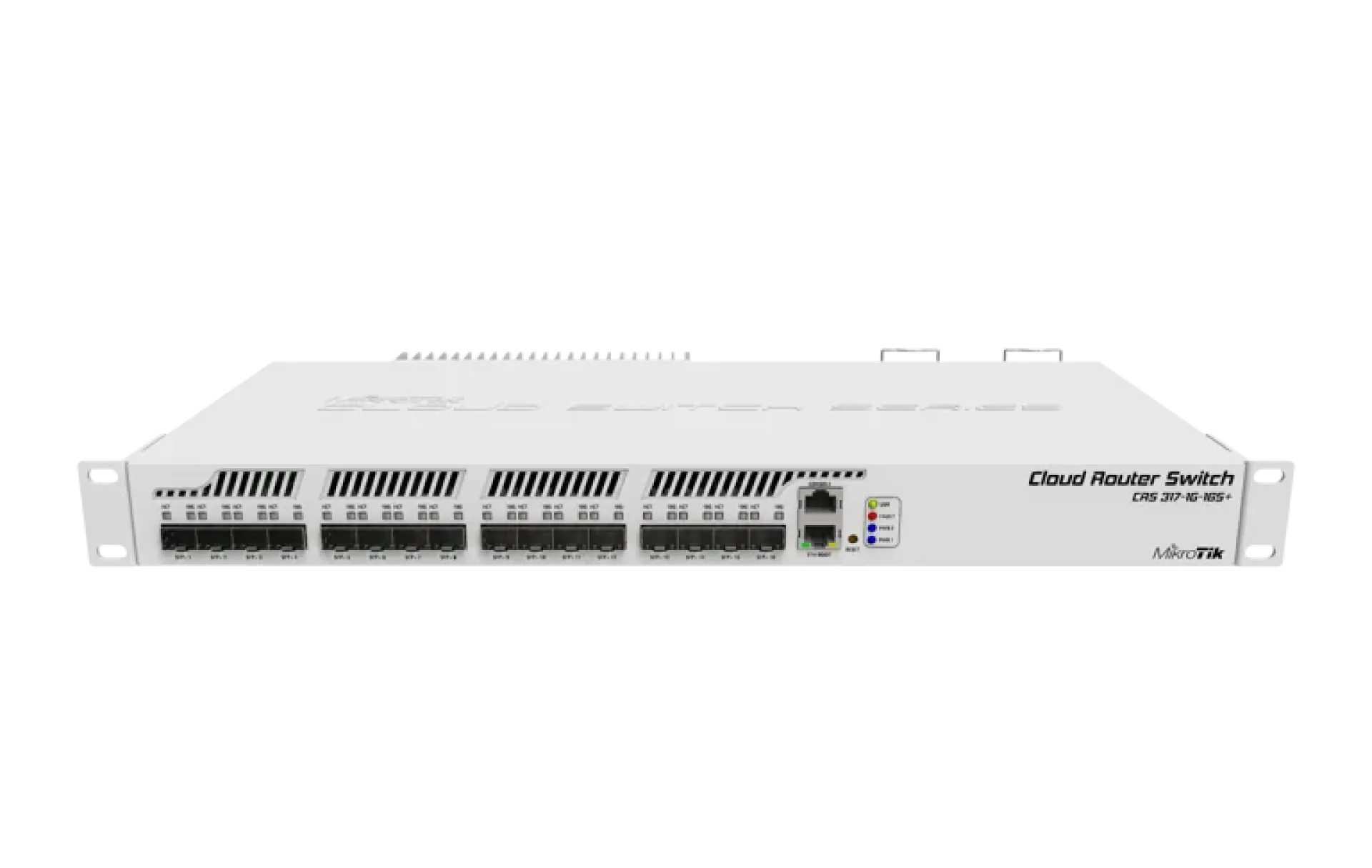

MikroTik CRS317-1G-16S+RM Smart Switch 1 x Gigabit LAN 16 x SFP+ Ports Key Features
- Dual-core 800MHz ARM processor
- 1GB RAM
- 16MB Flash storage
- 1 × Gigabit Ethernet management port
- 16 × SFP+ ports
- Supports 10Gbps SFP+ connectivity
- Supports 1.25Gbps SFP modules
- Hardware-based Layer 2 switching
- Layer 3 routing features
- Hardware-based Spanning Tree Protocol
- Link Aggregation Control Protocol LACP
- RouterOS and SwOS dual boot
- Level 6 RouterOS license
- Dual redundant power supplies
- 1U rack-mountable design
- Passive cooling with automatic fan backup
- Designed for high-performance enterprise networking
MikroTik CRS317-1G-16S+RM Smart Switch 1 x Gigabit LAN 16 x SFP+ Ports Introduction
The MikroTik CRS317-1G-16S+RM is a professional managed smart switch designed for high-performance data center, enterprise, ISP, and network infrastructure deployments. It combines one Gigabit Ethernet management port with 16 SFP+ ports supporting high-speed 10GbE connectivity.
Powered by a dual-core 800MHz processor and 1GB of RAM, the CRS317 provides hardware-based switching performance across its 16 SFP+ ports. It also supports advanced features such as VLAN configuration, Spanning Tree Protocol, Link Aggregation, traffic management, and Layer 3 routing.
MikroTik CRS317-1G-16S+RM Smart Switch 1 x Gigabit LAN 16 x SFP+ Ports Price in Kenya
| Product | Price |
|---|---|
| MikroTik CRS317-1G-16S+RM Smart Switch 1 x Gigabit LAN 16 x SFP+ Ports | KSh 70,000 |
MikroTik CRS317-1G-16S+RM Smart Switch 1 x Gigabit LAN 16 x SFP+ Ports Key Specifications
| Feature | Details |
|---|---|
| Model | CRS317-1G-16S+RM |
| Product Type | Managed Smart Switch |
| Processor | Marvell 98DX8216 |
| CPU Speed | 800MHz |
| CPU Cores | 2 |
| RAM | 1GB |
| Storage | 16MB Flash |
| Ethernet Port | 1 × Gigabit Ethernet |
| SFP+ Ports | 16 × SFP+ |
| SFP Compatibility | 1.25Gbps SFP and 10Gbps SFP+ |
| Operating Systems | RouterOS / SwOS |
| RouterOS License | Level 6 |
| Switching | Hardware-based |
| Power Inputs | 2 × AC |
| Power Supply | Dual redundant |
| Maximum Power Consumption | 44W |
| Cooling | Passive heatsink with redundant fans |
| Console | RJ45 Serial |
| Dimensions | 443 × 224 × 44 mm |
| Rack Mount | 1U |
| Operating Temperature | -20°C to 60°C |
MikroTik CRS317-1G-16S+RM Smart Switch 1 x Gigabit LAN 16 x SFP+ Ports Performance
The CRS317 is designed to provide high-speed switching for demanding network environments.
- 16 SFP+ ports provide high-density 10GbE connectivity
- Hardware-based switching enables wire-speed performance across the SFP+ ports
- Supports VLAN filtering and traffic management
- Hardware-based Spanning Tree Protocol improves network resilience
- LACP enables link aggregation for increased bandwidth and redundancy
- Layer 3 routing features are available through RouterOS
- Supports high-speed fiber and direct-attach SFP+ connections
- Suitable for data center and ISP backbone applications

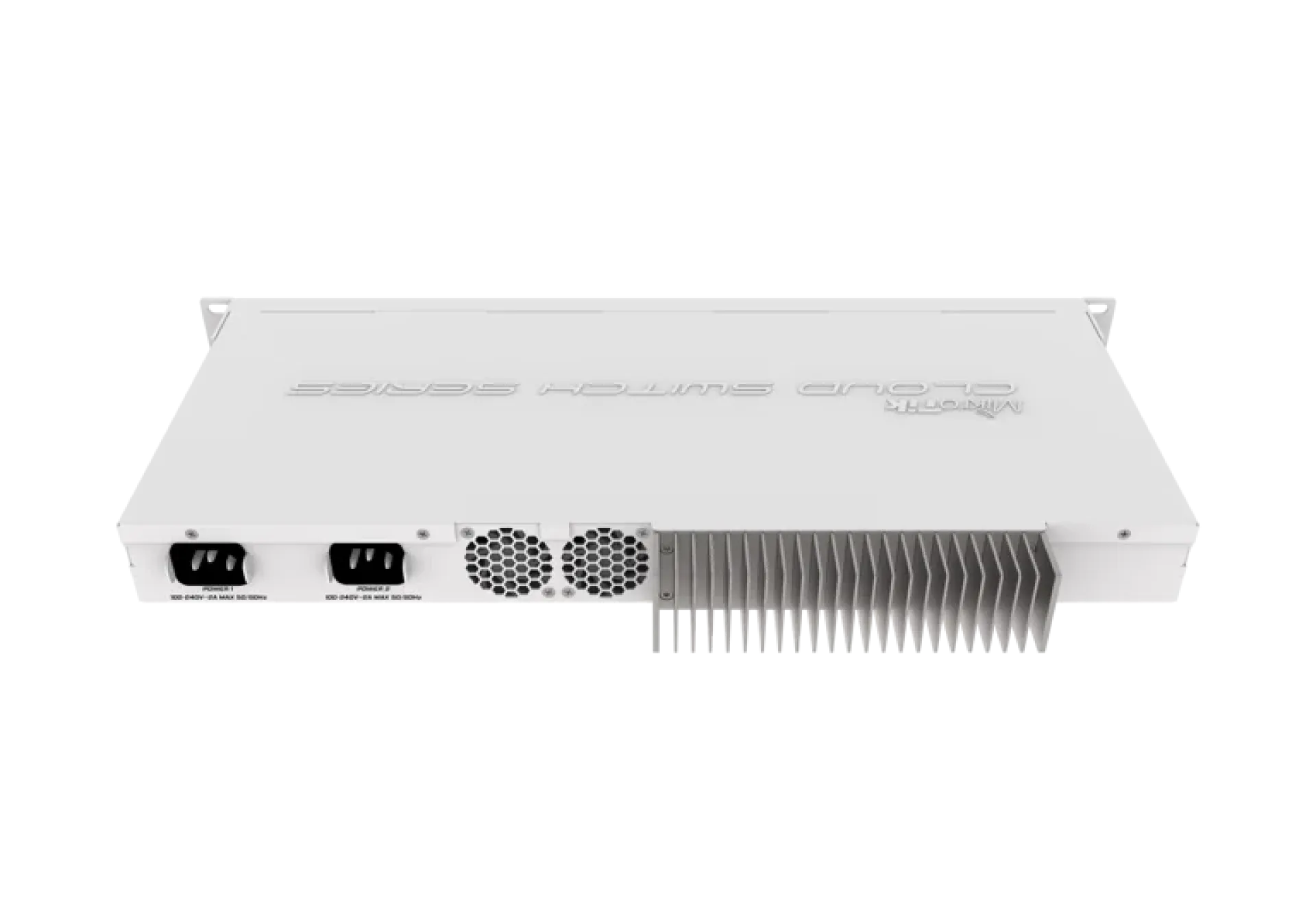

MikroTik CRS317-1G-16S+RM Smart Switch 1 x Gigabit LAN 16 x SFP+ Ports Build Quality & Design
The CRS317 uses a professional 1U rack-mountable chassis designed for network cabinets and data center installations.
- 443 × 224 × 44 mm rack-mount enclosure
- 1U rack-mount form factor
- Passive cooling heatsink design
- Two redundant fans automatically activate when additional cooling is required
- Dual AC power inputs provide power redundancy
- Designed for continuous professional network operation
- Suitable for installation in standard network racks
MikroTik CRS317-1G-16S+RM Smart Switch 1 x Gigabit LAN 16 x SFP+ Ports Connectivity & Compatibility
The switch is built primarily around high-speed fiber and SFP+ networking.
- 1 × Gigabit Ethernet RJ45 management port
- 16 × SFP+ ports
- Supports 10Gbps SFP+ modules
- Supports 1.25Gbps SFP modules
- SFP+ ports support Digital Diagnostic Monitoring
- RJ45 serial console for management and recovery
- Compatible with appropriate MikroTik and third-party SFP/SFP+ modules
- Supports RouterOS and SwOS operating environments
MikroTik CRS317-1G-16S+RM Smart Switch 1 x Gigabit LAN 16 x SFP+ Ports Ideal Use Cases
This smart switch is best suited for:
- Data centers
- Internet service providers
- Enterprise networks
- Server rooms
- Network backbone deployments
- High-speed fiber networks
- Network aggregation
- 10GbE infrastructure
- Large business networks
- Network virtualization environments
- Professional networking laboratories
- Organizations requiring redundant power
MikroTik CRS317-1G-16S+RM Smart Switch 1 x Gigabit LAN 16 x SFP+ Ports Pros and Cons
| Pros | Cons |
|---|---|
| 16 × 10Gbps SFP+ ports | No standard Gigabit Ethernet switching ports beyond the management port |
| High-performance hardware switching | SFP/SFP+ modules are not included |
| Layer 3 routing features | Requires networking knowledge for advanced configuration |
| RouterOS and SwOS support | Designed primarily for professional networks |
| Dual redundant power supplies | Higher power consumption than smaller switches |
| LACP and Spanning Tree support | Rack-mount installation is preferred |
| 1GB RAM | No built-in PoE |
| 1U rack-mount design | Not ideal for simple home networks |
MikroTik CRS317-1G-16S+RM Smart Switch 1 x Gigabit LAN 16 x SFP+ Ports FAQs
How many SFP+ ports does the CRS317 have?
The CRS317-1G-16S+RM has 16 SFP+ ports for high-speed fiber and 10GbE connectivity.
Does it support 10Gbps networking?
Yes. All 16 SFP+ cages support compatible 10Gbps SFP+ modules.
Does the CRS317 have a Gigabit Ethernet port?
Yes. It has one 10/100/1000 Mbps Gigabit Ethernet port used primarily for management.
How much RAM does it have?
The switch has 1GB of RAM and 16MB of Flash storage.
Does it support RouterOS?
Yes. The CRS317 supports RouterOS and SwOS, allowing users to select the operating environment according to their networking requirements.
Does it support Layer 3 routing?
Yes. RouterOS provides Layer 3 routing capabilities in addition to its switching functions.
Does it support redundant power?
Yes. The CRS317 has two AC inputs and dual power supplies, with the second supply providing redundancy.
Can it be rack mounted?
Yes. The CRS317 is designed as a 1U rack-mountable switch and includes rack-mount hardware.
Are SFP+ modules included?
No. The SFP+ modules are purchased separately according to the required fiber or networking configuration.
MikroTik CRS317-1G-16S+RM Smart Switch 1 x Gigabit LAN 16 x SFP+ Ports Conclusion
The MikroTik CRS317-1G-16S+RM is a high-performance managed switch designed for organizations that need dense 10GbE connectivity and advanced network management. With 16 SFP+ ports, one Gigabit management port, 1GB RAM, hardware-based switching, Layer 3 capabilities, LACP, Spanning Tree support, dual redundant power supplies, and RouterOS/SwOS support, it is well suited to enterprise, ISP, data center, and backbone networking applications.
At KSh 70,000, the MikroTik CRS317-1G-16S+RM is a strong choice for users looking for a professional 16-port 10GbE SFP+ switch with advanced management and high-speed switching capabilities.
