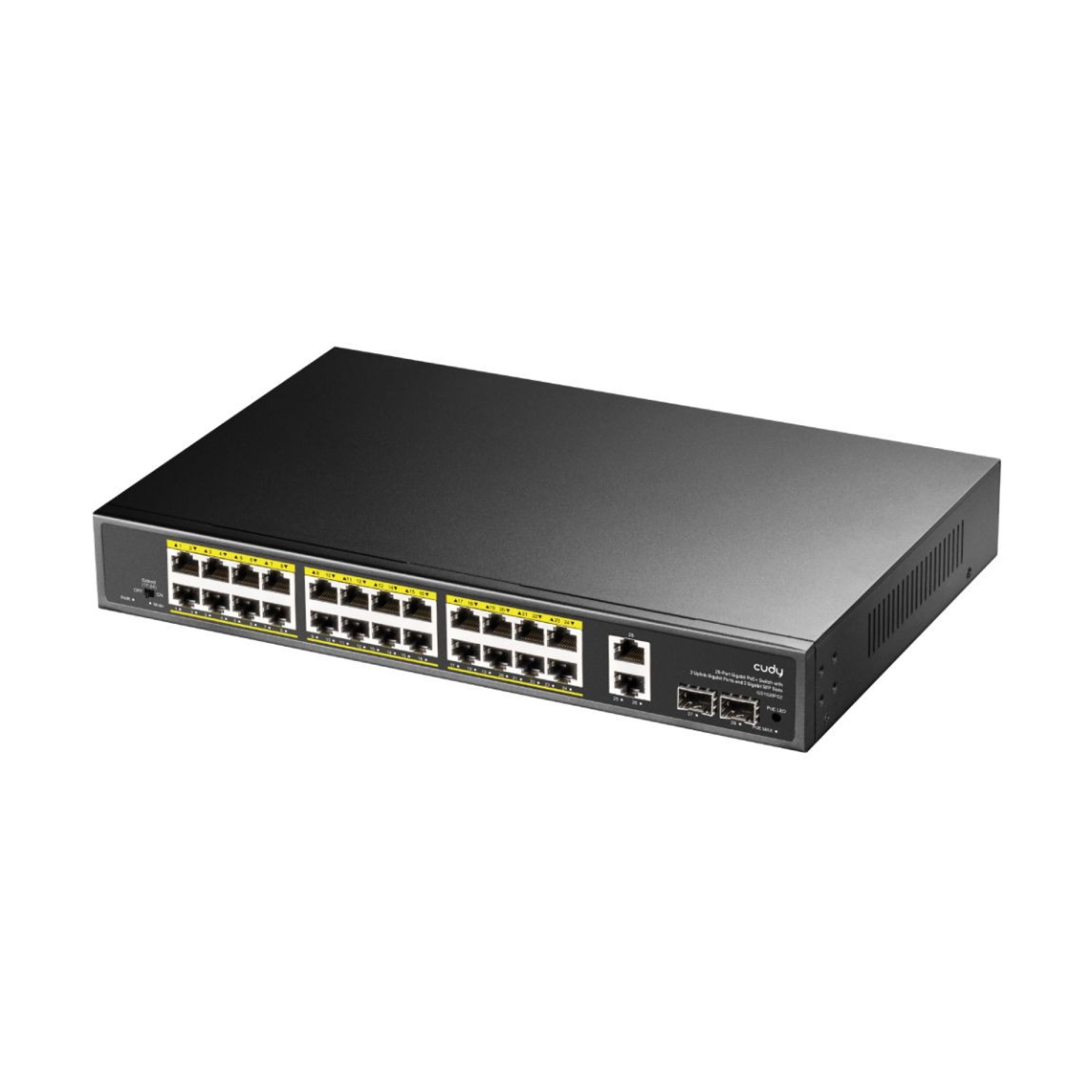

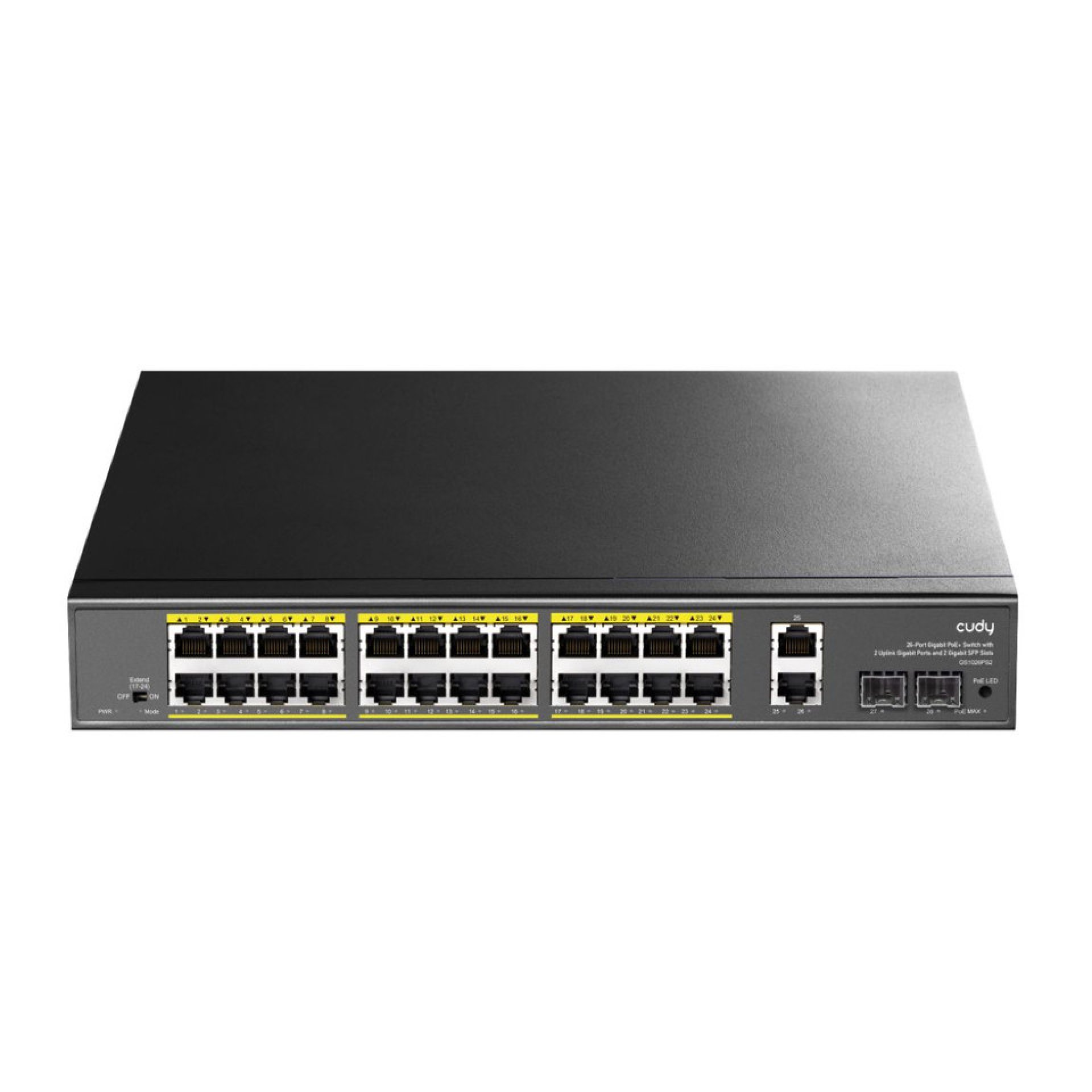

CUDY 24-PORT GIGABIT PoE + Switch 2 × Gigabit RJ45 Uplink Ports & 2 × Gigabit SFP Slots-GS1026PS2

CUDY GS1026PS2 24-Port Gigabit PoE+ Switch with 2 Uplink Ports & 2 SFP Slots Key Features

• 24 × Gigabit 802.3af/at PoE+ RJ45 Ports

• 2 × Gigabit RJ45 Uplink Ports

• 2 × Gigabit SFP Uplink Slots

• 300W Total PoE Power Budget

• Up to 30W PoE Output Per Port

• 56Gbps Switching Capacity

• Intelligent PoE Power Management

• VLAN, Extend & PoE Watchdog Modes

• Smart Fan Cooling System

• Desktop & Rack-Mount Design

• Durable Metal Housing

• Model: GS1026PS2

CUDY GS1026PS2 24-Port Gigabit PoE+ Switch with 2 Uplink Ports & 2 SFP Slots Overview

The CUDY GS1026PS2 is a professional unmanaged Gigabit PoE+ switch designed for medium and large-scale surveillance systems, enterprise networks, hotels, schools, and commercial installations. Equipped with twenty-four Gigabit PoE+ ports, two dedicated Gigabit RJ45 uplink ports, and two Gigabit SFP uplink slots, it provides reliable high-speed networking with flexible copper and fibre connectivity.

Powered by a robust 300W PoE power supply, the GS1026PS2 can simultaneously power IP cameras, wireless access points, VoIP phones, digital signage, and other IEEE 802.3af/at compliant devices. Intelligent PoE management, VLAN isolation, Extend mode, and PoE Watchdog enhance network stability while simplifying deployment and maintenance.

CUDY GS1026PS2 24-Port Gigabit PoE+ Switch with 2 Uplink Ports & 2 SFP Slots Price in Kenya

CUDY GS1026PS2 24-Port Gigabit PoE+ Switch with 2 Uplink Ports & 2 SFP Slots Specifications

CUDY GS1026PS2 24-Port Gigabit PoE+ Switch with 2 Uplink Ports & 2 SFP Slots High-Speed Network Performance

• Twenty-four Gigabit PoE+ ports provide reliable high-speed connectivity for IP cameras, wireless access points, VoIP phones, NVRs, NAS devices, and enterprise networking equipment.

• A powerful 56Gbps switching capacity and 41.664Mpps forwarding rate ensure smooth wire-speed performance, even in demanding network environments.

• Two dedicated Gigabit RJ45 uplink ports and two Gigabit SFP uplink slots enable flexible backbone connections using copper or fibre infrastructure.

• Supports Jumbo Frames up to 15KB to improve performance during large file transfers, surveillance recording, and enterprise data traffic.

CUDY GS1026PS2 24-Port Gigabit PoE+ Switch with 2 Uplink Ports & 2 SFP Slots Advanced PoE Features

• Twenty-four IEEE 802.3af/at compliant PoE+ ports supply both electrical power and network data over a single Ethernet cable.

• A large 300W PoE power budget allows multiple high-performance PoE devices to operate simultaneously without requiring separate power adapters.

• Intelligent PoE Power Management automatically prioritizes powered devices and disconnects lower-priority devices if the total power budget is exceeded.

• Delivers up to 30W per PoE port, making it suitable for IP cameras, wireless access points, VoIP phones, and digital signage displays.

CUDY GS1026PS2 24-Port Gigabit PoE+ Switch with 2 Uplink Ports & 2 SFP Slots Intelligent Switching Features

• VLAN mode isolates downlink ports to improve network security and reduce unnecessary broadcast traffic across surveillance and office networks.

• Extend mode enables PoE transmission distances of up to 250 metres for compatible devices by reducing port speed to 10Mbps.

• PoE Watchdog continuously monitors powered devices and automatically restarts unresponsive equipment to minimize downtime.

• Physical hardware switches allow quick activation of VLAN, Extend, PoE Watchdog, and PoE LED display functions without software configuration.

CUDY GS1026PS2 24-Port Gigabit PoE+ Switch with 2 Uplink Ports & 2 SFP Slots Build Quality and Installation

• Heavy-duty metal chassis provides excellent durability and efficient heat dissipation for continuous commercial operation.

• Smart fan cooling automatically adjusts fan speed according to power consumption, maintaining optimal operating temperatures while minimizing noise.

• Supports both desktop deployment and standard 19-inch rack mounting for flexible installation in server rooms and network cabinets.

• Designed for reliable 24/7 operation in enterprise networks, surveillance systems, schools, hotels, warehouses, and commercial buildings.

CUDY GS1026PS2 24-Port Gigabit PoE+ Switch with 2 Uplink Ports & 2 SFP Slots Ideal For

• Enterprise Networks

• CCTV Surveillance Systems

• Wireless Access Points

• VoIP Phone Deployments

• Hotels

• Schools

• Office Buildings

• Warehouses

• Retail Stores

• Data Distribution Rooms

CUDY GS1026PS2 24-Port Gigabit PoE+ Switch with 2 Uplink Ports & 2 SFP Slots Pros and Cons

CUDY GS1026PS2 24-Port Gigabit PoE+ Switch with 2 Uplink Ports & 2 SFP Slots FAQs

Does the GS1026PS2 support PoE+?

Yes. All 24 Ethernet ports support IEEE 802.3af/at PoE+ with up to 30W output per port.

What is the total PoE power budget?

The switch features a built-in 300W PoE power supply for powering multiple PoE devices simultaneously.

What are the SFP slots used for?

The two Gigabit SFP slots support fibre optic uplinks for long-distance network expansion and backbone connectivity.

What does Extend Mode do?

Extend Mode increases PoE transmission distance up to 250 metres for compatible devices, making it ideal for long-range surveillance deployments.

Is this a managed switch?

No. The GS1026PS2 is an unmanaged PoE switch that provides simple hardware controls for VLAN, Extend, and PoE Watchdog modes.

CUDY GS1026PS2 24-Port Gigabit PoE+ Switch with 2 Uplink Ports & 2 SFP Slots Conclusion

The CUDY GS1026PS2 24-Port Gigabit PoE+ Switch is an excellent solution for organizations deploying large PoE networks. With twenty-four Gigabit PoE+ ports, a 300W power budget, dual RJ45 uplinks, dual SFP fibre uplinks, intelligent PoE management, and a durable rack-mount design, it delivers dependable performance for surveillance, enterprise networking, education, hospitality, and commercial installations.
