DAHUA CS4218-16ET-135 18-Port Switch with 16 × RJ-45 10/100/1000 Mbps PoE, ports

DAHUA CS4218-16ET-135 18-Port Switch with 16 × RJ-45 10/100/1000 Mbps PoE, ports

• Model – Dahua CS4218‑16ET‑135

• Ports – 18 total ports

  • 16 × RJ‑45 10/100/1000 Mbps PoE ports (IEEE 802.3af/at)

  • 2 × RJ‑45 10/100/1000 Mbps uplink ports

• Switch type – Unmanaged PoE switch

• PoE budget – 135 W total PoE power budget

• Transmission – Store‑and‑forward switching

• MAC address table – 4K MAC addresses supported

• Backplane bandwidth – 7.2 Gbps switching capacity

• Packet forwarding rate – 5.36 Mpps

• Housing – Metal casing, fanless design

• Power supply – AC 100–240 V, 50/60 Hz

• Operating conditions – –10 °C to +55 °C, humidity ≤95%

• Dimensions – 280 × 180 × 44 mm

• Weight – ~2.5 kg

DAHUA CS4218-16ET-135 18-Port Switch with 16 × RJ-45 10/100/1000 Mbps PoE, ports

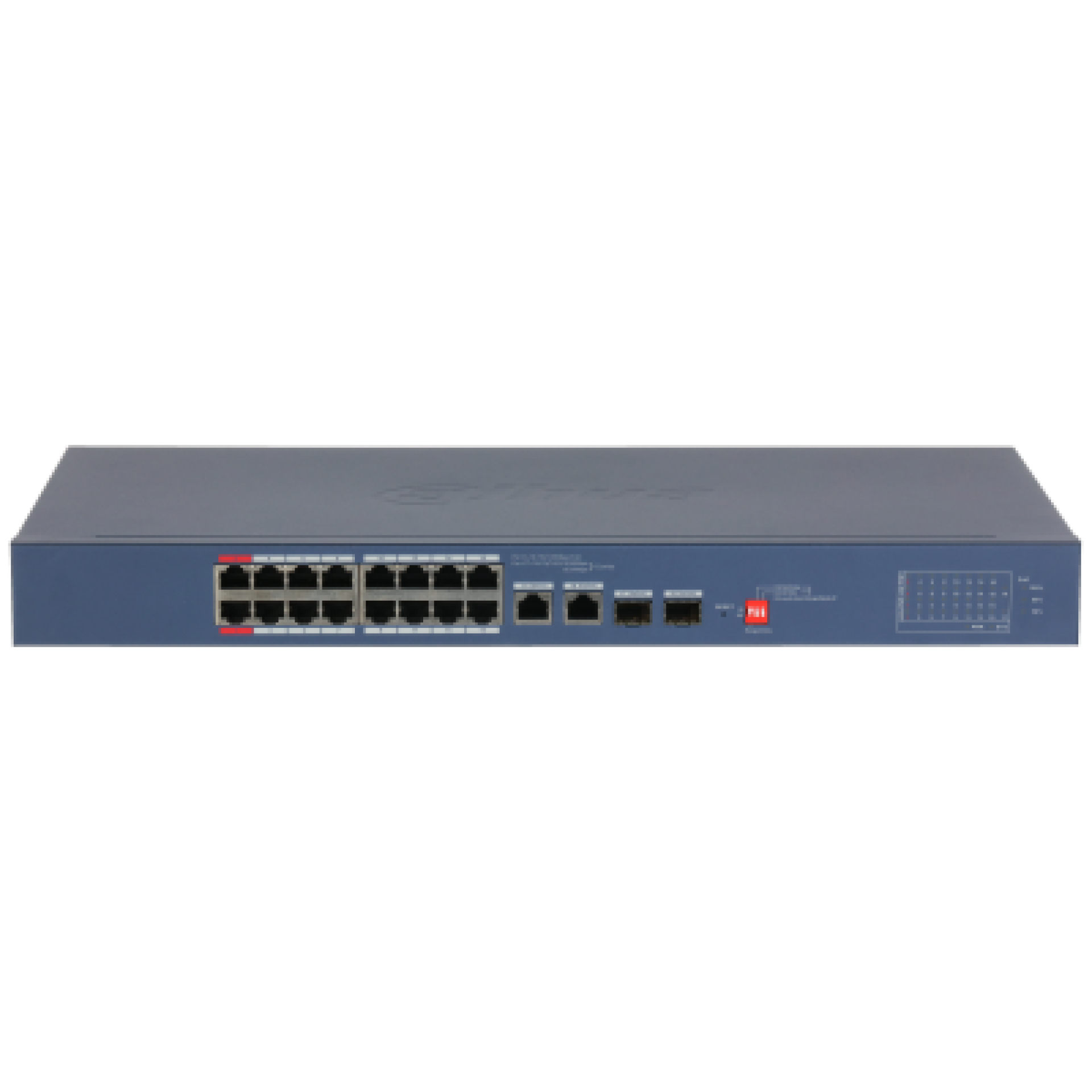

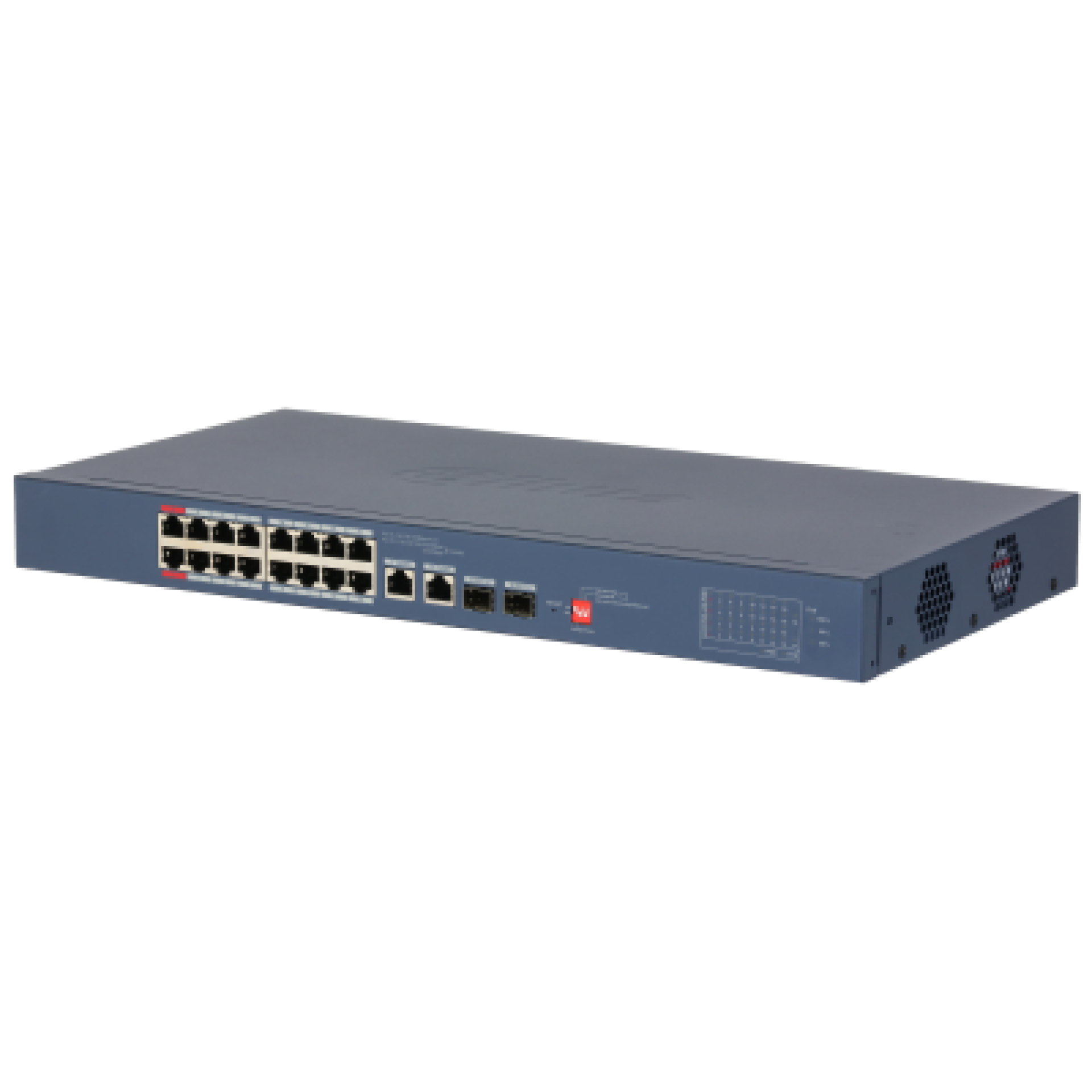

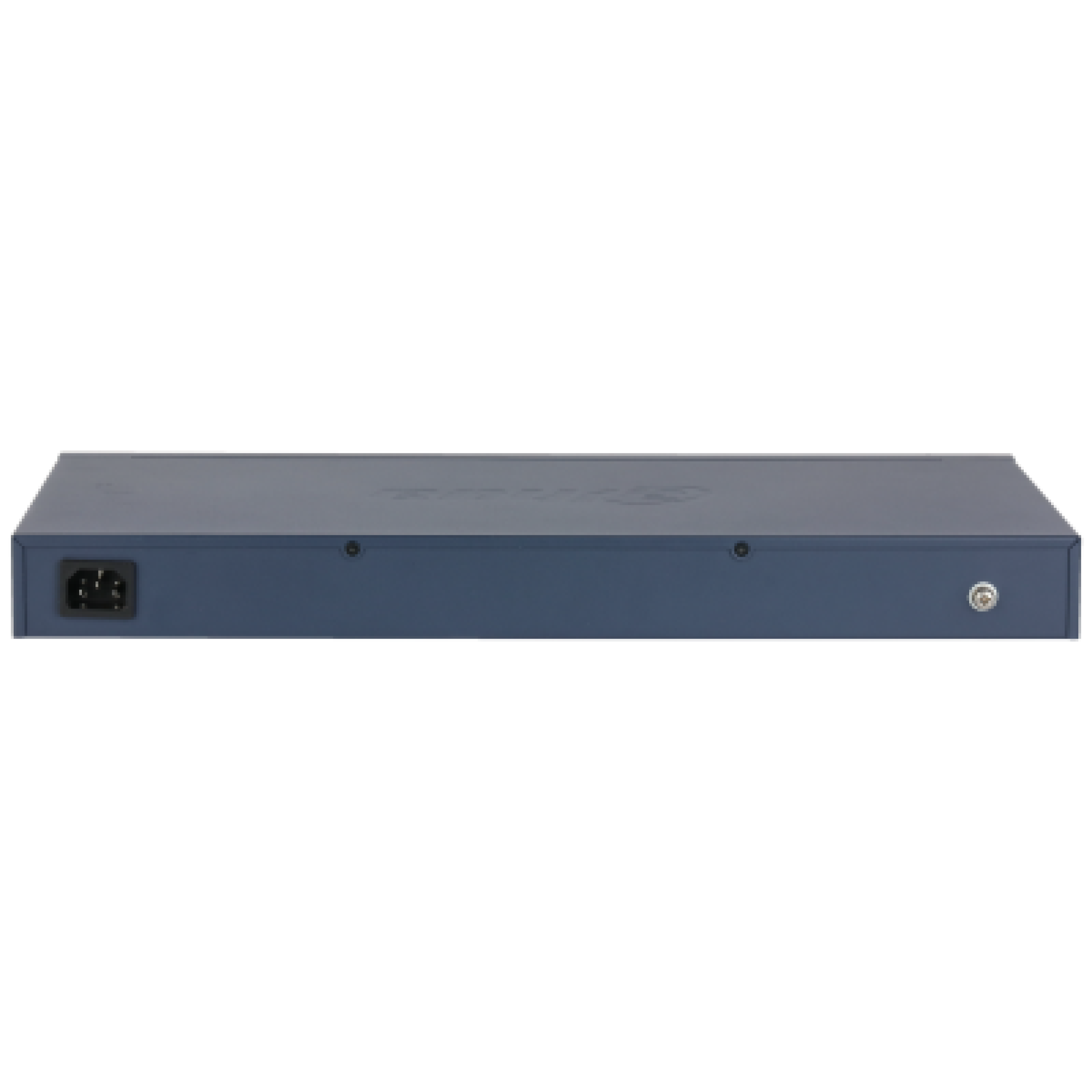

The DAHUA CS4218-16ET-135 18-Port Cloud Managed PoE Switch is a professional Layer 2 switch designed for IP surveillance systems, offices, schools, retail stores, and enterprise networks. It features 16 × 10/100 Mbps PoE RJ45 ports and 2 Gigabit combo uplink ports (RJ45/SFP), providing flexible connectivity for IP cameras, NVRs, wireless access points, and other network devices.

The switch supports IEEE 802.3af, IEEE 802.3at, Hi-PoE, and IEEE 802.3bt standards, offering a 135W total PoE budget, cloud management through the DoLynk platform, PoE Watchdog, VLAN, and long-distance PoE transmission of up to 250 meters, making it ideal for professional surveillance deployments.

DAHUA CS4218-16ET-135 18-Port Cloud Managed PoE Switch Price in Kenya

DAHUA CS4218-16ET-135 18-Port Cloud Managed PoE Switch Key Specifications

DAHUA CS4218-16ET-135 18-Port Cloud Managed PoE Switch Design & Build

• Durable metal enclosure.
• Rack-mountable and desktop installation.
• Sixteen dedicated PoE ports.
• Two Gigabit combo uplink ports.
• Built-in power supply.
• Designed for continuous 24/7 operation.

DAHUA CS4218-16ET-135 18-Port Cloud Managed PoE Switch Features and Performance

• Powers and connects up to sixteen PoE devices simultaneously.
• Supports Hi-PoE and IEEE 802.3bt with up to 90W output on Ports 1–2.
• Total PoE power budget of 135W.
• Cloud management through the DoLynk platform.
• PoE Watchdog automatically restarts unresponsive powered devices.
• Supports Extend Mode with PoE transmission up to 250 meters.

DAHUA CS4218-16ET-135 18-Port Cloud Managed PoE Switch Ideal Use Cases

• Enterprise IP surveillance systems.
• Office buildings.
• Schools and universities.
• Shopping malls and retail stores.
• Hotels and hospitality facilities.
• Warehouse and industrial networking.

DAHUA CS4218-16ET-135 18-Port Cloud Managed PoE Switch Connectivity and Compatibility

• Compatible with IEEE 802.3af, IEEE 802.3at, Hi-PoE, and IEEE 802.3bt devices.
• Supports IP cameras, NVRs, wireless access points, VoIP phones, and network bridges.
• Features Gigabit RJ45 and SFP combo uplinks for flexible network expansion.
• Supports Cat5e, Cat6, and fiber optic cabling.
• Compatible with DoLynk cloud management.
• Supports VLAN, DHCP Client, IEEE 802.3x Flow Control, and PoE management.

DAHUA CS4218-16ET-135 18-Port Cloud Managed PoE Switch Pros and Cons

FAQs

1. How many ports does the DAHUA CS4218-16ET-135 have?

It features 18 ports, including 16 × 10/100 Mbps PoE ports and 2 Gigabit combo uplink ports that support both RJ45 and SFP connections.

2. What is the total PoE power budget?

The switch provides a 135W total PoE budget, with Ports 1–2 supporting up to 90W each and Ports 3–16 supporting up to 30W each, depending on the overall power budget.

3. Does it support cloud management?

Yes. The switch supports DoLynk cloud management along with local web management for simplified monitoring and configuration.

4. Does it support long-distance PoE?

Yes. In Extend Mode, the switch supports PoE transmission of up to 250 meters for compatible devices.

5. Can it be used with IP cameras?

Yes. It is designed specifically for IP surveillance systems and supports PoE IP cameras, NVRs, wireless access points, VoIP phones, and other compatible devices.

6. Is the DAHUA CS4218-16ET-135 worth buying?

Yes. With 16 PoE ports, Gigabit combo uplinks, 135W PoE budget, Hi-PoE support, cloud management, and 250-meter Extend Mode, it is an excellent networking solution for medium and large surveillance deployments. At KSh 19,000, it offers excellent value for professional networking installations.

Conclusion

The DAHUA CS4218-16ET-135 18-Port Cloud Managed PoE Switch is a reliable and feature-rich networking solution for surveillance and enterprise environments. Its 16 PoE ports, Gigabit combo uplinks, 135W PoE budget, Hi-PoE and IEEE 802.3bt support, cloud management, and 250-meter Extend Mode make it an ideal choice for expanding secure and efficient IP networks. At KSh 19,000, it delivers excellent performance, flexibility, and long-term value
