AV MATRIX PVS0613U 6 CHANNEL MULTIFORMAT VIDEO SWITCHER-AVMPVS0613U6CH

AV MATRIX PVS0613U 6 CHANNEL MULTIFORMAT VIDEO SWITCHER Key Specifications

• Product Type: 6-Channel Multi-Format Video Switcher
• Video Inputs: 4 × 3G-SDI + 2 × HDMI
• Input Detection: Automatic
• Processing Resolution: Up to 1080p60
• Program Outputs: 2 × 3G-SDI + 1 × HDMI
• Multiview: 6-Way Multiview
• USB-C: UVC Video Output for Streaming/Capture
• Built-in Display: 13.3-inch Full HD LCD
• Display Resolution: 1920 × 1080
• Audio Inputs: 1 × 3.5mm Stereo + 1 × RCA Stereo
• Audio Outputs: 1 × 3.5mm Stereo + 1 × RCA Stereo
• Audio Mixing: Supported
• Keying: PiP
• Transitions: Cut, Auto, Mix, Fade and Wipe
• AUX Output: 1 × SDI
• Tally: GPIO/DB-15
• Network: RJ45 LAN
• Streaming: USB-C UVC
• Power Input: 12V DC
• Power Consumption: Approximately 25W
• Weight: Approximately 4kg

AV MATRIX PVS0613U 6 CHANNEL MULTIFORMAT VIDEO SWITCHER Overview

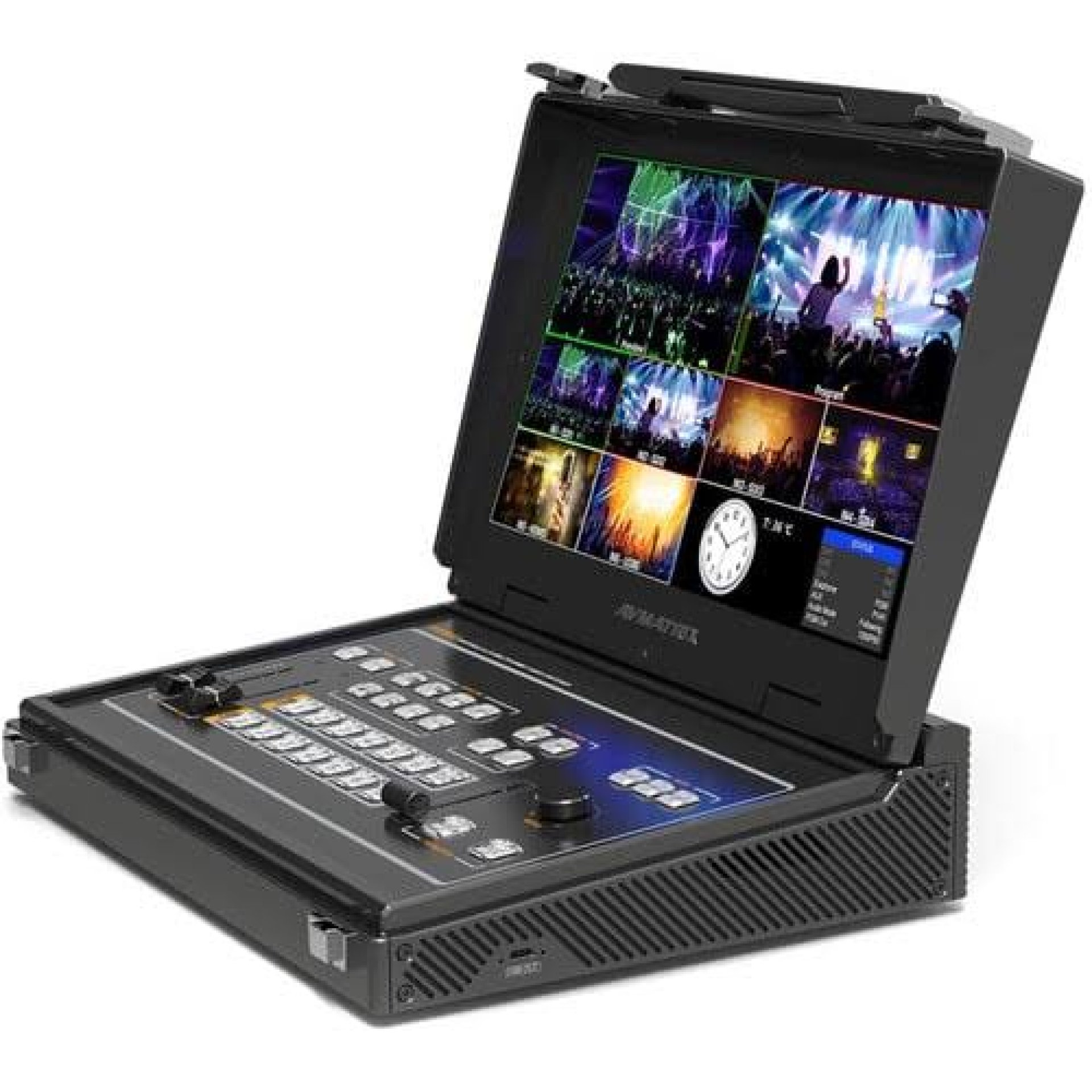

The AV MATRIX PVS0613U 6 CHANNEL MULTIFORMAT VIDEO SWITCHER is an all-in-one professional video production switcher designed for multi-camera live production, broadcasting, events, education, conferences, houses of worship and streaming. It combines four 3G-SDI inputs and two HDMI inputs, allowing six video sources to be connected simultaneously.

Its integrated 13.3-inch Full HD display provides convenient multiview monitoring, while the built-in scaler automatically handles different input formats and allows the program output to be scaled for compatibility with connected equipment. It also provides audio mixing, PiP, multiple transition effects, tally support and USB-C output for computer-based streaming and capture.

AV MATRIX PVS0613U 6 CHANNEL MULTIFORMAT VIDEO SWITCHER Price in Kenya

AV MATRIX PVS0613U 6 CHANNEL MULTIFORMAT VIDEO SWITCHER Full Specifications

The PVS0613U supports six inputs consisting of four SDI and two HDMI connections, three program outputs, a dedicated SDI AUX output, multiview monitoring and an integrated 13.3-inch display.

AV MATRIX PVS0613U 6 CHANNEL MULTIFORMAT VIDEO SWITCHER Performance

• Supports six simultaneous video input sources.
• Provides 4 × 3G-SDI and 2 × HDMI inputs.
• Automatically detects compatible input formats.
• Supports video processing up to 1080p60.
• Provides two SDI and one HDMI program outputs.
• SDI AUX output can provide additional routing flexibility.
• Built-in scaler helps match different source formats to the program output.
• Integrated 13.3-inch Full HD display provides convenient multiview monitoring.
• Six-way multiview allows multiple sources and production status to be monitored simultaneously.
• T-bar, Auto and Cut controls support fast live switching.
• Mix, Fade and Wipe transitions provide professional production effects.
• Adjustable PiP supports multi-source layouts.

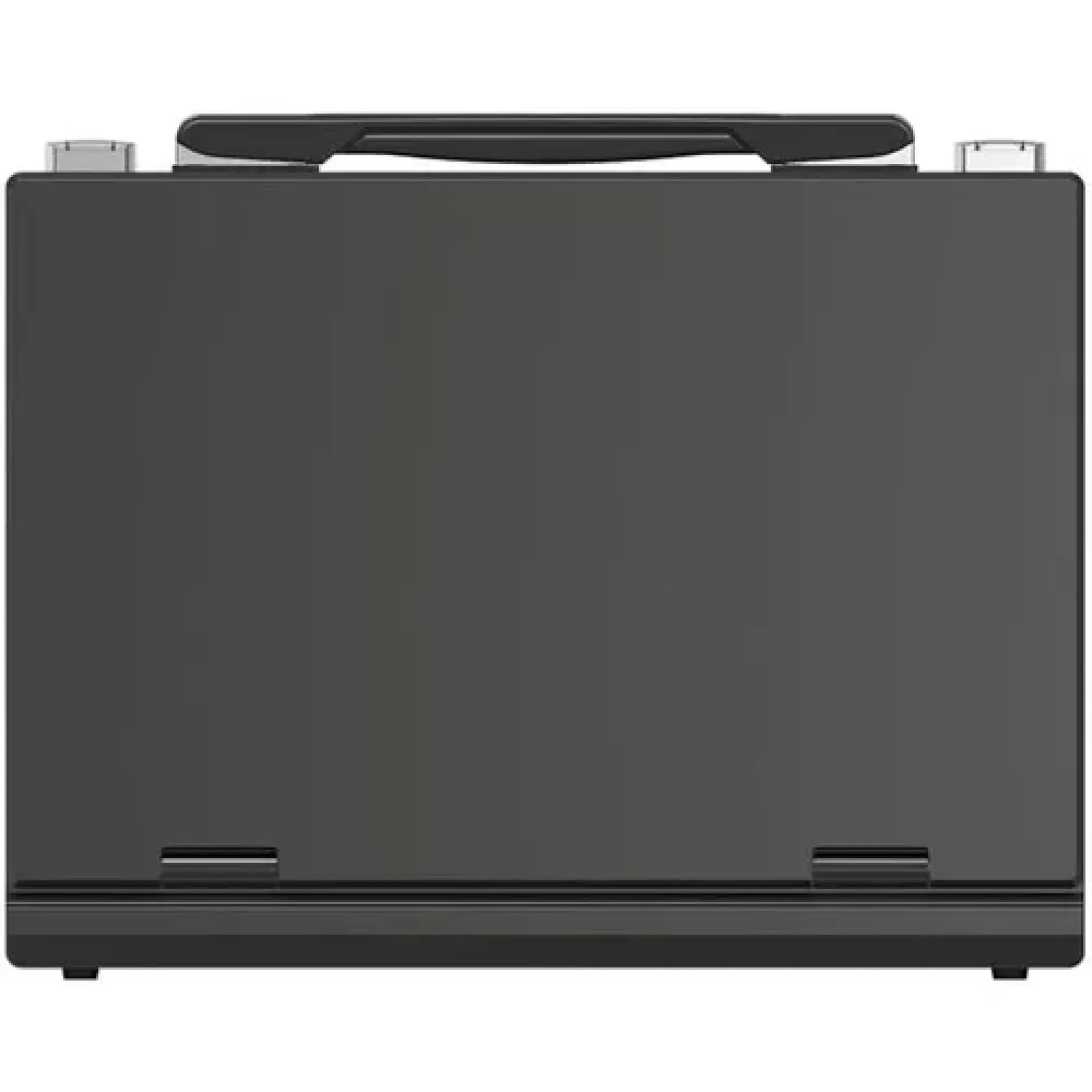

AV MATRIX PVS0613U 6 CHANNEL MULTIFORMAT VIDEO SWITCHER Design and Build Quality

• All-in-one portable production design.
• Integrated 13.3-inch Full HD LCD display.
• Approximately 4kg in weight.
• Approximately 330 × 244 × 67mm in size.
• Physical buttons and T-bar provide direct live-production control.
• Integrated display reduces dependence on an external multiview monitor.
• Multiple SDI and HDMI outputs provide flexible system integration.
• Suitable for studio, event and mobile production environments.

AV MATRIX PVS0613U 6 CHANNEL MULTIFORMAT VIDEO SWITCHER Smart Features

• Six-channel multi-format switching.
• Automatic input signal detection.
• Built-in 13.3-inch Full HD multiview display.
• Integrated scaler for mixed-format sources.
• Six-way multiview.
• Adjustable PiP size and position.
• Mix, Fade and Wipe transitions.
• T-bar, Auto and Cut switching.
• Fade-to-Black emergency function.
• USB-C UVC output for computer capture and streaming.
• GPIO tally support.
• LAN connectivity for updates and control-related functions.

AV MATRIX PVS0613U 6 CHANNEL MULTIFORMAT VIDEO SWITCHER Connectivity

• 4 × 3G-SDI video inputs
• 2 × HDMI video inputs
• 2 × 3G-SDI program outputs
• 1 × HDMI program output
• 1 × SDI AUX output
• HDMI/SDI multiview output
• 1 × USB-C UVC video output
• 1 × 3.5mm stereo audio input
• 1 × RCA stereo audio input
• 1 × 3.5mm stereo audio output
• 1 × RCA stereo audio output
• RJ45 LAN
• DB-15/GPIO tally interface

AV MATRIX PVS0613U 6 CHANNEL MULTIFORMAT VIDEO SWITCHER Audio Performance

• Supports embedded audio from HDMI and SDI sources.
• Provides a 3.5mm stereo analog audio input.
• Provides RCA stereo analog audio input.
• Includes integrated audio mixing.
• Provides 3.5mm stereo audio output.
• Provides RCA stereo audio output.
• Audio mixing can be incorporated into the live production workflow.
• Suitable for conferences, events, broadcasts and live streaming.

AV MATRIX PVS0613U 6 CHANNEL MULTIFORMAT VIDEO SWITCHER Streaming and Recording

• USB-C provides program video for computer-based streaming and capture.
• Supports UVC-compatible computer workflows.
• Compatible with Windows, macOS and Linux.
• Useful for OBS and other computer-based streaming applications.
• USB-C output can simplify streaming without requiring a separate HDMI capture device.
• The PVS0613U is designed around USB-based computer streaming rather than relying solely on standalone network streaming.

AV MATRIX PVS0613U 6 CHANNEL MULTIFORMAT VIDEO SWITCHER Compatibility

• Professional SDI cameras
• HDMI cameras
• Mirrorless cameras with HDMI output
• DSLR cameras with HDMI output
• Professional camcorders
• PTZ cameras with compatible SDI/HDMI output
• Computers with HDMI output
• Media players
• Presentation systems
• SDI monitors
• HDMI monitors
• Projectors
• Streaming computers
• USB-C capture workflows
• External audio equipment

AV MATRIX PVS0613U 6 CHANNEL MULTIFORMAT VIDEO SWITCHER Ideal Use Cases

• Multi-camera live production
• Live streaming
• Broadcast production
• Church services
• Conferences
• Corporate events
• Education and training
• Webinars
• Live concerts
• House of worship
• Sports production
• Studio production
• Event videography
• YouTube production
• Online broadcasting
• Portable video production

AV MATRIX PVS0613U 6 CHANNEL MULTIFORMAT VIDEO SWITCHER Pros & Cons

AV MATRIX PVS0613U 6 CHANNEL MULTIFORMAT VIDEO SWITCHER FAQs

1. How many video sources can the PVS0613U connect?
The PVS0613U supports six video sources: four 3G-SDI and two HDMI.

2. Does the PVS0613U support 1080p60?
Yes. It supports video processing and program output workflows up to 1080p60.

3. Does the PVS0613U have a built-in monitor?
Yes. It features an integrated 13.3-inch Full HD display with 1920 × 1080 resolution.

4. Can the PVS0613U handle different input formats?
Yes. Its multi-format scaler and automatic input detection allow different compatible HDMI and SDI formats to be used together.

5. Can the PVS0613U stream to a computer?
Yes. The PVS0613U provides a USB-C UVC video output for computer-based capture and streaming.

6. Does it support audio mixing?
Yes. It includes two analog audio inputs and an integrated audio mixer for live-production workflows.

7. Does it support tally?
Yes. It includes GPIO/DB-15 tally connectivity for compatible live-production tally systems.

AV MATRIX PVS0613U 6 CHANNEL MULTIFORMAT VIDEO SWITCHER Conclusion

The AV MATRIX PVS0613U 6 CHANNEL MULTIFORMAT VIDEO SWITCHER is a professional all-in-one solution for productions requiring multiple SDI and HDMI sources. Its four 3G-SDI inputs, two HDMI inputs, 1080p60 processing, integrated scaler, three program outputs, SDI AUX output, six-way multiview and 13.3-inch Full HD display make it particularly useful for multi-camera broadcasting, conferences, churches, events, education and live streaming. At KSh 119,700, it offers a complete portable switching and monitoring solution for professional HD production workflows.
