Blackmagic ATEM Mini Extreme Switcher Key Features

• 8 HDMI Inputs with Standards Conversion

• 2 Independent HDMI Outputs

• USB-C Webcam Output

• Built-In Hardware Streaming Engine

• Direct USB Disk Recording

• Ethernet Live Streaming

• 16-Window Multiview Monitoring

• Fairlight Audio Mixer

• 4 Advanced Chroma Keyers

• 6 Picture-in-Picture DVEs

• SuperSource Multi-Layer Composition

• ATEM Software Control Included

The Blackmagic ATEM Mini Extreme Switcher is a professional live production switcher featuring eight HDMI inputs, hardware streaming, USB recording, advanced keying, SuperSource, and professional broadcast tools for demanding multi-camera productions.

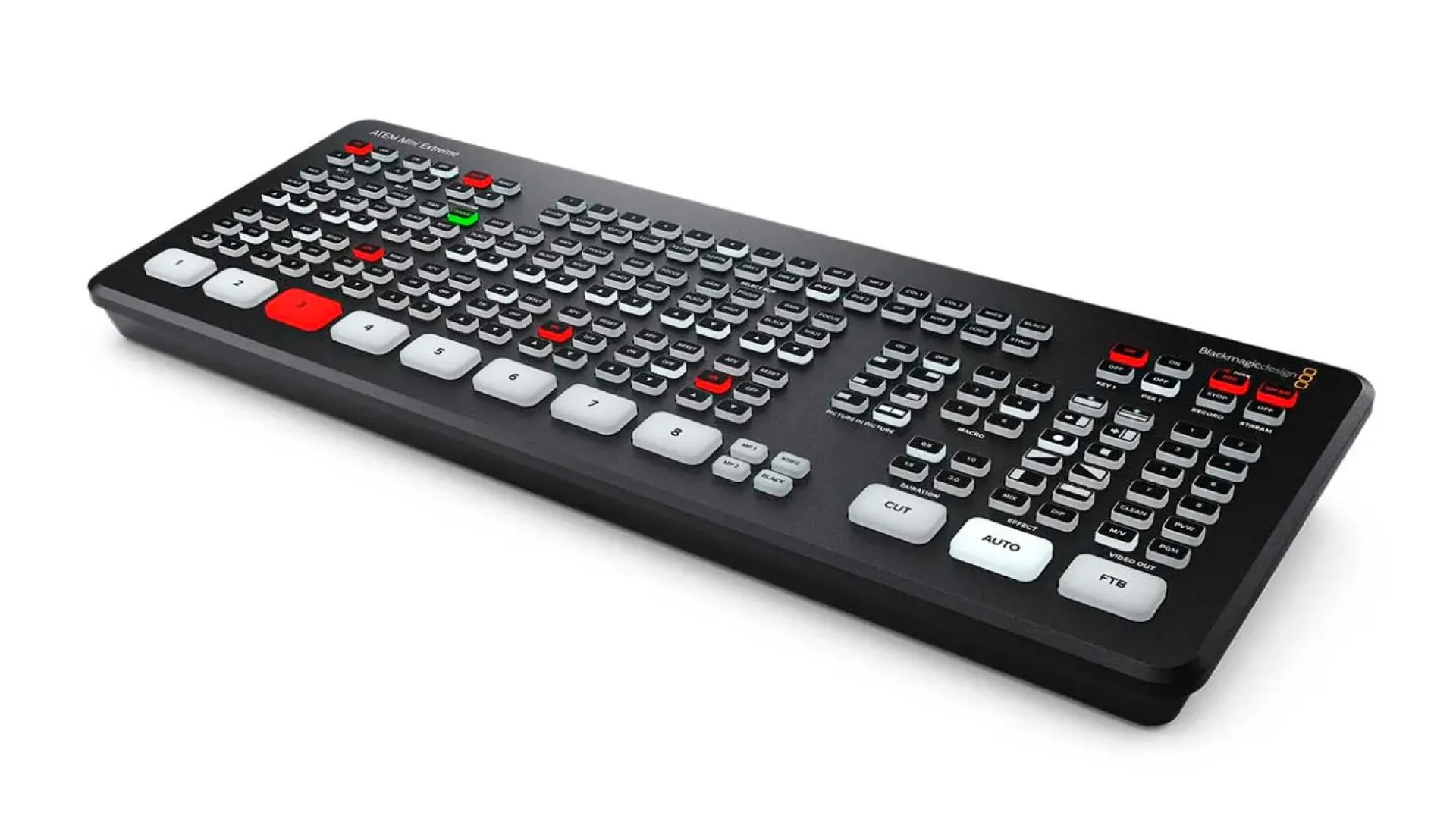

Blackmagic ATEM Mini Extreme Switcher Overview

The Blackmagic ATEM Mini Extreme Switcher is Blackmagic Design's most powerful non-ISO compact live production switcher, designed for professional broadcasters, churches, educational institutions, production companies, corporate events, esports tournaments, podcasts, concerts, and content creators who require advanced multi-camera capabilities.

Equipped with eight HDMI inputs, each featuring automatic standards conversion, the switcher allows users to connect multiple cameras, laptops, gaming consoles, media players, and presentation systems simultaneously. This makes it ideal for complex productions where numerous video sources need to be managed from a single compact control surface.

Unlike the ATEM Mini Pro series, the ATEM Mini Extreme significantly expands production capabilities by providing eight HDMI inputs, two independent HDMI outputs, two USB-C ports, SuperSource, four advanced chroma keyers, and a 16-window Multiview display. These additional features allow producers to create sophisticated broadcasts with multiple presenters, layered graphics, virtual studios, and professional transitions.

The built-in hardware streaming engine supports direct live streaming via Ethernet using RTMP and SRT protocols without requiring an external encoder. At the same time, users can record directly to external USB storage devices while outputting a webcam feed through USB-C for compatibility with Zoom, Microsoft Teams, OBS Studio, Skype, and numerous other streaming applications.

The integrated Fairlight audio mixer delivers professional audio processing with six-band parametric equalization, compressor, limiter, gate, audio-follow-video, and independent control over HDMI and analog audio sources. Combined with SuperSource layouts, multiple DVEs, and advanced chroma keying, the ATEM Mini Extreme offers broadcast-quality production capabilities within a portable desktop switcher.

Blackmagic ATEM Mini Extreme Switcher Price in Kenya

Blackmagic ATEM Mini Extreme Specifications

These specifications are based on Blackmagic Design's official technical documentation.

Blackmagic ATEM Mini Extreme Performance

Blackmagic ATEM Mini Extreme Live Production & Streaming

• The ATEM Mini Extreme is designed for demanding professional productions where multiple cameras, computers, and presentation sources need to be managed simultaneously, making it an outstanding solution for conferences, live concerts, sports broadcasts, worship services, virtual events, educational productions, and corporate presentations. Its eight HDMI inputs provide considerably greater production flexibility than smaller ATEM Mini models.

• The built-in hardware streaming engine allows direct streaming over Ethernet using RTMP and SRT, eliminating the need for dedicated streaming software or external encoding hardware. This reduces system complexity while providing reliable streaming performance for YouTube Live, Facebook Live, Twitch, and numerous other compatible streaming platforms.

• Direct recording to external USB drives enables users to capture high-quality H.264 program recordings while simultaneously livestreaming. This provides immediately usable recordings for editing, archiving, or uploading without requiring additional capture devices or recorders.

• The 16-window Multiview display provides complete production monitoring, showing all eight HDMI inputs, preview, program output, media players, recording status, streaming status, and detailed Fairlight audio meters. This centralized monitoring significantly improves production confidence by allowing operators to monitor every aspect of a live broadcast from a single display.

• Automatic frame synchronization and standards conversion on all HDMI inputs simplify production setup by allowing cameras and computers using different supported HD formats to be connected simultaneously without external converters or complicated configuration.

• Support for professional networking and remote software control makes the ATEM Mini Extreme suitable for permanent studio installations as well as portable production environments.

Blackmagic ATEM Mini Extreme Professional Video & Audio Features

• The Fairlight audio mixer provides professional broadcast-quality sound processing, including six-band parametric equalization, compressor, limiter, expander, gate, master gain, and audio-follow-video functionality. Operators can independently control HDMI audio sources, external microphones, and analog audio inputs while maintaining consistent audio quality throughout lengthy productions.

• Four advanced chroma keyers allow multiple green-screen presenters or virtual studio environments to operate simultaneously, making the switcher ideal for news productions, educational broadcasts, worship services, weather presentations, and professional corporate livestreams requiring sophisticated virtual backgrounds.

• The SuperSource feature enables multiple video sources to appear together within a single customizable layout, allowing producers to create professional discussion panels, interview formats, esports broadcasts, and multi-speaker presentations with minimal effort while maintaining attractive visual compositions.

• Six picture-in-picture DVEs provide exceptional creative flexibility, allowing presenters, demonstrations, presentations, and graphics to be layered together dynamically during live productions. Combined with transitions, media players, and advanced keying, these tools help produce television-quality broadcasts without requiring expensive production equipment.

• The USB webcam output allows the switcher to function as a high-quality webcam for conferencing and streaming applications, enabling seamless integration with Zoom, Microsoft Teams, Skype, OBS Studio, and many other production platforms.

• Free ATEM Software Control expands the switcher's capabilities by providing advanced media management, macro creation, remote operation, audio mixing, switcher configuration, and production control from Windows or macOS computers.

Blackmagic ATEM Mini Extreme Build & Design

• The ATEM Mini Extreme combines an expanded professional control surface with a compact desktop form factor, allowing users to operate sophisticated live productions while remaining portable enough for mobile events, conferences, churches, classrooms, and temporary production setups.

• Clearly labeled hardware controls provide immediate access to camera switching, streaming, recording, transitions, keying, picture-in-picture effects, media playback, and audio adjustments, enabling operators to react quickly during fast-paced live productions.

• The durable construction is designed for frequent professional use while remaining lightweight enough for transportation between production locations. Its ergonomic layout helps minimize operator fatigue during extended livestreams and broadcasts.

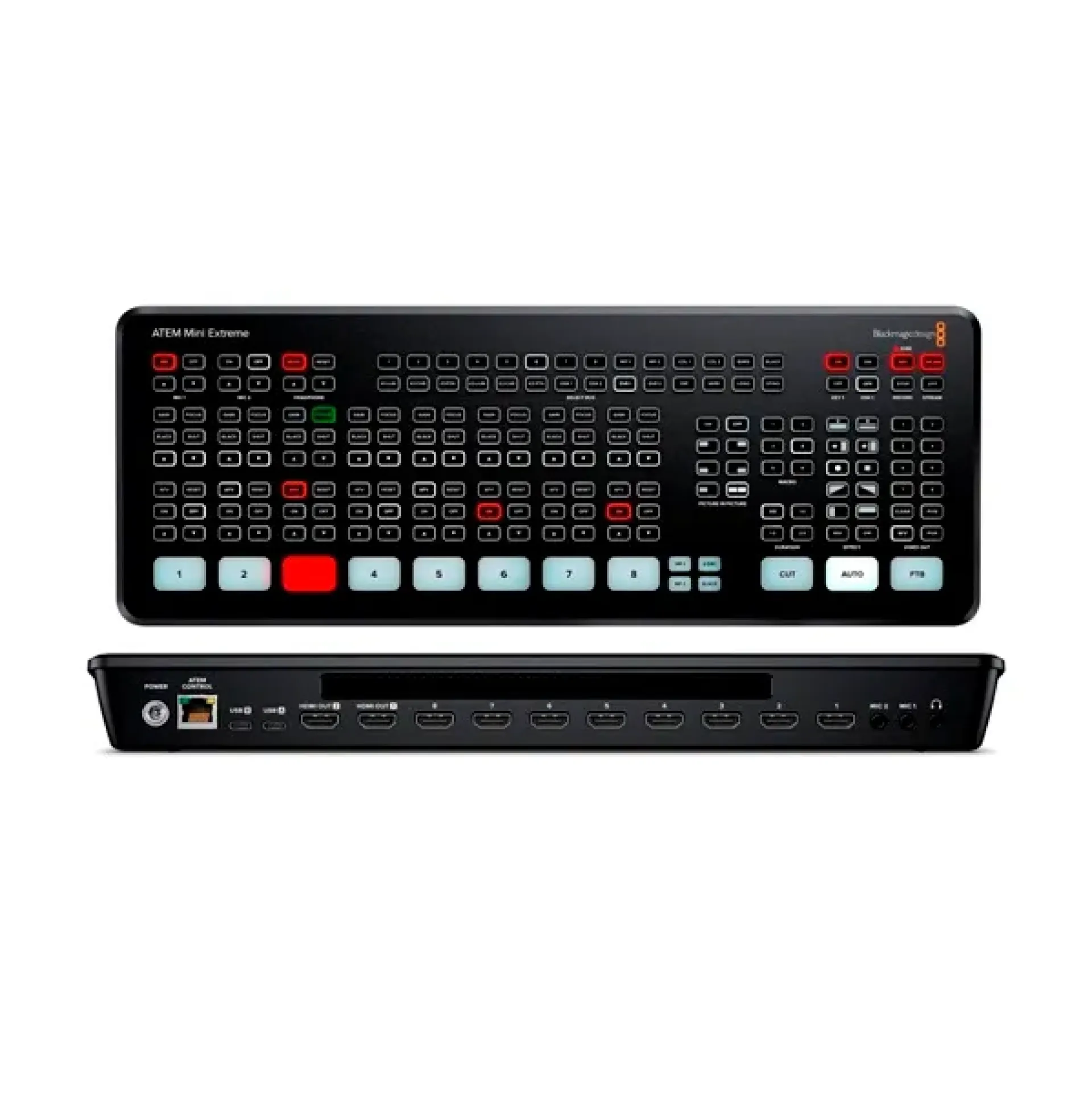

• Rear-mounted connections provide organized access to HDMI inputs, HDMI outputs, Ethernet, USB-C ports, analog audio inputs, power, and monitoring connections, making installation and cable management simple even in complex production environments.

• Two independent HDMI outputs allow separate routing for program output and Multiview monitoring, giving production teams greater operational flexibility than smaller ATEM Mini models.

• Compatibility with Windows and macOS, combined with ongoing firmware updates from Blackmagic Design, ensures long-term workflow flexibility and integration with a wide range of production environments.

Blackmagic ATEM Mini Extreme Applications

The Blackmagic ATEM Mini Extreme is ideal for:

• Professional live streaming

• Multi-camera podcast production

• Church broadcasting

• Corporate events

• Online education

• Live concerts

• Sports streaming

• Webinar production

• Esports tournaments

• Broadcast video production

Blackmagic ATEM Mini Extreme FAQs

How many HDMI inputs does the ATEM Mini Extreme have?

It includes 8 HDMI inputs, all with automatic frame synchronization and standards conversion.

Can the ATEM Mini Extreme stream directly without a computer encoder?

Yes. It features a built-in hardware streaming engine supporting direct Ethernet streaming using RTMP and SRT.

Does the ATEM Mini Extreme support SuperSource?

Yes. It includes SuperSource, allowing multiple video sources to be combined into customizable layouts.

Can it record directly to USB drives?

Yes. The switcher supports direct recording to compatible external USB storage devices.

Does it work as a webcam?

Yes. The USB-C output functions as a webcam for Zoom, Microsoft Teams, OBS Studio, Skype, and many other applications.

Blackmagic ATEM Mini Extreme Pros & Cons

Blackmagic ATEM Mini Extreme Conclusion

The Blackmagic ATEM Mini Extreme Switcher is one of the most capable compact live production switchers available for professional content creators, broadcasters, production companies, educational institutions, and houses of worship. Its eight HDMI inputs, SuperSource, advanced chroma keying, hardware streaming, professional audio processing, and comprehensive monitoring tools make it an exceptional solution for sophisticated multi-camera productions.

Available in Kenya for KSh 144,600, the Blackmagic ATEM Mini Extreme delivers outstanding professional broadcast capabilities in a compact desktop format.
