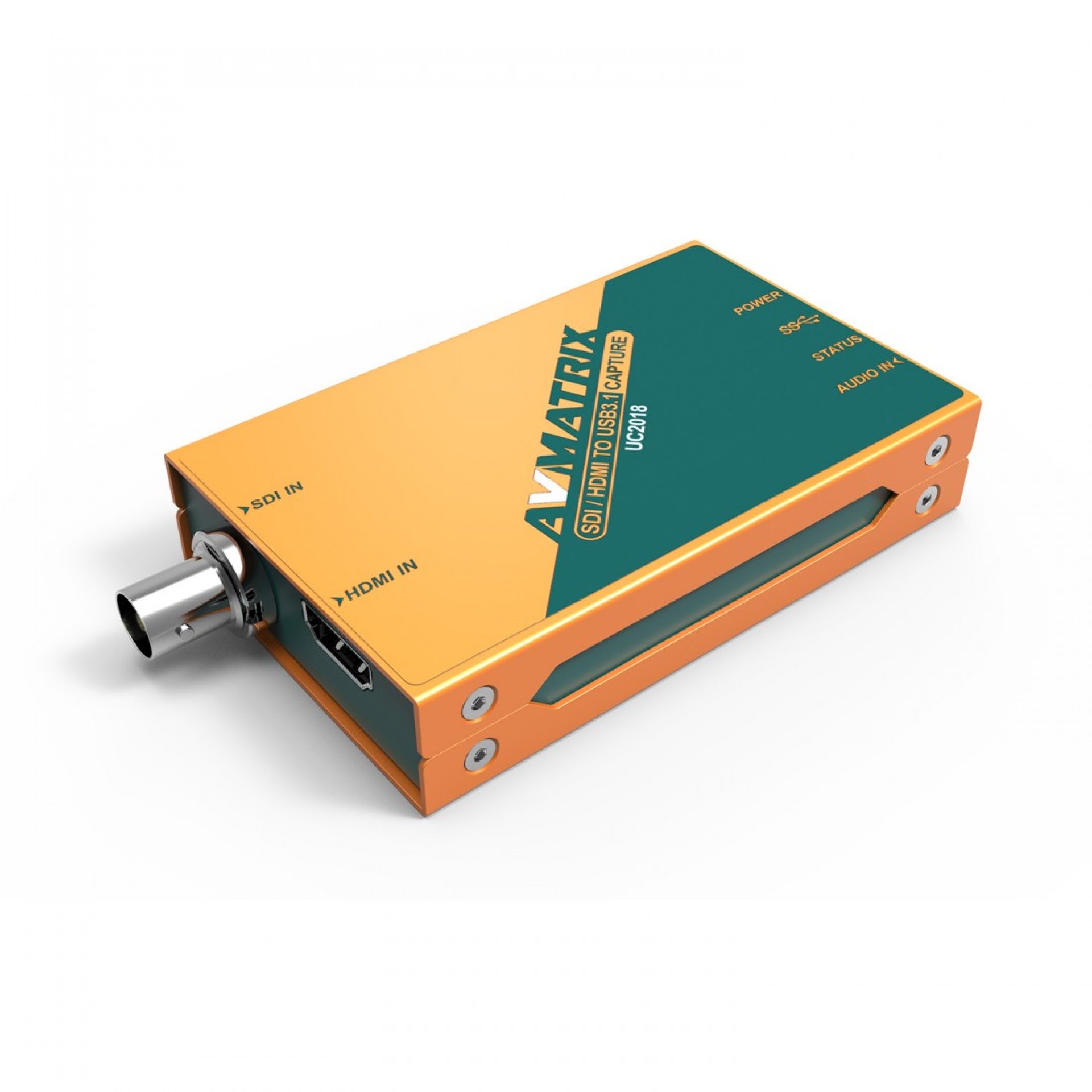

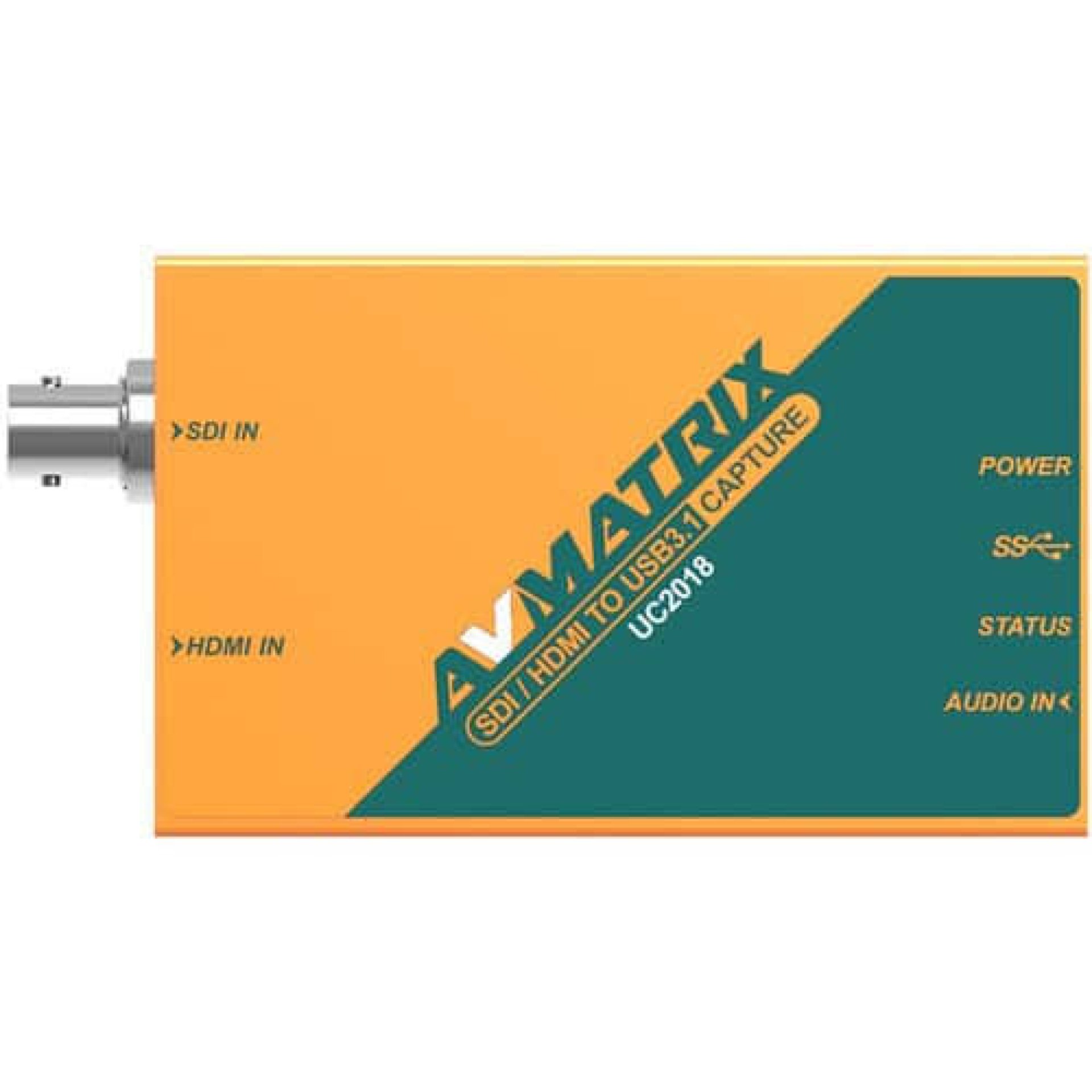

AV MATRIX UC 2018 SDI/HDMI TO USB 3.1 TYPE C VIDEO CAPTURE CARD-AVUC2018

AV MATRIX UC 2018 SDI/HDMI TO USB 3.1 TYPE C VIDEO CAPTURE CARD Key Specifications

• Product Type: SDI/HDMI to USB Video Capture Card
• SDI Input: 1 × SD/HD/3G-SDI
• HDMI Input: 1 × HDMI 1.4a Type-A
• Audio Input: 1 × 3.5mm Stereo Audio Input
• USB Output: 1 × USB 3.1 Gen 1 Type-C
• Maximum Capture Resolution: 1920 × 1080 at 60fps
• Video Capture: Uncompressed and low-latency
• USB Video Standard: UVC
• USB Audio Standard: UAC
• USB Transfer Rate: Up to 200 Mbps
• Input Detection: Automatic
• Power: USB Bus-Powered
• Maximum Power Consumption: Approximately 3.5W
• Dimensions: Approximately 92.5 × 58.5 × 20mm
• Weight: Approximately 220g
• Operating Systems: Windows, macOS and Linux
• Design: Compact portable capture device

AV MATRIX UC 2018 SDI/HDMI TO USB 3.1 TYPE C VIDEO CAPTURE CARD Overview

The AV MATRIX UC 2018 SDI/HDMI TO USB 3.1 TYPE C VIDEO CAPTURE CARD is a professional capture device that accepts both SDI and HDMI video sources and transfers them to a computer through USB 3.1 Gen 1 Type-C. It supports video signals up to 1080p60 and provides uncompressed, low-latency capture for streaming, recording, conferencing and professional AV production.

The UC2018 supports UVC and UAC standards for broad computer and software compatibility and is designed for plug-and-play operation. It can also capture embedded audio from compatible SDI/HDMI sources or use its stereo mini-jack audio input.

AV MATRIX UC 2018 SDI/HDMI TO USB 3.1 TYPE C VIDEO CAPTURE CARD Price in Kenya

AV MATRIX UC 2018 SDI/HDMI TO USB 3.1 TYPE C VIDEO CAPTURE CARD Full Specifications

The manufacturer specifications confirm SDI and HDMI inputs, USB Type-C output, 1080p60 support, UVC/UAC compatibility, 3.5W maximum power consumption and a compact 92.5 × 58.5 × 20mm enclosure.

AV MATRIX UC 2018 SDI/HDMI TO USB 3.1 TYPE C VIDEO CAPTURE CARD Performance

• Captures SDI or HDMI video up to 1080p60.
• Provides uncompressed video transfer.
• Delivers low-latency capture.
• Automatically detects compatible input signals.
• Supports SD, HD and 3G-SDI sources.
• Supports HDMI 1.4a video sources.
• Supports embedded audio capture.
• Supports external stereo audio input.
• Provides UVC video capture compatibility.
• Provides UAC audio compatibility.
• Suitable for live streaming and professional recording.

AV MATRIX UC 2018 SDI/HDMI TO USB 3.1 TYPE C VIDEO CAPTURE CARD Design and Build Quality

• Compact professional capture-device design.
• Approximately 92.5 × 58.5 × 20mm.
• Approximately 220g.
• Portable for mobile production.
• USB bus-powered operation.
• Suitable for studio and field workflows.
• Designed for integration with laptop and desktop production systems.
• Compact construction makes it convenient for professional AV setups.

AV MATRIX UC 2018 SDI/HDMI TO USB 3.1 TYPE C VIDEO CAPTURE CARD Smart Features

• SDI and HDMI video capture.
• Automatic input signal detection.
• Up to 1080p60 capture.
• Uncompressed video transfer.
• Low-latency operation.
• UVC compatibility.
• UAC audio compatibility.
• Plug-and-play operation.
• USB bus-powered design.
• Embedded SDI/HDMI audio capture.
• External 3.5mm stereo audio input.
• Compact portable design.

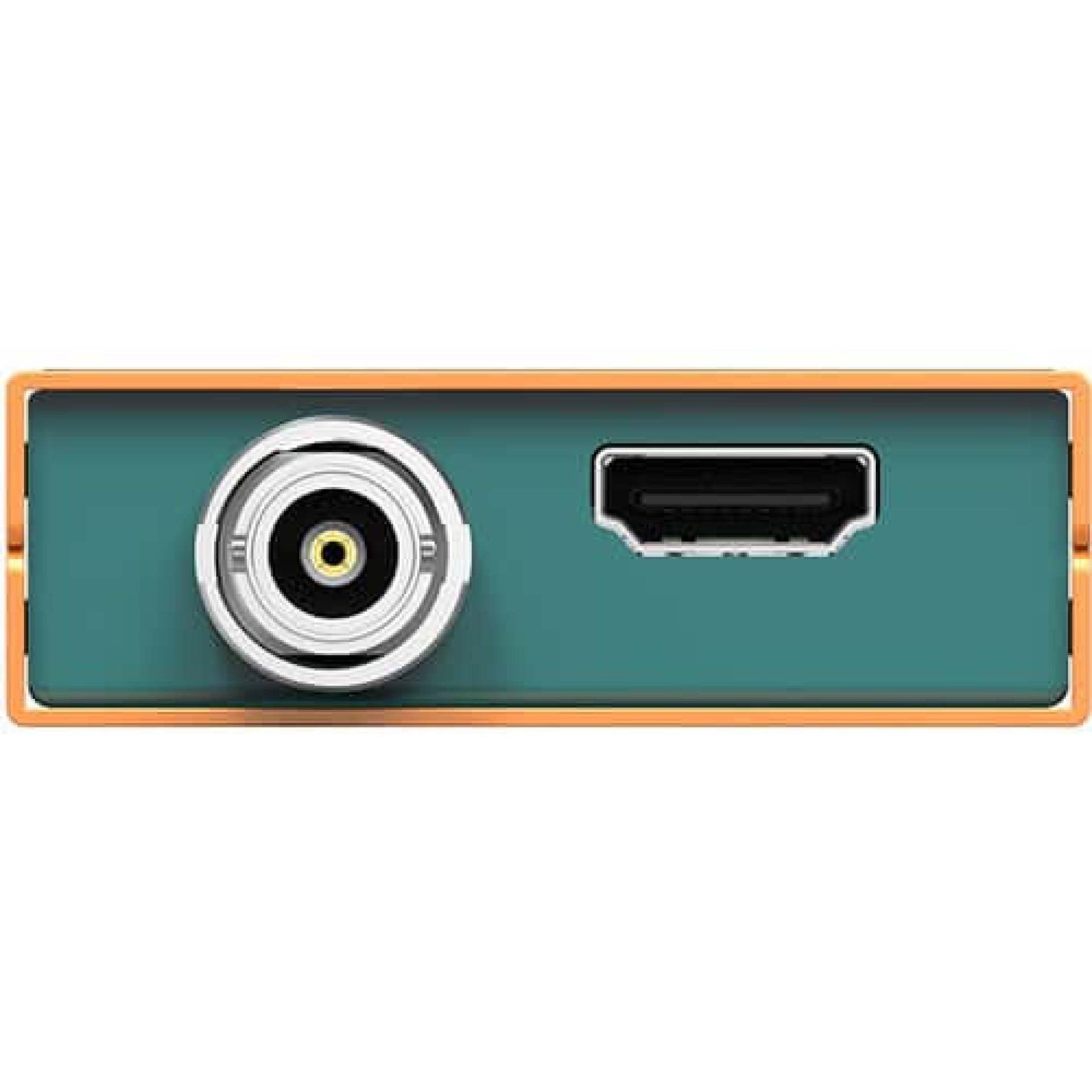

AV MATRIX UC 2018 SDI/HDMI TO USB 3.1 TYPE C VIDEO CAPTURE CARD Connectivity

• 1 × SD/HD/3G-SDI input
• 1 × HDMI 1.4a Type-A input
• 1 × 3.5mm stereo audio input
• 1 × USB 3.1 Gen 1 Type-C output
• USB-C connection for computers
• SDI connection for professional cameras and broadcast equipment
• HDMI connection for cameras, computers and other HDMI sources
• Supports embedded SDI/HDMI audio
• Supports external line-level audio input

AV MATRIX UC 2018 SDI/HDMI TO USB 3.1 TYPE C VIDEO CAPTURE CARD Compatibility

• Professional SDI cameras
• Broadcast cameras
• HDMI cameras
• Mirrorless cameras with HDMI output
• DSLR cameras with HDMI output
• Professional camcorders
• Computers with HDMI output
• SDI switchers
• SDI mixers
• Video recorders
• Windows computers
• macOS computers
• Linux computers
• OBS Studio
• Zoom
• Microsoft Teams
• Google Meet
• YouTube Live
• Wirecast
• Camtasia
• Twitch
• Other UVC/UAC-compatible applications

AV MATRIX UC 2018 SDI/HDMI TO USB 3.1 TYPE C VIDEO CAPTURE CARD Ideal Use Cases

• Professional live streaming
• SDI camera capture
• HDMI camera capture
• Broadcast production
• Studio production
• Video recording
• YouTube production
• Podcast production
• Video conferencing
• Church broadcasting
• Corporate presentations
• Education and training
• Event production
• Mobile broadcasting
• Field production
• Screen capture
• Professional AV workflows

AV MATRIX UC 2018 SDI/HDMI TO USB 3.1 TYPE C VIDEO CAPTURE CARD Pros & Cons

AV MATRIX UC 2018 SDI/HDMI TO USB 3.1 TYPE C VIDEO CAPTURE CARD FAQs

1. What does the AV MATRIX UC 2018 do?
It captures video from either an SDI or HDMI source and transfers it to a computer through USB 3.1 Gen 1 Type-C.

2. What is the maximum capture resolution?
The UC2018 supports capture of video signals up to 1920 × 1080 at 60fps.

3. Can it capture both SDI and HDMI?
Yes. It has one SD/HD/3G-SDI input and one HDMI 1.4a Type-A input. When both inputs have signals, the SDI input takes priority according to the manufacturer's specifications.

4. Does it support audio capture?
Yes. It supports embedded SDI/HDMI audio and provides a 3.5mm stereo mini-jack audio input.

5. Is it compatible with OBS Studio?
Yes. The UC2018 is designed for UVC/UAC compatibility and is compatible with OBS Studio and other popular streaming applications.

6. Does it require a separate power adapter?
No. It is USB bus-powered, so a suitable USB connection can provide the required power.

7. Does it support 4K capture?
No. The UC2018 is designed for HD workflows with capture support up to 1080p60.

AV MATRIX UC 2018 SDI/HDMI TO USB 3.1 TYPE C VIDEO CAPTURE CARD Conclusion

The AV MATRIX UC 2018 SDI/HDMI TO USB 3.1 TYPE C VIDEO CAPTURE CARD is a versatile professional capture solution for integrating both SDI and HDMI sources into computer-based production systems. With 1080p60 support, uncompressed low-latency capture, UVC/UAC compatibility, automatic input detection, embedded audio support and USB Type-C connectivity, it is well suited for streaming, recording, broadcasting, conferencing and professional AV production. At KSh 23,400, it provides a flexible HD capture solution for workflows requiring both SDI and HDMI connectivity.
