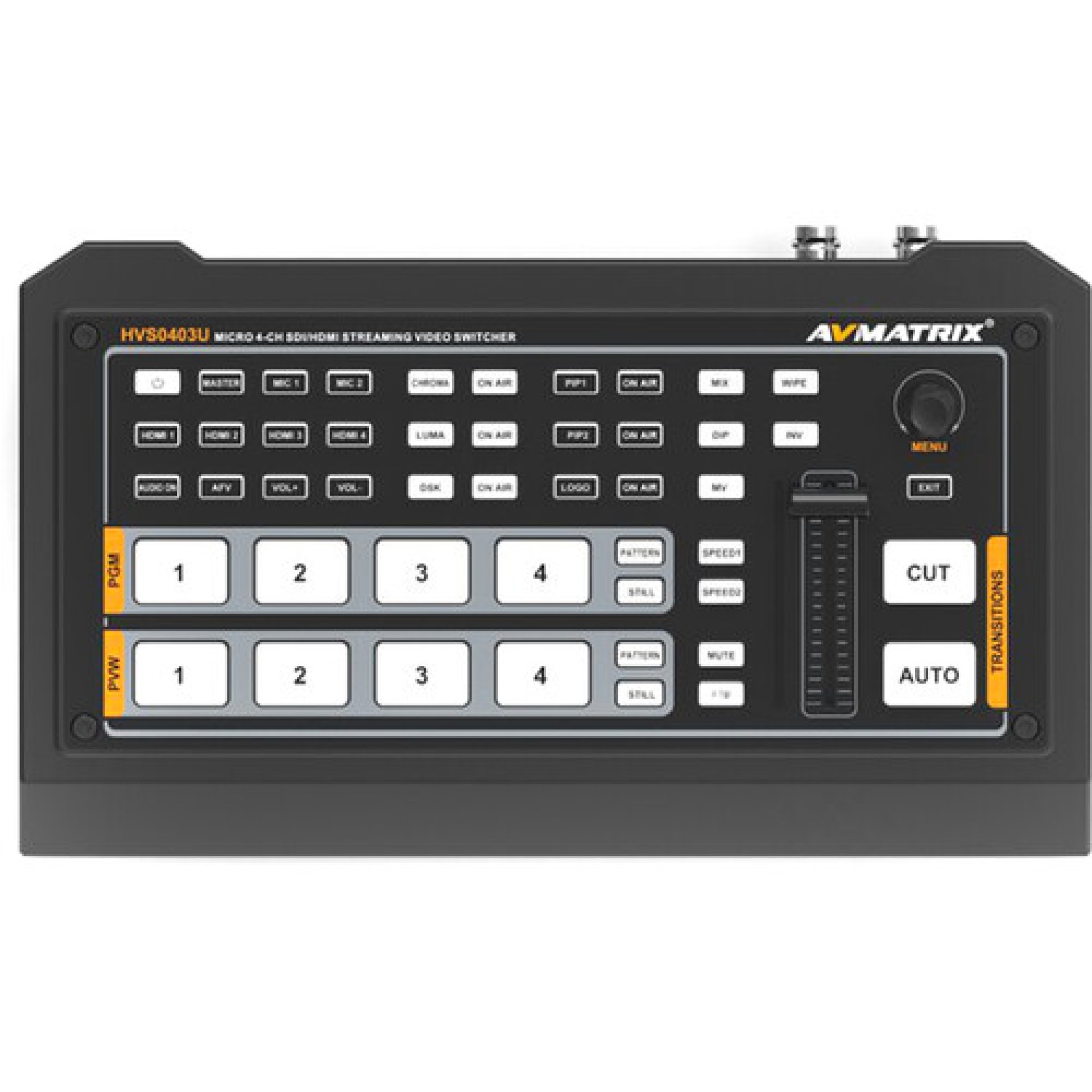

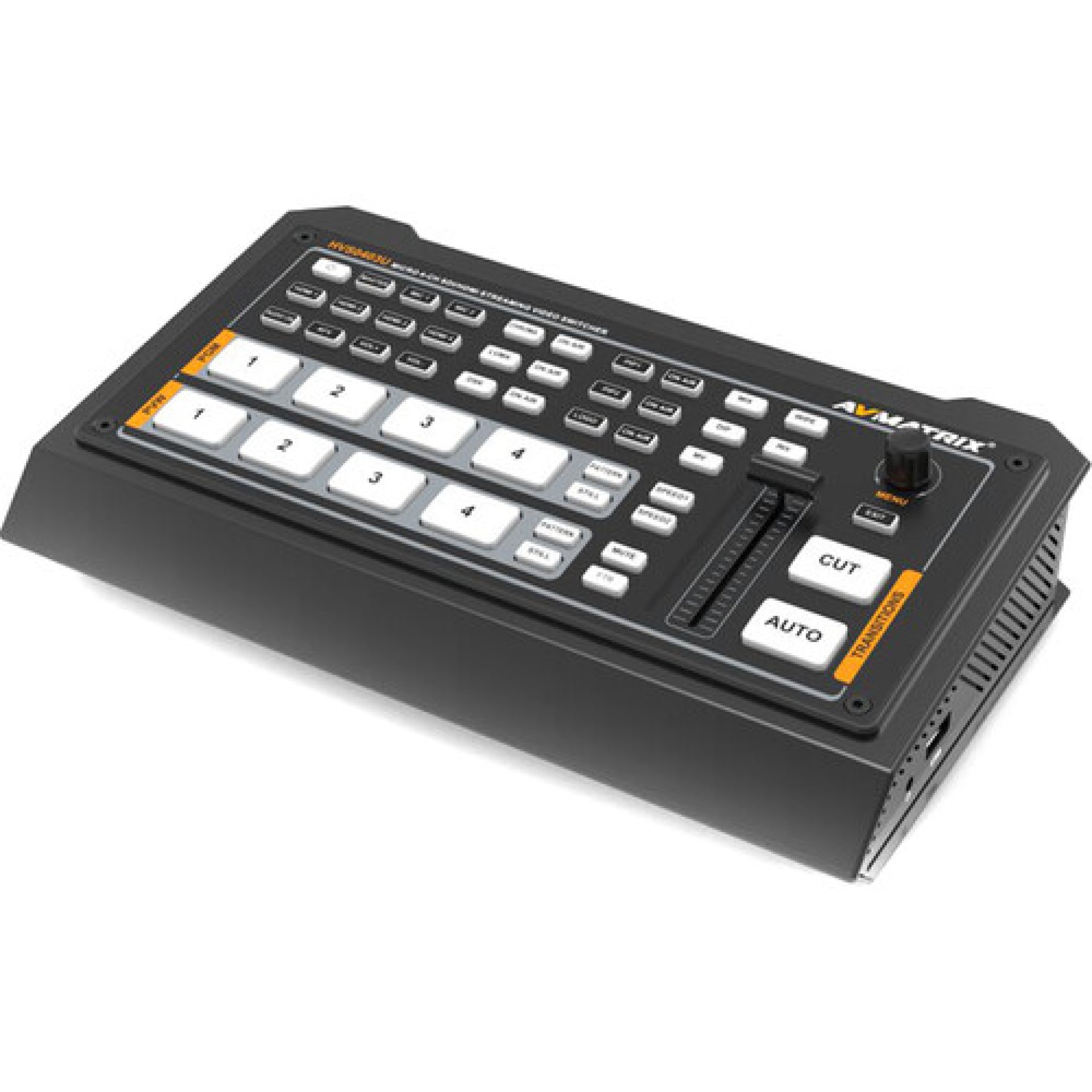

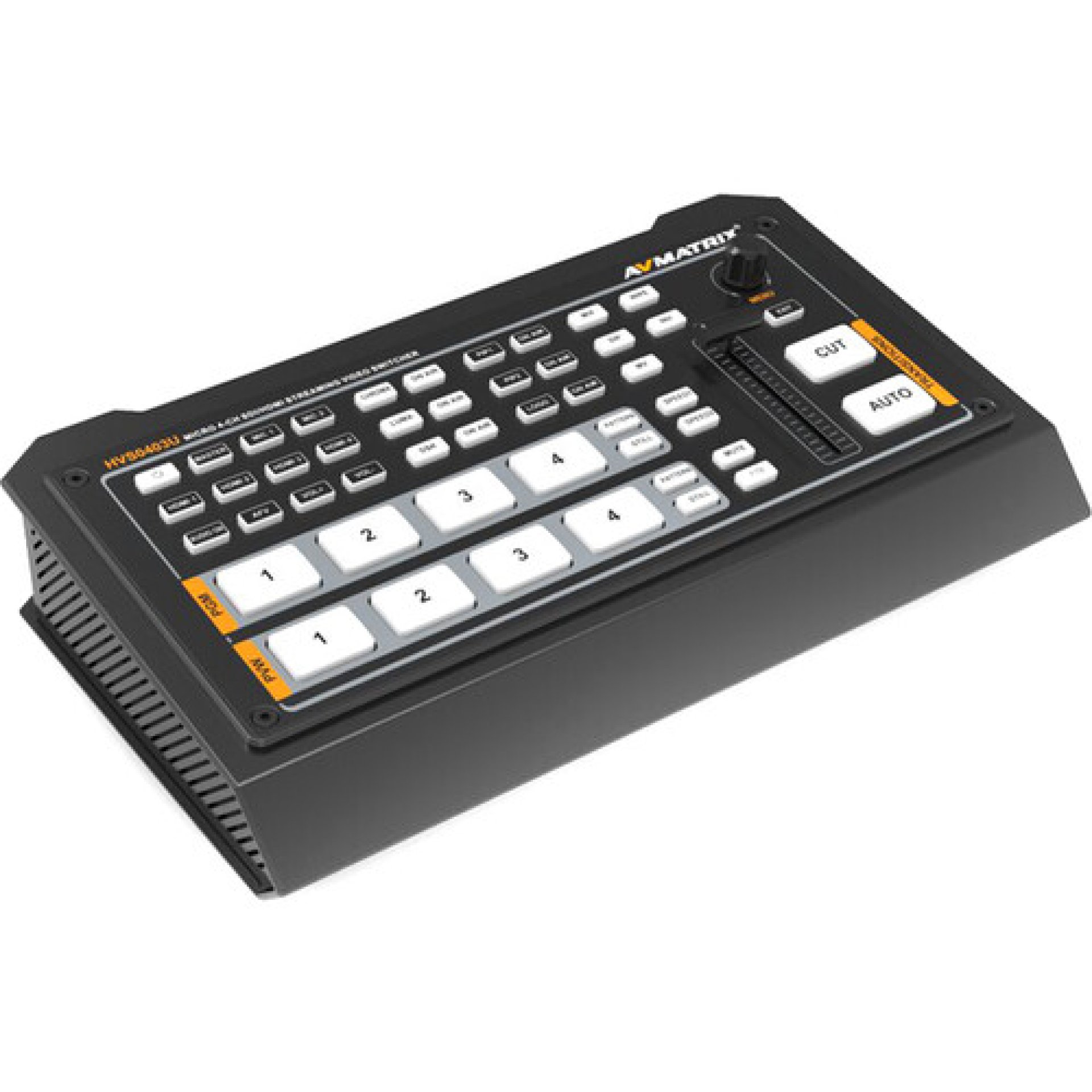

AVMATRIX HVS0403U Micro 4-Channel SDI & HDMI Video Switcher
Key Specifications
- Product Type: Professional 4-Channel Video Switcher
- Video Inputs: 2 × HDMI + 2 × 3G-SDI
- Input Detection: Automatic
- Processing Resolution: Up to 1080p
- Maximum Video I/O: 1080p60
- Program Outputs: 2 × HDMI
- Multiview Output: 1 × HDMI
- Streaming Output: USB-C
- Audio Inputs: 2 × 3.5mm stereo analog
- Embedded Audio: HDMI and SDI
- Switching: Pushbuttons, software and T-bar
- Transitions: Cut, Auto, Mix, Fade and Wipe
- Keying: Chroma, Luma and Alpha Key
- PiP/PoP: Supported
- Graphics Memory: 32 images
- Tally: DB-15/DE-15
- Network: RJ45 LAN
- USB: USB-A
- Recording: USB external drive support
- Streaming: UVC USB-C output
- Power Input: 7–24V DC
- Power Consumption: Approximately 12W
- Weight: Approximately 1kg
- Dimensions: Approximately 24.45 × 14.32 × 4.45cm
AVMATRIX HVS0403U Micro 4-Channel SDI & HDMI Video Switcher Overview
The AVMATRIX HVS0403U Micro 4-Channel SDI & HDMI Video Switcher is a compact professional video switcher designed for live production, streaming, education, conferences, houses of worship, sports and event production. It combines two HDMI and two 3G-SDI inputs, allowing users to connect up to four video sources and switch between them in real time.
The HVS0403U supports video switching up to 1080p60, along with audio mixing, chroma and luma keying, PiP/PoP layouts, multiple transition effects and a USB-C output that can function as a UVC video source for computer streaming.
AVMATRIX HVS0403U Micro 4-Channel SDI & HDMI Video Switcher Price in Kenya
| Product | Price (KSh) |
|---|---|
| AVMATRIX HVS0403U Micro 4-Channel SDI & HDMI Video Switcher | 67,400 |
AVMATRIX HVS0403U Micro 4-Channel SDI & HDMI Video Switcher Full Specifications
| Specification | Details |
| Brand | AVMATRIX |
| Model | HVS0403U |
| Product Type | 4-Channel Video Switcher |
| Video Inputs | 2 × HDMI, 2 × 3G-SDI |
| Input Detection | Auto Detect |
| Processing | Up to 1080p |
| Maximum Video | 1080p60 |
| HDMI Program Outputs | 2 |
| HDMI Multiview Output | 1 |
| USB-C Output | USB Video / Streaming |
| Analog Audio Inputs | 2 × 3.5mm Stereo |
| Embedded Audio | HDMI / SDI 2-Channel |
| Switching Control | Pushbuttons / Software / T-Bar |
| M/E Layers | 2 |
| Keying | Chroma / Luma / Alpha |
| DVE | Supported |
| PiP / PoP | Supported |
| Graphics Memory | 32 Images |
| Pattern Generators | 1 |
| Color Generators | 2 |
| Tally | DB-15 / DE-15 |
| Network | RJ45 LAN |
| USB | USB-A |
| Recording | External USB Drive |
| Power Input | 7–24V DC |
| Power Consumption | Approx. 12W |
| Weight | Approx. 1kg |
| Dimensions | Approx. 24.45 × 14.32 × 4.45cm |
AVMATRIX HVS0403U Micro 4-Channel SDI & HDMI Video Switcher Performance
- Supports up to four simultaneous video sources.
- Two HDMI and two 3G-SDI inputs provide flexible camera connectivity.
- Handles video formats up to 1080p60.
- Automatic input detection simplifies setup when connecting different sources.
- T-bar provides smooth manual transitions.
- Auto and Cut controls allow quick live switching.
- Mix, fade and wipe transitions provide additional production options.
- Chroma, luma and alpha keying support more advanced productions.
- PiP and PoP layouts allow multiple sources to be displayed together.
- Two M/E layers provide greater production flexibility.
AVMATRIX HVS0403U Micro 4-Channel SDI & HDMI Video Switcher Connectivity
- 2 × HDMI video inputs
- 2 × 3G-SDI video inputs
- 2 × HDMI program outputs
- 1 × HDMI multiview output
- 1 × USB-C video output
- 2 × 3.5mm stereo audio inputs
- RJ45 LAN
- USB-A service/firmware interface
- DB-15/DE-15 tally connection
- 3.5mm stereo audio monitoring output through supported workflow
The USB-C output provides a UVC-compatible video feed for computer-based streaming and conferencing.
AVMATRIX HVS0403U Micro 4-Channel SDI & HDMI Video Switcher Audio Performance
- 2-channel audio mixing.
- Two 3.5mm stereo analog audio inputs.
- Embedded two-channel audio from HDMI sources.
- Embedded two-channel audio from SDI sources.
- Audio can be integrated with live video switching.
- Suitable for presentations, interviews, events and streaming productions.
AVMATRIX HVS0403U Micro 4-Channel SDI & HDMI Video Switcher Streaming
- USB-C UVC video output.
- Supports computer-based live streaming.
- Compatible with common streaming platforms including YouTube Live, Facebook Live, Twitch and other UVC-compatible applications.
- USB output supports up to 1080p60.
- Useful for live production without requiring a separate HDMI-to-USB capture device.

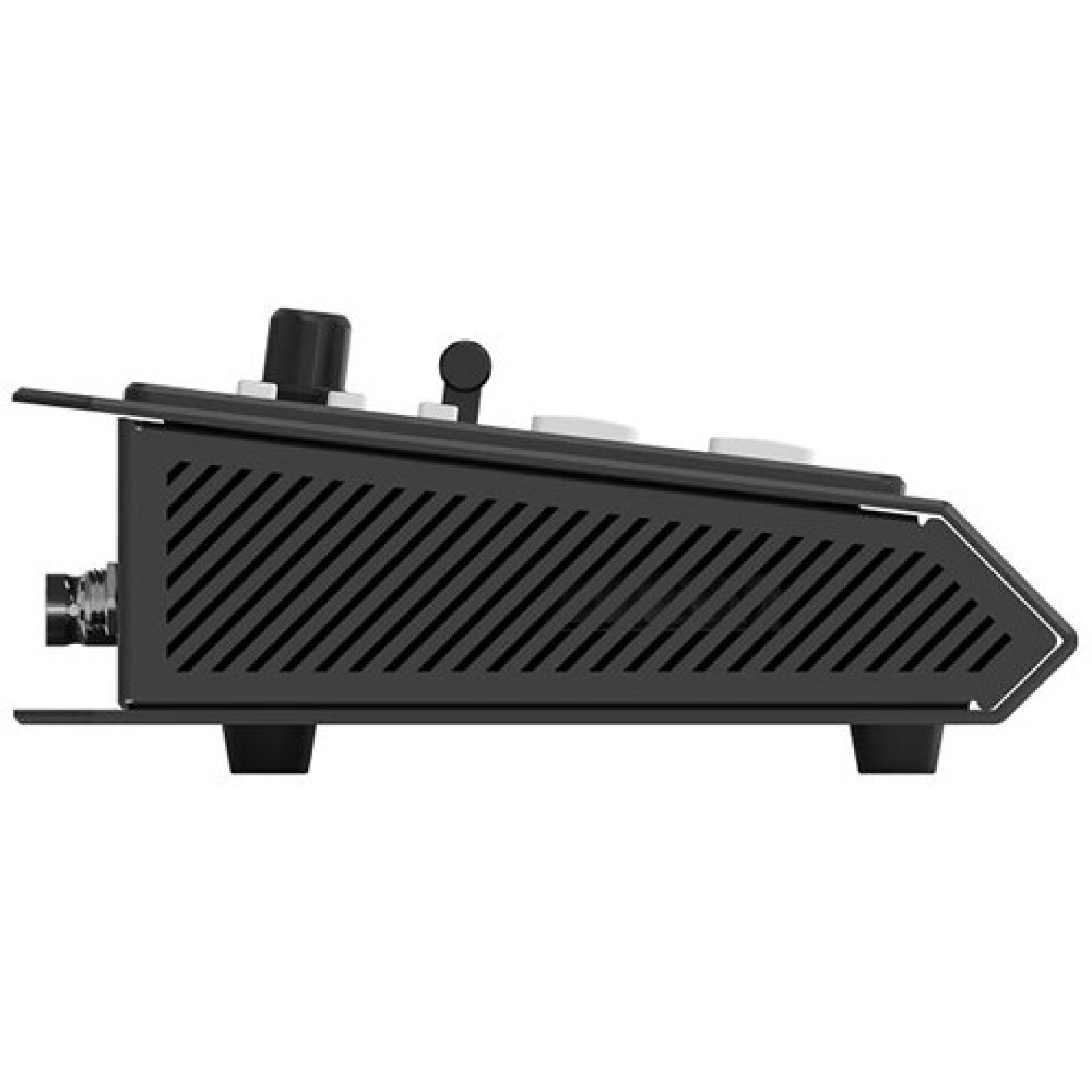

AVMATRIX HVS0403U Micro 4-Channel SDI & HDMI Video Switcher Design & Build Quality
- Compact desktop-friendly construction.
- Approximately 1kg in weight.
- Approximately 24.45 × 14.32 × 4.45cm in size.
- Physical buttons provide direct access to common switching functions.
- T-bar enables traditional professional switching.
- Compact design makes it practical for mobile production and event setups.
- Designed for professional live-production environments.
AVMATRIX HVS0403U Micro 4-Channel SDI & HDMI Video Switcher Power & Efficiency
- Operates from 7–24V DC input.
- Approximately 12W power consumption at 12V/1A.
- Low power requirements make it practical for mobile production.
- DC operation allows integration into a range of production power systems.
AVMATRIX HVS0403U Micro 4-Channel SDI & HDMI Video Switcher Compatibility
- HDMI cameras
- SDI cameras
- DSLR cameras with HDMI output
- Mirrorless cameras with HDMI output
- Professional camcorders
- PTZ cameras
- Live-streaming computers
- External audio sources
- HDMI displays
- Broadcast monitors
- Projectors
- UVC-compatible streaming computers
AVMATRIX HVS0403U Micro 4-Channel SDI & HDMI Video Switcher Ideal Use
- Live streaming
- Church services
- Conferences
- Corporate events
- Educational production
- Sports production
- Interviews
- Multi-camera YouTube production
- Live concerts
- House of worship
- Webinars
- Studio production
- Event videography
- Online broadcasting
AVMATRIX HVS0403U Micro 4-Channel SDI & HDMI Video Switcher Pros & Cons
| Pros | Cons |
| 4-channel video switching | Maximum processing resolution is 1080p |
| 2 HDMI + 2 SDI inputs | No built-in display |
| Supports 1080p60 | USB-C output is primarily UVC streaming |
| HDMI multiview output | Requires external monitor for multiview |
| Two HDMI program outputs | |
| USB-C streaming output | |
| Chroma and luma keying | |
| PiP and PoP layouts | |
| T-bar, Auto and Cut controls | |
| 2-channel audio mixing | |
| Compact approximately 1kg design | |
| External USB recording support |
AVMATRIX HVS0403U Micro 4-Channel SDI & HDMI Video Switcher FAQs
1. How many cameras can the HVS0403U connect?
It can accept up to four video sources, using two HDMI inputs and two 3G-SDI inputs.
2. Does the HVS0403U support 1080p60?
Yes. It supports video switching and output formats up to 1080p60.
3. Can it stream directly to a computer?
Yes. Its USB-C output provides a UVC-compatible video feed, allowing it to function as a video source for compatible streaming and conferencing software.
4. Does it support SDI and HDMI at the same time?
Yes. The switcher is designed to accept two HDMI and two 3G-SDI sources simultaneously, with automatic input detection.
5. Does it support chroma keying?
Yes. The HVS0403U supports chroma, luma and alpha keying for more advanced live-production workflows.
AVMATRIX HVS0403U Micro 4-Channel SDI & HDMI Video Switcher Conclusion
The AVMATRIX HVS0403U Micro 4-Channel SDI & HDMI Video Switcher is a compact and versatile live-production solution for users who need to combine HDMI and SDI cameras in one workflow. Its four video inputs, 1080p60 support, HDMI multiview, dual HDMI program outputs, USB-C streaming, audio mixing, keying, PiP/PoP layouts and T-bar control make it well suited to professional streaming, events, education, worship and multi-camera production. At KSh 67,400, it offers a strong combination of professional switching features and compact portability.
