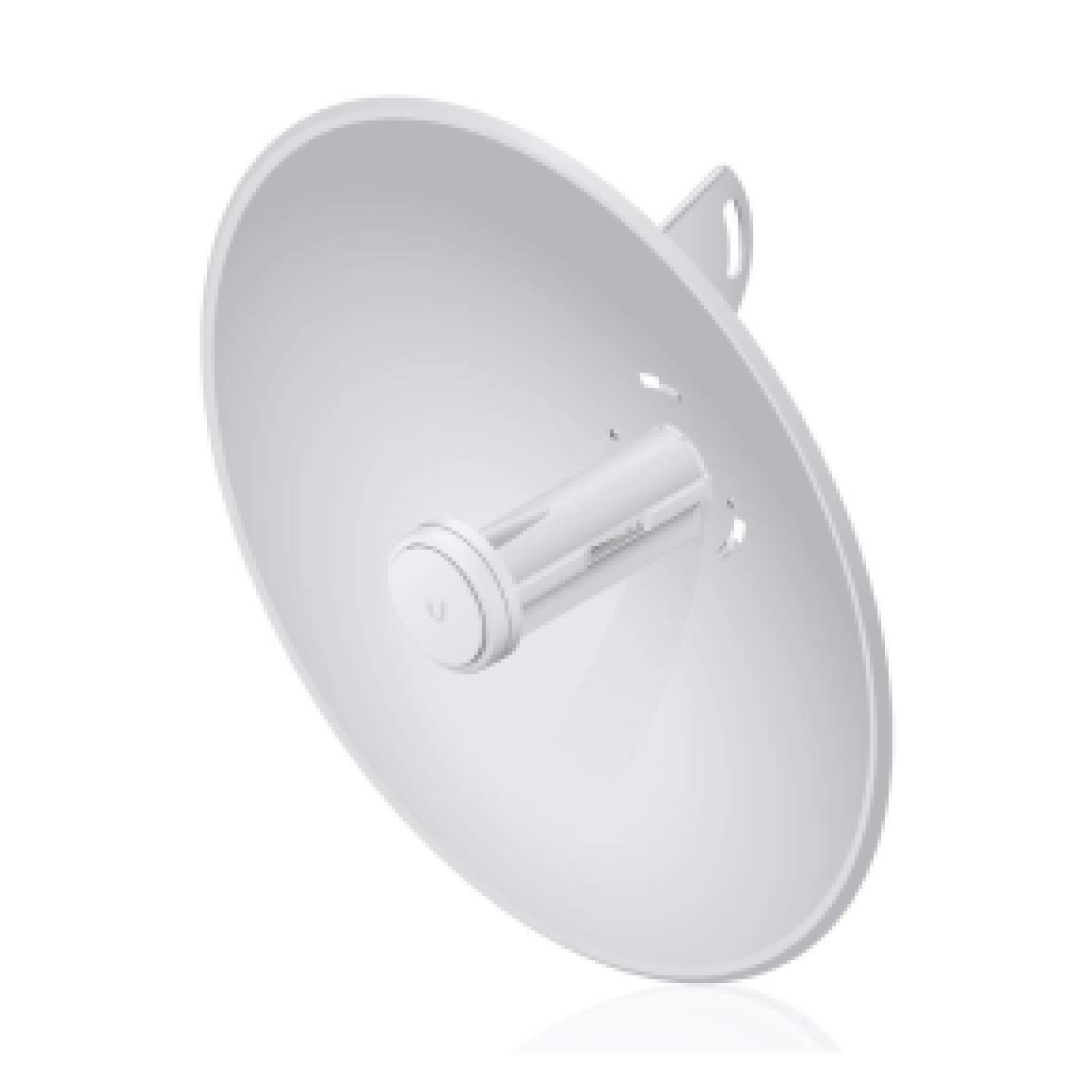

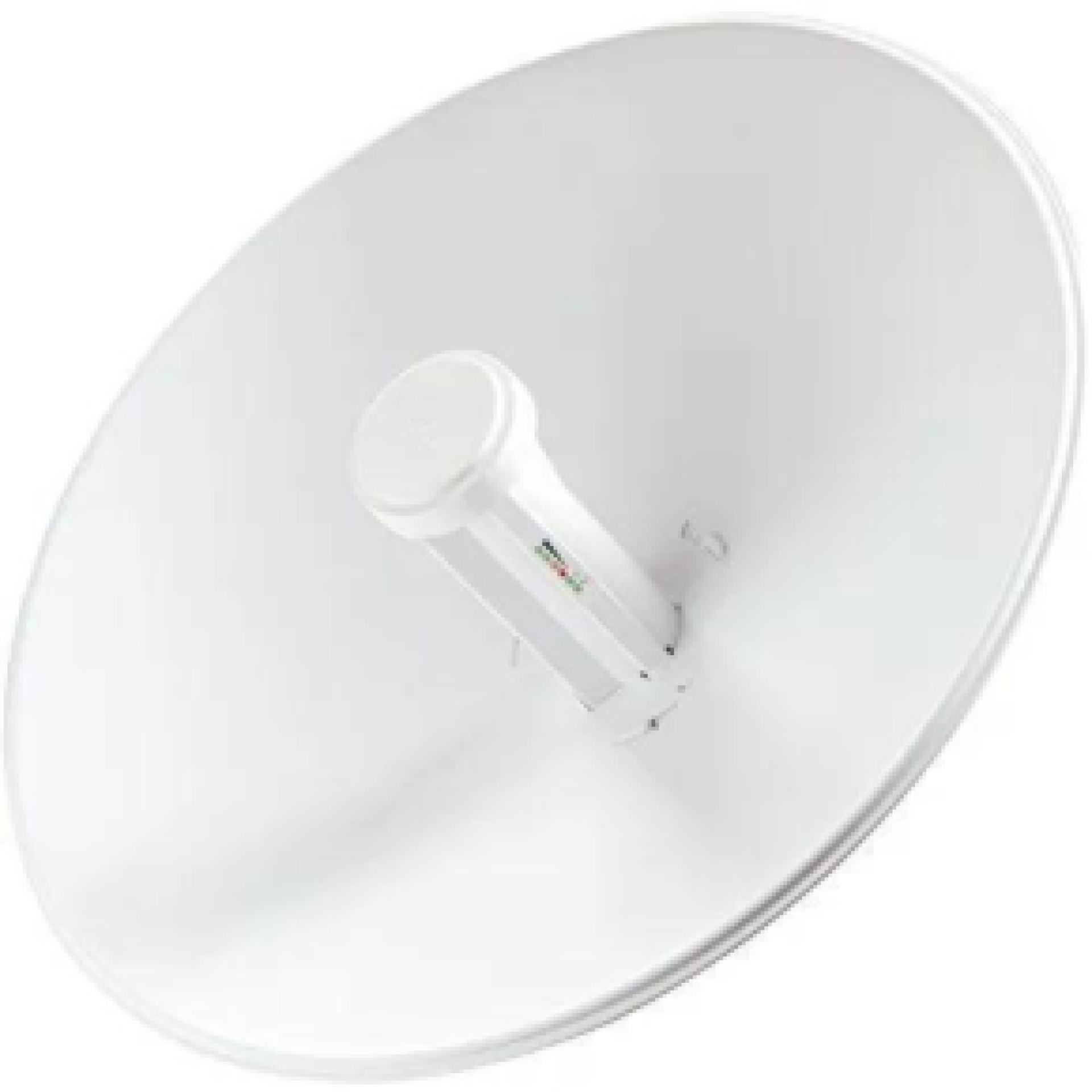

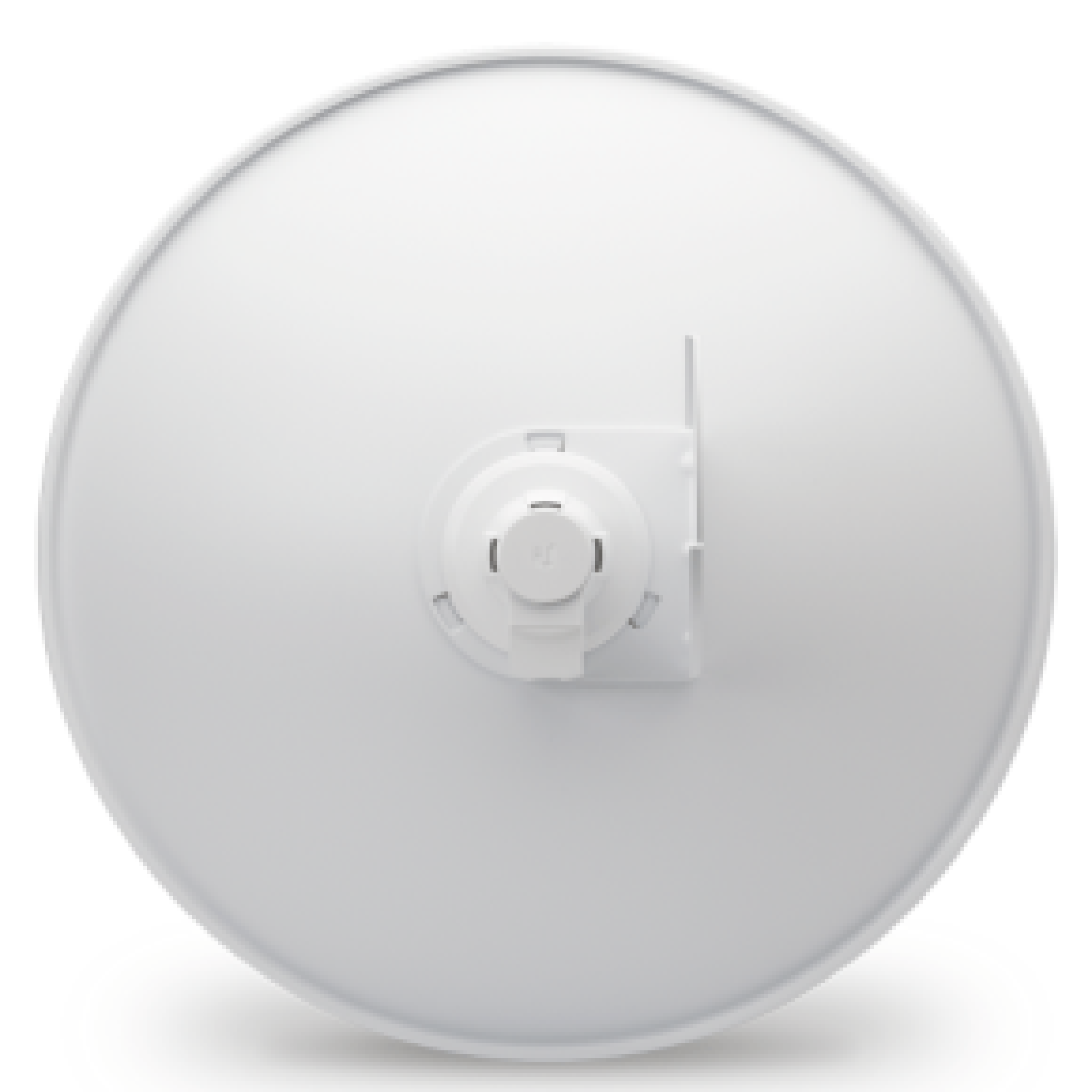

Ubiquiti PowerBeam 5AC Gen2 5GHz Bridge (PBE-5AC-Gen2)

Ubiquiti PowerBeam 5AC Gen2 5GHz Bridge (PBE-5AC-Gen2) Key Features

• Ubiquiti airMAX PowerBeam 5AC Gen2

• Model: PBE-5AC-Gen2

• 5 GHz airMAX AC technology

• 25 dBi antenna gain

• Up to 450+ Mbps total throughput

• 1 × Gigabit Ethernet port

• Point-to-Point wireless bridge

• Integrated InnerFeed technology

• Dedicated management Wi-Fi

• Passive PoE power

• 24V, 0.5A Gigabit PoE adapter

• Outdoor directional dish design

• 200 km/h wind survivability

Ubiquiti PowerBeam 5AC Gen2 5GHz Bridge (PBE-5AC-Gen2) Overview

The Ubiquiti PowerBeam 5AC Gen2 5GHz Bridge (PBE-5AC-Gen2) is a high-gain outdoor wireless bridge designed for long-distance 5 GHz Point-to-Point connectivity, featuring 25 dBi antenna gain, airMAX AC technology, Gigabit Ethernet and up to 450+ Mbps total throughput. Its integrated InnerFeed design, dedicated management Wi-Fi, passive PoE power and durable outdoor construction make it suitable for building-to-building links, wireless backhaul, remote site connectivity and fixed wireless network deployments.

Ubiquiti PowerBeam 5AC Gen2 5GHz Bridge (PBE-5AC-Gen2) Price

Ubiquiti PowerBeam 5AC Gen2 5GHz Bridge (PBE-5AC-Gen2) Specifications

Ubiquiti PowerBeam 5AC Gen2 5GHz Bridge (PBE-5AC-Gen2) Wireless Performance Features

• 25 dBi antenna gain provides focused directional transmission for long-distance wireless links.

• 450+ Mbps total throughput provides high wireless capacity for compatible airMAX AC deployments.

• 5 GHz airMAX AC technology delivers a platform designed for high-performance fixed wireless networking.

• Up to 80 MHz channel width in PtP mode provides configuration flexibility where spectrum conditions permit.

• Directional dish design concentrates the wireless signal toward the remote endpoint for focused Point-to-Point communication.

• airMAX protocol support helps optimize communication between compatible Ubiquiti wireless devices.

Ubiquiti PowerBeam 5AC Gen2 5GHz Bridge (PBE-5AC-Gen2) Design Features

• Integrated InnerFeed technology integrates the radio into the antenna feedhorn, reducing the need for conventional RF cables between the radio and antenna.

• Compact dish construction provides a focused wireless beam suitable for long-distance links.

• Dedicated management Wi-Fi simplifies local configuration using compatible management devices.

• 200 km/h wind survivability supports outdoor tower and pole installations.

• Wide operating temperature range supports deployment in demanding outdoor environments.

• Pole-mounting design provides a practical installation solution for fixed wireless links.

Ubiquiti PowerBeam 5AC Gen2 5GHz Bridge (PBE-5AC-Gen2) Connectivity and Management Features

• Gigabit Ethernet port provides a high-speed wired connection to a router, switch or network device.

• Passive PoE power allows power and network connectivity to be delivered through Ethernet.

• airOS management provides configuration and monitoring capabilities.

• airView spectrum analyzer helps identify available spectrum and potential interference.

• airMagic technology assists with wireless channel selection.

• SNMP and SSH support provide additional network administration and monitoring options.

Ubiquiti PowerBeam 5AC Gen2 5GHz Bridge (PBE-5AC-Gen2) Applications

• Point-to-Point Wireless Bridges

• Building-to-Building Connectivity

• Wireless Backhaul

• Remote Site Networking

• Fixed Wireless Broadband

• Wireless ISP Networks

• CCTV Wireless Links

• Campus Network Extensions

• Enterprise Network Links

• Rural Connectivity

• Outdoor Network Extensions

• Long-Distance Wireless Networking

Ubiquiti PowerBeam 5AC Gen2 5GHz Bridge (PBE-5AC-Gen2) Pros and Cons

Ubiquiti PowerBeam 5AC Gen2 5GHz Bridge (PBE-5AC-Gen2) FAQs

What is the Ubiquiti PBE-5AC-Gen2 used for?

The PBE-5AC-Gen2 is an outdoor 5 GHz wireless bridge designed primarily for long-distance Point-to-Point network connections.

What is the antenna gain of the PowerBeam 5AC Gen2?

The antenna provides 25 dBi gain.

What throughput does the PBE-5AC-Gen2 support?

The PowerBeam 5AC Gen2 is rated for 450+ Mbps total throughput.

Does the PBE-5AC-Gen2 have Gigabit Ethernet?

Yes. It features a Gigabit Ethernet port for wired network connectivity.

Can two PowerBeam 5AC Gen2 units be used as a wireless bridge?

Yes. A pair can be configured to establish a Point-to-Point wireless connection between two network locations.

Is the PowerBeam 5AC Gen2 suitable for building-to-building links?

Yes. Its high-gain directional dish is suitable for building-to-building and other long-distance wireless connections.

How is the PBE-5AC-Gen2 powered?

It uses passive PoE and is supplied with a compatible PoE adapter.

Is the PowerBeam 5AC Gen2 suitable for outdoor use?

Yes. It is designed for outdoor deployment and offers 200 km/h wind survivability.

What is the Ubiquiti PowerBeam 5AC Gen2 price in Kenya?

The indicative price range is KSh 18,000 – 22,000.

Ubiquiti PowerBeam 5AC Gen2 5GHz Bridge (PBE-5AC-Gen2) Conclusion

The Ubiquiti PowerBeam 5AC Gen2 5GHz Bridge (PBE-5AC-Gen2) is a high-gain outdoor wireless bridge designed for long-distance Point-to-Point networking. With 25 dBi gain, 450+ Mbps total throughput, Gigabit Ethernet, airMAX AC technology and integrated InnerFeed, it is well suited for building-to-building connectivity, wireless backhaul, remote sites and fixed wireless network deployments.

Price Range in Kenya: KSh 18,000 – 22,000.
