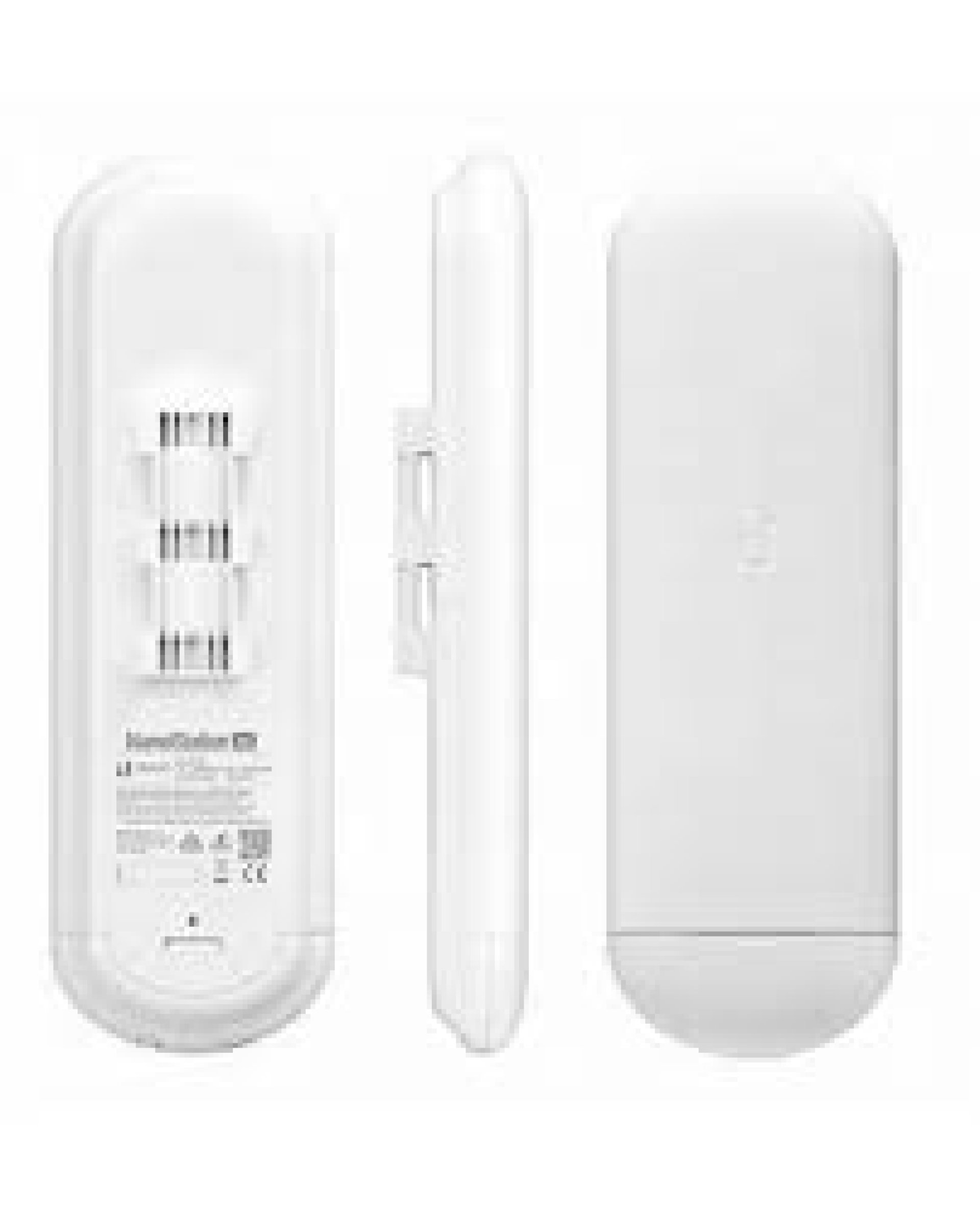

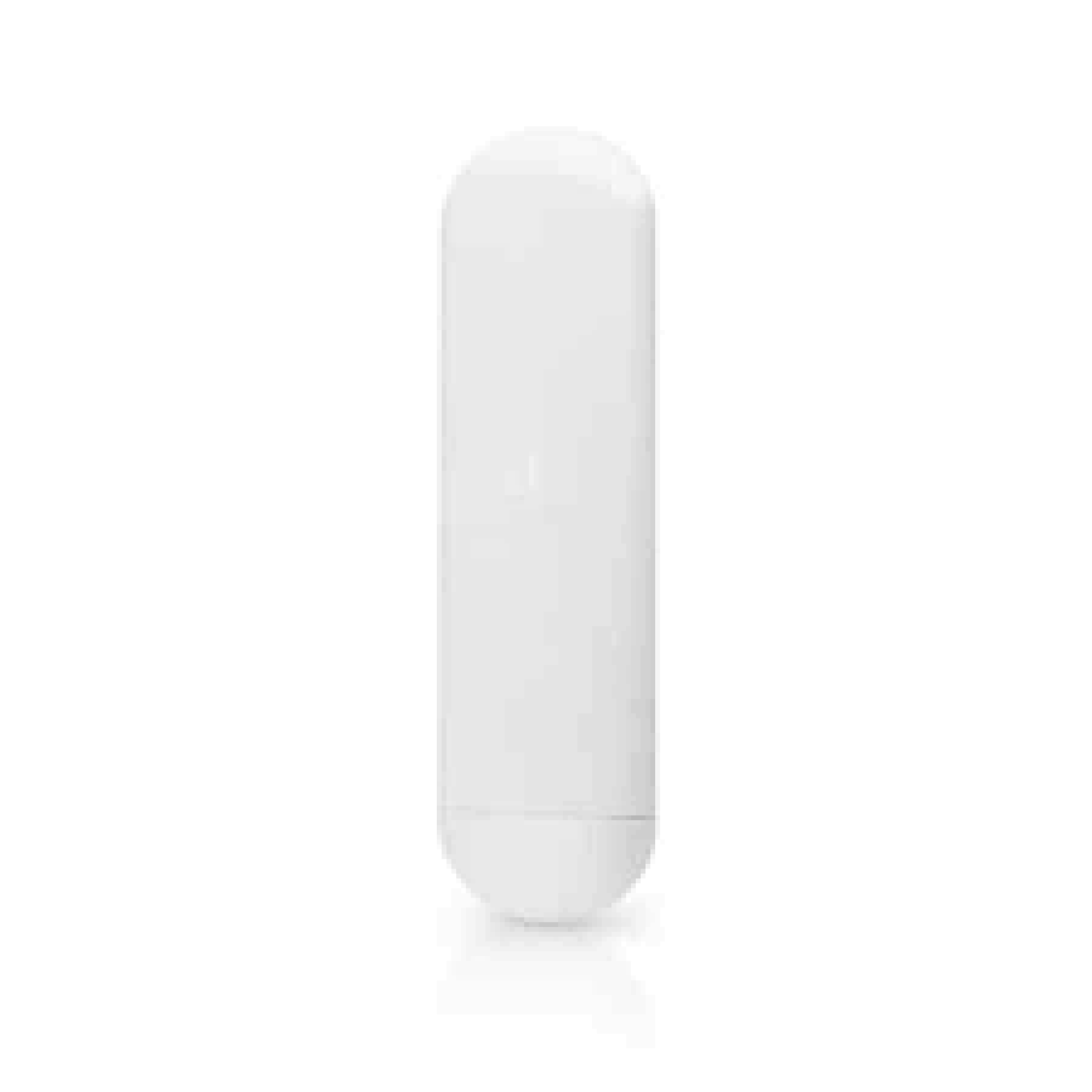

Ubiquiti airMAX NanoStation AC 5GHz 802.11ac (NS-5AC)

Ubiquiti airMAX NanoStation AC 5GHz 802.11ac (NS-5AC) Key Features

• Ubiquiti airMAX NanoStation AC

• Model: NS-5AC

• 5 GHz airMAX AC technology

• 16 dBi antenna gain

• Up to 450+ Mbps throughput

• 2 × Gigabit Ethernet ports

• Dual-linear polarization

• Dedicated Wi-Fi management radio

• Access Point and Station modes

• 10/20/30/40/50/60/80 MHz channel bandwidth

• Passive PoE and 802.3af support

• Pole and wall mounting kits included

• Outdoor UV-resistant polycarbonate enclosure

Ubiquiti airMAX NanoStation AC 5GHz 802.11ac (NS-5AC) Overview

The Ubiquiti airMAX NanoStation AC 5GHz 802.11ac (NS-5AC) is a compact outdoor wireless radio designed for Point-to-Point and customer-premises applications, featuring 16 dBi antenna gain, airMAX AC technology, up to 450+ Mbps throughput, dual Gigabit Ethernet ports and a dedicated Wi-Fi management radio. Its dual-polarized directional antenna, flexible channel bandwidths and outdoor enclosure make it suitable for wireless ISP networks, building-to-building connectivity, fixed wireless access, CCTV links and other outdoor wireless deployments.

Ubiquiti airMAX NanoStation AC 5GHz 802.11ac (NS-5AC) Price

Ubiquiti airMAX NanoStation AC 5GHz 802.11ac (NS-5AC) Specifications

Ubiquiti airMAX NanoStation AC 5GHz 802.11ac (NS-5AC) Wireless Performance Features

• 16 dBi antenna gain provides focused 5 GHz wireless coverage for fixed outdoor connections.

• 450+ Mbps throughput provides substantial wireless capacity for compatible airMAX AC deployments.

• Dual-linear polarization supports compatible airMAX AC wireless configurations.

• Up to 80 MHz channel bandwidth provides flexibility when configuring high-capacity Point-to-Point links.

• 45° directional beamwidth focuses the wireless signal toward the intended coverage area or remote endpoint.

• airMAX AC technology provides efficient wireless communication for compatible Ubiquiti fixed wireless equipment.

Ubiquiti airMAX NanoStation AC 5GHz 802.11ac (NS-5AC) Connectivity and Management Features

• Two Gigabit Ethernet ports provide high-speed wired connectivity to network equipment.

• Dedicated 2.4 GHz management radio allows convenient configuration from a compatible mobile device.

• Passive PoE and 802.3af support provide flexible powering options.

• Secondary Ethernet port with PoE capability can provide connectivity for compatible external equipment.

• airOS web management provides configuration and monitoring of wireless settings.

• SNMP and SSH support provide additional options for network administration.

Ubiquiti airMAX NanoStation AC 5GHz 802.11ac (NS-5AC) Outdoor Installation Features

• Compact 233g design makes the NanoStation AC easy to install on poles or walls.

• UV-resistant polycarbonate enclosure is designed for outdoor deployment.

• -40°C to 70°C operating temperature range supports operation across demanding environmental conditions.

• Pole and wall mounting kits included simplify installation.

• Integrated directional antenna combines the radio and antenna in a compact outdoor unit.

• Signal-strength LEDs assist with positioning and wireless link alignment.

Ubiquiti airMAX NanoStation AC 5GHz 802.11ac (NS-5AC) Applications

• Point-to-Point Wireless Links

• Point-to-Multipoint Networks

• Wireless ISP Networks

• Building-to-Building Connectivity

• Fixed Wireless Broadband

• CCTV Wireless Backhaul

• Remote Site Connectivity

• Rural Wireless Networks

• Outdoor Network Extensions

• Campus Networks

• Enterprise Wireless Infrastructure

• Customer Premises Connectivity

Ubiquiti airMAX NanoStation AC 5GHz 802.11ac (NS-5AC) Pros and Cons

Ubiquiti airMAX NanoStation AC 5GHz 802.11ac (NS-5AC) FAQs

What is the Ubiquiti NS-5AC used for?

The NS-5AC is a 5 GHz airMAX AC wireless radio designed for Point-to-Point, customer-premises and other fixed wireless applications.

What is the antenna gain of the NanoStation AC?

The NS-5AC has 16 dBi antenna gain.

What throughput does the NS-5AC support?

The NanoStation AC supports up to 450+ Mbps throughput in suitable deployments.

Does the NS-5AC have Gigabit Ethernet?

Yes. It has two Gigabit RJ45 Ethernet ports.

Does the NanoStation AC support 802.11ac?

The NS-5AC uses Ubiquiti's airMAX AC wireless technology and is commonly marketed as a 5 GHz 802.11ac wireless radio.

Does the NS-5AC have Wi-Fi management?

Yes. It includes a dedicated 2.4 GHz management radio for convenient setup and configuration.

How is the NS-5AC powered?

It supports passive PoE and 802.3af, with a 24V, 0.5A Gigabit PoE adapter supplied.

Is the NS-5AC suitable for outdoor use?

Yes. It has a UV-resistant polycarbonate enclosure and is rated for an operating temperature range of -40°C to 70°C.

What is the Ubiquiti NanoStation AC NS-5AC price in Kenya?

The indicative price range is KSh 17,000 – 20,000.

Ubiquiti airMAX NanoStation AC 5GHz 802.11ac (NS-5AC) Conclusion

The Ubiquiti airMAX NanoStation AC 5GHz 802.11ac (NS-5AC) is a compact outdoor wireless radio offering 16 dBi gain, up to 450+ Mbps throughput, dual Gigabit Ethernet, dual-linear polarization and dedicated Wi-Fi management. It is a suitable option for wireless ISPs, Point-to-Point links, customer-premises connectivity, CCTV backhaul and outdoor network extensions.

Price Range in Kenya: KSh 17,000 – 20,000.
