MikroTik Cloud Core Router 2116-12G-4S+ CCR2116-12G-4S+ Key Features
- 16-core ARM64 processor
- 2GHz CPU frequency
- 16GB DDR4 RAM
- 128MB NAND storage
- 12 × Gigabit Ethernet ports
- 4 × 10G SFP+ ports
- 1 × additional Gigabit Ethernet management port
- 1 × M.2 PCIe x4 slot
- RouterOS v7
- Level 6 RouterOS license
- Layer 3 hardware offloading
- Dual redundant AC power supplies
- 1U rack-mountable design
- Four cooling fans
- RJ45 serial console
- Designed for ISP and enterprise-level networking
MikroTik Cloud Core Router 2116-12G-4S+ CCR2116-12G-4S+ Introduction

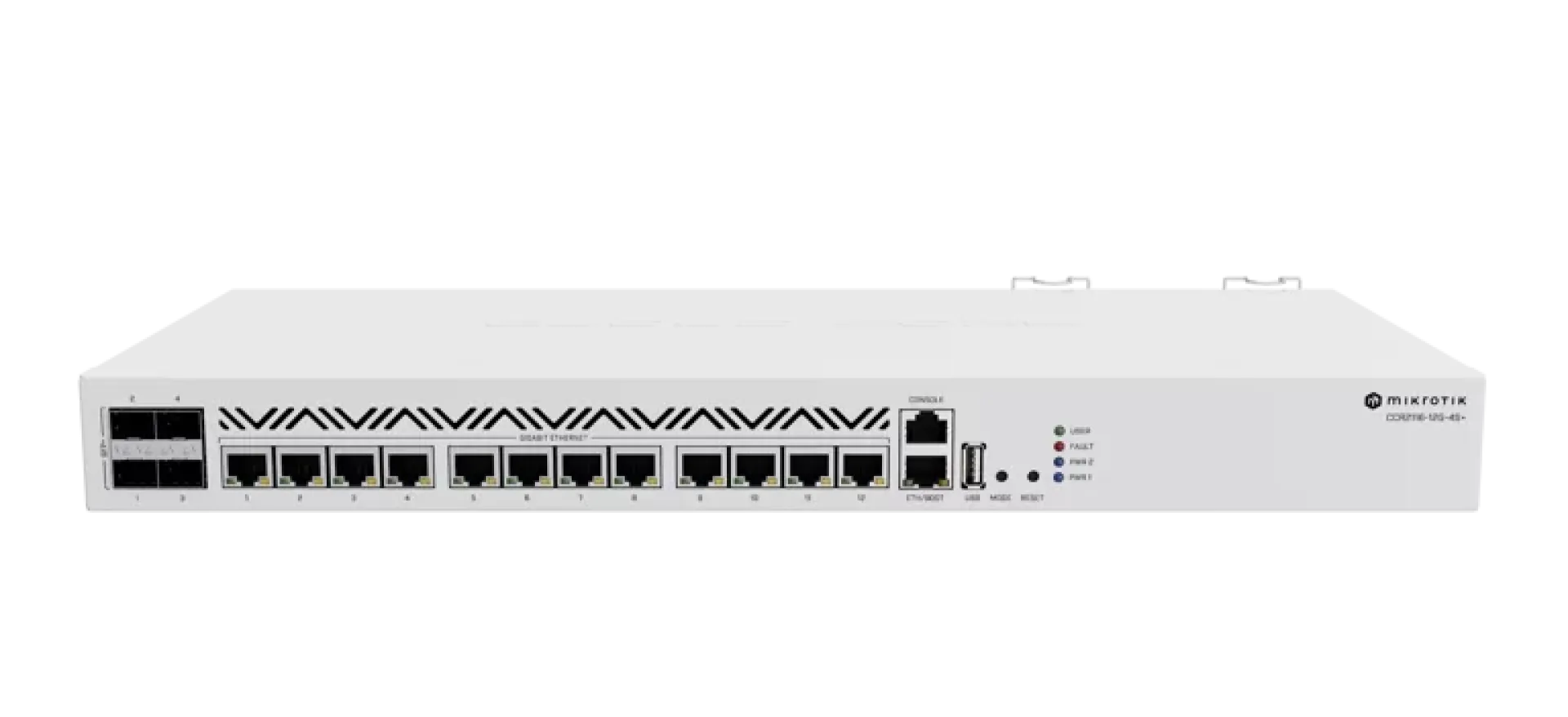

The MikroTik CCR2116-12G-4S+ is a high-performance Cloud Core Router designed for demanding enterprise networks, Internet service providers, data centers, and high-capacity routing environments. It combines 12 Gigabit Ethernet ports with four 10G SFP+ ports, providing extensive wired connectivity and high-speed fiber uplinks.
The router is powered by a 16-core ARM64 processor running at 2GHz and comes with 16GB of DDR4 RAM. It runs RouterOS v7 with a Level 6 license and supports Layer 3 hardware offloading, making it suitable for complex routing, BGP, firewall, VPN, QoS, and other demanding network configurations.
MikroTik Cloud Core Router 2116-12G-4S+ CCR2116-12G-4S+ Price in Kenya
| Product | Price |
|---|---|
| MikroTik Cloud Core Router 2116-12G-4S+ CCR2116-12G-4S+ | KSh 143,000 |
MikroTik Cloud Core Router 2116-12G-4S+ CCR2116-12G-4S+ Key Specifications
| Feature | Details |
|---|---|
| Model | CCR2116-12G-4S+ |
| Product Type | Cloud Core Router |
| Architecture | ARM64 |
| Processor | AL73400 |
| CPU Cores | 16 |
| CPU Speed | 2GHz |
| RAM | 16GB DDR4 |
| Storage | 128MB NAND |
| Gigabit Ethernet Ports | 13 × 10/100/1000 Mbps |
| SFP+ Ports | 4 × 10Gbps |
| M.2 Slot | 1 × PCIe x4 |
| USB | 1 × USB 3.0 Type-A |
| Operating System | RouterOS v7 |
| RouterOS License | Level 6 |
| Switch Chip | Marvell 98DX3255 |
| Power Inputs | 2 × AC |
| AC Input | 100–240V |
| Cooling | 4 fans |
| Maximum Power Consumption | 72W |
| Dimensions | 443 × 199 × 44 mm |
| Rack Mount | 1U |
| Operating Temperature | -20°C to 60°C |
The CCR2116 has 12 Gigabit ports connected through the switch chip plus a separate Gigabit management port connected directly to the CPU, giving a total of 13 Gigabit Ethernet ports.
MikroTik Cloud Core Router 2116-12G-4S+ CCR2116-12G-4S+ Performance
The CCR2116-12G-4S+ is built for high-throughput routing and demanding network workloads.
- 16-core 2GHz ARM processor provides substantial processing power
- Four 10G SFP+ ports provide high-speed fiber connectivity
- 16GB RAM supports large and complex RouterOS configurations
- Layer 3 hardware offloading improves routing performance
- Designed for dynamic routing and large BGP deployments
- Supports advanced firewall and quality-of-service configurations
- Hardware architecture provides separate full-duplex connections between port groups and the switch chip
- MikroTik testing shows very high throughput in hardware-offloaded routing configurations.
MikroTik Cloud Core Router 2116-12G-4S+ CCR2116-12G-4S+ Build Quality & Design

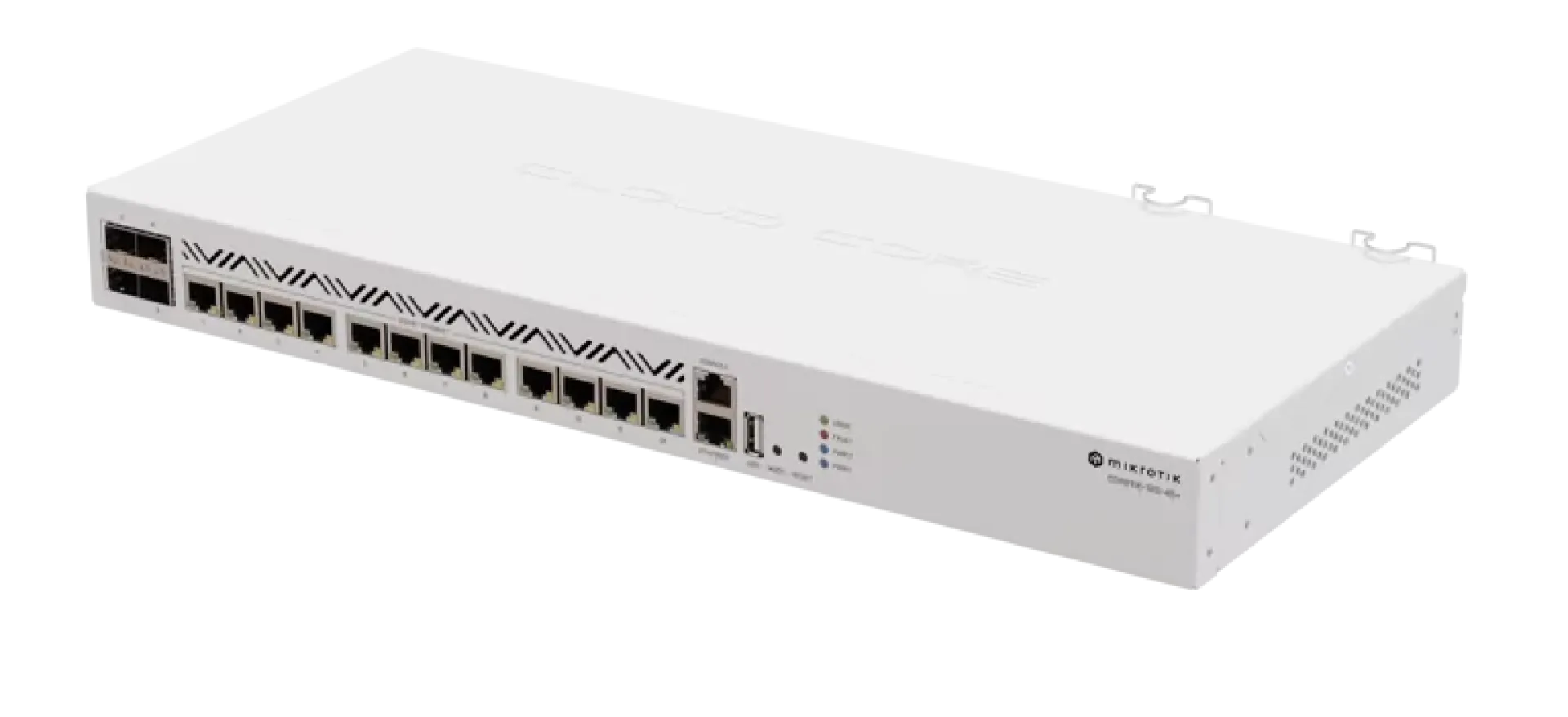

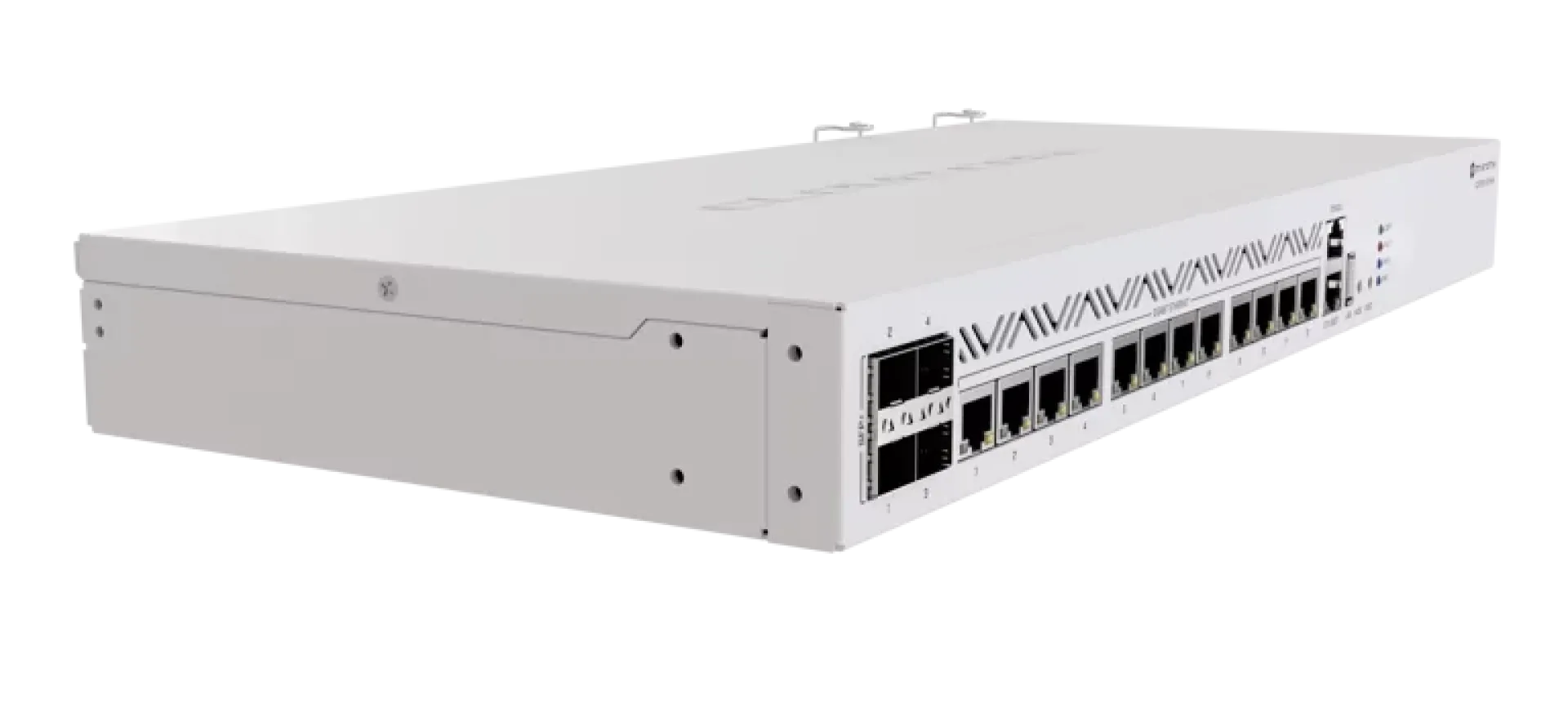

The CCR2116-12G-4S+ features a professional 1U rack-mount chassis designed for continuous operation in network infrastructure environments.
- 443 × 199 × 44 mm chassis
- Standard 1U rack-mount form factor
- Four cooling fans
- Dual redundant AC power supplies
- RJ45 serial console
- M.2 PCIe x4 slot for compatible NVMe storage
- Suitable for server rooms and network cabinets
- Designed for indoor installation in a dry and ventilated environment
MikroTik Cloud Core Router 2116-12G-4S+ CCR2116-12G-4S+ Connectivity & Compatibility
The router provides a combination of Gigabit Ethernet and high-speed SFP+ connectivity.
- 12 × Gigabit Ethernet ports
- 1 × additional Gigabit management port
- 4 × 10G SFP+ ports
- M.2 PCIe x4 slot
- USB 3.0 Type-A port
- RJ45 serial console
- Compatible with appropriate SFP+ modules and direct-attach cables
- Dual AC power inputs for redundancy
- Supports RouterOS v7 and advanced routing functions
MikroTik Cloud Core Router 2116-12G-4S+ CCR2116-12G-4S+ Ideal Use Cases
This Cloud Core Router is best suited for:
- Internet service providers
- Enterprise networks
- Data centers
- ISP core routing
- Large corporate networks
- BGP routing environments
- High-speed fiber networks
- Network backbone deployments
- MPLS networks
- High-capacity VPN deployments
- Network aggregation
- Professional network laboratories
MikroTik Cloud Core Router 2116-12G-4S+ CCR2116-12G-4S+ Pros and Cons
| Pros | Cons |
|---|---|
| Powerful 16-core 2GHz processor | No built-in Wi-Fi |
| 16GB DDR4 RAM | Advanced configuration requires networking knowledge |
| 4 × 10G SFP+ ports | SFP+ modules may need to be purchased separately |
| 13 Gigabit Ethernet ports | Higher power consumption than smaller routers |
| Layer 3 hardware offloading | Designed primarily for professional networks |
| Dual redundant power supplies | Active cooling produces fan noise |
| M.2 PCIe storage expansion | More powerful than necessary for basic networks |
| RouterOS Level 6 | Higher initial investment |
MikroTik Cloud Core Router 2116-12G-4S+ CCR2116-12G-4S+ FAQs
How many Gigabit Ethernet ports does the CCR2116 have?
It has 12 Gigabit Ethernet ports connected through the switch chip and one additional Gigabit Ethernet management port connected directly to the CPU, for a total of 13 Gigabit Ethernet ports.
How many 10G SFP+ ports does it have?
The CCR2116-12G-4S+ has four 10G SFP+ ports.
How much RAM does the CCR2116 have?
It has 16GB of DDR4 RAM and 128MB of NAND storage.
What processor does the CCR2116 use?
It uses a 16-core AL73400 ARM64 processor running at 2GHz.
Does it support 10Gbps networking?
Yes. It includes four dedicated 10G SFP+ ports for high-speed fiber or compatible direct-attach connections.
Does it support M.2 storage?
Yes. It includes one PCIe x4 M.2 slot that supports compatible NVMe M.2 2280 drives.
Does the CCR2116 have redundant power supplies?
Yes. It has two AC power inputs, allowing either or both power supplies to be used for redundancy.
What operating system does it use?
It runs RouterOS v7 with a Level 6 license.
Can it be rack mounted?
Yes. The CCR2116-12G-4S+ is designed for 1U rack-mount installation and includes rack-mount brackets.
MikroTik Cloud Core Router 2116-12G-4S+ CCR2116-12G-4S+ Conclusion
The MikroTik CCR2116-12G-4S+ is a powerful enterprise and ISP-grade Cloud Core Router designed for demanding network environments. With a 16-core 2GHz ARM64 processor, 16GB DDR4 RAM, 13 Gigabit Ethernet ports, four 10G SFP+ ports, Layer 3 hardware offloading, M.2 storage expansion, redundant power supplies, and RouterOS v7 Level 6, it provides the performance and flexibility required for large-scale routing and network infrastructure.
At KSh 143,000, the MikroTik CCR2116-12G-4S+ is a strong choice for ISPs, data centers, enterprises, and professional network operators requiring high-performance routing and multiple 10Gbps uplinks.
