Desview R5II 5.5″ On-Camera Touch Monitor

DESVIEW R5II 5.5" TOUCH SCREEN HDR

Key Specifications

• Product Type: On-Camera Field Monitor
• Screen Size: 5.5 inches
• Display Type: IPS LCD Touchscreen
• Resolution: 1920 × 1080 Full HD
• Brightness: 800 nits
• Contrast Ratio: 1000:1
• Aspect Ratio: 16:9
• Viewing Angle: 178°
• HDR Support: Yes, HLG/PQ
• LUT Support: Yes, custom 3D LUT
• HDMI Input: Yes
• HDMI Output: Yes, loop-out
• Maximum Input: DCI 4K 24p / UHD 4K up to 30p
• Battery Compatibility: Sony NP-F series / Canon LP-E6
• Power Input: DC 7–24V
• Power Output: DC 8V
• Audio Output: 3.5mm headphone jack
• USB: USB-A for LUT loading and updates
• Mounting: 1/4"-20 threads
• Touch Controls: Multi-touch and pinch-to-zoom
• Weight: Approximately 200g without battery

DESVIEW R5II 5.5" TOUCH SCREEN HDR Overview

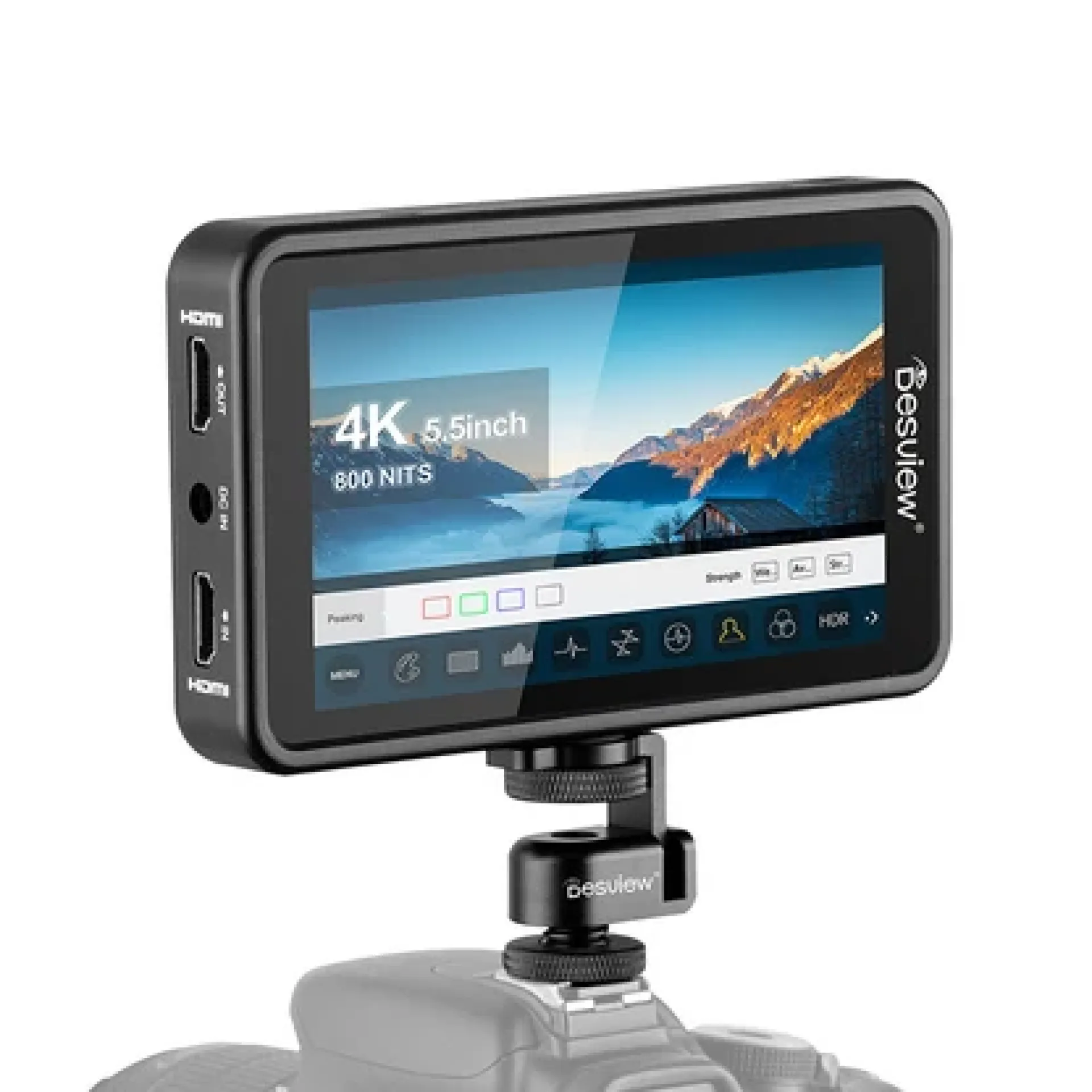

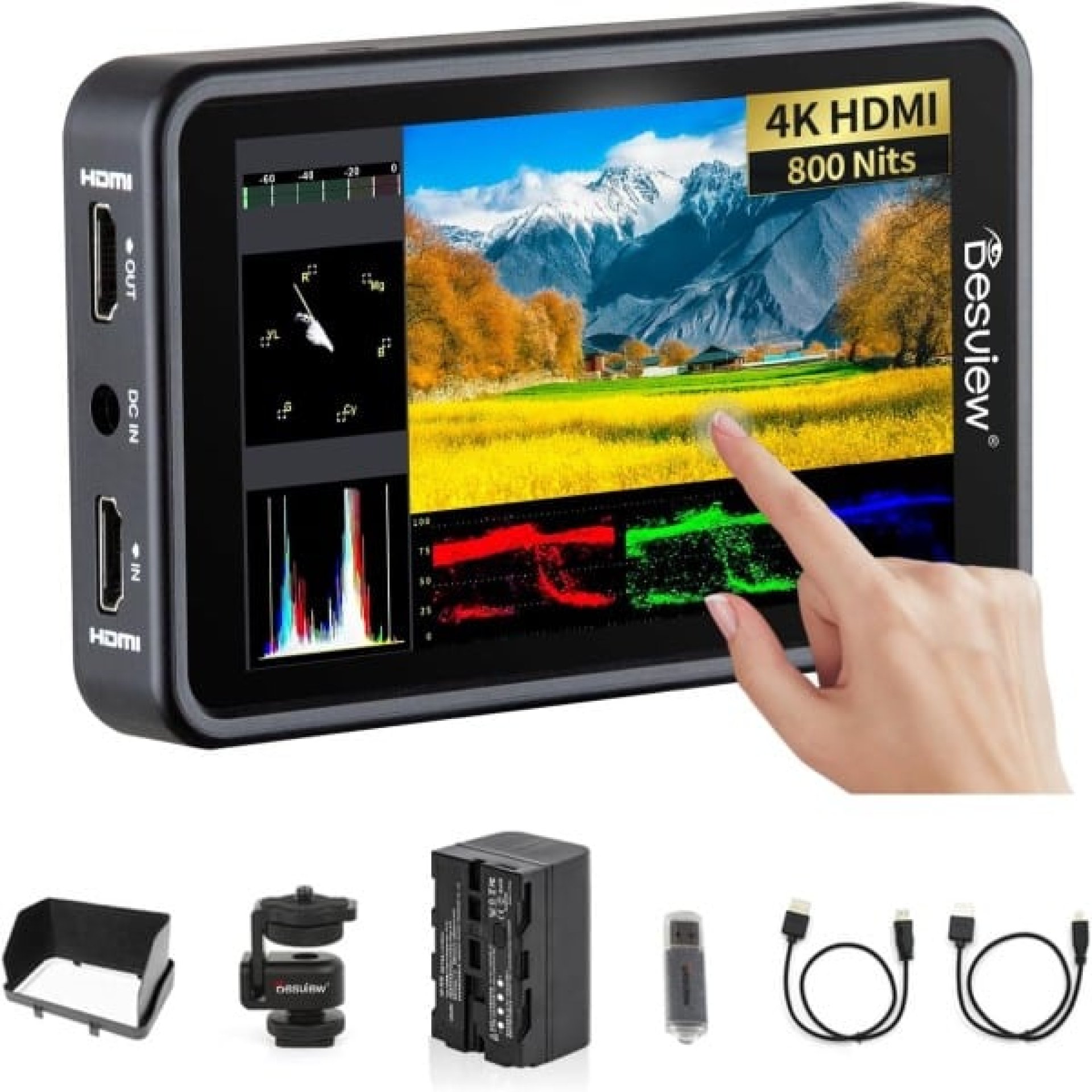

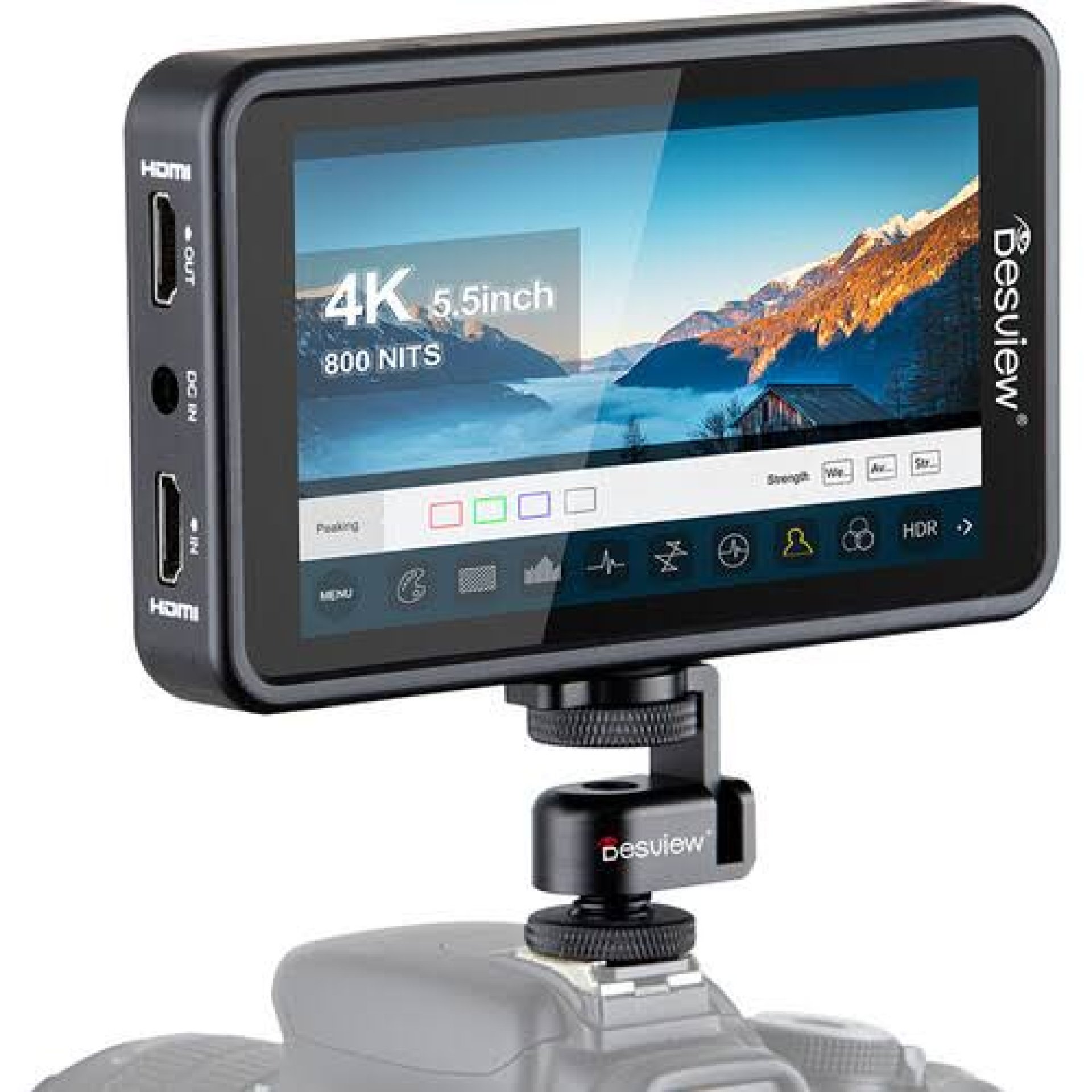

The DESVIEW R5II 5.5" TOUCH SCREEN HDR is a compact professional on-camera monitor designed for filmmakers, photographers, videographers and content creators who need a larger and more feature-rich monitoring screen than the camera's built-in display. It features a 5.5-inch Full HD IPS touchscreen, 800-nit brightness and a 178° viewing angle.

The monitor accepts high-resolution HDMI signals up to DCI 4K and UHD 4K and provides HDMI loop-out for sending the signal to another display. It also includes professional monitoring tools such as waveform, vectorscope, histogram, false color, focus peaking, zebra and RGB parade.

DESVIEW R5II 5.5" TOUCH SCREEN HDR Price in Kenya

DESVIEW R5II 5.5" TOUCH SCREEN HDR Full Specifications

Specifications are based on Desview's published R5II information and professional product documentation.

DESVIEW R5II 5.5" TOUCH SCREEN HDR Display Quality

• 5.5-inch Full HD IPS touchscreen.
• 1920 × 1080 native resolution.
• 800-nit brightness for improved visibility in bright shooting environments.
• 1000:1 contrast ratio.
• 178° viewing angle.
• 16:9 aspect ratio.
• Touchscreen supports swipe, scroll, selection and pinch-to-zoom gestures.
• HDR support provides HLG and PQ monitoring modes.
• Accurate color reproduction suitable for professional video monitoring.

DESVIEW R5II 5.5" TOUCH SCREEN HDR Performance

• Supports DCI 4K and UHD 4K HDMI input signals.
• HDMI loop-out allows the signal to be passed to another monitor or display.
• Waveform and vectorscope tools assist with exposure and color evaluation.
• Histogram and RGB parade provide additional image-analysis information.
• False color and zebra tools assist with exposure control.
• Focus peaking helps identify sharp areas while shooting.
• Anamorphic de-squeeze supports multiple aspect ratios.
• Pixel-to-pixel zoom allows detailed inspection of image areas.
• Lightweight design makes it suitable for handheld, tripod and gimbal-based setups.

DESVIEW R5II 5.5" TOUCH SCREEN HDR Connectivity

• HDMI input
• HDMI loop-out
• USB-A for LUT loading and firmware-related functions
• 3.5mm headphone output
• DC power input
• Compatible with HDMI-equipped DSLR cameras
• Compatible with mirrorless cameras
• Compatible with camcorders and cinema cameras.

DESVIEW R5II 5.5" TOUCH SCREEN HDR Design & Build Quality

• Compact 5.5-inch on-camera design.
• Lightweight body weighing approximately 200g without battery.
• Dual 1/4"-20 mounting points provide flexible mounting options.
• Touchscreen interface reduces dependence on physical controls.
• Includes a sun hood for improved outdoor viewing.
• Compatible with both NP-F and LP-E6 battery formats.
• Suitable for camera rigs, cages, tripods, sliders and gimbals.

DESVIEW R5II 5.5" TOUCH SCREEN HDR Power & Efficiency

• Supports Sony NP-F series batteries.
• Supports Canon LP-E6 batteries.
• DC 7–24V power input.
• Provides DC 8V power output for compatible accessories.
• Maximum power consumption is approximately 9W.
• Battery and DC power options provide flexibility for studio and field production.

DESVIEW R5II 5.5" TOUCH SCREEN HDR Compatibility

• DSLR cameras
• Mirrorless cameras
• Cinema cameras
• Professional camcorders
• HDMI-equipped video cameras
• Camera cages and rigs
• Gimbals
• Tripods
• External HDMI recording and monitoring systems

DESVIEW R5II 5.5" TOUCH SCREEN HDR Ideal Use

• Professional filmmaking
• YouTube production
• Vlogging
• Live streaming
• Interviews
• Documentary production
• Commercial video
• Event videography
• Cinematography
• Run-and-gun shooting
• Gimbal operation
• Studio monitoring
• Outdoor video production

DESVIEW R5II 5.5" TOUCH SCREEN HDR Pros & Cons

DESVIEW R5II 5.5" TOUCH SCREEN HDR FAQs

1. What is the screen resolution of the R5II?
The R5II features a 1920 × 1080 Full HD IPS display.

2. Is the R5II touchscreen?
Yes. The 5.5-inch display uses capacitive multi-touch technology and supports gestures such as pinch-to-zoom.

3. Does it support 4K video signals?
Yes. The R5II accepts DCI 4K up to 24p and UHD 4K up to 30p through HDMI.

4. Does the monitor support HDR?
Yes. It supports HDR monitoring, including HLG and PQ modes.

5. Which batteries can be used with the R5II?
The monitor supports Sony NP-F series and Canon LP-E6 batteries.

6. Does it support LUTs?
Yes. Custom 3D LUT files can be loaded through the monitor's USB interface.

DESVIEW R5II 5.5" TOUCH SCREEN HDR Conclusion

The DESVIEW R5II 5.5" TOUCH SCREEN HDR is a compact and versatile field monitor for filmmakers, photographers and video creators. Its 5.5-inch Full HD touchscreen, 800-nit brightness, HDR support, 4K HDMI input, loop-out, custom 3D LUT support and professional exposure and focus tools provide considerably more monitoring capability than a typical camera screen. At KSh 19,600, it is a strong option for creators looking for an affordable professional on-camera monitor.
