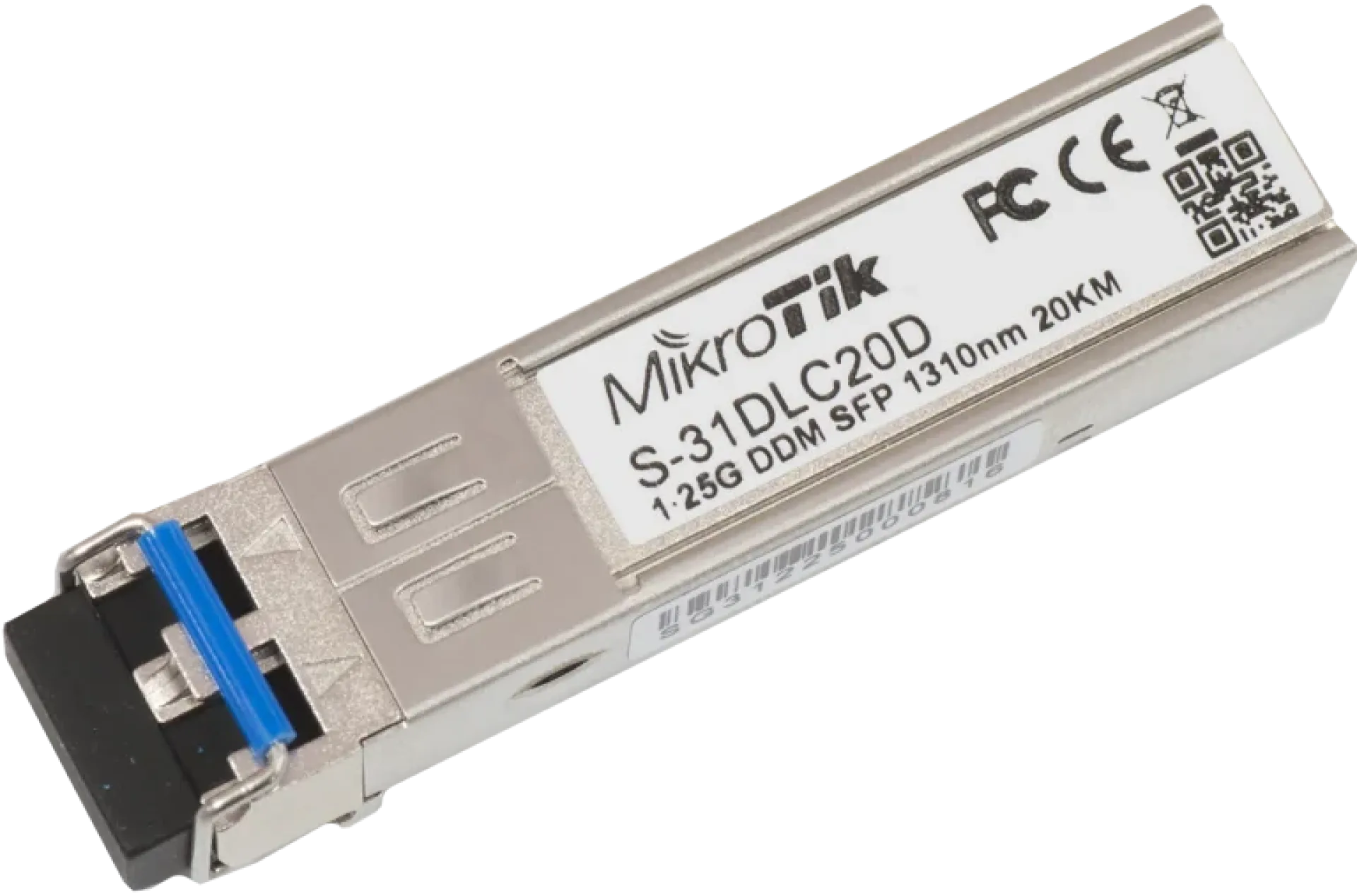

MikroTik S-31DLC20D SFP 1.25G Module 20KM Single SFP Transceiver

MikroTik S-31DLC20D SFP 1.25G Module 20KM Single Mode Key Features

• 1.25Gbps data rate
• Up to 20KM transmission distance
• Single-mode fiber support
• 1310nm wavelength
• Dual LC UPC connector
• Standard SFP form factor
• Digital Diagnostic Monitoring DDM
• Compatible with MikroTik and other standard SFP devices
• Suitable for long-distance fiber links
• Wide operating temperature range of -40°C to +70°C

MikroTik S-31DLC20D SFP 1.25G Module 20KM Single Mode Introduction

The MikroTik S-31DLC20D is a 1.25Gbps SFP transceiver designed for reliable long-distance fiber-optic networking. It supports single-mode fiber connections of up to 20 kilometers and uses a 1310nm wavelength with a Dual LC UPC connector.

The module is suitable for enterprise networks, ISP infrastructure, campus networks, building-to-building connections, and other applications where reliable fiber connectivity over extended distances is required. It also features Digital Diagnostic Monitoring for monitoring important optical parameters.

MikroTik S-31DLC20D SFP 1.25G Module 20KM Single Mode Price in Kenya

MikroTik S-31DLC20D SFP 1.25G Module 20KM Single Mode Key Specifications

MikroTik S-31DLC20D SFP 1.25G Module 20KM Single Mode Performance

The S-31DLC20D provides dependable fiber connectivity for long-distance network infrastructure.

• 1.25Gbps transmission provides Gigabit-class fiber connectivity
• 20KM reach supports long-distance network connections
• Single-mode fiber minimizes signal loss over extended distances
• 1310nm wavelength is optimized for long-distance single-mode links
• DDM enables monitoring of optical performance
• Suitable for backbone and uplink applications
• Supports reliable connections between compatible SFP-equipped devices

MikroTik S-31DLC20D SFP 1.25G Module 20KM Single Mode Build Quality & Design

The module uses a compact standard SFP form factor designed for easy installation into compatible networking equipment.

• Compact SFP design
• Dual LC UPC optical interface
• Designed for single-mode fiber
• Suitable for network switches and routers with compatible SFP slots
• Wide operating temperature range
• Designed for long-term network infrastructure deployments

MikroTik S-31DLC20D SFP 1.25G Module 20KM Single Mode Connectivity & Compatibility

The S-31DLC20D is designed to work with compatible SFP-equipped networking devices.

• 1.25Gbps SFP interface
• Dual LC UPC fiber connection
• Single-mode fiber support
• Compatible with various MikroTik SFP devices
• Can also operate with compatible non-MikroTik SFP equipment
• Tested for compatibility with devices including RB260GS, RB2011 series, and CCR1036-12G-4S

MikroTik S-31DLC20D SFP 1.25G Module 20KM Single Mode Ideal Use Cases

This SFP module is best suited for:

• Enterprise fiber networks
• ISP infrastructure
• Campus networks
• Building-to-building connections
• Long-distance network extensions
• Fiber backbone links
• Switch-to-switch fiber connections
• Router-to-switch fiber connections
• Data center networking
• Business network uplinks

MikroTik S-31DLC20D SFP 1.25G Module 20KM Single Mode Pros and Cons

MikroTik S-31DLC20D SFP 1.25G Module 20KM Single Mode FAQs

What is the maximum distance of the S-31DLC20D?
It supports single-mode fiber connections of up to 20 kilometers.

What speed does the S-31DLC20D support?
It supports a data rate of 1.25Gbps.

What wavelength does it use?
The module operates at 1310nm.

What connector does the S-31DLC20D use?
It uses a Dual LC UPC connector.

Is the S-31DLC20D single-mode or multimode?
It is designed for single-mode fiber connections.

Does it support DDM?
Yes. The S-31DLC20D includes Digital Diagnostic Monitoring for optical monitoring.

Can it work with non-MikroTik equipment?
Yes. MikroTik states that the module is compatible with non-MikroTik SFP devices as well, provided the equipment supports the appropriate SFP specification.

MikroTik S-31DLC20D SFP 1.25G Module 20KM Single Mode Conclusion

The MikroTik S-31DLC20D is a reliable 1.25Gbps single-mode SFP module designed for fiber connections of up to 20KM. With its 1310nm wavelength, Dual LC UPC connector, DDM support, and compatibility with MikroTik and other suitable SFP equipment, it is well suited for enterprise, ISP, campus, and long-distance fiber networking.

At KSh 4,500, the MikroTik S-31DLC20D offers a practical and affordable solution for extending Gigabit network connectivity over long-distance single-mode fiber.
