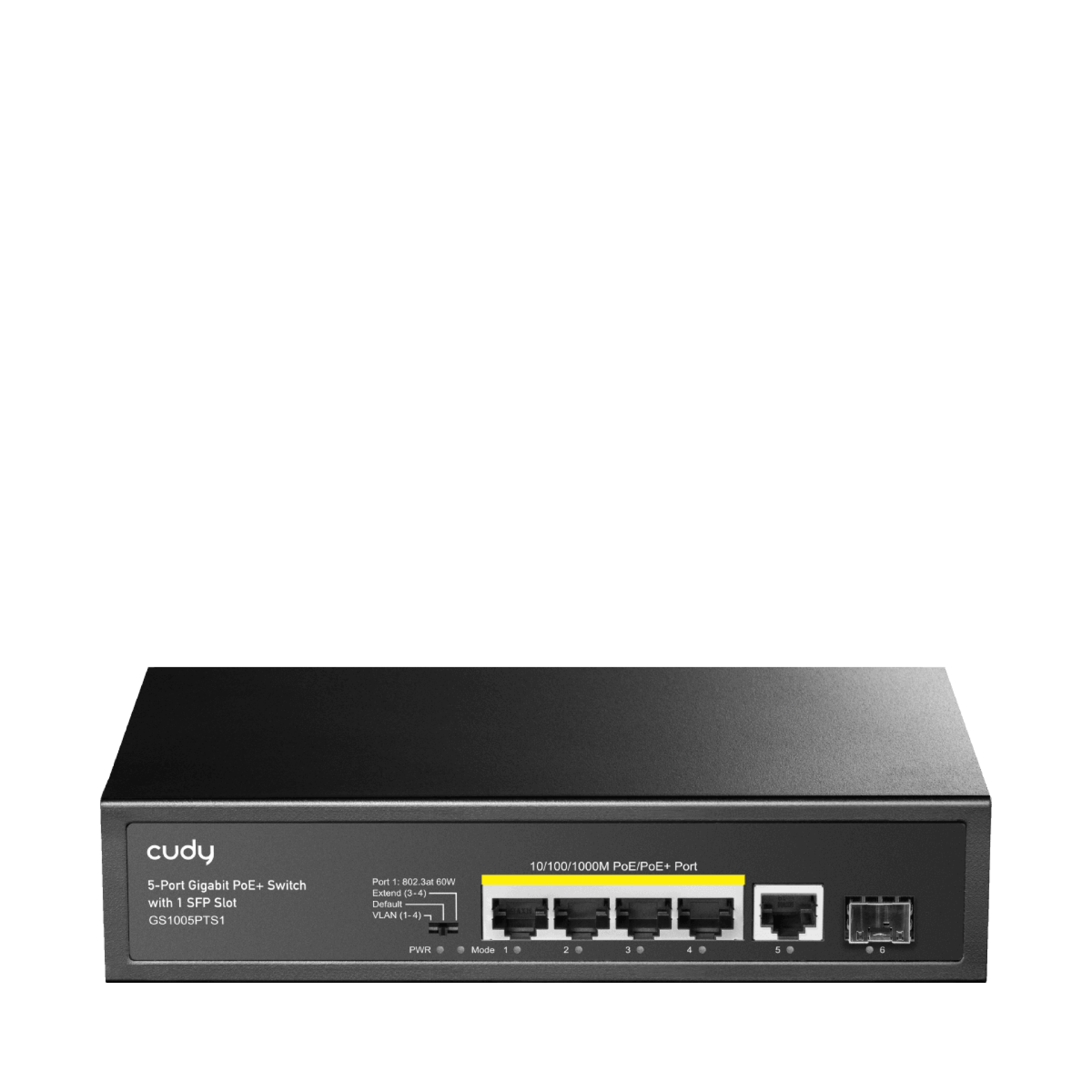

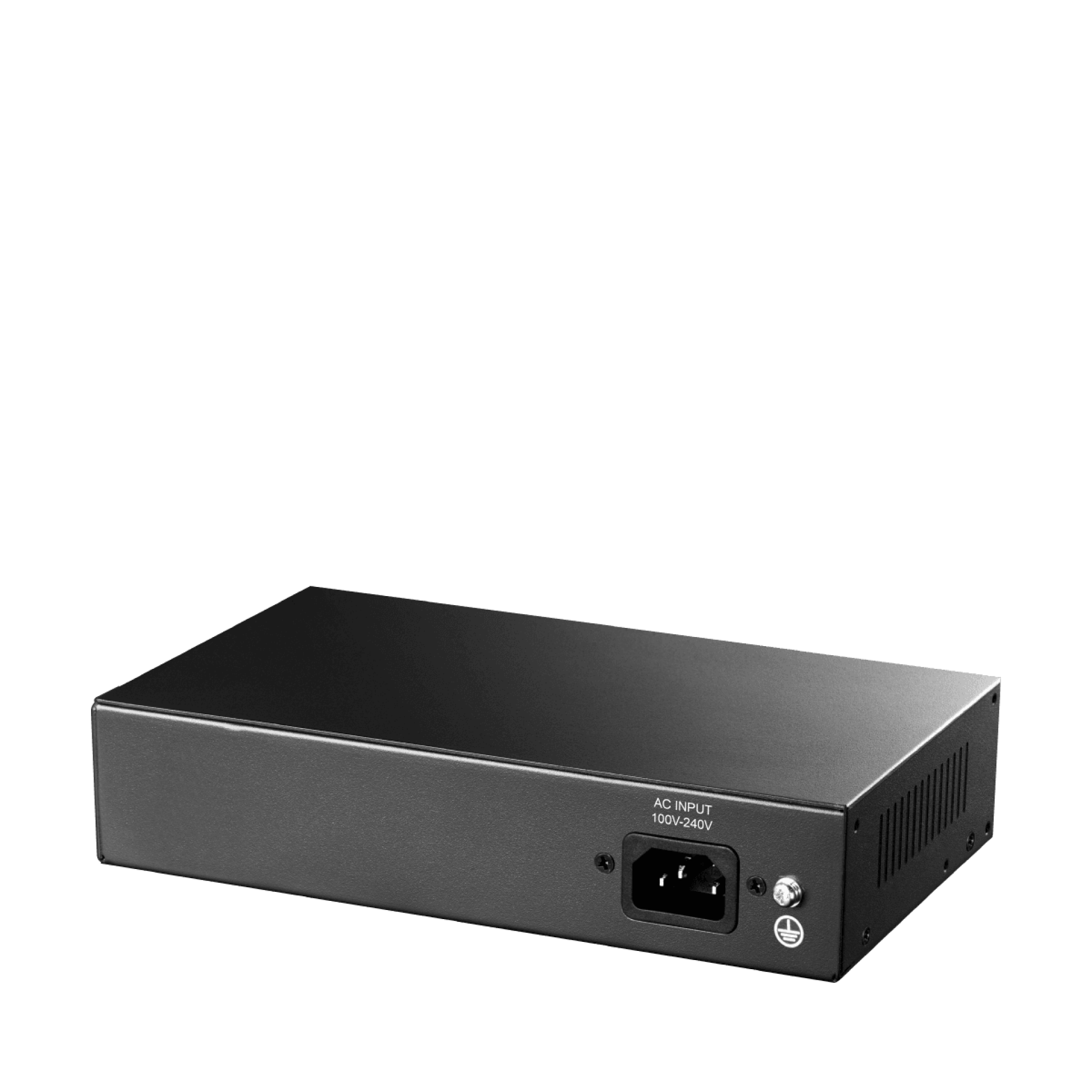

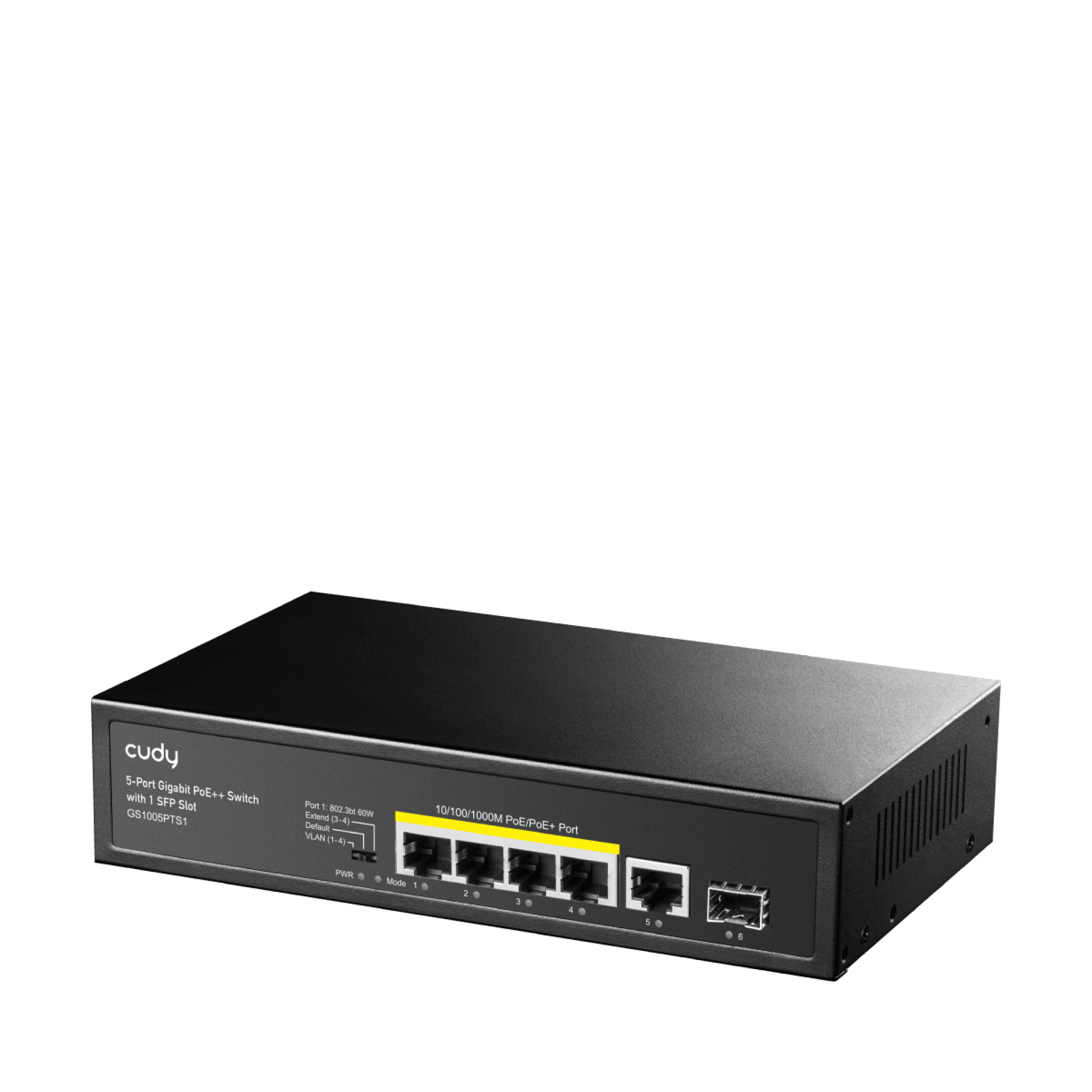

CUDY 5-PORT GIGABIT PoE(120watts) + Switch with 1 SFP Slot-GS1005PTS1

CUDY GS1005PTS1 5-Port Gigabit PoE+ Switch with 1 SFP Slot Key Features

• 5 × Gigabit RJ45 Ethernet Ports

• 4 × 802.3af/at PoE+ Ports

• 1 × Gigabit SFP Uplink Slot

• 120W Total PoE Power Budget

• Up to 60W PoE Output on Port 1

• Up to 30W PoE Output on Ports 2–4

• 12.5Gbps Switching Capacity

• VLAN, Extend & Default DIP Modes

• PoE Watchdog Function

• Metal Rack-Mount/Desktop Design

• Silent Fanless Cooling

• Model: GS1005PTS1

CUDY GS1005PTS1 5-Port Gigabit PoE+ Switch with 1 SFP Slot Overview

The CUDY GS1005PTS1 is a high-performance unmanaged Gigabit PoE+ switch designed for surveillance systems, business networks, wireless access points, VoIP phones, and IP cameras. It features five Gigabit Ethernet ports, four of which support IEEE 802.3af/at PoE+, along with a dedicated Gigabit SFP uplink slot for long-distance fibre connectivity.

With a generous 120W PoE power budget and support for up to 60W output on Port 1, the GS1005PTS1 can power high-performance PoE devices while simultaneously providing Gigabit network connectivity. VLAN mode, Extend mode, and PoE Watchdog improve security, transmission distance, and network reliability, making it ideal for commercial and surveillance deployments.

CUDY GS1005PTS1 5-Port Gigabit PoE+ Switch with 1 SFP Slot Price in Kenya

CUDY GS1005PTS1 5-Port Gigabit PoE+ Switch with 1 SFP Slot Specifications

CUDY GS1005PTS1 5-Port Gigabit PoE+ Switch with 1 SFP Slot High-Speed Network Performance

• Five Gigabit Ethernet ports provide high-speed connectivity for IP cameras, wireless access points, NVRs, NAS devices, computers, and other network equipment.

• Delivers a 12.5Gbps switching capacity with wire-speed forwarding to ensure smooth data transmission across the network.

• Supports 9KB Jumbo Frames to improve efficiency during large file transfers and high-bandwidth applications.

• Dedicated Gigabit SFP uplink enables fibre connectivity for longer-distance network expansion.

CUDY GS1005PTS1 5-Port Gigabit PoE+ Switch with 1 SFP Slot Advanced PoE Features

• Four IEEE 802.3af/at PoE+ ports provide both power and data over a single Ethernet cable for compatible devices.

• Total PoE power budget of 120W supports multiple IP cameras, access points, VoIP phones, and other powered devices simultaneously.

• Port 1 delivers up to 60W PoE output for high-power devices, while Ports 2–4 each support up to 30W.

• Eliminates the need for separate power adapters, simplifying installation and reducing cable clutter.

CUDY GS1005PTS1 5-Port Gigabit PoE+ Switch with 1 SFP Slot Intelligent Switching Features

• VLAN mode isolates PoE ports to improve network security and reduce broadcast traffic.

• Extend mode increases PoE transmission distance up to 250 metres for compatible surveillance installations.

• Integrated PoE Watchdog automatically detects and restarts unresponsive PoE devices, minimizing downtime.

• Simple DIP switches allow quick selection between Default, VLAN, and Extend operating modes without software configuration.

CUDY GS1005PTS1 5-Port Gigabit PoE+ Switch with 1 SFP Slot Build Quality and Installation

• Durable metal housing provides excellent heat dissipation for reliable long-term operation.

• Silent fanless cooling ensures quiet performance, making it suitable for offices, control rooms, and commercial environments.

• Supports both desktop placement and rack-mount installation for flexible deployment.

• Ideal for 24/7 operation in surveillance systems, enterprise networks, retail stores, schools, and hotels.

CUDY GS1005PTS1 5-Port Gigabit PoE+ Switch with 1 SFP Slot Ideal For

• IP Surveillance Systems

• PoE IP Cameras

• Wireless Access Points

• VoIP Phone Systems

• Hotels

• Schools

• Retail Stores

• Offices

• Small Businesses

• Enterprise Edge Networks

CUDY GS1005PTS1 5-Port Gigabit PoE+ Switch with 1 SFP Slot Pros and Cons

CUDY GS1005PTS1 5-Port Gigabit PoE+ Switch with 1 SFP Slot FAQs

Does this switch support PoE+?

Yes. Four ports support IEEE 802.3af/at PoE+, with a total PoE budget of 120W.

What is the purpose of the SFP port?

The Gigabit SFP slot allows fibre optic uplink connections for longer-distance network expansion.

How much power can one PoE port deliver?

Port 1 supports up to 60W, while Ports 2–4 support up to 30W each.

What does Extend Mode do?

Extend Mode increases PoE transmission distance up to 250 metres for compatible devices, making it ideal for surveillance installations.

Is this a managed switch?

No. The GS1005PTS1 is an unmanaged switch that uses simple DIP switches to enable VLAN, Extend, and Default operating modes.

CUDY GS1005PTS1 5-Port Gigabit PoE+ Switch with 1 SFP Slot Conclusion

The CUDY GS1005PTS1 5-Port Gigabit PoE+ Switch with 1 SFP Slot is a reliable networking solution for businesses, surveillance systems, and commercial PoE deployments. Its 120W PoE budget, dedicated fibre uplink, PoE Watchdog, VLAN and Extend modes, and durable metal construction make it an excellent choice for powering and connecting modern network devices efficiently.
