Ubiquiti NanoStation M5 (NSM5) Key Features
-

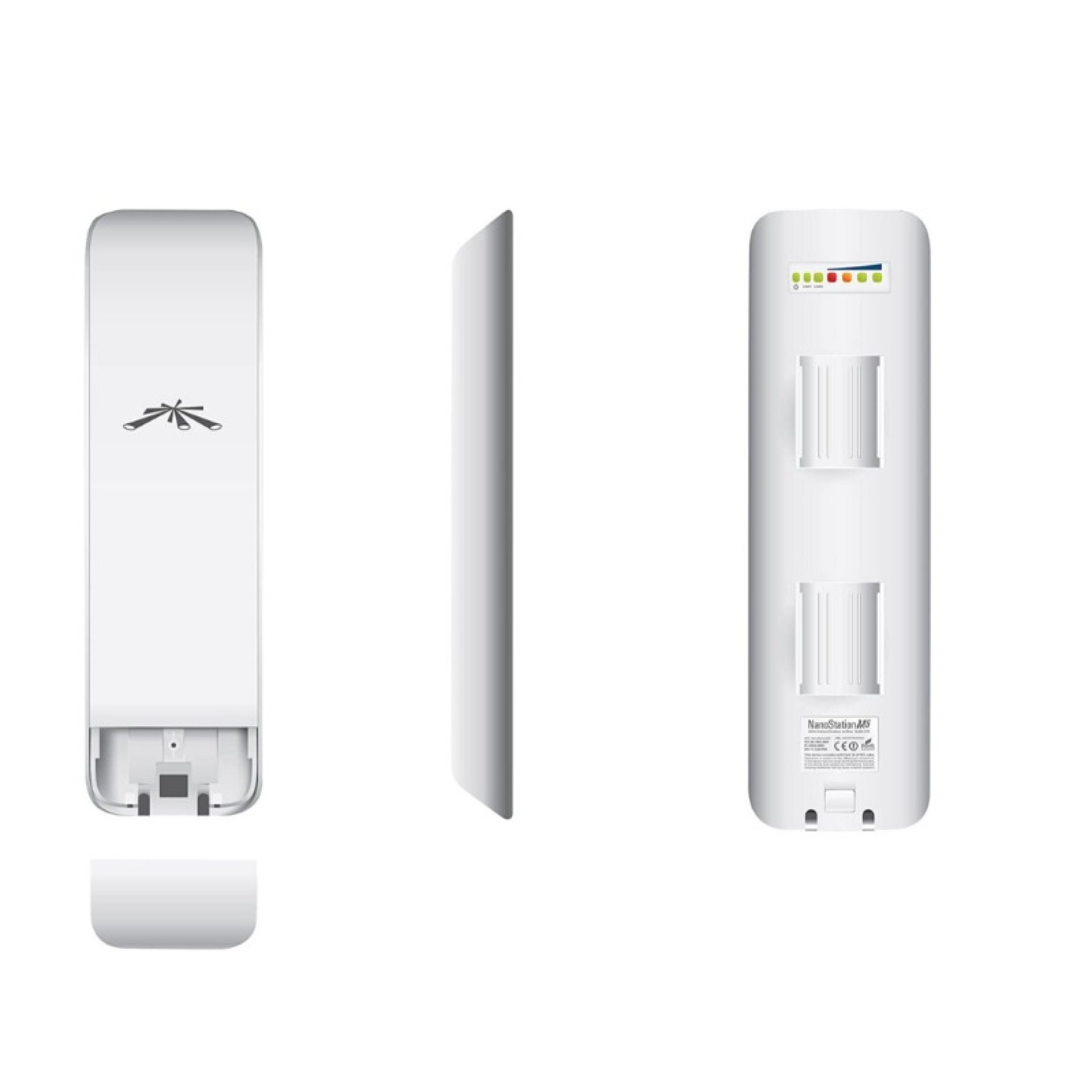

Ubiquiti NanoStation M5
-
Model: NSM5
-
5 GHz airMAX M wireless technology
-
14.6–16.1 dBi antenna gain
-
Dual-linear polarization
-
2 × 10/100 Ethernet ports
-
Point-to-Point and Point-to-Multipoint support
-
Passive PoE power
-
24V, 0.5A PoE adapter included
-
Integrated directional panel antenna
-
Pole-mounting kit included
-
Outdoor UV-stabilized enclosure
-
Compact 400g design
Ubiquiti NanoStation M5 (NSM5) Overview
The Ubiquiti NanoStation M5 (NSM5) is a compact outdoor 5 GHz airMAX M wireless CPE designed for Point-to-Point and Point-to-Multipoint connectivity, featuring 14.6–16.1 dBi integrated antenna gain, dual-linear polarization and two 10/100 Ethernet ports. Its compact outdoor enclosure, passive PoE power and integrated directional antenna make it suitable for wireless ISP networks, building-to-building links, CCTV backhaul, remote connectivity and outdoor network extensions.
Ubiquiti NanoStation M5 (NSM5) Price
| Product | Price Range |
|---|---|
| Ubiquiti NanoStation M5 (NSM5) | KSh 13,000 – 16,000 |
Ubiquiti NanoStation M5 (NSM5) Specifications
| Specification | Details |
|---|---|
| Brand | Ubiquiti |
| Product Family | airMAX |
| Model | NSM5 |
| Product Type | Outdoor Wireless CPE |
| Wireless Technology | airMAX M |
| Frequency | 5 GHz |
| Antenna Gain | 14.6–16.1 dBi |
| Polarization | Dual Linear |
| Beamwidth | 43° H / 41° V / 15° Elevation |
| Ethernet | 2 × 10/100 Ethernet |
| Power Method | Passive PoE |
| Power Supply | 24V, 0.5A PoE Adapter |
| Maximum Power Consumption | 8W |
| Mounting | Pole Mount |
| Enclosure | Outdoor UV-Stabilized Polycarbonate |
| Dimensions | 294 × 31 × 80 mm |
| Weight | 400g |
| Operating Temperature | -30°C to 75°C |
| Price Range | KSh 13,000 – 16,000 |
Ubiquiti NanoStation M5 (NSM5) Wireless Performance Features
-
5 GHz airMAX M technology provides a dedicated platform for fixed wireless deployments and compatible Ubiquiti airMAX networks.
-
14.6–16.1 dBi antenna gain provides focused wireless coverage for outdoor CPE and fixed wireless applications.
-
Dual-linear polarization supports 2 × 2 MIMO wireless communication with compatible airMAX equipment.
-
Directional panel antenna focuses wireless transmission toward the intended coverage area or remote endpoint.
-
Point-to-Point capability makes the NSM5 suitable for connecting separate buildings or network locations.
-
Point-to-Multipoint capability allows it to function as a CPE within compatible airMAX networks.
Ubiquiti NanoStation M5 (NSM5) Connectivity and Design Features
-
Two 10/100 Ethernet ports provide wired network connectivity for compatible network equipment.
-
Integrated radio and antenna keeps the unit compact and simplifies outdoor installation.
-
Passive PoE power delivers power through the Ethernet connection.
-
400g lightweight construction makes the device convenient for pole-mounted deployments.
-
UV-stabilized polycarbonate enclosure is designed for outdoor installation.
-
Pole-mounting kit included provides a ready-to-install mounting solution.
Ubiquiti NanoStation M5 (NSM5) Installation and Management Features
-
Compact outdoor form factor makes the NSM5 suitable for poles and other fixed outdoor installations.
-
24V, 0.5A PoE adapter provides the required passive PoE power.
-
Wide operating temperature range of -30°C to 75°C supports deployment in demanding environments.
-
Web-based airOS management provides configuration and monitoring of wireless settings.
-
Signal monitoring tools assist with positioning and wireless link optimization.
-
Dual Ethernet connectivity provides additional flexibility when integrating the CPE into a network.
Ubiquiti NanoStation M5 (NSM5) Applications
-
Point-to-Point Wireless Links
-
Point-to-Multipoint Networks
-
Wireless ISP Networks
-
Building-to-Building Connectivity
-
CCTV Wireless Backhaul
-
Rural Wireless Broadband
-
Remote Site Connectivity
-
Outdoor Network Extensions
-
Enterprise Wireless Networks
-
Campus Networks
-
Fixed Wireless Access
-
airMAX M Deployments
Ubiquiti NanoStation M5 (NSM5) Pros and Cons
| Pros | Cons |
|---|---|
| 14.6–16.1 dBi antenna gain | 5 GHz only |
| Compact outdoor design | 10/100 Ethernet ports |
| Dual-linear polarization | Older airMAX M platform |
| Two Ethernet ports | Requires proper wireless alignment |
| Passive PoE | — |
| Lightweight 400g construction | — |
| Point-to-Point support | — |
| Point-to-Multipoint support | — |
| Pole-mounting kit included | — |
Ubiquiti NanoStation M5 (NSM5) FAQs
What is the Ubiquiti NanoStation M5 used for?
The NSM5 is a 5 GHz outdoor airMAX M CPE designed for Point-to-Point and Point-to-Multipoint wireless networking.
What is the antenna gain of the NanoStation M5?
The antenna gain is 14.6–16.1 dBi, depending on polarization.
What frequency does the NSM5 use?
The NanoStation M5 operates on the 5 GHz frequency band.
Does the NanoStation M5 have Ethernet ports?
Yes. It has two 10/100 Ethernet ports.
Can the NSM5 be used for building-to-building connectivity?
Yes. It can be deployed for Point-to-Point wireless links between buildings or remote network locations.
How is the NanoStation M5 powered?
It uses passive PoE and is supplied with a 24V, 0.5A PoE adapter.
Is the NSM5 suitable for outdoor installation?
Yes. It features an outdoor UV-stabilized enclosure and is designed for outdoor deployment.
What is the Ubiquiti NanoStation M5 price in Kenya?
The indicative price range is KSh 13,000 – 16,000.
Ubiquiti NanoStation M5 (NSM5) Conclusion
The Ubiquiti NanoStation M5 (NSM5) is a compact 5 GHz outdoor CPE offering 14.6–16.1 dBi antenna gain, dual-linear polarization, two Ethernet ports and passive PoE. It is suitable for wireless ISP networks, Point-to-Point links, Point-to-Multipoint deployments, CCTV backhaul and outdoor network extensions.
Price Range in Kenya: KSh 13,000 – 16,000.
