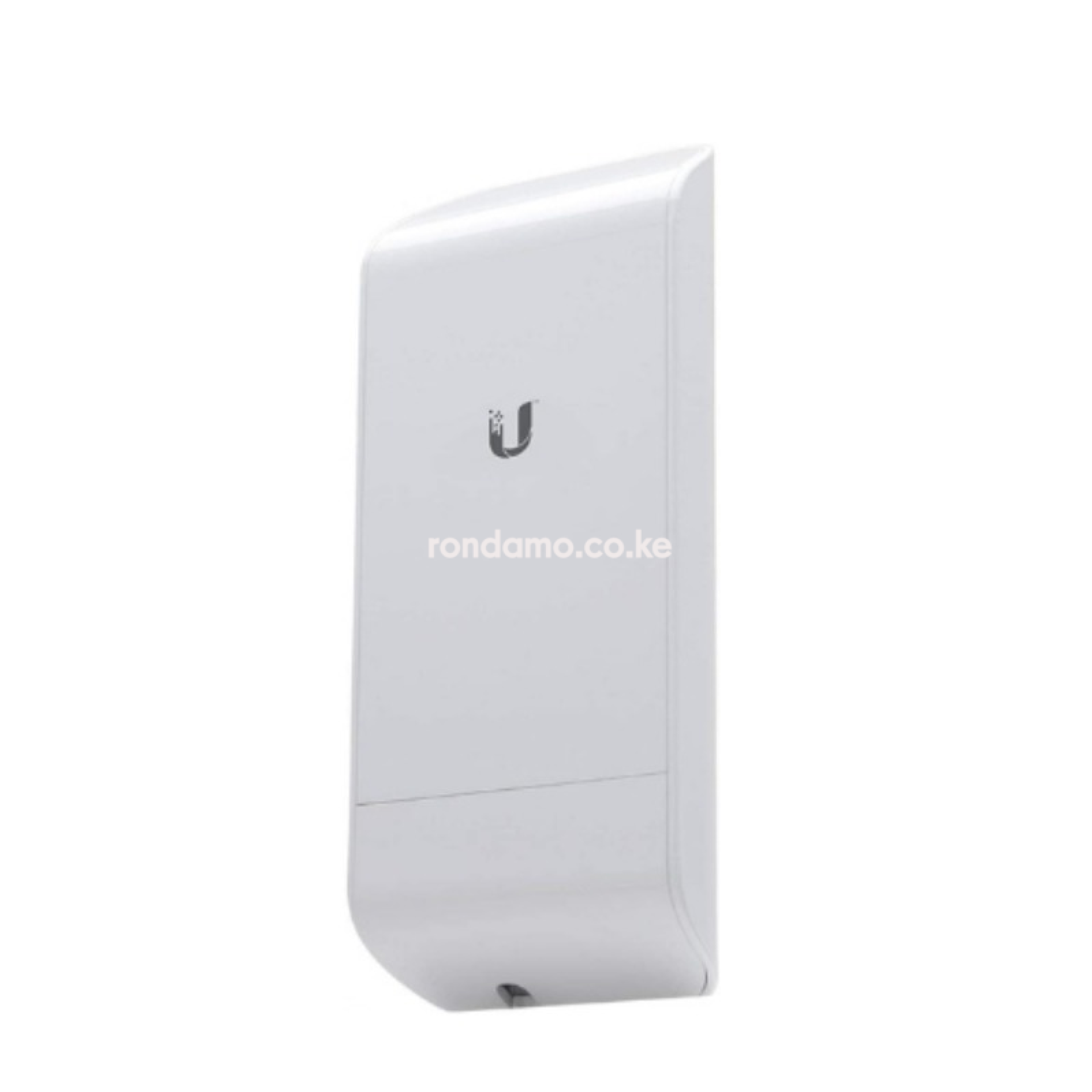

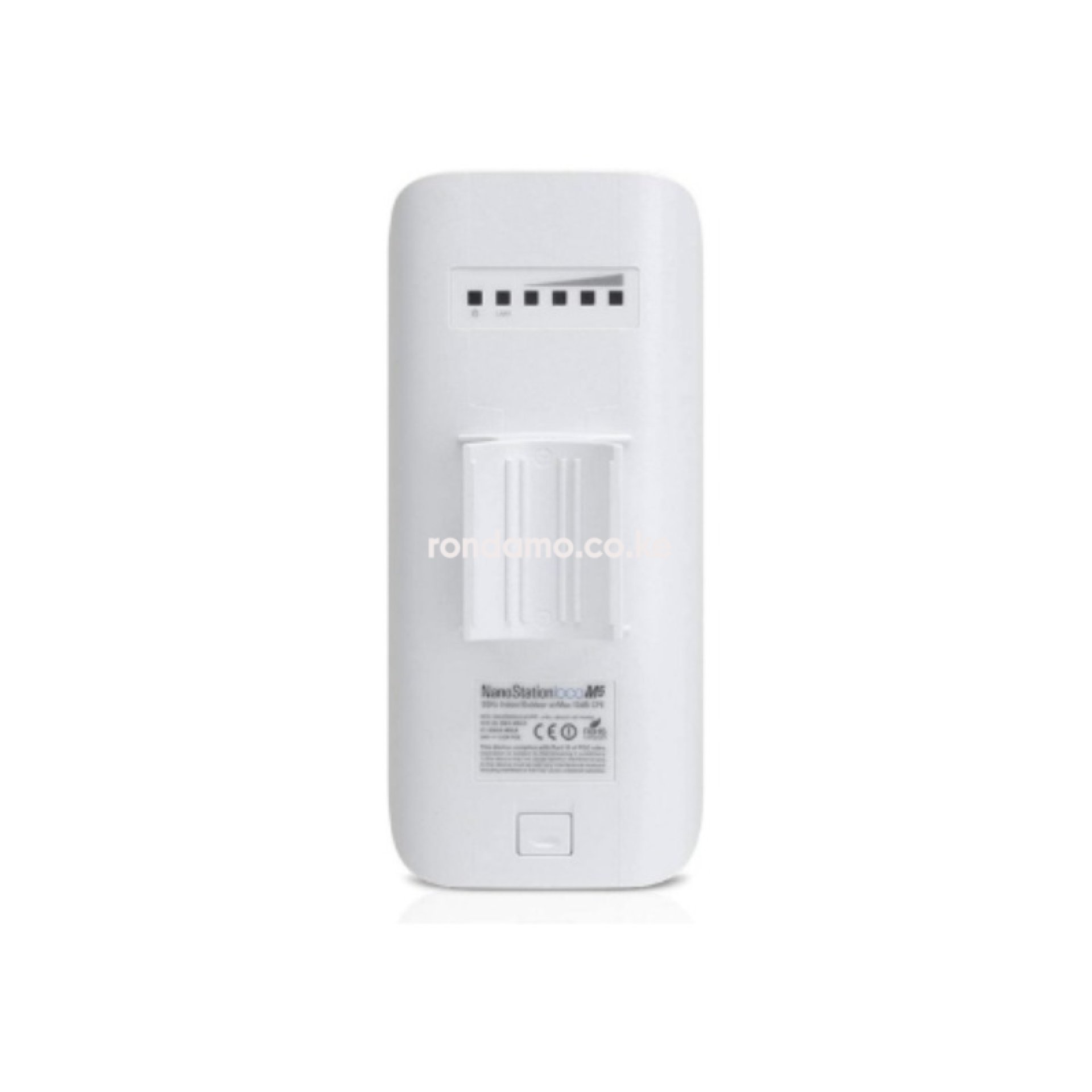

Ubiquiti NanoStation Loco M2 2.4GHz CPE (LOCOM2) Key Features
-
Ubiquiti airMAX NanoStation M2 Loco
-
Model: LOCOM2
-
2.4 GHz airMAX M wireless technology
-
8.5 dBi integrated antenna gain
-
Dual-linear polarization
-
60° horizontal and vertical beamwidth
-
1 × 10/100 Mbps Ethernet port
-
Access Point and Station modes
-
Passive PoE power
-
24V, 0.5A PoE adapter included
-
Pole-mounting kit included
-
Outdoor UV-stabilized plastic enclosure
-
Compact 180g design
Ubiquiti NanoStation Loco M2 2.4GHz CPE (LOCOM2) Overview
The Ubiquiti NanoStation Loco M2 2.4GHz CPE (LOCOM2) is a compact outdoor wireless CPE designed for airMAX M networks, featuring 8.5 dBi integrated antenna gain, dual-linear polarization and a 10/100 Mbps Ethernet port. Its lightweight design, passive PoE power and integrated directional antenna make it suitable for Point-to-Point links, Point-to-Multipoint networks, wireless ISP deployments, CCTV connectivity and outdoor network extensions.
Ubiquiti NanoStation Loco M2 2.4GHz CPE (LOCOM2) Price
| Product | Price Range |
|---|---|
| Ubiquiti NanoStation Loco M2 2.4GHz CPE (LOCOM2) | KSh 8,000 – 10,000 |
Ubiquiti NanoStation Loco M2 2.4GHz CPE (LOCOM2) Specifications
| Specification | Details |
|---|---|
| Brand | Ubiquiti |
| Product Family | airMAX |
| Model | LOCOM2 |
| Product Type | Outdoor Wireless CPE |
| Wireless Technology | airMAX M |
| Frequency | 2.4 GHz |
| Operating Frequency | 2412–2462 MHz |
| Antenna Gain | 8.5 dBi |
| Polarization | Dual Linear |
| Beamwidth | 60° H / 60° V |
| Ethernet | 1 × 10/100 Mbps RJ45 |
| Power Method | Passive PoE |
| Power Supply | 24V, 0.5A PoE Adapter |
| Maximum Power Consumption | 5.5W |
| Mounting | Pole Mount |
| Enclosure | Outdoor UV-Stabilized Plastic |
| Weight | 180g |
| Operating Temperature | -30°C to 75°C |
| Operating Humidity | 5–95% Noncondensing |
| Price Range | KSh 8,000 – 10,000 |
Specifications based on Ubiquiti's official technical specifications.
Ubiquiti NanoStation Loco M2 2.4GHz CPE (LOCOM2) Wireless Performance Features
-
8.5 dBi integrated antenna gain provides focused 2.4 GHz wireless connectivity for fixed outdoor deployments.
-
2.4 GHz airMAX M technology provides a reliable platform for compatible Ubiquiti fixed wireless networks.
-
Dual-linear polarization supports compatible airMAX M wireless configurations.
-
60° beamwidth provides a relatively broad directional coverage pattern for outdoor CPE applications.
-
Point-to-Point connectivity allows two compatible units to connect separate buildings or network locations.
-
Point-to-Multipoint capability allows the Loco M2 to operate as a client within compatible airMAX networks.
Ubiquiti NanoStation Loco M2 2.4GHz CPE (LOCOM2) Connectivity and Installation Features
-
10/100 Mbps Ethernet port provides the wired network connection to a router, switch or other network equipment.
-
Passive PoE power delivers power through the Ethernet connection, simplifying outdoor installation.
-
24V, 0.5A PoE adapter provides the required power supply.
-
180g lightweight construction makes the device easy to position and install.
-
Pole-mounting kit included provides a straightforward outdoor mounting solution.
-
UV-stabilized plastic enclosure is designed for outdoor deployment.
Ubiquiti NanoStation Loco M2 2.4GHz CPE (LOCOM2) Management Features
-
airOS management provides configuration and monitoring of wireless settings.
-
Web-based administration allows installers to configure network and wireless parameters.
-
Wireless signal monitoring assists with positioning and link optimization.
-
Remote device management simplifies administration of deployed CPE equipment.
-
Wireless security configuration helps protect communications within the network.
Ubiquiti NanoStation Loco M2 2.4GHz CPE (LOCOM2) Applications
-
Point-to-Point Wireless Links
-
Point-to-Multipoint Networks
-
Wireless ISP Networks
-
Building-to-Building Connectivity
-
CCTV Wireless Links
-
Rural Wireless Broadband
-
Remote Site Connectivity
-
Outdoor Network Extensions
-
Community Internet Networks
-
Fixed Wireless Access
-
airMAX M Deployments
Ubiquiti NanoStation Loco M2 2.4GHz CPE (LOCOM2) Pros and Cons
| Pros | Cons |
|---|---|
| 8.5 dBi integrated antenna | 2.4 GHz only |
| Compact 180g design | 10/100 Mbps Ethernet |
| Dual-linear polarization | Older airMAX M technology |
| Passive PoE | Requires proper wireless positioning |
| Outdoor UV-stabilized enclosure | — |
| Pole-mounting kit included | — |
| Point-to-Point support | — |
| Point-to-Multipoint support | — |
Ubiquiti NanoStation Loco M2 2.4GHz CPE (LOCOM2) FAQs
What is the Ubiquiti LocoM2 used for?
The LOCOM2 is an outdoor 2.4 GHz wireless CPE designed for airMAX M Point-to-Point and Point-to-Multipoint networks.
What is the antenna gain of the NanoStation Loco M2?
The Loco M2 has an 8.5 dBi integrated antenna.
What frequency does the LOCOM2 use?
It operates in the 2.4 GHz band, with an operating frequency range of 2412–2462 MHz.
Does the Loco M2 have Gigabit Ethernet?
No. It has one 10/100 Mbps Ethernet port.
Can the LOCOM2 be used for Point-to-Point connections?
Yes. It can be used to establish fixed wireless connections between compatible network locations.
How is the NanoStation Loco M2 powered?
It uses passive PoE and comes with a 24V, 0.5A PoE adapter.
Is the Loco M2 suitable for outdoor installation?
Yes. It has an outdoor UV-stabilized plastic enclosure and operates from -30°C to 75°C.
What is the Ubiquiti NanoStation Loco M2 price in Kenya?
The indicative price range is KSh 8,000 – 10,000.
Ubiquiti NanoStation Loco M2 2.4GHz CPE (LOCOM2) Conclusion
The Ubiquiti NanoStation Loco M2 2.4GHz CPE (LOCOM2) is a compact outdoor airMAX M CPE offering 8.5 dBi antenna gain, dual-linear polarization, passive PoE and Point-to-Point/Point-to-Multipoint support. It is suitable for wireless ISP networks, CCTV links, remote connectivity and outdoor network extensions.
Price Range in Kenya: KSh 8,000 – 10,000.
