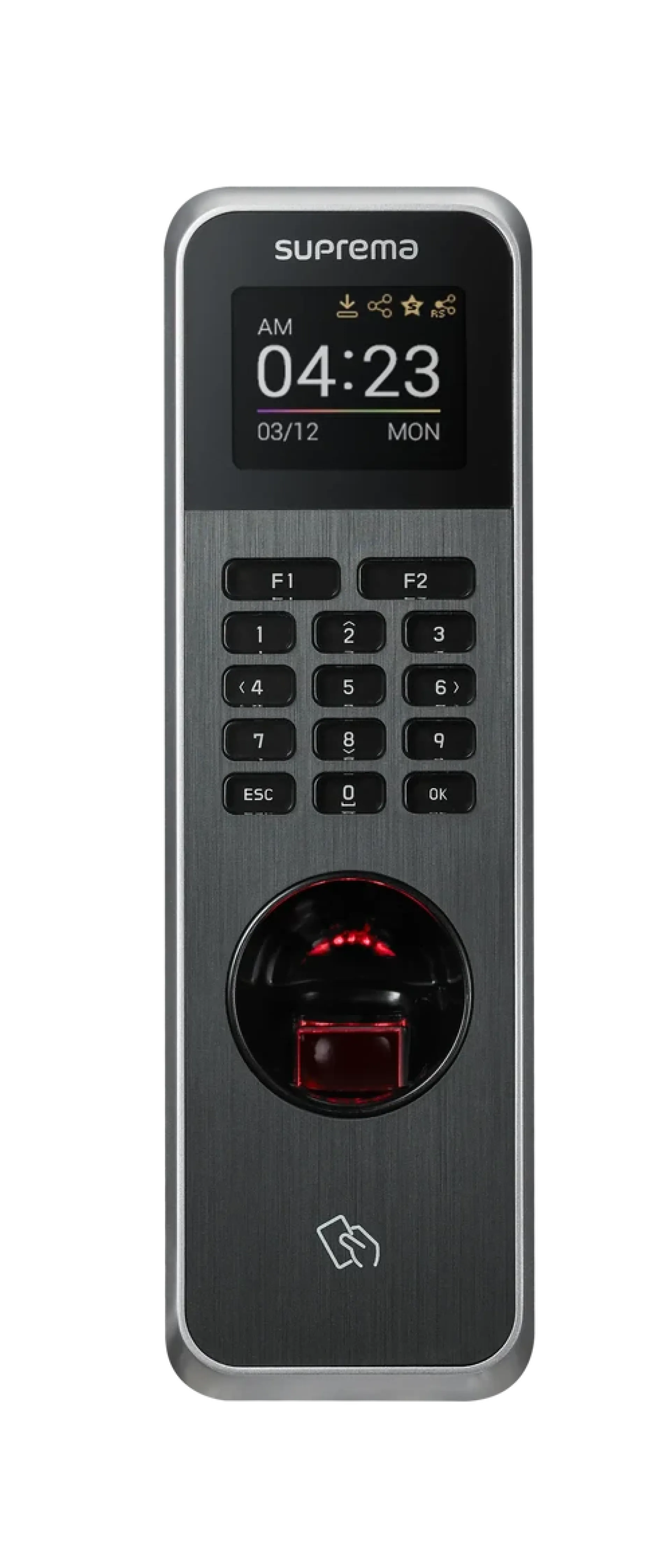

Suprema BioLite N2 BLN2-ODB Outdoor IP Fingerprint Terminal Key Features
- Suprema BioLite N2 outdoor fingerprint terminal
- Model BLN2-ODB
- Fingerprint-based biometric authentication
- Outdoor-ready IP65/IP67 protection
- 1.2 GHz processor
- 4GB Flash memory and 64MB RAM
- 1.77-inch color TFT LCD display
- Supports RFID cards and mobile credentials
- Supports NFC and Bluetooth Low Energy
- 10,000-user capacity
- Up to 1,000,000 text logs
- 10/100 Mbps Ethernet connectivity
- RS-485 and Wiegand interfaces
- Built-in relay for access control
- Suitable for access control and time attendance
- Designed for demanding outdoor environments
Suprema BioLite N2 BLN2-ODB Outdoor IP Fingerprint Terminal Introduction
The Suprema BioLite N2 BLN2-ODB Outdoor IP Fingerprint Terminal is a professional biometric access control and time attendance device designed for both indoor and outdoor environments. It combines fingerprint authentication with RFID and mobile credentials, providing organizations with multiple options for secure user identification.
The BLN2-ODB features a 1.2 GHz processor, 4GB Flash memory, 64MB RAM, color TFT LCD display and IP65/IP67 protection, making it suitable for demanding access control installations.
Suprema BioLite N2 BLN2-ODB Outdoor IP Fingerprint Terminal Price
| Product Price | |
|---|---|
| Suprema BioLite N2 BLN2-ODB Outdoor IP Fingerprint Terminal | KSh 100,000 |
Suprema BioLite N2 BLN2-ODB Outdoor IP Fingerprint Terminal Key Specifications
| Feature | Details |
|---|---|
| Brand | Suprema |
| Product | BioLite N2 |
| Model | BLN2-ODB |
| Product Type | Outdoor IP Fingerprint Terminal |
| Authentication | Fingerprint, RFID, PIN |
| Fingerprint Resolution | 500 dpi |
| Fingerprint Template | Suprema / ISO 19794-2 / ANSI 378 |
| Live Fingerprint Detection | Supported |
| Maximum Users | 10,000 |
| Maximum Text Logs | 1,000,000 |
| Processor | 1.2 GHz |
| Memory | 4GB Flash + 64MB RAM |
| Display | 1.77-inch Color TFT LCD |
| RFID | 125kHz EM, 13.56MHz MIFARE, MIFARE Plus, DESFire, FeliCa |
| Mobile Credentials | NFC and 2.4GHz BLE |
| Ethernet | 10/100 Mbps |
| RS-485 | Supported |
| Wiegand | Supported |
| Relay | 1 |
| Protection | IP65 / IP67 |
| Operating Temperature | -20°C to 50°C |
| Power | 12V DC |
| Dimensions | 58 × 190 × 44 mm |
| Price | KSh 100,000 |
The listed specifications are based primarily on Suprema's current product documentation.
Suprema BioLite N2 BLN2-ODB Outdoor IP Fingerprint Terminal Fingerprint Authentication
The BioLite N2 uses an optical fingerprint sensor and Suprema's fingerprint authentication technology for user identification. Its fingerprint templates support Suprema, ISO 19794-2 and ANSI 378 formats, while live fingerprint detection is supported through software.
Fingerprint authentication is suitable for:
- Employee access
- Staff identification
- Time attendance
- Restricted-area access
- Office security
- Commercial access control
- Institutional security
Suprema BioLite N2 BLN2-ODB Outdoor IP Fingerprint Terminal RFID Support
The BLN2-ODB also supports multiple RFID credential technologies. Supported options include 125kHz EM and 13.56MHz MIFARE, MIFARE Plus, DESFire and FeliCa, allowing organizations to use cards alongside fingerprint authentication.
This makes the terminal suitable for organizations that want flexible authentication options rather than relying exclusively on fingerprints.
Suprema BioLite N2 BLN2-ODB Outdoor IP Fingerprint Terminal Mobile Credentials
The terminal supports NFC and 2.4GHz Bluetooth Low Energy (BLE) mobile credentials. This allows compatible mobile devices to be incorporated into an access control setup.
Mobile credential support can be useful for organizations looking to reduce reliance on physical access cards.
Suprema BioLite N2 BLN2-ODB Outdoor IP Fingerprint Terminal Outdoor Protection
The BLN2-ODB is designed for outdoor access control applications and provides IP65/IP67 protection. This makes it suitable for installations where protection against dust and water exposure is important.
The terminal operates in temperatures from approximately -20°C to 50°C, making it suitable for a range of outdoor and commercial environments.
Suprema BioLite N2 BLN2-ODB Outdoor IP Fingerprint Terminal Access Control
The BioLite N2 can be integrated into professional access control systems using interfaces such as Ethernet, RS-485 and Wiegand. It also features a built-in relay for controlling compatible door-lock hardware.
It can therefore be used for:
- Office doors
- Building entrances
- Staff-only areas
- Security gates
- Restricted rooms
- Warehouses
- Commercial facilities
Suprema BioLite N2 BLN2-ODB Outdoor IP Fingerprint Terminal Capacity
The terminal supports up to 10,000 users and can store up to 1,000,000 text logs, making it suitable for organizations with a substantial number of registered users and access events.
This capacity makes the BioLite N2 suitable for larger offices, institutions, commercial buildings and other facilities requiring centralized access management.
Suprema BioLite N2 BLN2-ODB Outdoor IP Fingerprint Terminal Display And User Interface
The terminal features a 1.77-inch color TFT LCD display for displaying user and system information. It is designed to provide an intuitive interface for biometric and credential-based access operations.
Suprema BioLite N2 BLN2-ODB Outdoor IP Fingerprint Terminal Ideal Use Cases
The terminal is ideal for:
- Corporate offices
- Schools and universities
- Government facilities
- Warehouses
- Industrial premises
- Commercial buildings
- Apartment buildings
- Staff entrances
- Security gates
- Restricted areas
- Time attendance systems
Suprema BioLite N2 BLN2-ODB Outdoor IP Fingerprint Terminal Pros And Cons
| Pros | Cons |
|---|---|
| Fingerprint, RFID and mobile authentication | Higher cost than basic access readers |
| IP65/IP67 outdoor protection | Requires appropriate system configuration |
| Up to 10,000 users | Professional installation is recommended |
| Up to 1,000,000 text logs | 12V power supply required |
| Ethernet, RS-485 and Wiegand connectivity | Designed primarily for professional installations |
| Built-in access-control relay | |
| Supports NFC and BLE credentials | |
| Suitable for access control and time attendance |
Suprema BioLite N2 BLN2-ODB Outdoor IP Fingerprint Terminal FAQs
What is the Suprema BioLite N2?
The Suprema BioLite N2 is an outdoor fingerprint terminal designed for biometric access control and time attendance applications.
What is the model number?
The listed model is BLN2-ODB.
Does the BioLite N2 support RFID?
Yes. The BLN2-ODB supports multiple RFID technologies, including 125kHz EM and 13.56MHz MIFARE-family credentials.
Can it use mobile credentials?
Yes. The terminal supports NFC and Bluetooth Low Energy (BLE) mobile credentials.
Is the BioLite N2 suitable for outdoor use?
Yes. The BLN2-ODB has IP65/IP67 protection and is specifically designed for outdoor access control applications.
How many users can it support?
The current specifications list a maximum of 10,000 users for the BLN2-ODB.
How many access logs can it store?
It can store up to 1,000,000 text logs according to the current specifications.
Can the BioLite N2 be used for time attendance?
Yes. Suprema describes the BioLite N2 as providing both access control and time attendance features.
What is the price of the Suprema BioLite N2 in Kenya?
The listed price is KSh 100,000.
Suprema BioLite N2 BLN2-ODB Outdoor IP Fingerprint Terminal Conclusion
The Suprema BioLite N2 BLN2-ODB Outdoor IP Fingerprint Terminal is a professional biometric security device combining fingerprint authentication, RFID credentials and mobile access in a rugged outdoor-ready terminal. Its IP65/IP67 protection, 10,000-user capacity, 1,000,000-log capacity and multiple communication interfaces make it suitable for demanding access control and time attendance applications.
Priced at KSh 100,000, the BioLite N2 BLN2-ODB is a suitable choice for businesses, institutions, warehouses and commercial facilities requiring secure and flexible biometric access management.
