Dahua XVR5116HS Penta-brid 5MP 16 Channel BNC inputs 24 IP camera channels

Dahua XVR5116HS Penta-brid 5MP 16 Channel BNC inputs 24 IP camera channels

• Model – Dahua XVR5116HS Penta‑brid DVR/NVR

• Video inputs – 16 BNC channels (supports HDCVI, AHD, TVI, CVBS)

• IP camera channels – Up to 24 IP camera channels (max 6 MP input)

• Resolution – 5MP recording capability

• Compression – H.265+/H.265/H.264+ encoding

• Outputs – HDMI and VGA simultaneous video output

• Storage – 2 SATA HDDs up to 6 TB each

• Smart features – Motion detection, smart search, playback, AI coding support

• Network – 1 RJ‑45 port (10/100 Mbps Ethernet)

• Audio – 1 channel input, 1 channel output

• Power supply – DC 12 V/2 A

• Operating conditions – –10 °C to +55 °C, humidity ≤95%

Dahua XVR5116HS Penta-brid 5MP 16 Channel BNC inputs 24 IP camera channels

The Dahua XVR5116HS Penta-brid 5MP 16-Channel DVR is a professional hybrid video recorder designed for medium to large surveillance installations. It features 16 BNC analog camera inputs and supports up to 24 IP camera channels, making it ideal for expanding CCTV systems. Supporting HDCVI, AHD, TVI, CVBS, and IP cameras, the recorder includes WizSense AI, Smart H.265+ compression, Smart Motion Detection (SMD Plus), perimeter protection, and remote monitoring through the DMSS mobile application. It is well suited for homes, offices, schools, warehouses, and commercial premises.

Dahua XVR5116HS Penta-brid 5MP 16-Channel DVR Price in Kenya

Dahua XVR5116HS Penta-brid 5MP 16-Channel DVR Key Specifications

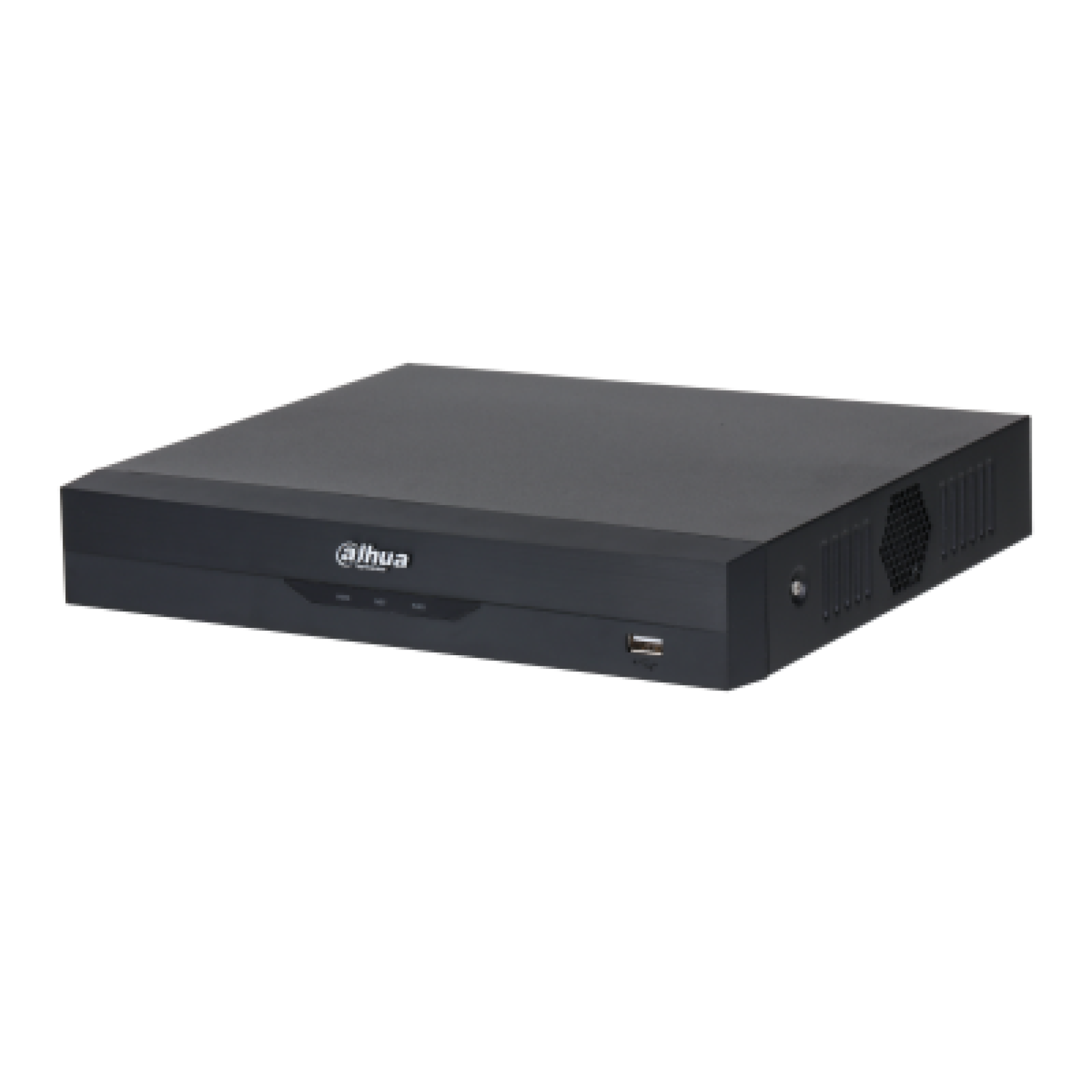

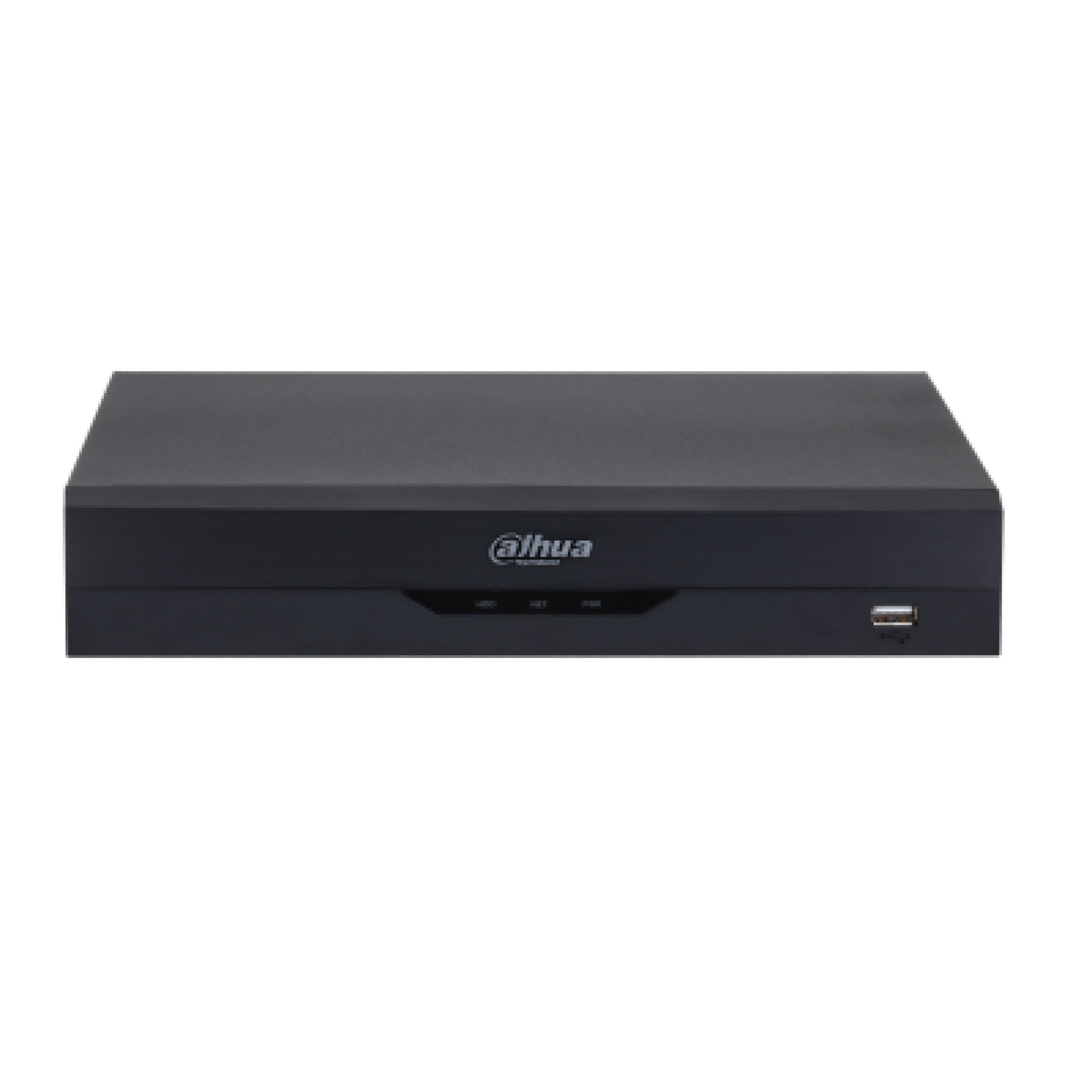

Dahua XVR5116HS Penta-brid 5MP 16-Channel DVR Design & Build

• Compact 1U rack/desktop design.
• Durable metal enclosure.
• Front LED status indicators.
• HDMI and VGA display outputs.
• Front USB 2.0 and rear USB 3.0 ports.
• Designed for reliable 24/7 surveillance operation.

Dahua XVR5116HS Penta-brid 5MP 16-Channel DVR Features and Performance

• Supports HDCVI, AHD, TVI, CVBS, and IP cameras.
• Connects up to 16 analog cameras and 24 IP cameras.
• Smart H.265+ compression reduces storage and bandwidth usage.
• WizSense AI includes SMD Plus, perimeter protection, face recognition, and AI Coding.
• Supports simultaneous live view, recording, playback, backup, and remote monitoring.
• Incoming, recording, and outgoing bandwidth of up to 128 Mbps for smooth performance.

Dahua XVR5116HS Penta-brid 5MP 16-Channel DVR Ideal Use Cases

• Office buildings.
• Schools and universities.
• Retail stores and supermarkets.
• Warehouses.
• Residential estates.
• Commercial and industrial facilities.

Dahua XVR5116HS Penta-brid 5MP 16-Channel DVR Connectivity and Compatibility

• Compatible with HDCVI, AHD, TVI, CVBS, and IP cameras.
• Supports ONVIF-compatible IP cameras.
• HDMI and VGA outputs for monitor connection.
• Gigabit Ethernet for fast network communication.
• Compatible with Android and iOS through the DMSS app.
• USB ports support external storage devices for backup and updates.

Dahua XVR5116HS Penta-brid 5MP 16-Channel DVR Pros and Cons

FAQs

1. How many cameras does the Dahua XVR5116HS support?

It supports 16 analog cameras through BNC inputs and can be expanded to 24 IP camera channels, making it suitable for growing surveillance systems.

2. Which camera technologies are supported?

The recorder supports HDCVI, AHD, TVI, CVBS, and IP cameras, allowing both new and existing CCTV systems to work together.

3. What is the maximum hard drive capacity?

It supports one SATA hard drive with a capacity of up to 16TB, providing ample storage for continuous recording.

4. Can I monitor the recorder remotely?

Yes. The DMSS mobile application enables live viewing, playback, notifications, and remote management from Android and iOS devices.

5. Does it include AI-powered security features?

Yes. The recorder offers WizSense AI features including SMD Plus, perimeter protection, face recognition, AI Coding, and AcuPick for faster target searches.

6. Is the Dahua XVR5116HS Penta-brid 5MP 16-Channel DVR worth buying?

Yes. With support for 16 analog channels, 24 IP camera channels, Smart H.265+ compression, advanced WizSense AI, up to 16TB storage, and remote monitoring through the DMSS app, it is an excellent recording solution for demanding residential and commercial CCTV systems. At KSh 19,500, it offers excellent value for professional surveillance installations.

Conclusion

The Dahua XVR5116HS Penta-brid 5MP 16-Channel DVR delivers powerful hybrid recording with support for 16 analog cameras, 24 IP cameras, advanced WizSense AI, Smart H.265+ compression, and reliable remote monitoring. Its scalable design, intelligent analytics, and dependable performance make it an excellent choice for businesses, institutions, and large residential security systems. At KSh 19,500, it provides a future-ready CCTV recording solution.
