DAHUA ITSJC-2303-DC12 Anti-smashing Radar Security Camera

DAHUA ITSJC-2303-DC12 Anti-smashing Radar Security Camera

• Model – Dahua ITSJC‑2303‑DC12 Anti‑smashing Radar

• Technology – 79 GHz microwave measurement + digital signal processing

• Detection targets – Human, vehicle

• Detection region – Adjustable 0.3 m–6 m

• Anti‑smashing region – Adjustable 0–2 m

• Response time – 50 ms

• Beam width – Vertical ±10°, horizontal ±36°

• Connectivity – RS‑485 port, 2 I/O (update input + relay output)

• Commissioning – Online setup via serial port or mobile app (Wi‑Fi)

• Power supply – 9–12 V DC, <0.25 A, <3 W consumption

• Operating conditions – –40 °C to +85 °C, humidity ≤95%

• Protection grade – IP66 weatherproof

• Dimensions – 96 × 60 × 16.4 mm

• Weight – Net 70 g, gross 220 g

DAHUA ITSJC-2303-DC12 Anti-smashing Radar Security Camera

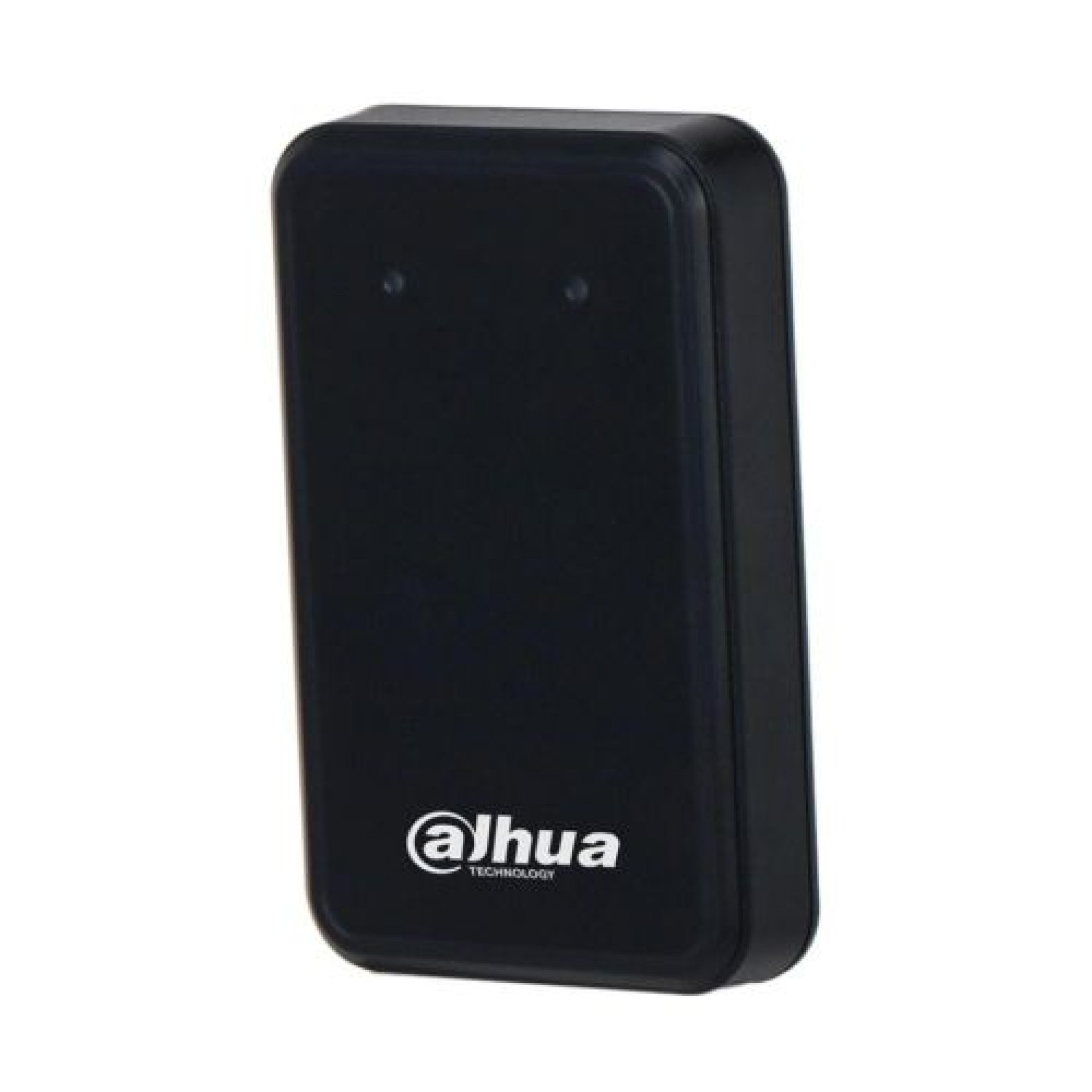

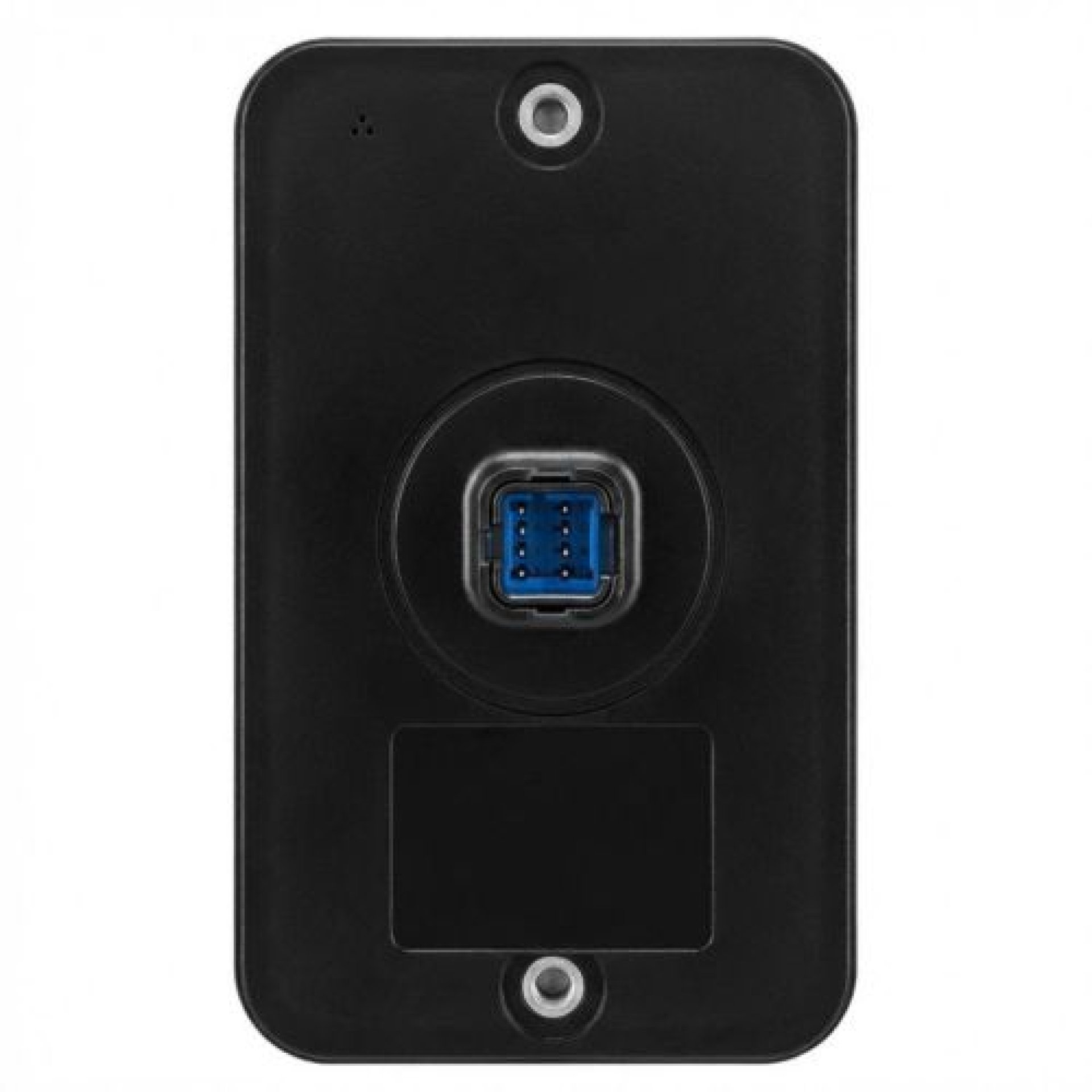

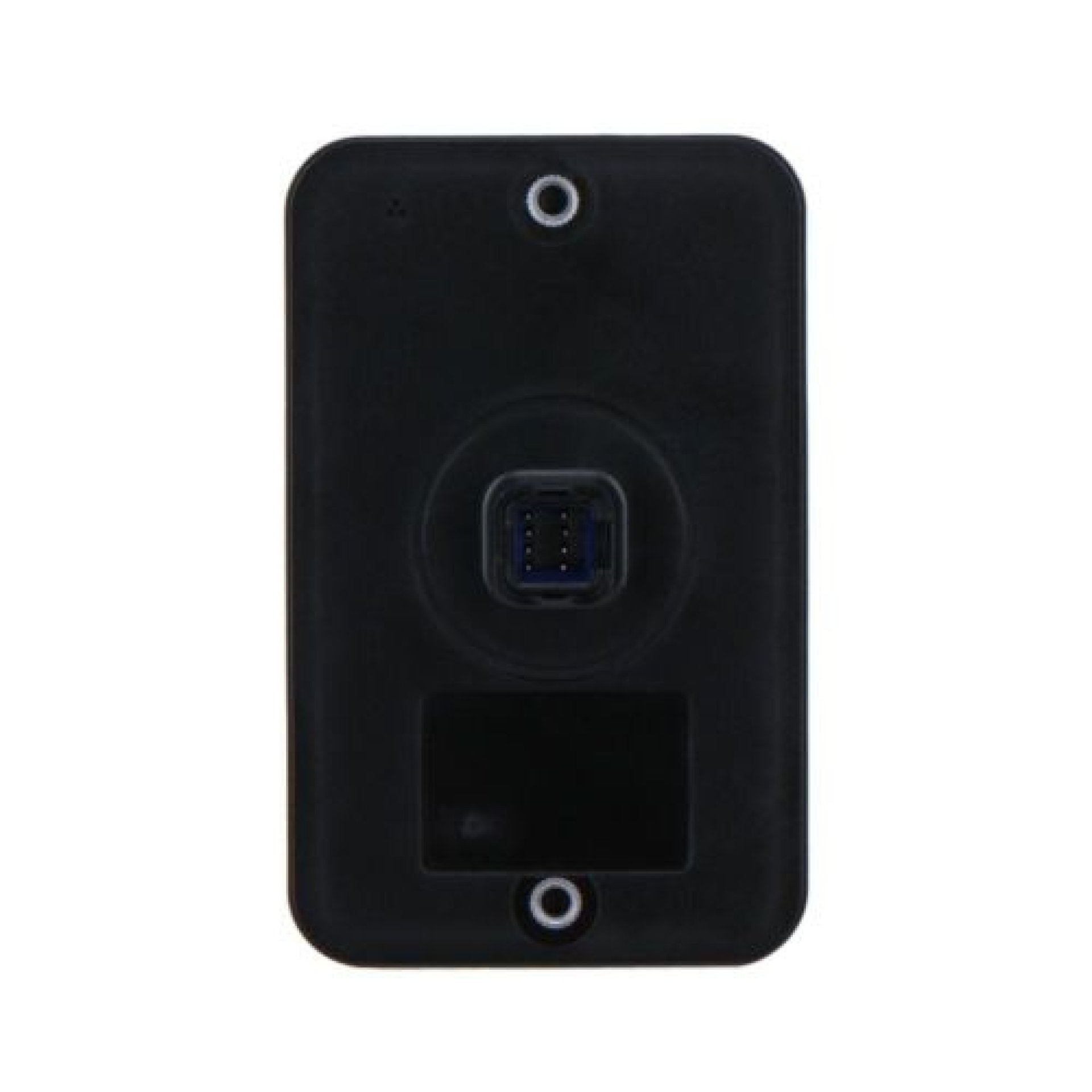

The DAHUA ITSJC-2303-DC12 Anti-Smashing Radar is a high-precision 79 GHz radar sensor designed to improve the safety of automatic barrier gate systems. It accurately detects vehicles and pedestrians, preventing barriers from closing on objects or people. With an adjustable detection range, IP66 weatherproof protection, fast response time, and compatibility with various barrier gate systems, it is ideal for parking lots, residential estates, commercial buildings, and industrial facilities.

DAHUA ITSJC-2303-DC12 Anti-Smashing Radar Price in Kenya

DAHUA ITSJC-2303-DC12 Anti-Smashing Radar Key Specifications

DAHUA ITSJC-2303-DC12 Anti-Smashing Radar Design & Build

• Compact and lightweight design.
• Durable IP66-rated weatherproof enclosure.
• Designed for side mounting on barrier gates.
• Suitable for indoor and outdoor installations.
• Rugged construction for continuous operation.
• Built for commercial parking environments.

DAHUA ITSJC-2303-DC12 Anti-Smashing Radar Features and Performance

• Detects both vehicles and pedestrians with high accuracy.
• Adjustable detection distance from 0.3 to 6 metres.
• Adjustable anti-smashing protection zone up to 2 metres.
• Fast 50 ms response minimizes barrier accidents.
• Automatic environmental calibration improves detection accuracy.
• Supports online commissioning and firmware updates through a mobile app or serial connection.

DAHUA ITSJC-2303-DC12 Anti-Smashing Radar Ideal Use Cases

• Parking lot barrier gates.
• Residential estate entrances.
• Commercial building access control.
• Industrial facility entrances.
• Shopping mall parking systems.
• Office complex vehicle access management.

DAHUA ITSJC-2303-DC12 Anti-Smashing Radar Connectivity and Compatibility

• Compatible with various automatic barrier gate systems.
• Features RS-485 communication interface.
• Includes dual I/O ports for system integration.
• Supports mobile app configuration via Wi-Fi connection.
• Supports serial port commissioning and firmware updates.
• Integrates easily with Dahua intelligent parking solutions.

DAHUA ITSJC-2303-DC12 Anti-Smashing Radar Pros and Cons

FAQs

1. What is the primary purpose of the DAHUA ITSJC-2303-DC12?

It is designed to prevent automatic barrier gates from closing on vehicles or pedestrians by detecting objects within the safety zone.

2. What is the radar detection range?

The radar provides an adjustable detection range from 0.3 metres to 6 metres, depending on installation requirements.

3. Is the radar suitable for outdoor installation?

Yes. It features an IP66-rated weatherproof enclosure, making it suitable for outdoor environments in various weather conditions.

4. What communication interfaces does it support?

The radar supports RS-485 communication and dual I/O ports, allowing easy integration with compatible barrier gate systems.

5. Can the radar detect both vehicles and pedestrians?

Yes. It accurately detects both vehicles and pedestrians, improving safety at automated entry and exit points.

6. Is the DAHUA ITSJC-2303-DC12 Anti-Smashing Radar worth buying?

Yes. With 79 GHz radar technology, adjustable detection zones, 50 ms response time, IP66 weatherproof protection, and broad compatibility with automatic barrier systems, it is an excellent safety solution for parking and access control applications. At KSh 19,500, it provides dependable performance for commercial and residential installations.

Conclusion

The DAHUA ITSJC-2303-DC12 Anti-Smashing Radar is a reliable and intelligent safety device for automatic barrier gate systems. Featuring 79 GHz radar technology, rapid object detection, adjustable protection zones, IP66 weatherproof construction, and seamless integration with barrier controllers, it helps prevent accidents while improving the efficiency of vehicle access control. At KSh 19,500, it is an excellent investment for secure parking and entrance management.
