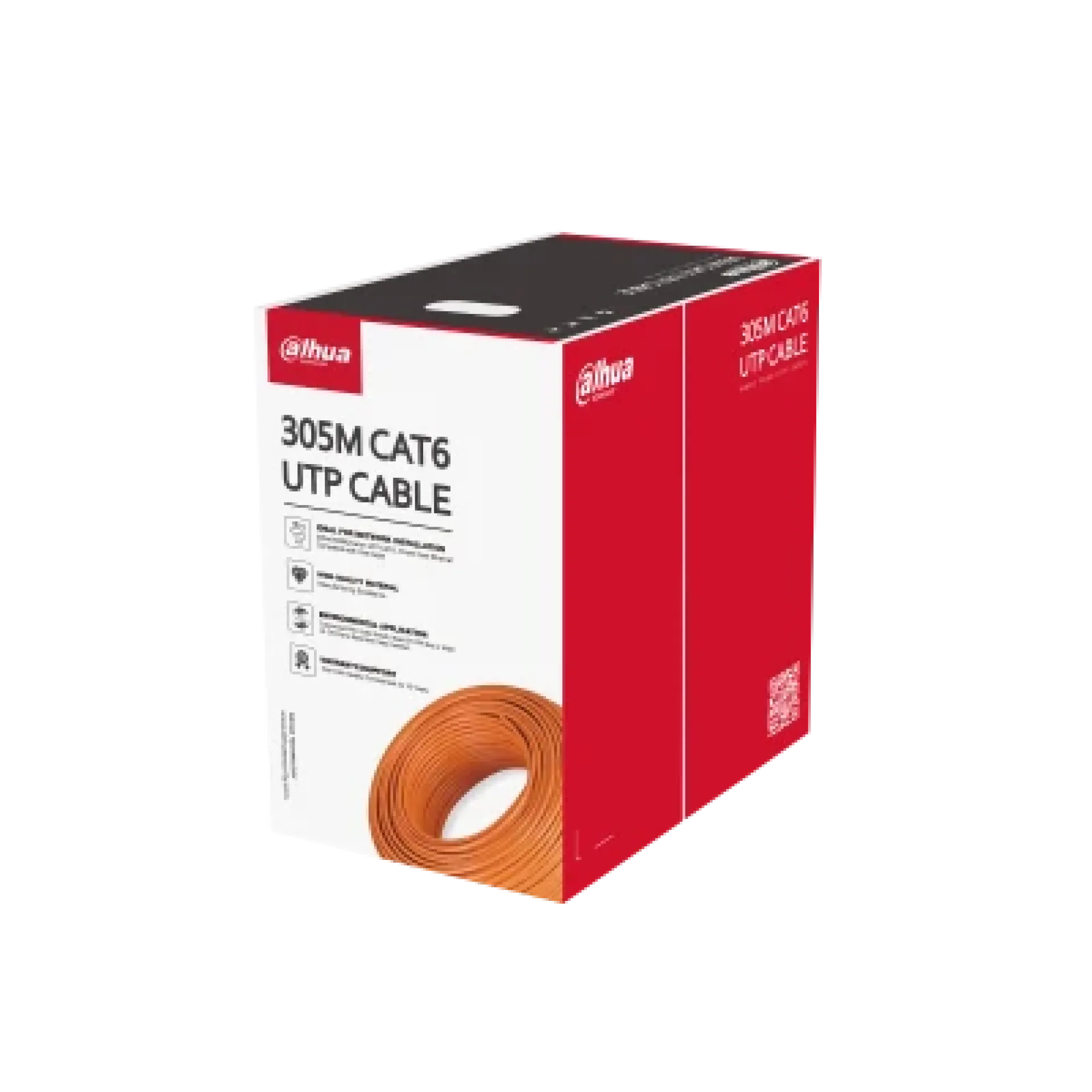

Dahua DH-PFM922-6UN 305m Outdoor CAT6 U/UTP cable
-
Model – Dahua DH‑PFM922‑6UN
-
Cable type – CAT6 U/UTP (Unshielded Twisted Pair)
-
Length – 305 m (1000 ft) pull‑box
-
Conductor – Solid bare copper, 23 AWG
-
Bandwidth – Up to 250 MHz
-
Transmission – Supports 10/100/1000 Mbps Ethernet
-
PoE support – IEEE 802.3af/at compliant, suitable for PoE devices
-
Jacket – UV‑resistant outdoor PVC jacket
-
Standards – ANSI/TIA‑568‑C.2, ISO/IEC 11801
-
Operating conditions – –20 °C to +75 °C, humidity ≤95%
-
Packaging – Easy‑pull box for installation convenience
Dahua DH-PFM922-6UN 305m Outdoor CAT6 U/UTP cable
The DAHUA DH-PFM922-6UN 305m Outdoor CAT6 U/UTP Cable is a high-quality network cable designed for outdoor Ethernet installations and Power over Ethernet (PoE) applications. With a 305-meter (1000 ft) cable length, weather-resistant MDPE outer sheath, and 23AWG conductors, it provides reliable network performance for IP cameras, network switches, access points, and other Ethernet-enabled devices.
Designed for surveillance systems and outdoor networking, the cable features a durable construction, RoHS-compliant materials, and a 10-year warranty, making it suitable for long-term installations.
DAHUA DH-PFM922-6UN 305m Outdoor CAT6 U/UTP Cable Price in Kenya
| Product | Price |
|---|---|
| DAHUA DH-PFM922-6UN 305m Outdoor CAT6 U/UTP Cable | KSh 8,500 |
DAHUA DH-PFM922-6UN 305m Outdoor CAT6 U/UTP Cable Key Specifications
| Specification | Details |
|---|---|
| Product Type | Outdoor CAT6 U/UTP Network Cable |
| Model | DH-PFM922-6UN |
| Cable Length | 305 m (1000 ft) |
| Cable Category | CAT6 U/UTP |
| Conductor | 23AWG CCA |
| Conductor Diameter | 0.57 mm |
| Sheath Material | MDPE |
| Sheath Color | Black |
| Characteristic Impedance | 100 Ω ± 15 Ω |
| PoE Support | Yes |
DAHUA DH-PFM922-6UN 305m Outdoor CAT6 U/UTP Cable Design & Build
- Outdoor-rated MDPE black sheath.
- Durable 23AWG conductor construction.
- Four twisted-pair cable design.
- Waterproof outer jacket for outdoor use.
- Flexible cable for easy installation.
- RoHS-compliant environmentally friendly materials.
DAHUA DH-PFM922-6UN 305m Outdoor CAT6 U/UTP Cable Features and Performance
- Supports high-speed Ethernet networking.
- Compatible with Power over Ethernet (PoE).
- Stable signal transmission up to 100 meters per Ethernet segment.
- Low signal loss with CAT6 transmission performance.
- Designed for reliable outdoor installations.
- Backed by a 10-year manufacturer warranty.
DAHUA DH-PFM922-6UN 305m Outdoor CAT6 U/UTP Cable Ideal Use Cases
- IP CCTV surveillance systems.
- Outdoor network installations.
- Office and enterprise networking.
- Wireless access point connections.
- Industrial Ethernet deployments.
- Residential networking projects.
DAHUA DH-PFM922-6UN 305m Outdoor CAT6 U/UTP Cable Connectivity and Compatibility
- Compatible with CAT6 Ethernet networks.
- Supports PoE IP cameras and network devices.
- Works with routers, switches, NVRs, and computers.
- Compatible with RJ45 CAT6 connectors.
- Suitable for Gigabit Ethernet applications.
- Supports structured cabling systems.
DAHUA DH-PFM922-6UN 305m Outdoor CAT6 U/UTP Cable Pros and Cons
| Pros | Cons |
|---|---|
| Outdoor weather-resistant MDPE jacket | CCA conductor instead of pure copper |
| 305-meter cable length | Not shielded (U/UTP) |
| Supports Power over Ethernet | |
| CAT6 high-speed performance | |
| RoHS compliant materials | |
| 10-year manufacturer warranty |
FAQs
1. What is the length of the DAHUA DH-PFM922-6UN cable?
The cable comes in a 305-meter (1000 ft) box, making it suitable for large networking and CCTV installations.
2. Is this cable suitable for outdoor installations?
Yes. It features a weather-resistant MDPE outer sheath designed to withstand outdoor environments.
3. Does the cable support Power over Ethernet (PoE)?
Yes. The CAT6 cable is designed to support Power over Ethernet (PoE) for compatible devices such as IP cameras and wireless access points.
4. What type of conductor does the cable use?
The cable uses 23AWG Copper Clad Aluminum (CCA) conductors with a 0.57 mm conductor diameter.
5. Is the cable environmentally friendly?
Yes. It is manufactured using RoHS-compliant materials, reducing environmental impact while maintaining reliable performance.
6. Is the DAHUA DH-PFM922-6UN 305m Outdoor CAT6 U/UTP Cable worth buying?
Yes. With its 305-meter length, outdoor-rated MDPE sheath, PoE compatibility, CAT6 performance, and 10-year warranty, it is an excellent choice for professional CCTV and network installations. At KSh 8,500, it offers excellent value for large-scale networking projects.
Conclusion
The DAHUA DH-PFM922-6UN 305m Outdoor CAT6 U/UTP Cable is a dependable networking solution for surveillance and Ethernet installations. Its CAT6 performance, 305-meter length, weather-resistant outdoor jacket, PoE support, and durable construction make it ideal for residential, commercial, and industrial networking. At KSh 8,500, it delivers reliable performance and excellent long-term value.
