Dahua DH-PFM920-6UN-305m Outdoor U/UTP CAT6 Network Cable
-
Model – Dahua DH‑PFM920‑6UN
-
Cable type – CAT6 U/UTP (Unshielded Twisted Pair)
-
Length – 305 m (1000 ft) pull‑box
-
Conductor – Solid bare copper, 23 AWG
-
Bandwidth – Up to 250 MHz
-
Transmission – Supports 10/100/1000 Mbps Ethernet
-
PoE support – IEEE 802.3af/at compliant, suitable for powering IP cameras and NVRs
-
Jacket – UV‑resistant outdoor PVC jacket for durability
-
Standards – ANSI/TIA‑568‑C.2, ISO/IEC 11801 compliant
-
Operating conditions – –20 °C to +75 °C, humidity ≤95%
-
Packaging – Easy‑pull box for smooth installation
Dahua DH-PFM920-6UN-305m Outdoor U/UTP CAT6 Network Cable
The DAHUA DH-PFM920-6UN 305m Outdoor U/UTP CAT6 Network Cable is a premium outdoor Ethernet cable designed for professional networking and surveillance installations. With a 305-meter (1000 ft) cable length, high-purity oxygen-free copper (OFC) conductors, and a weather-resistant PE outer sheath, it delivers reliable Gigabit network performance while supporting Power over Ethernet (PoE) for IP cameras, wireless access points, switches, and other Ethernet devices.
Built for demanding outdoor environments, the cable offers excellent signal integrity, waterproof protection, and a 10-year manufacturer warranty, making it ideal for residential, commercial, and industrial network deployments.
DAHUA DH-PFM920-6UN 305m Outdoor U/UTP CAT6 Network Cable Price in Kenya
| Product | Price |
|---|---|
| DAHUA DH-PFM920-6UN 305m Outdoor U/UTP CAT6 Network Cable | KSh 16,000 |
DAHUA DH-PFM920-6UN 305m Outdoor U/UTP CAT6 Network Cable Key Specifications
| Specification | Details |
|---|---|
| Product Type | Outdoor U/UTP CAT6 Network Cable |
| Model | DH-PFM920-6UN |
| Cable Length | 305 m (1000 ft) |
| Cable Category | CAT6 U/UTP |
| Conductor Material | High-Purity Oxygen-Free Copper (99.97%) |
| Conductor Size | 24 AWG |
| Sheath Material | PE (Polyethylene) |
| Sheath Color | Black |
| Characteristic Impedance | 100 Ω ± 15 Ω |
| PoE Support | Yes |
DAHUA DH-PFM920-6UN 305m Outdoor U/UTP CAT6 Network Cable Design & Build
- Outdoor-rated black PE sheath.
- High-purity oxygen-free copper conductors.

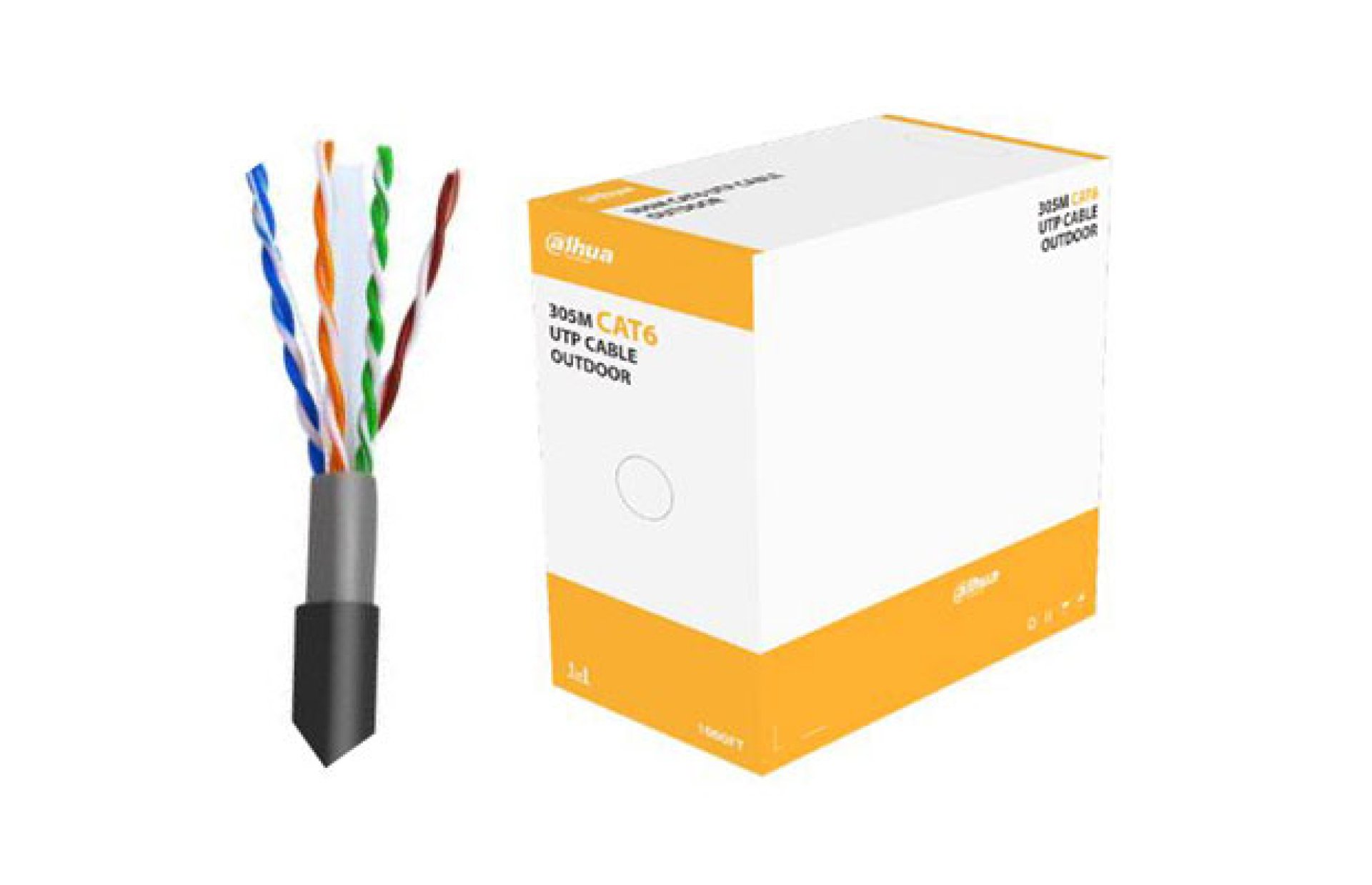

- Four twisted-pair U/UTP cable construction.
- Waterproof outer jacket for outdoor installations.
- Flexible design for easy cable routing.
- RoHS-compliant environmentally friendly materials.
DAHUA DH-PFM920-6UN 305m Outdoor U/UTP CAT6 Network Cable Features and Performance
- Supports Gigabit Ethernet networking.
- Compatible with Power over Ethernet (PoE).
- Reliable data transmission for runs up to 100 meters per Ethernet segment.
- Excellent signal quality with reduced attenuation.
- Suitable for demanding outdoor surveillance and networking applications.
- Backed by a 10-year manufacturer warranty.
DAHUA DH-PFM920-6UN 305m Outdoor U/UTP CAT6 Network Cable Ideal Use Cases
- IP CCTV surveillance systems.
- Outdoor LAN installations.
- Office and enterprise networking.
- Wireless access point deployment.
- Industrial networking.
- Residential structured cabling.
DAHUA DH-PFM920-6UN 305m Outdoor U/UTP CAT6 Network Cable Connectivity and Compatibility
- Compatible with CAT6 Ethernet networks.
- Supports PoE IP cameras and network devices.
- Works with routers, switches, NVRs, computers, and access points.
- Compatible with standard RJ45 CAT6 connectors.
- Supports Gigabit Ethernet applications.
- Suitable for structured cabling systems.
DAHUA DH-PFM920-6UN 305m Outdoor U/UTP CAT6 Network Cable Pros and Cons
| Pros | Cons |
|---|---|
| High-purity oxygen-free copper conductors | Not shielded (U/UTP) |
| Outdoor weather-resistant PE sheath | Higher cost than CCA cables |
| Supports Power over Ethernet | |
| 305-meter cable length | |
| RoHS-compliant materials | |
| 10-year manufacturer warranty |
FAQs
1. What is the length of the DAHUA DH-PFM920-6UN cable?
The cable comes in a 305-meter (1000 ft) box, making it ideal for large networking and surveillance installations.
2. Is this cable suitable for outdoor use?
Yes. It features a durable PE outer sheath that provides protection against outdoor weather conditions and moisture.
3. Does the cable support Power over Ethernet (PoE)?
Yes. The cable supports Power over Ethernet (PoE), making it suitable for IP cameras, wireless access points, and other PoE-enabled devices.
4. What type of conductor does the cable use?
The cable uses 99.97% high-purity oxygen-free copper (OFC) conductors, providing better conductivity and signal performance than CCA cables.
5. Is the cable environmentally friendly?
Yes. It is manufactured using RoHS-compliant materials, making it environmentally friendly while maintaining high performance.
6. Is the DAHUA DH-PFM920-6UN 305m Outdoor U/UTP CAT6 Network Cable worth buying?
Yes. With its oxygen-free copper conductors, 305-meter length, outdoor-rated PE sheath, PoE compatibility, and 10-year warranty, it is an excellent choice for professional networking and CCTV installations. At KSh 16,000, it offers outstanding reliability and long-term value.
Conclusion
The DAHUA DH-PFM920-6UN 305m Outdoor U/UTP CAT6 Network Cable is a high-performance networking solution designed for outdoor Ethernet and surveillance applications. Its oxygen-free copper conductors, CAT6 performance, weather-resistant PE jacket, PoE support, and 305-meter cable length make it an ideal choice for reliable residential, commercial, and industrial installations. At KSh 16,000, it provides exceptional durability and networking performance.
