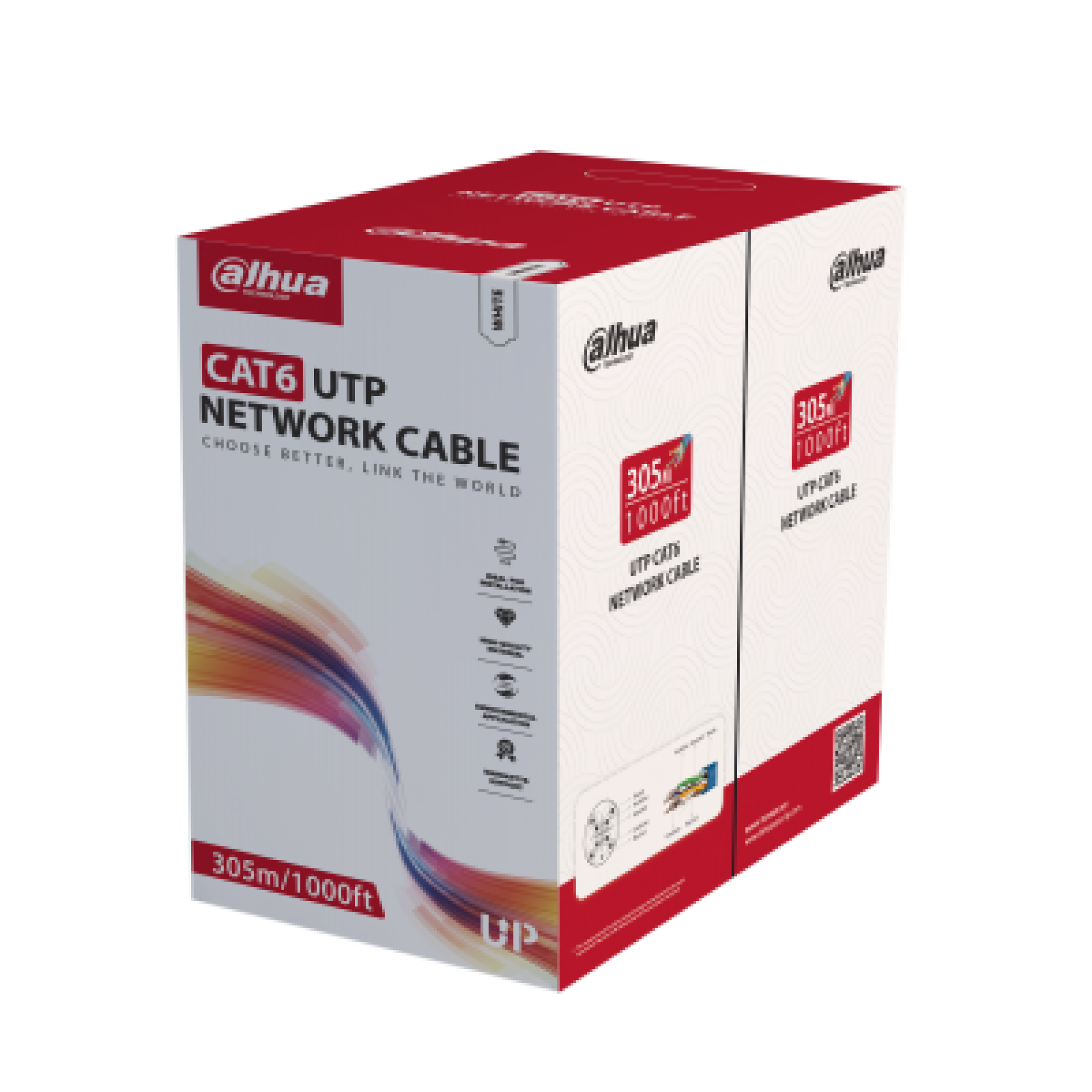

Dahua DH-PFM920-6U 305m Outdoor CAT6 U/UTP cable
-
Model – Dahua DH‑PFM920‑6U
-
Cable type – CAT6 U/UTP (Unshielded Twisted Pair)
-
Length – 305 m (1000 ft) pull‑box
-
Conductor – Solid bare copper, 23 AWG
-
Bandwidth – Up to 250 MHz
-
Transmission – Supports 10/100/1000 Mbps Ethernet
-
PoE support – IEEE 802.3af/at compliant, suitable for powering IP cameras and NVRs
-
Jacket – UV‑resistant outdoor PVC jacket for durability
-
Standards – ANSI/TIA‑568‑C.2, ISO/IEC 11801 compliant
-
Operating conditions – –20 °C to +75 °C, humidity ≤95%
-
Packaging – Easy‑pull box for smooth installation
Dahua DH-PFM920-6U 305m Outdoor CAT6 U/UTP cable
The DAHUA DH-PFM920-6U 305m Outdoor CAT6 U/UTP Cable is a professional-grade network cable designed for outdoor Ethernet and surveillance installations. It features a 305-meter (1000 ft) cable length, 99.97% oxygen-free copper (OFC) conductors, and a durable MDPE weather-resistant outer sheath, ensuring reliable Gigabit data transmission and excellent Power over Ethernet (PoE) performance.
Built for IP surveillance, enterprise networking, and structured cabling systems, the cable complies with ANSI/TIA 568.2-D standards and is backed by a 10-year manufacturer warranty, making it an excellent choice for long-term outdoor deployments.
DAHUA DH-PFM920-6U 305m Outdoor CAT6 U/UTP Cable Price in Kenya
| Product | Price |
|---|---|
| DAHUA DH-PFM920-6U 305m Outdoor CAT6 U/UTP Cable | KSh 19,000 |
DAHUA DH-PFM920-6U 305m Outdoor CAT6 U/UTP Cable Key Specifications
| Specification | Details |
|---|---|
| Product Type | Outdoor U/UTP CAT6 Network Cable |
| Model | DH-PFM920-6U |
| Cable Length | 305 m (1000 ft) |
| Cable Category | CAT6 U/UTP |
| Conductor Material | 99.97% Oxygen-Free Copper |
| Conductor Size | 23 AWG |
| Outer Sheath | MDPE (Black) |
| Characteristic Impedance | 100 Ω ± 15 Ω |
| PoE Support | Yes |
| Warranty | 10 Years |
DAHUA DH-PFM920-6U 305m Outdoor CAT6 U/UTP Cable Design & Build
- Durable black MDPE outdoor sheath.
- High-purity oxygen-free copper conductors.
- Four twisted-pair U/UTP cable construction.
- Waterproof and UV-resistant outer jacket.
- Flexible cable for easy installation.
- RoHS-compliant environmentally friendly materials.
DAHUA DH-PFM920-6U 305m Outdoor CAT6 U/UTP Cable Features and Performance
- Supports Gigabit Ethernet networking.
- Compatible with Power over Ethernet (PoE).
- Reliable transmission for Ethernet runs up to 100 meters.
- Excellent signal integrity with low attenuation.
- Suitable for demanding outdoor surveillance installations.
- Meets ANSI/TIA 568.2-D cabling standards.
DAHUA DH-PFM920-6U 305m Outdoor CAT6 U/UTP Cable Ideal Use Cases
- IP CCTV surveillance systems.
- Outdoor network installations.
- Enterprise and office networking.
- Wireless access point deployments.
- Industrial Ethernet applications.
- Residential structured cabling.
DAHUA DH-PFM920-6U 305m Outdoor CAT6 U/UTP Cable Connectivity and Compatibility
- Compatible with CAT6 Ethernet networks.
- Supports PoE IP cameras and network devices.
- Works with routers, switches, NVRs, wireless access points, and computers.
- Compatible with standard RJ45 CAT6 connectors.
- Supports Gigabit Ethernet applications.
- Suitable for structured cabling systems.
DAHUA DH-PFM920-6U 305m Outdoor CAT6 U/UTP Cable Pros and Cons
| Pros | Cons |
|---|---|
| 99.97% oxygen-free copper conductors | Not shielded (U/UTP) |
| Weather-resistant MDPE sheath | Premium price compared to CCA cables |
| Supports Power over Ethernet | |
| 305-meter cable length | |
| ANSI/TIA 568.2-D compliant | |
| 10-year manufacturer warranty |
FAQs
1. What is the length of the DAHUA DH-PFM920-6U cable?
The cable comes in a 305-meter (1000 ft) box, making it ideal for professional CCTV and networking installations.
2. Is this cable suitable for outdoor installations?
Yes. It features a weather-resistant MDPE outer sheath that provides protection against moisture and harsh outdoor conditions.
3. Does the cable support Power over Ethernet (PoE)?
Yes. The cable fully supports Power over Ethernet (PoE) for compatible IP cameras, wireless access points, and other PoE-enabled devices.
4. What type of conductor does the cable use?
The cable uses 99.97% oxygen-free copper (OFC) conductors with a 23 AWG wire size for excellent conductivity and signal performance.
5. Is the cable environmentally friendly?
Yes. It is manufactured using RoHS-compliant materials, making it environmentally friendly while maintaining high performance.
6. Is the DAHUA DH-PFM920-6U 305m Outdoor CAT6 U/UTP Cable worth buying?
Yes. With its 99.97% oxygen-free copper conductors, 305-meter length, weather-resistant MDPE jacket, PoE support, ANSI/TIA 568.2-D compliance, and 10-year warranty, it is an excellent choice for professional outdoor networking and CCTV installations. At KSh 19,000, it offers outstanding long-term reliability and performance.
Conclusion
The DAHUA DH-PFM920-6U 305m Outdoor CAT6 U/UTP Cable is a premium networking solution for outdoor Ethernet and surveillance applications. Its oxygen-free copper conductors, 305-meter cable length, MDPE weather-resistant sheath, PoE compatibility, and Gigabit networking performance make it ideal for residential, commercial, and industrial installations. At KSh 19,000, it delivers exceptional durability, reliability, and long-term value.
