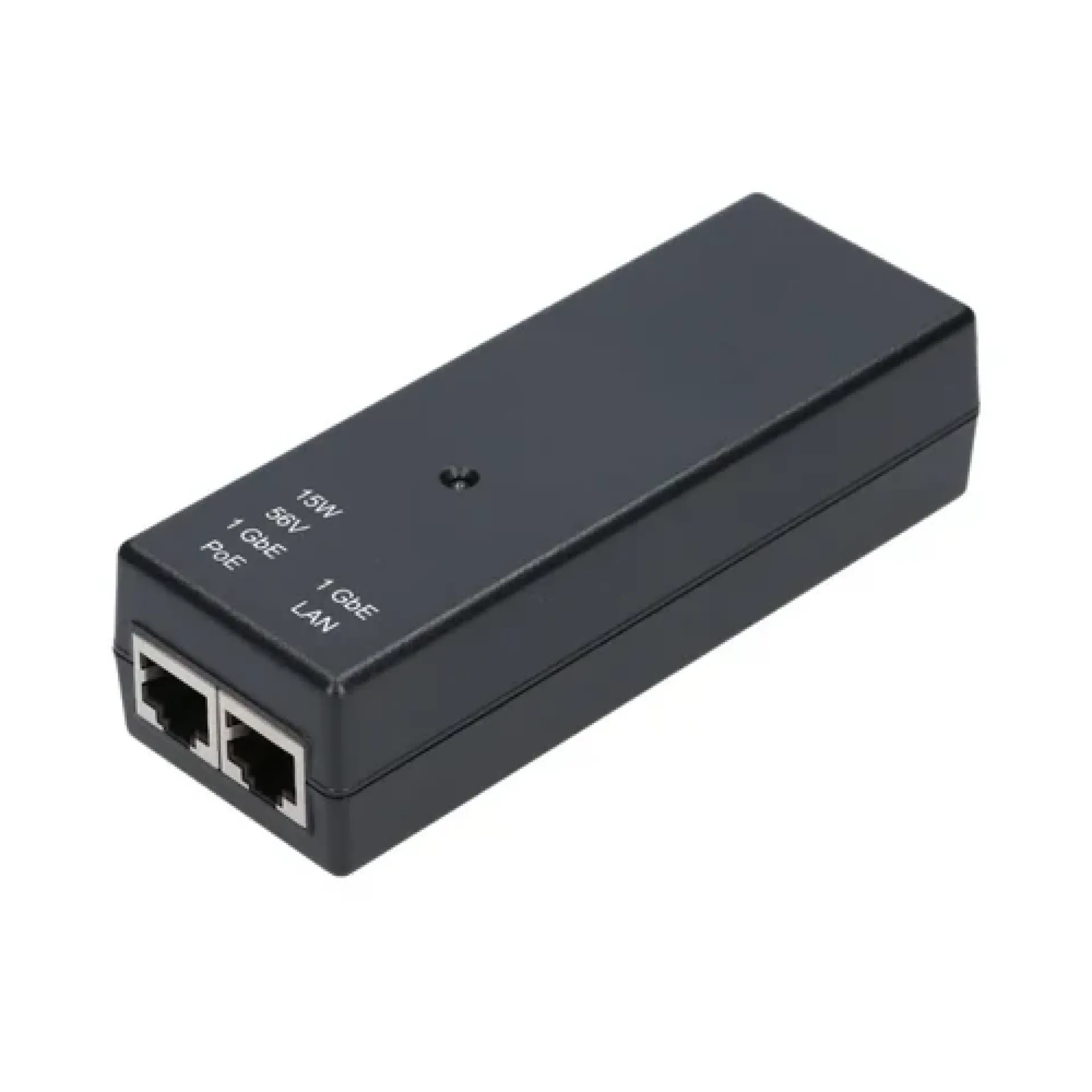

Cambium PoE N000900L017B 1Gbps 56VDC 15W Key Features
- Gigabit Ethernet connectivity
- 56VDC power output
- 15W power capacity
- Designed for Cambium wireless networking equipment
- Delivers power and data over a single Ethernet cable
- Compact and easy-to-install design
- High energy efficiency
- Built-in ESD and surge protection
- Wide 90–264VAC input voltage range
- Suitable for compatible PoE access points and radios
- Designed for reliable enterprise network deployments
Cambium PoE N000900L017B 1Gbps 56VDC 15W Introduction
The Cambium PoE N000900L017B is a compact Power over Ethernet injector designed to provide both power and network data to compatible Cambium networking equipment through a single Ethernet connection. It delivers 56VDC at up to 15W while supporting Gigabit Ethernet connectivity.
The injector is particularly useful for Cambium access points, wireless radios and other compatible PoE devices where a dedicated power connection at the equipment location is not available. Cambium's documentation describes the unit as a 56V 15W PoE power injector designed for reliable power and data delivery.
Cambium PoE N000900L017B 1Gbps 56VDC 15W Price in Kenya
| Product | Price |
|---|---|
| Cambium PoE N000900L017B 1Gbps 56VDC 15W | KSh 4,500 |
Cambium PoE N000900L017B 1Gbps 56VDC 15W Key Specifications
| Specification | Details |
|---|---|
| Brand | Cambium Networks |
| Model | N000900L017B |
| Product Type | PoE Power Injector |
| Ethernet Speed | Gigabit Ethernet |
| Output Voltage | 56VDC ±5% |
| Output Power | 15W |
| AC Input Voltage | 90–264VAC |
| AC Frequency | 47–63Hz |
| Ethernet Ports | Data Input and PoE Output |
| Efficiency | Energy Level VI |
| ESD Protection | 6kV contact / 8kV air |
| Surge Protection | 4kV common / 2kV differential |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -25°C to 70°C |
| Operating Humidity | 10–90% non-condensing |
| Dimensions | 86 × 47.4 × 30mm |
| Case Color | Black |
| Price in Kenya | KSh 4,500 |
The technical specifications are based on Cambium's product datasheet and supporting Kenyan product listings.
Cambium PoE N000900L017B 1Gbps 56VDC 15W Performance
- Provides up to 1Gbps Ethernet connectivity for compatible network devices.
- Delivers 56VDC power at up to 15W.
- Combines power and network data through Ethernet to simplify installations.
- Supports a wide AC input range of 90–264VAC.
- High energy efficiency helps reduce unnecessary power consumption.
- Built-in electrical protection helps protect connected equipment from electrical disturbances.
- Suitable for powering compatible Cambium wireless access points and radios.
Cambium PoE N000900L017B 1Gbps 56VDC 15W Design
- Compact black enclosure makes the injector easy to position near networking equipment.
- Measures approximately 86 × 47.4 × 30mm.
- Designed for simple plug-and-play deployment.
- Includes LED indication for power output status.
- Separate Ethernet data input and PoE output simplify network installation.
- Its compact design makes it suitable for installations where space is limited.
Cambium PoE N000900L017B 1Gbps 56VDC 15W Compatibility
- Designed primarily for compatible Cambium Networks equipment.
- Suitable for Cambium wireless access points and radios requiring 56VDC PoE.
- Supports compatible IEEE 802.3af equipment where the required voltage and power specifications match.
- The injector should only be connected to equipment that specifically supports its 56VDC passive PoE output.
Cambium PoE N000900L017B 1Gbps 56VDC 15W Applications
- Wireless access point installations
- Cambium outdoor wireless radios
- Enterprise Wi-Fi deployments
- Point-to-point wireless links
- Point-to-multipoint wireless networks
- ISP networking installations
- Campus networks
- Business network infrastructure
- Professional wireless deployments
Cambium PoE N000900L017B 1Gbps 56VDC 15W Pros and Cons
| Pros | Cons |
|---|---|
| Gigabit Ethernet support | Limited to 15W power output |
| 56VDC output | Not suitable for devices requiring different PoE voltages |
| Compact design | Intended primarily for compatible equipment |
| Wide AC input range | Requires careful compatibility checking |
| Built-in surge and ESD protection | Not a multi-port PoE switch |
| High energy efficiency | — |
| Suitable for Cambium wireless equipment | — |
Cambium PoE N000900L017B 1Gbps 56VDC 15W FAQs
What is the Cambium N000900L017B?
It is a 56VDC 15W PoE power injector designed to provide both network data and electrical power to compatible Cambium networking equipment.
What voltage does the Cambium N000900L017B provide?
It provides 56VDC ±5% output.
How much power does the Cambium N000900L017B provide?
The injector provides up to 15W of output power.
Does the Cambium N000900L017B support Gigabit Ethernet?
Yes. It supports Gigabit Ethernet connectivity for compatible network devices.
What is the input voltage of the Cambium N000900L017B?
It accepts an AC input range of 90–264VAC, with an operating frequency of 47–63Hz.
Is the Cambium N000900L017B suitable for Cambium access points?
Yes. It is designed for use with compatible Cambium wireless equipment that requires 56VDC PoE. Some Kenyan listings specifically identify it for Cambium cnPilot equipment.
How much is the Cambium PoE N000900L017B in Kenya?
The price provided for this product is KSh 4,500.
Cambium PoE N000900L017B 1Gbps 56VDC 15W Conclusion
The Cambium PoE N000900L017B is a compact and efficient solution for powering compatible Cambium wireless networking equipment. With Gigabit Ethernet support, 56VDC output and 15W power delivery, it simplifies installations by carrying both power and data over an Ethernet connection.
At KSh 4,500, it is a practical accessory for compatible Cambium access points, radios and other network equipment requiring 56VDC PoE power.
